M. P. Möller Opus 7384 (1947)

Quaggapoort Dutch Reformed Church
Pretoria, ZA

Images

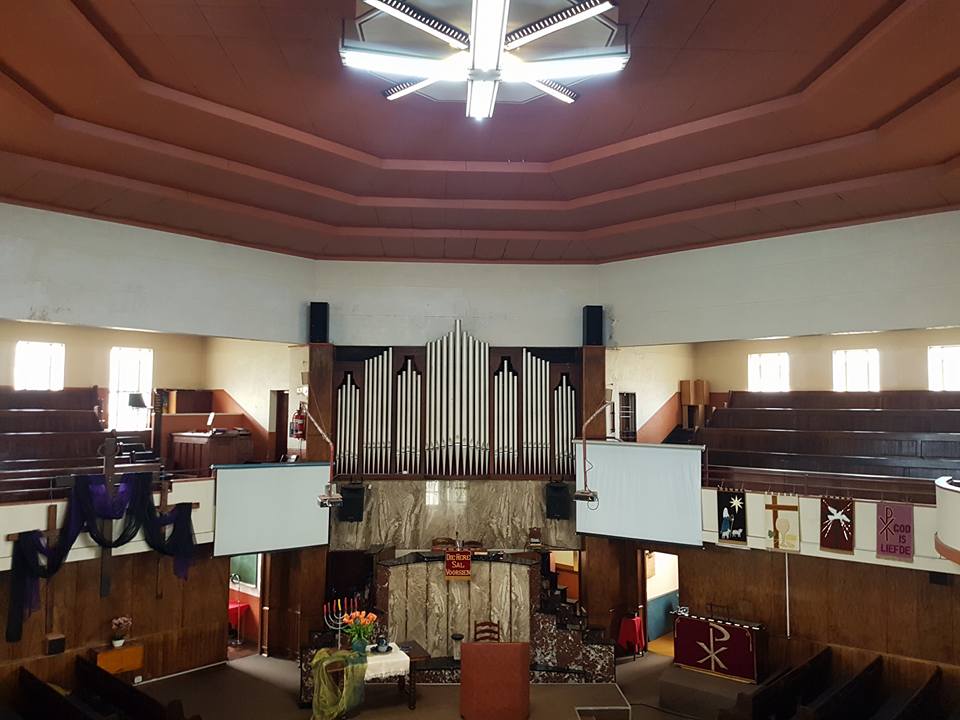

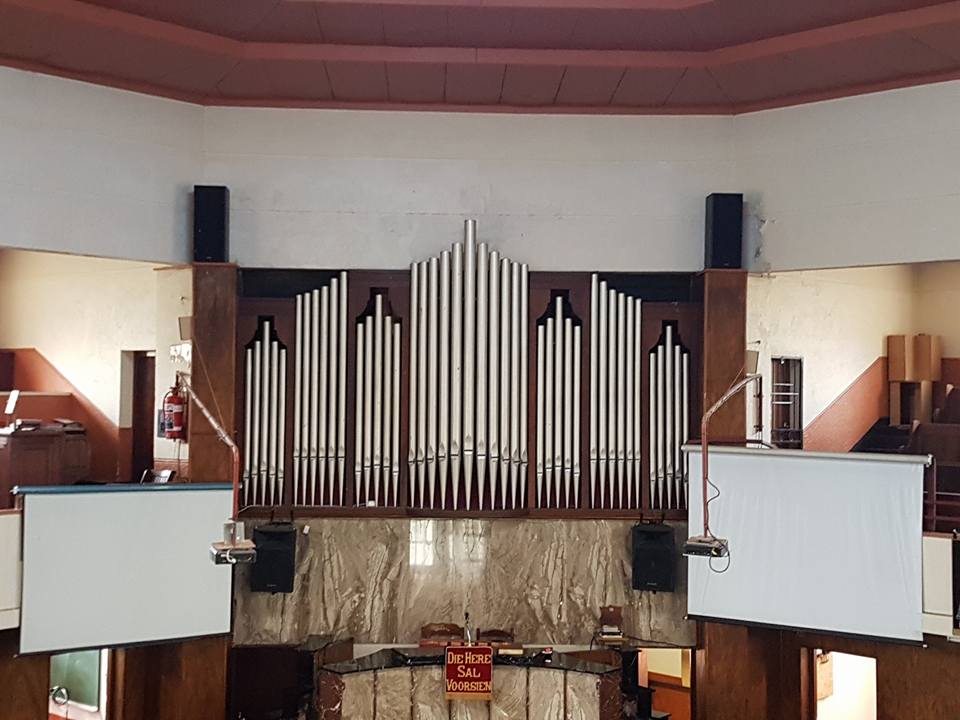

2017-04-16 - Facade (console to the left) (Elzanté Twee Klaviere https://www.facebook.com/photo?fbid=1309442005830090&set=pcb.1301576403266262/Pharny Chrysler-Fox)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
7 stops
30 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler thumb pistons

Notes

2008-03-13 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2008-04-27 - Updated through on-line information from Pharny Chrysler-Fox. -Database Manager

Stoplist

Source: Courtesy of the OHS Archives

       Pretoria, South Africa
       Quaggapoort Dutch Reformed Church

       Möller   Op. 7384   1947   2/7
       ____________________________________________

                          UNITS
A  16' Major Bass, Stopped Diapason (unenclosed) 85
B   8' Large Open Diapason          (unenclosed) 73
C  16' Flute                          (enclosed) 97
D   8' Geigen Diapason                (enclosed) 85
E   8' Gamba                          (enclosed) 73
F   8' Dulciana                       (enclosed) 73
G  16' Horn                           (enclosed) 85

       GREAT                     SWELL
C  16' Echo Bourdon          16' Contra Gamba tc  E
B   8' Large Open Diapason    8' Geigen Diapason  D
A   8' Stopped Diapason       8' Melodia          C
D   8' Geigen Diapason        8' Gamba            E
E   8' Gamba                  8' Dulciana         F
F   8' Dulciana               4' Octave Geigen    D
B   4' Principal              4' Gambette         E
A   4' Stopped Flute          4' Flute            C
F   4' Dulcet             2 2/3' Nazard           C
D   2' Fifteenth              2' Piccolo          C
                             16' Contra Fagotto   G
       PEDAL                  8' Horn             G
A  16' Major Bass             4' Clarion          G
C  16' Burdon                    Tremulant
D   8' Diapason
A   8' Bass Flute
E   8' Gamba
G  16' Contra Fagotto
G   8' Horn

      [Received from Jeff Scofield October 2, 2022]

Documents

(1946-08-08) Factory specification, courtesy of the OHS Archives Stoplist and accessories -Jeff Scofield
