Better Pipe Organ Database

M. P. Möller Opus 7390 (1947)

Dutch Reformed Church, Brixton
Johannesburg, ZA

Images

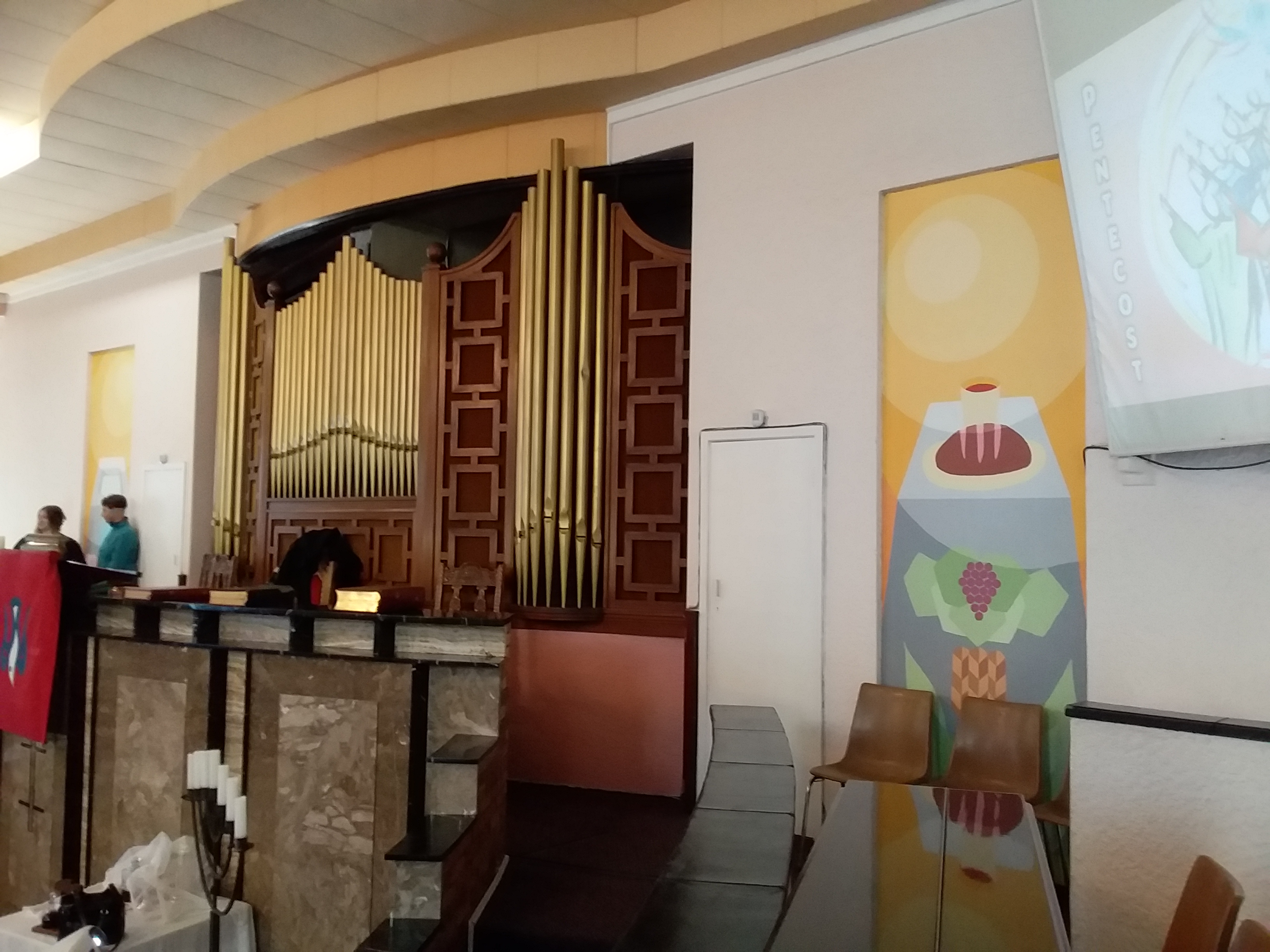

2024-05-19 - Facade (Pharny Chrysler-Fox/Pharny Chrysler-Fox)

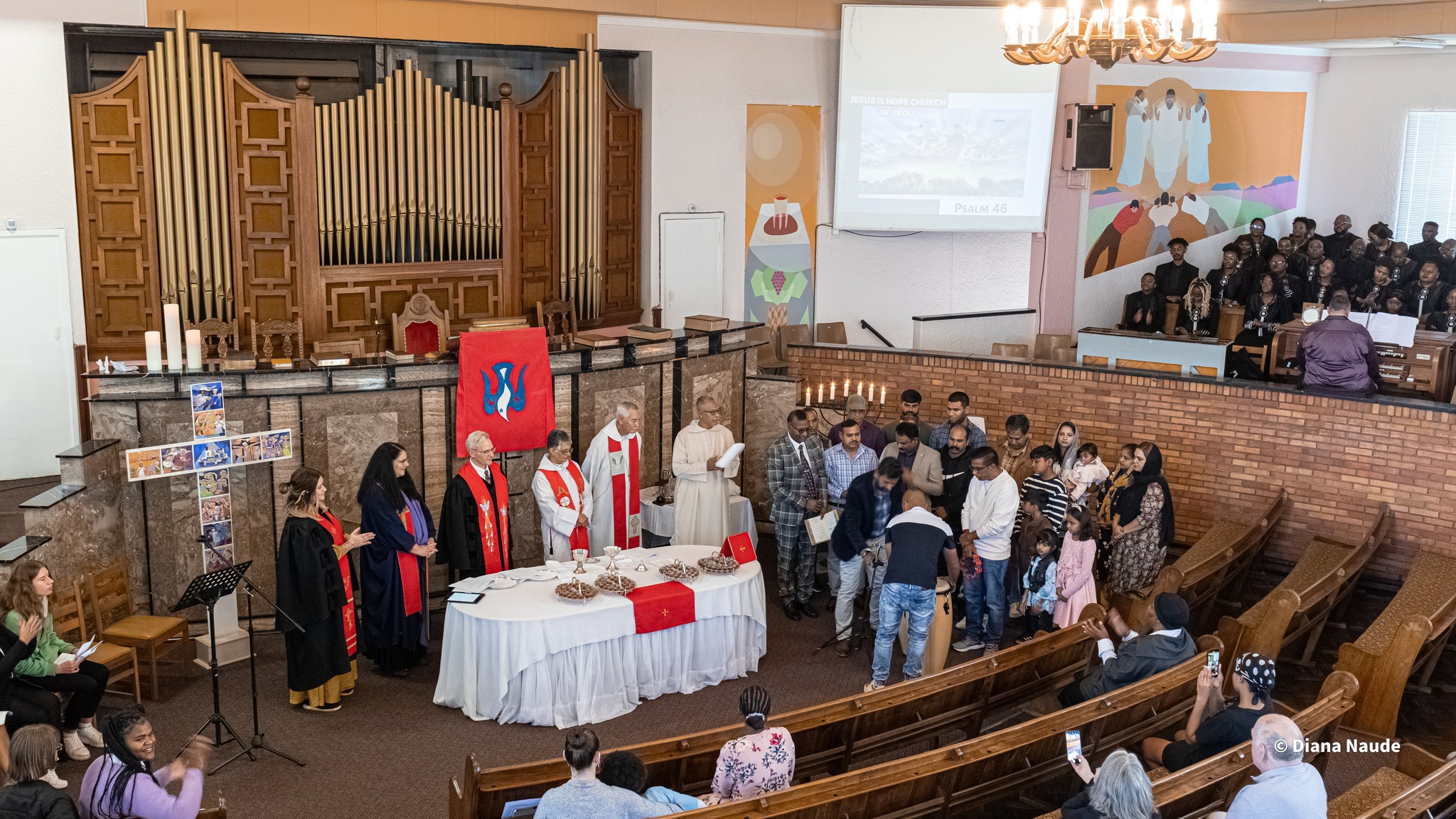

2024-05-19 - Console and Facade (Diana Naude https://www.facebook.com/photo/?fbid=848960637269102&set=pcb.848962433935589/Pharny Chrysler-Fox)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
6 stops
29 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons

Notes

2008-03-13 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

Stoplist

Source: Courtesy of the OHS Archives

    Johannesburg, South Africa
    Dutch Reformed Church, Brixton

    Möller   Op. 7390   1947   2/6
    ___________________________________________

    GREAT (*unenclosed)       SWELL
16' Bourdon         tc    16' Contra Gamba   tc
 8' Diapason Major *73     8' Geigen Diapason
 8' Geigen Diapason 85     8' Gamba
 8' Melodia         97     8' Melodia
 8' Dulciana     tc 61     8' Dulciana
 4' Principal      *       4' Octave
 4' Wald Flute             4' Wald Flute
 4' Octave Geigen          4' Gambette
 4' Dulcet             2 2/3' Nazard
 2' Fifteenth              2' Piccolo
                          16' Contra Fagotto tc
    PEDAL                  8' Horn
16' Bourdon                4' Clarion
 8' Open Diapason             Tremulant
 8' Bass Flute
 8' Viol
16' Contra Fagotto
 8' Horn

 [Received from Jeff Scofield October 3, 2022]

Documents

(1946-08-08) Factory specifications, courtesy of the OHS Archives Stoplist and accessories -Jeff Scofield
