Better Pipe Organ Database

M. P. Möller Opus 7500 (1948)

Church Of The Advent, Episcopal: Church
141 Advent St.
Spartanburg, SC

Note: Not extant. Not playable. (in this location)

Images

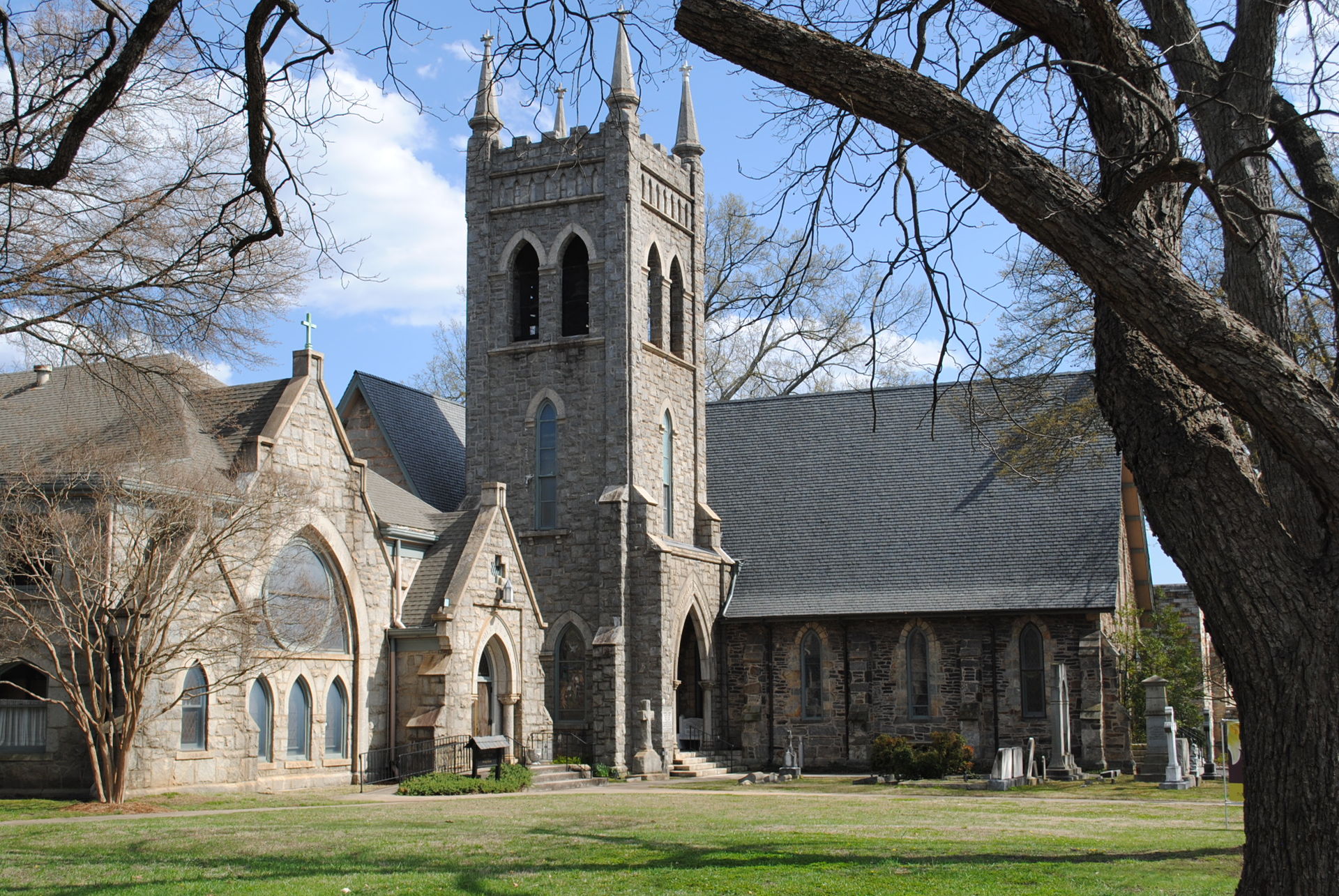

2013-04-01 - Church exterior (Photograph by Doug Gregory via Wikipedia, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
37 stops
24 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-03-22 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Spartanburg, South Carolina
       Church of the Advent, Episcopal

       Möller   Op. 7500   1947   3/27
       __________________________________________________

       Stops without pipecounts are prepared-for

       GREAT (encl w/CH)              CHOIR
    8' Diapason         61         8' Viola            73
    8' Hohlfloete       61         8' Concert Flute    73
    8' Gemshorn         61         8' Dulciana         73
    4' Octave           61         8' Unda Maris       61
    4' Flute Harmonique 61         4' Nachthorn        73
2 2/3' Octave Quint     61         4' Fugara
    2' Super Octave     61     2 2/3' Nazard           61
  III  Mixture                     2' Piccolo
       Sub                     1 3/5' Tierce
       Unison Off                  8' Clarinet         73
       Super                          Tremulant
       Chimes           25            Sub
                                      Unison Off
       ECHO-ANTIPH (Great)            Super
    8' Diapason
    8' Gedeckt                        ECHO-ANTIPH (Choir)
    8' Muted Viole                 8' Diapason
    8' Viole Celeste               8' Gedeckt
    4' Principal                   8' Muted Viole
    4' Flute d'Amour               8' Viole Celeste
    8' Vox Humana                  4' Principal
       Tremulant                   4' Flute d'Amour
                                   8' Vox Humana
       SWELL                          Tremulant
   16' Rohrbourdon      73
    8' Geigen Diapason  73            PEDAL
    8' Rohrfloete       12        16' Diapason         12 GT
    8' Salicional       73        16' Bourdon          32
    8' Voix Celeste     61        16' Gemshorn         12 GT
    4' Principal        73        16' Rohrbourdon      SW
    4' Flute ⌂          73         8' Octave           32
2 2/3' Nazard                      8' Bourdon          12
    2' Flautino                    8' Gemshorn         GT
  III  Plein Jeu       183         8' Rohrfloete       SW
   16' Contra Oboe                 4' Choralbass
    8' Trumpet          73         4' Super Octave     12
    8' Oboe                        4' Flute Harmonique GT
    4' Clarion          12        16' Double Trumpet   12 SW
       Tremulant                  16' Contra Oboe
       Sub                         8' Trumpet          SW
       Unison Off                  4' Clarion          SW
       Super                          Blank
                                      Blank

   [Received online from Jeff Scofield  September 4, 2013]

Documents

Moller ad from THE DIAPASON November 1947 Console photo and Moller ad -Jeff Scofield
(1946-10-10) Factory Documentation Factory Documentation courtesy of the OHS Archive -Roman Lizak
