Better Pipe Organ Database

M. P. Möller Opus 7524 (1948)

Summerville Baptist Church
417 Central Ave.
Summerville, SC

Images

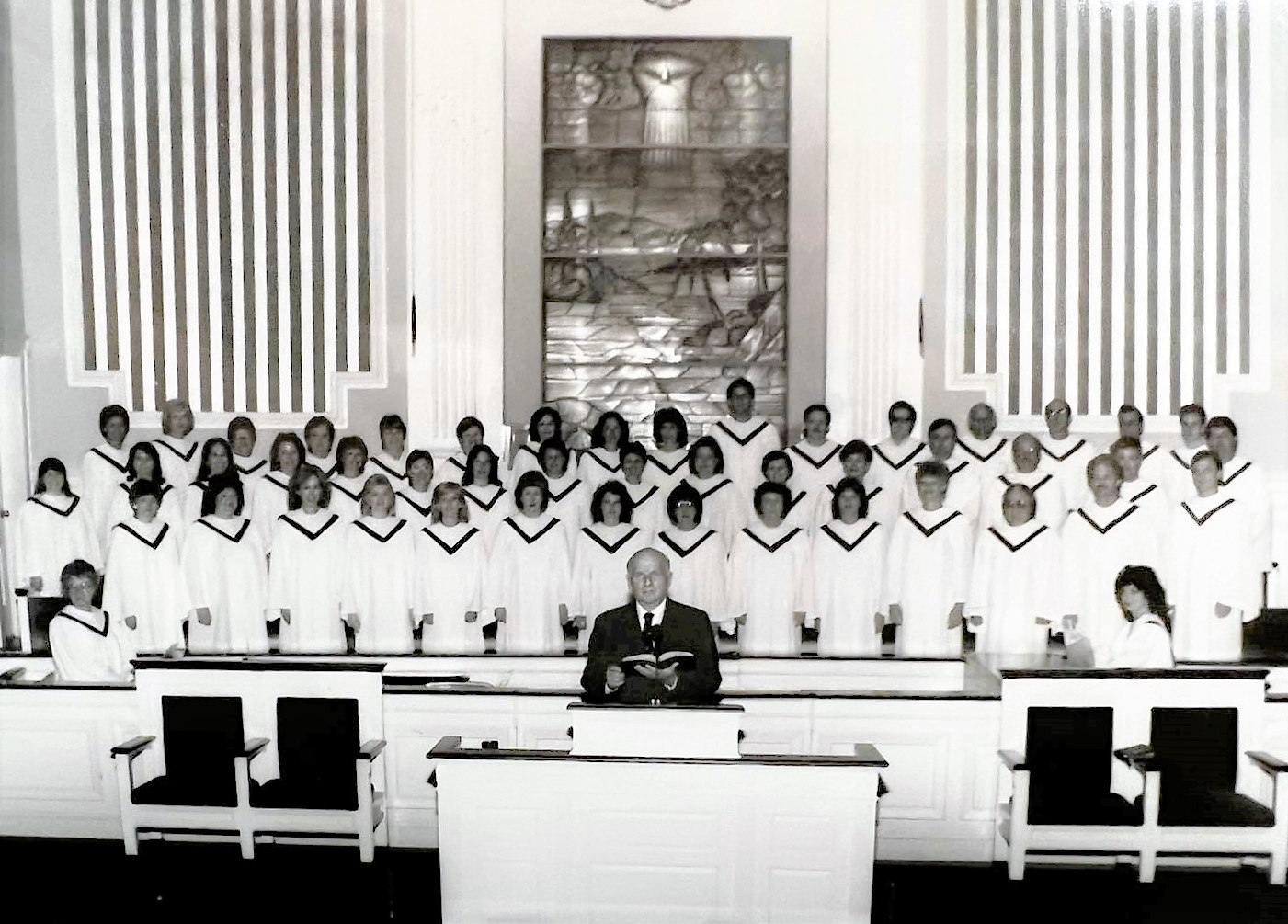

Unknown - Choir loft and organ chambers (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
5 stops
15 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons

Notes

2008-03-22 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

Stoplist

Source: Courtesy of the OHS Archives

    Summerville, South Carolina
    Summerfield Baptist Church

    Möller   Op. 7524   1948   2/5
    ______________________________________________

    GREAT                      SWELL
 8' Diapason         73    16' Lieblich Gedeckt tc
 8' Gedeckt          85     8' Gedeckt
 8' Salicional              8' Salicional
 4' Octave                  4' Flute d'Amour
 4' Flute d'Amour       2 2/3' Nazard
    Sub                     2' Flautino
    Super                   8' Oboe Horn        73
    Chimes           21        Tremolo
                               Sub
    PEDAL                      Super
16' Bourdon          32
16' Lieblich Gedeckt 12
 8' Flauto Dolce

    [Received from Jeff Scofield December 20, 2022]

Documents

(1947-05-26) Factory specifications Stoplist and accessries -Jeff Scofield
