St. John's Episcopal Cathedral
413 W. Cumberland Ave.
Knoxville, TN
Note: Not extant. Not playable. (in this location)
Images
2008-03-17 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)
2008-03-17 - Chancel, Chamber Grillework, and Pipe Facade (Photograph by Jeff Scofield/Database Manager)
2008-03-17 - Trompette en Chamade (Photograph by Jeff Scofield/Database Manager)
2008-03-17 - Antiphonal Organ Case (Photograph by Jeff Scofield/Database Manager)

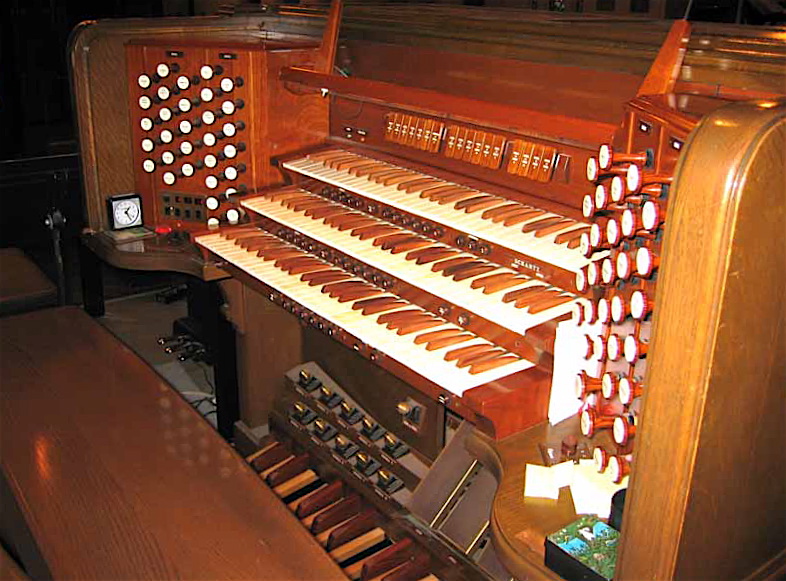

2008-03-17 - Console (Photograph by Jeff Scofield/Database Manager)
2008-03-17 - Console (Photograph by Jeff Scofield/Database Manager)
1987-09-10 - Church Exterior (Photograph by Jeff Scofield/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 49 stops
- 31 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2008-03-29 - Identified through online information from Jeff Scofield. -- Originally 30 ranks. Main organ installed in chamber in the NW corner of the nave and choir; en-chamade and its banners located on the wall of the west transept; Antiphonal located in small twin cases to each side of the large rear window; in addition to the refurbishment and tonal work, the console was rebuilt. -Database Manager
2019-02-26 - Updated by Jonathan Humber, who has heard or played the organ. <br> <br>On February 25, 2019, the antiphonal chests and en chamade were removed. Antiphonals are being incorporated into an organ in Dyersburg, TN. Festival trumpets will be incorporated into new organ, under construction at Goulding & Wood, and scheduled for installation in or around September 2019. -Database Manager
2020-11-23 - This instrument is no longer at St. John's. It was removed in late 2019 and replaced by Goulding and Wood, Opus 52 in 2020.
https://www.gouldingandwood.com/page75/styled-25/opus-52.html -James David Mason, member, OHS
Stoplist
Stoplist copied from the console March 17, 2008 Source: Source not recorded Date not recorded
Knoxville, Tennessee
St. John's Cathedral, Episcopal
Schantz Op. 2143 1957/1998 3/39
_____________________________________________________
GREAT CHOIR
16' Bourdon 12 8' Rohrflöte 61
8' Diapason 61 8' Dulciana 61
8' Bourdon 61 8' Unda Maris 49
4' Octave 61 4' Principal 61
4' Harmonic Flute 61 4' Koppelflöte 61
2' Fifteenth 61 2 2/3' Nasat 61
IV Mixture 244 2' Octave 61
8' Trumpet 61 2' Flute 12
Unison Off 1 3/5' Terz 49
Super 8' Krummhorn 61
Chimes Tremulant
8' Trompette-en-Chamade 61 Sub
Unison Off
SWELL Super
8' Hohlflöte 61 8' Trumpet GT
8' Viola da Gamba 61
8' Viola Celeste 49 PEDAL
4' Principal 61 32' Resultant --
4' Hohlflöte 12 16' Principal 32
III Plein Jeu 183 16' Brummbass 32
16' Contre Trompette 12 16' Bourdon GT
8' Trompette 61 16' Rohrflöte 12 CH
8' Vox Humana 61 8' Octave 12
4' Clairon 12 8' Bassflöte 12
Tremulant 8' Bourdon GT
Sub 8' Rohrflöte CH
Unison Off 4' Choralbass 32
Super V Cornet --
16' Double Trumpet 12 GT
ANTIPHONAL 16' Contre Trompette SW
8' Bordun 61 8' Trumpet GT
4' Principal 61 8' Trompette SW
2' Blockflöte 61 4' Clairon SW
III Mixture 183
[Received online from Jeff Scofield July 14, 2011]
