Frans W. M. Bosman (1990 ca.)

St. Mark's Episcopal / St. Mark's Anglican Cathedral: Sanctuary; front
1025 NW 21st Ave.
Portland, OR

Images

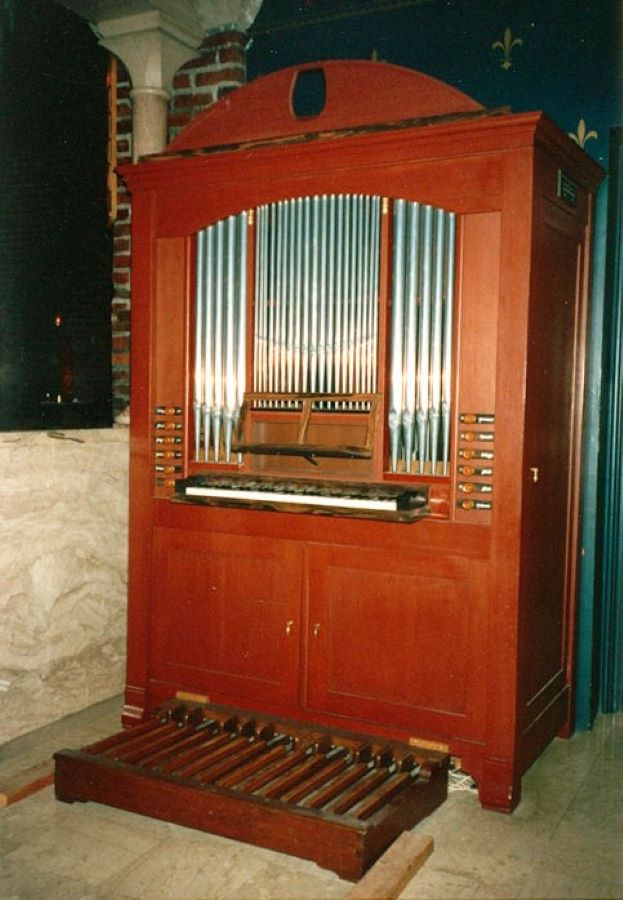

1990-01-29 - Organ Case (Photograph by James R. Stettner/Database Manager)

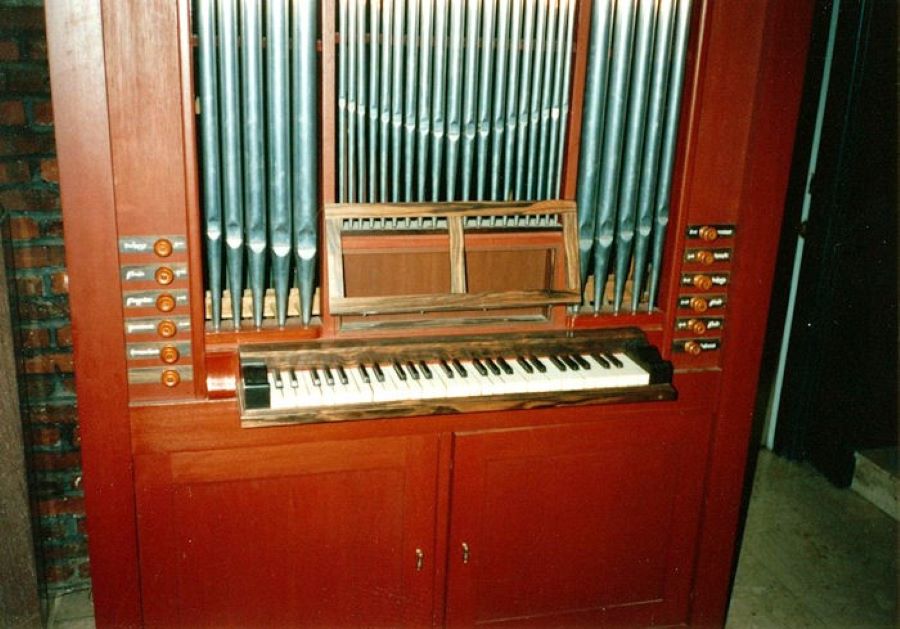

1990-01-29 - Facade and Keydesk (Photograph by James R. Stettner/Database Manager)

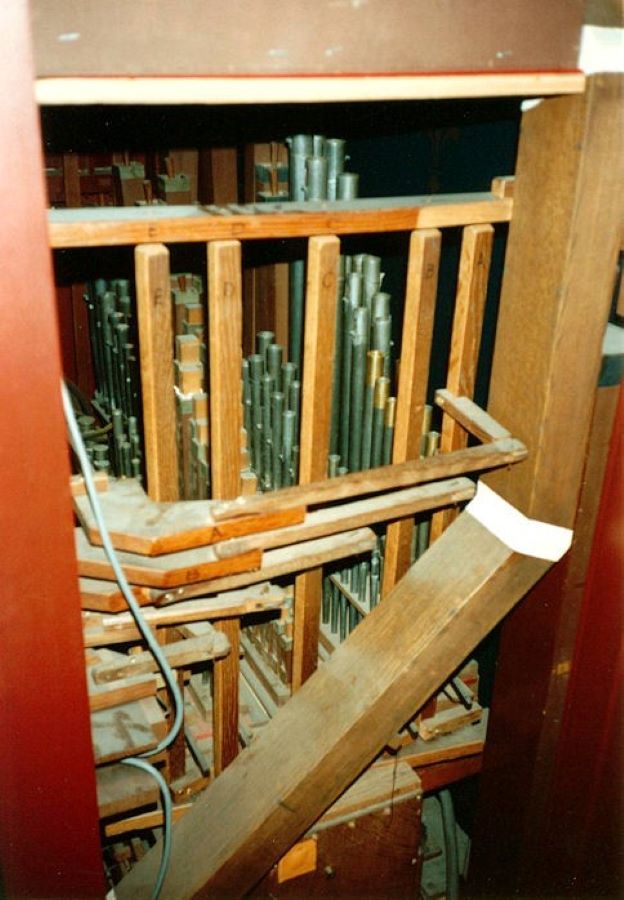

1990-01-29 - Wind Trunk, Stop Action, and Pipework (Photograph by James R. Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
1 manuals
9 stops
7 registers
1 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 54 notes
Pedal compass: 24 notes
Pedal Type: Flat Straight
Expression Type: No Enclosed Divisions
Combination action: None

Notes

2004-10-30 - Builder's Nameplate: Unknown Dutch -Database Manager

2004-10-30 - Status Note: There 1997 -Database Manager

2004-10-30 - From St. Martin's Abbey, Lacey, WA. [Previous location(s) unknown.] Church was St. Mark's Episcopal until 1992. Restored Frans Bosman, 1-17 (?). Compass 54/24. Pedal pulldowns only. -Database Manager

2007-03-08 - Updated through on-line information from James R. Stettner. -- Three-sectional façade containing 31 pipes arranged: 5-21-5. These are from the 2' Prestant. -Database Manager

2007-03-10 - Updated through on-line information from James R. Stettner. -Database Manager

Stoplist

Stoplist copied from the keydesk January 29, 1990 Source: Source not recorded Date not recorded

Portland, Oregon
St. Mark's Anglican Cathedral (was, St. Mark's Episcopal Church)

Unknown Dutch Builder, ca. 1790
Frans W.M. Bosman, 1982 - Mechanical Restoration; New Casework

MANUAL - (54 notes)

Bass                                  Treble
   8 vt  Holpyp           24             8 vt  Prestant         30
   4 vt  Fluit            24             8 vt  Holpyp           30
   2 vt  Prestant         24             4 vt  Fluit            30
   1 vt  Flageolet        24             3 vt  Nasard           30
                                         2 vt  Fluit            30
                                               Calcant  [wind]

PEDAL (24 notes)
   There are no independent pedal registers.  The manual bass notes
   are permanently coupled to the pedals.

ACTION: Tracker key and mechanical stop
VOICES: 7
STOPS: 9
RANKS: 7
PIPES: 246

NOTES
   The bass 2 vt Prestant in en façade.

 [Received on line from James R. Stettner April 19, 2009.]
