M. P. Möller Opus 7689 (1948)

Immaculate Conception Catholic Church
501 South Tenth Street
St. Joseph, MO

Note: Not extant. Not playable. (in this location)

Images

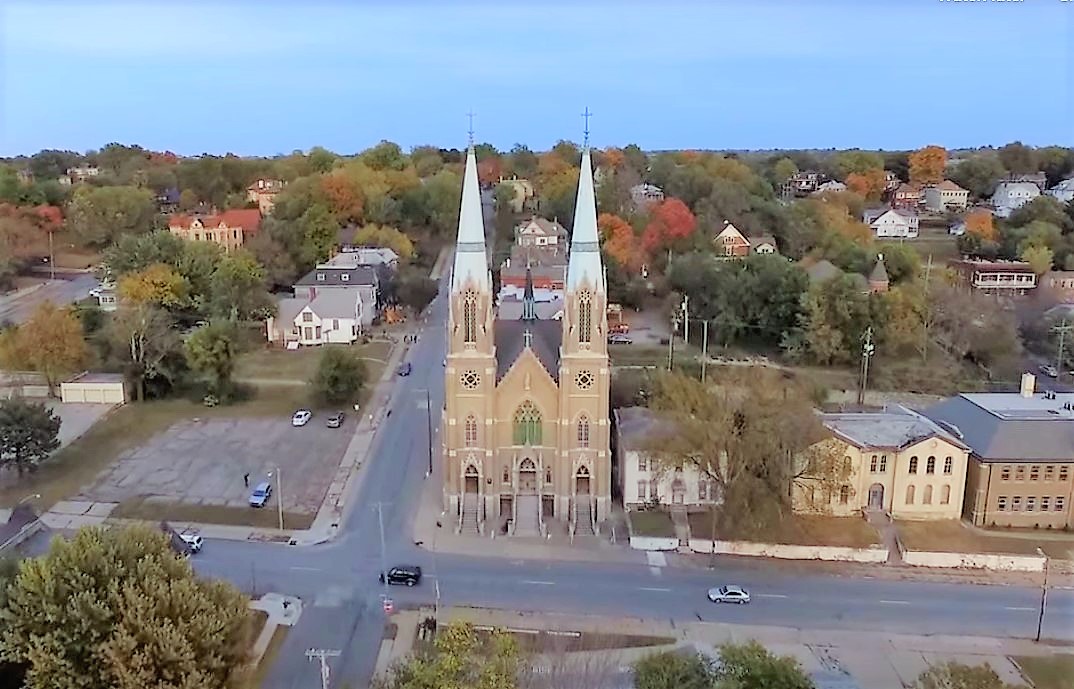

ca. 1998 - Church exterior (Photograph from an archival source: Still out-take from a video, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
8 stops
22 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons

Notes

2008-04-11 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2021-01-09 - Updated through online information from David Lewis. -- Parish closed in 1992. Diocese had the organ removed before the building was sold. -Jim Stettner

Stoplist

Source: Courtesy of the OHS Archives

       St. Joseph, Missouri
       Immaculate Conception Catholic Church

       Möller   Op. 7689   1948   2/8
       _________________________________________

       GREAT                      SWELL
    8' Diapason       73       8' Rohrgedeckt 61
    8' Melodia        73       8' Viola       73
    8' Dulciana       61       8' Dulciana    GT
    4' Octave         73       4' Rohrfloete  12
    4' Traverse Flute 12       4' Fugara      12
    4' Dulcet         12       4' Dulcet      GT
2 2/3' Dulcet 12th     7   2 2/3' Rohrnasat    7
    2' Dulcet 15th     5       2' Rohr 15th    5
       Sub                     8' Trompette   73
       Super                      Tremulant
                                  Sub
       ANTIPHONAL (prep)          Super
    8' Diapason
    8' Gedeckt                    PEDAL
    8' Salicional             16' Bourdon     32
    4' Flute Harmonic         16' Dulciana GT 12
       Tremulant               8' Bourdon     12
       Super                   8' Rohrfloete  SW
                               8' Dulciana    GT

   [Received from Jeff Scofield February 9, 2023]

Documents

(1948-07-28) Factory specifications, courtesy of the OHS Archives Stoplist and accessories -Jeff Scofield
