Better Pipe Organ Database

M. P. Möller Opus 7698 (1948)

Kanawha Lutheran Church
125 W 4th St.
Kanawha, IA

Images

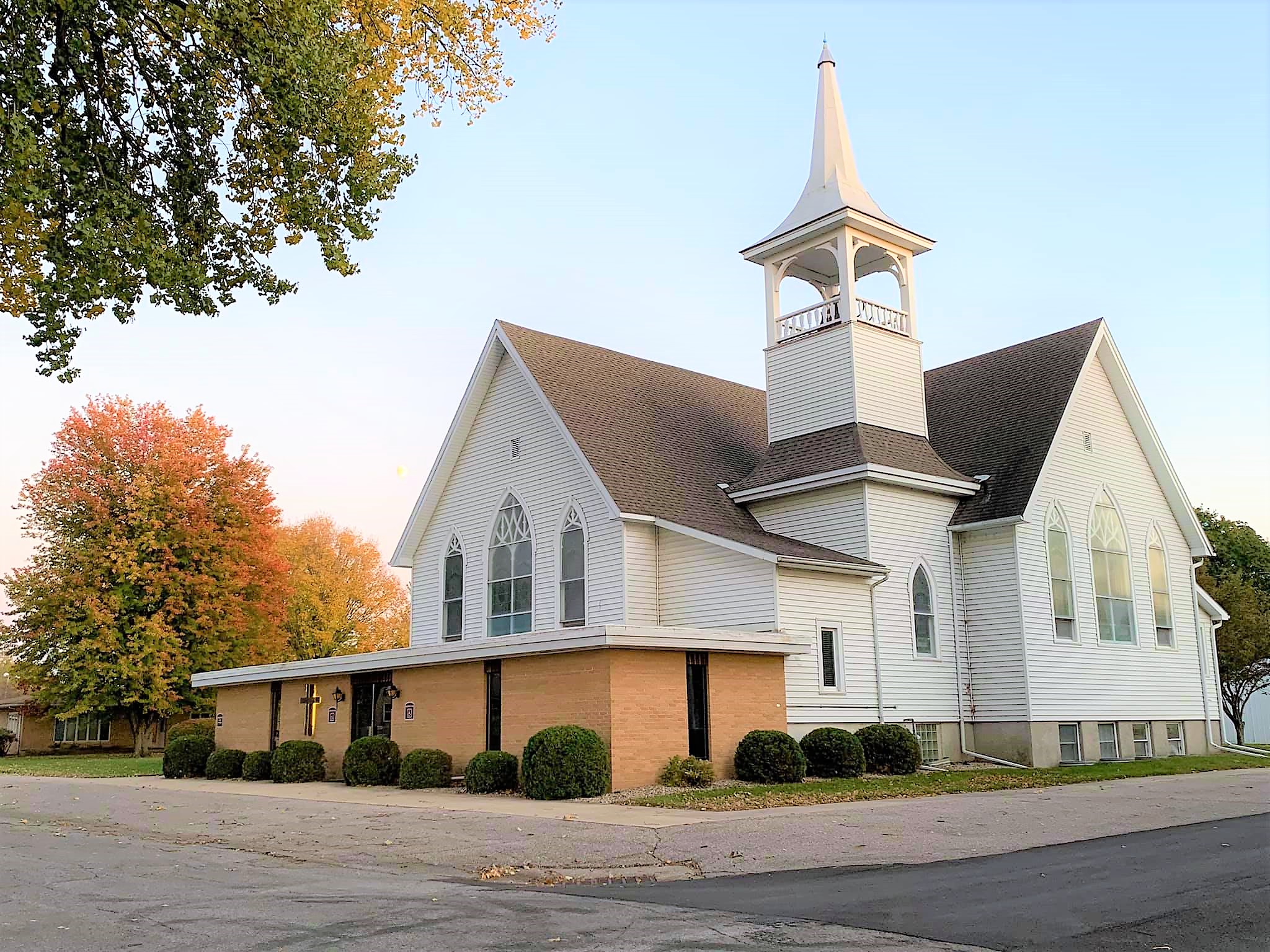

2021-10-20 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
4 stops
23 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-04-11 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

Stoplist

Source: Courtesy of the OHS Archives

       Kanawha, Iowa
       Kanawha Lutheran Church

       Möller   Op. 7698   1948   2/4
       _________________________________

       GREAT                 SWELL
    8' Diapason    73    16' Bourdon  tc
    8' Gedeckt     85     8' Gedeckt
    8' Viole Dolce 85     8' Viole Dolce
    4' Octave             4' Flute
    4' Flute              4' Fugara
    4' Fugara         2 2/3' Flute 12th
2 2/3' Viole 12th         2' Flautino
    2' Viole 15th         8' Trumpet  73
                          4' Clarion
       PEDAL                 Tremulant
   16' Contra Bass 12 GT
   16' Bourdon     12 GT
    8' Diapason
    8' Flute
    4' Octave
    4' Flute

         [Received from Jeff Scofield
              February 11, 2023]

Documents

(1947-09-05) Factory specifications Stoplist and accessories -Jeff Scofield
