St. Catherine Catholic Church
4151 Seminole St.
Detroit, MI
Images
2019-12-26 - Toe pistons and expression pedals (Photograph by Covenant Organs, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

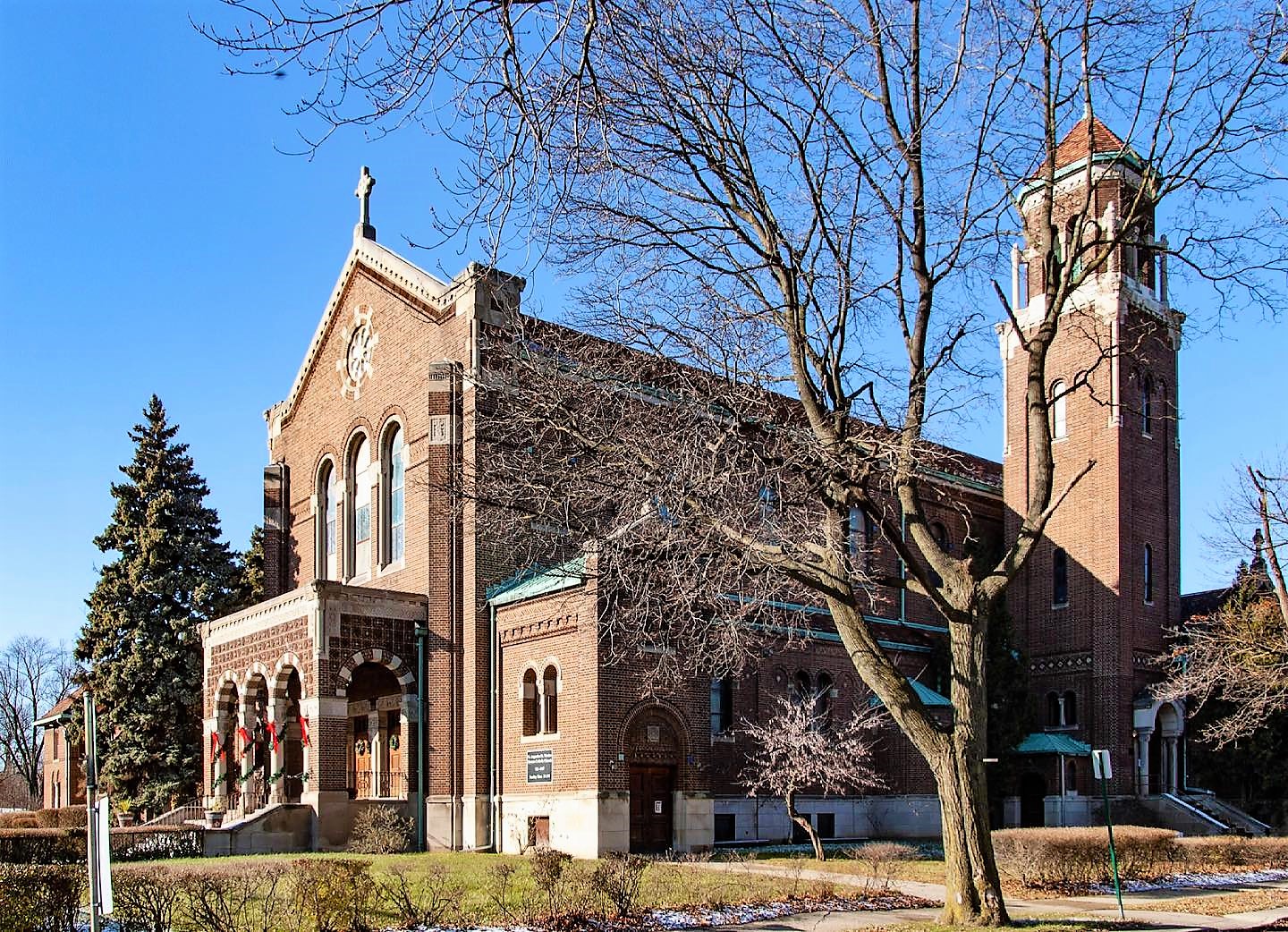

2021-03-28 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

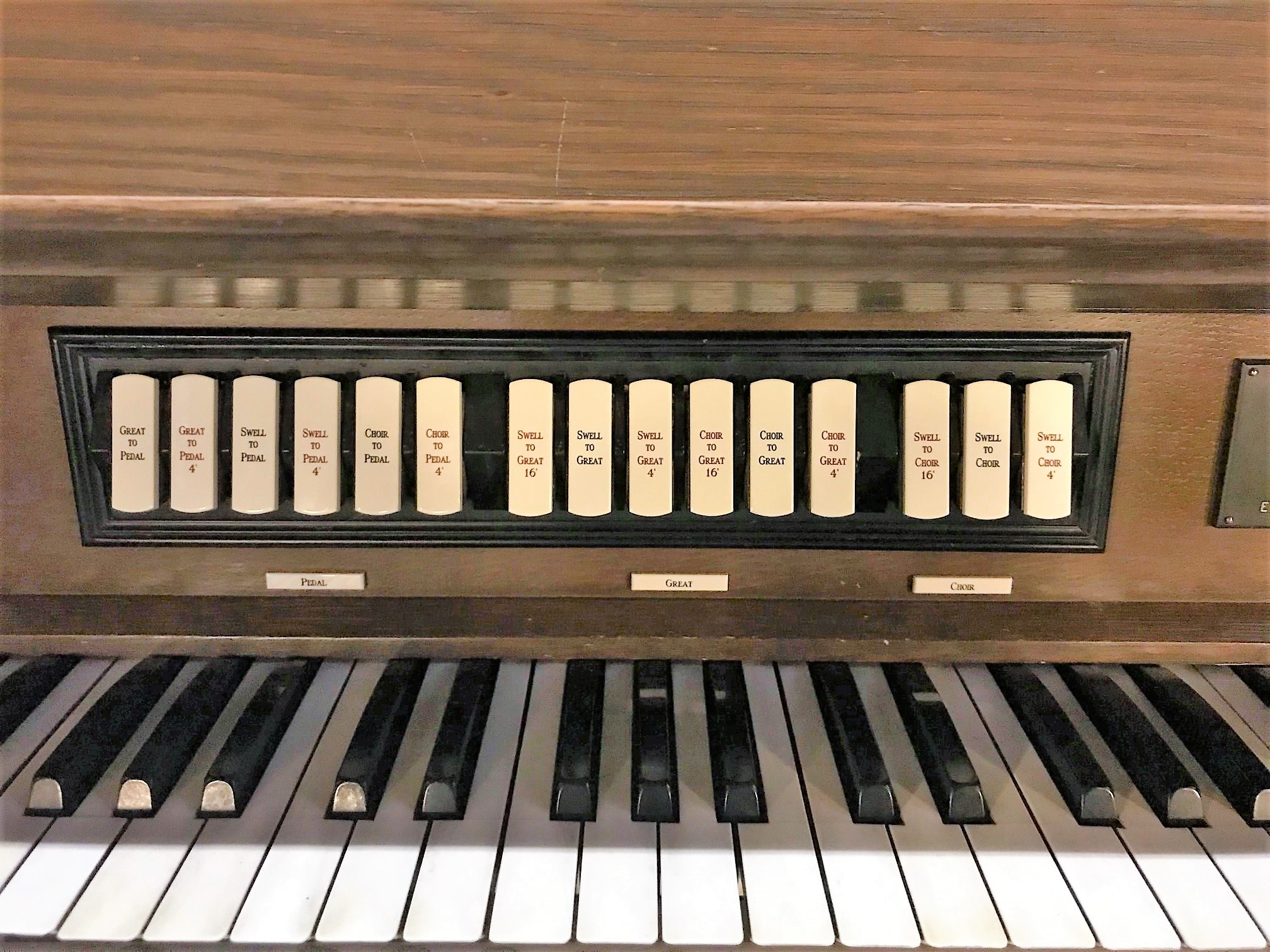

2019-12-26 - Coupler rail after renovation (Photograph by Covenant Organs, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

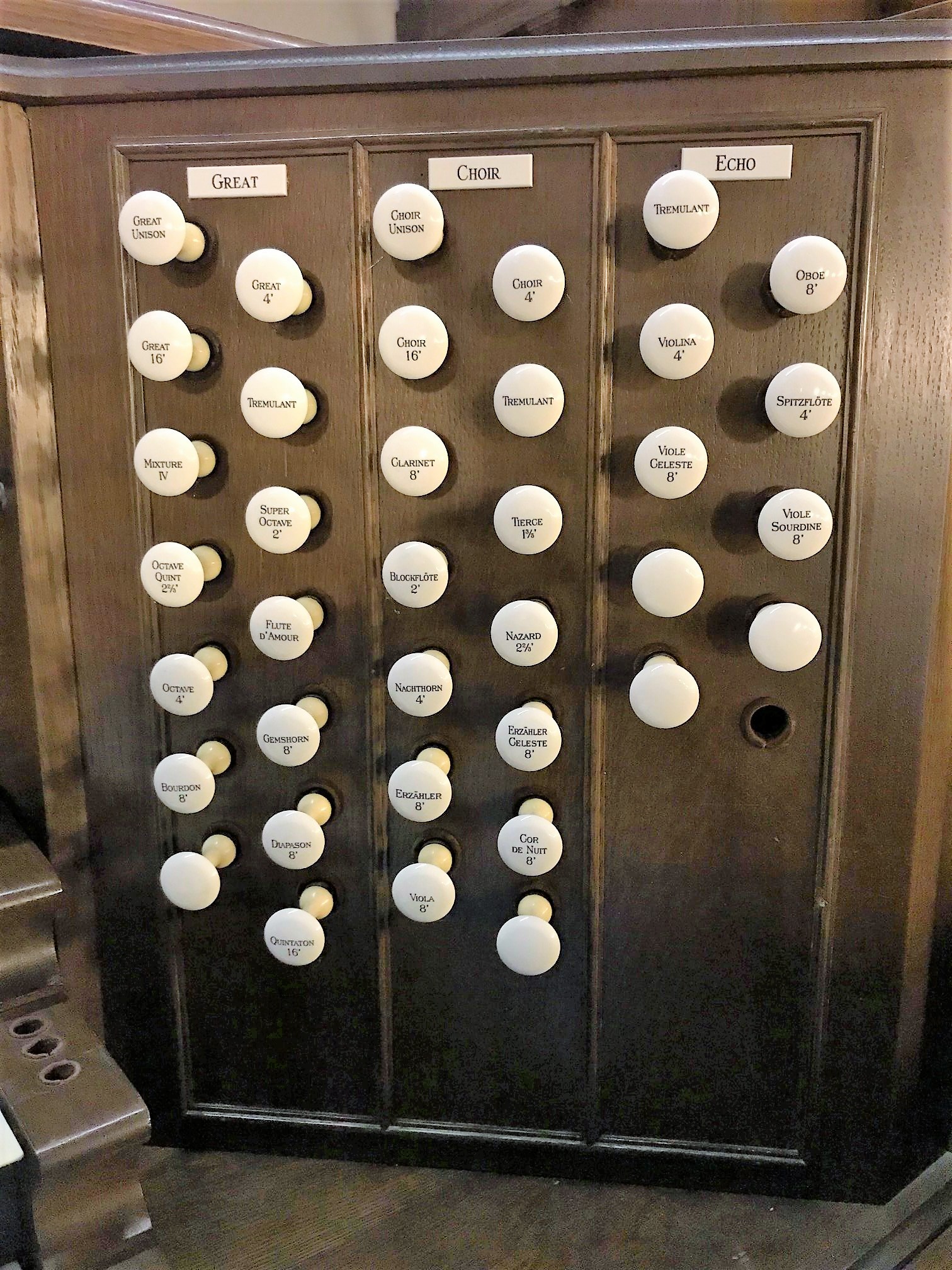

2019-12-26 - Right stopjamb after renovation (Photograph by Covenant Organs, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

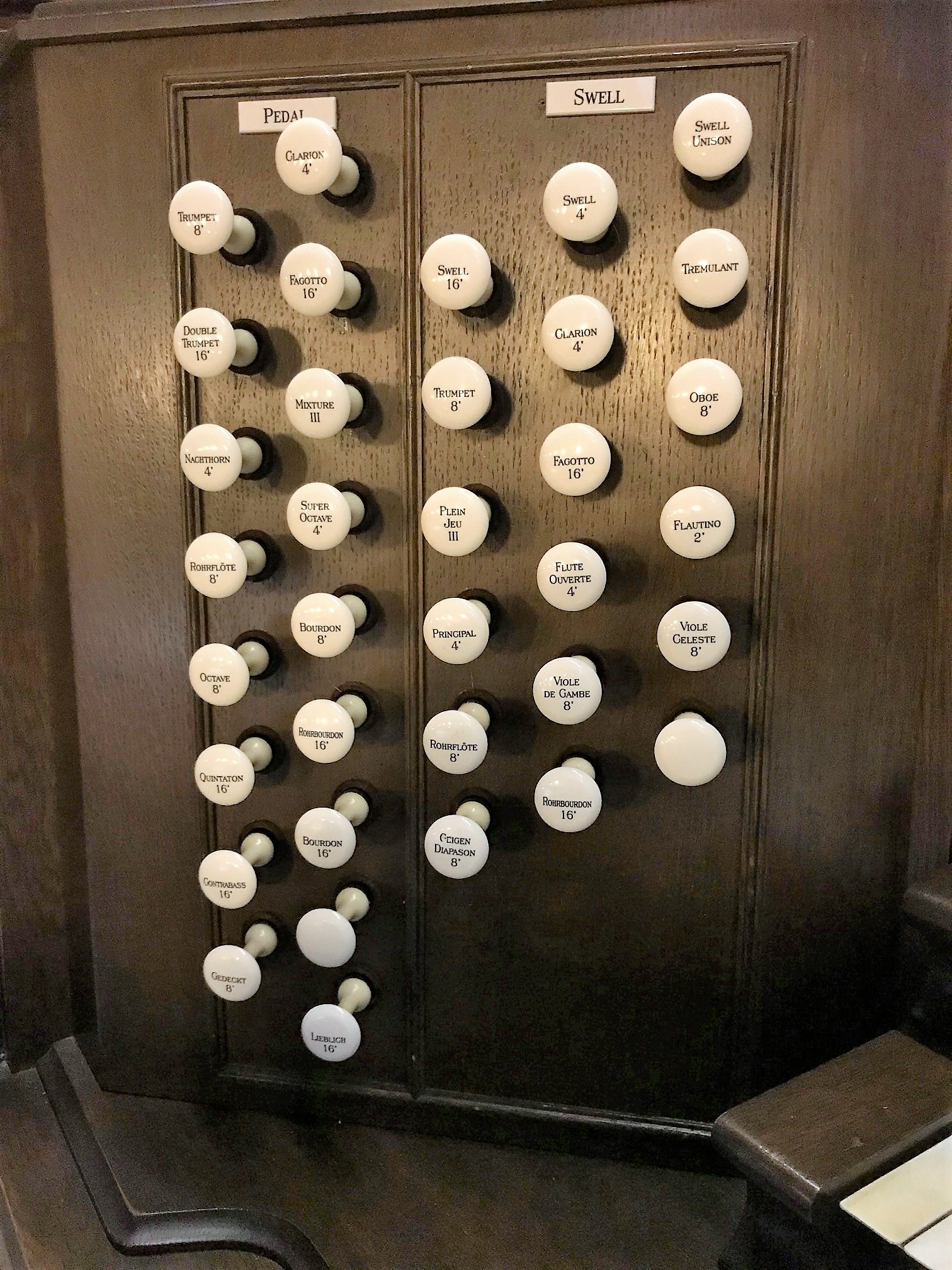

2019-12-26 - Left stopjamb after renovation (Photograph by Covenant Organs, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

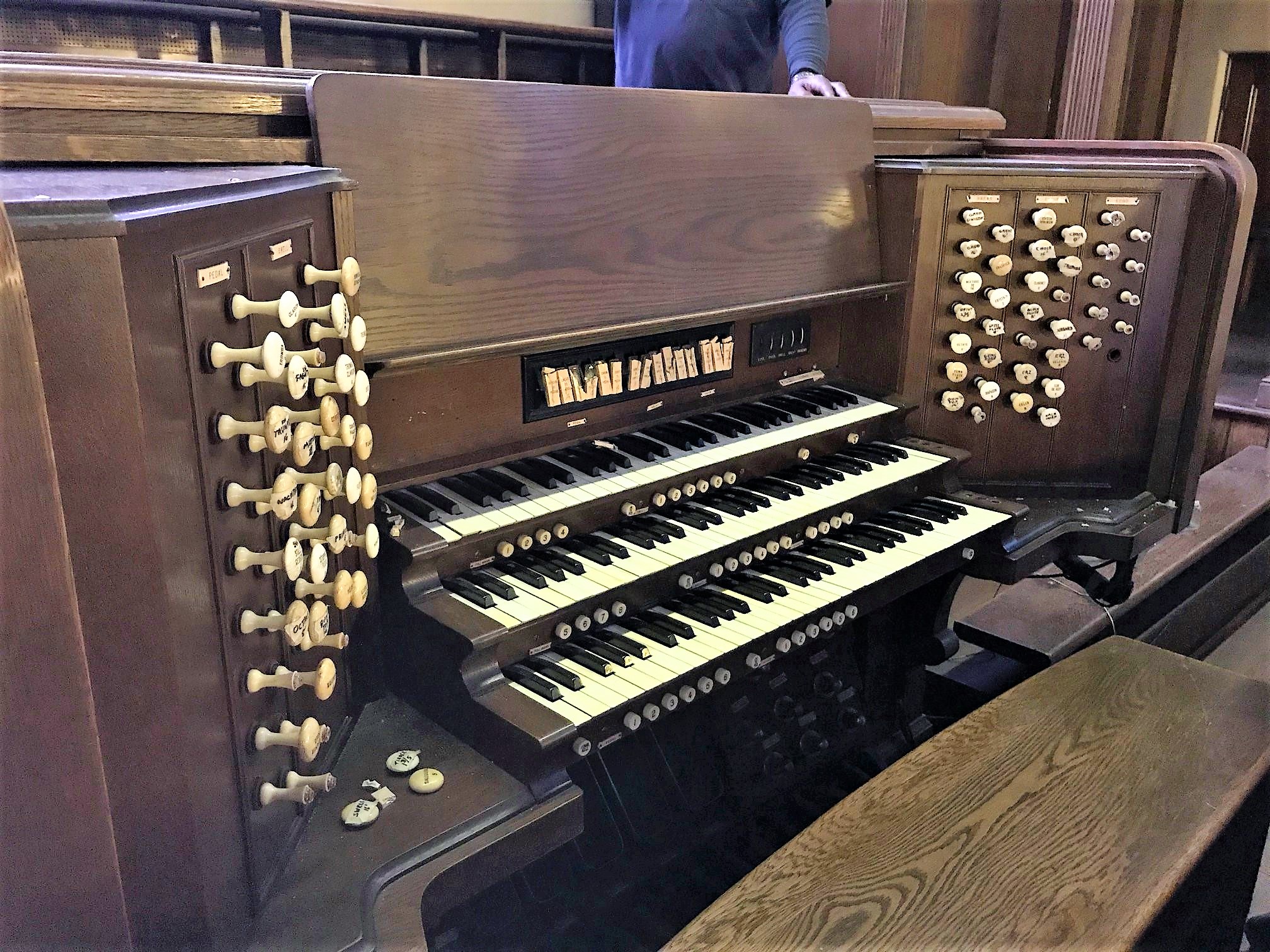

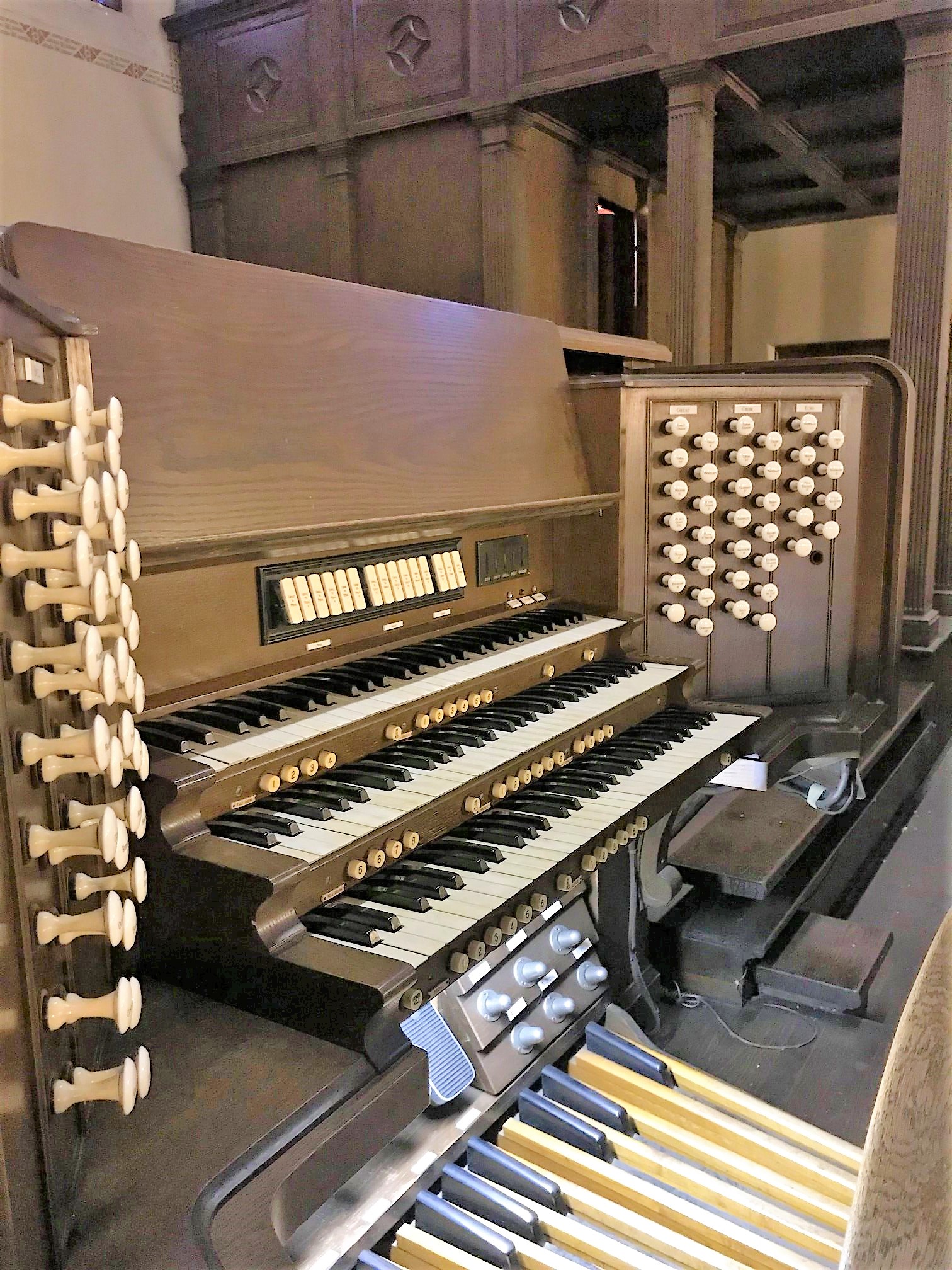

2019-12-26 - Console after renovation (Photograph by Covenant Organs, via Facebook, submitted by Jeff Scofield/Jeff Scofield)
2019-06-01 - Console before renovation (Photograph by Covenant Organs, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

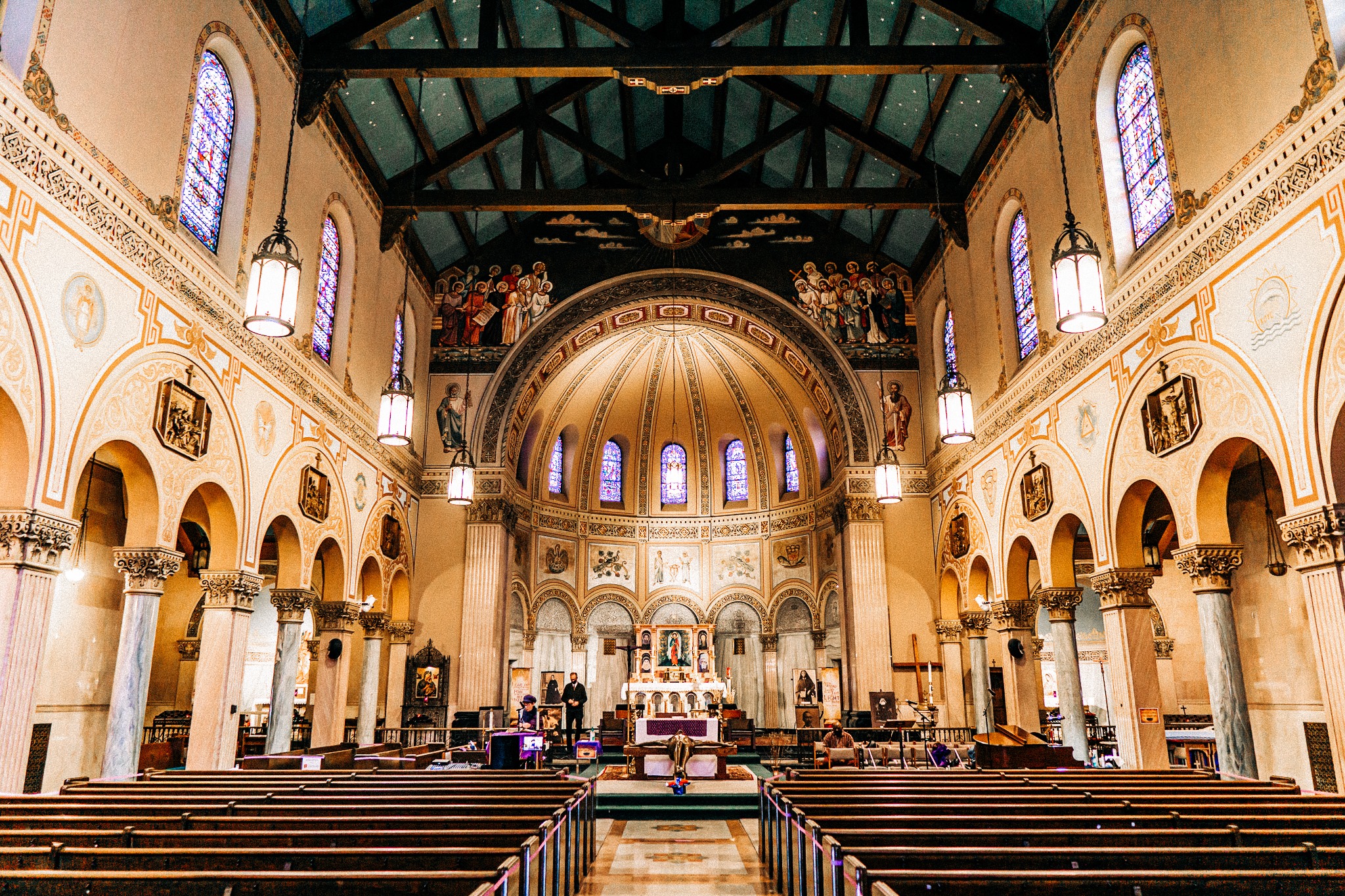

2021-02-24 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

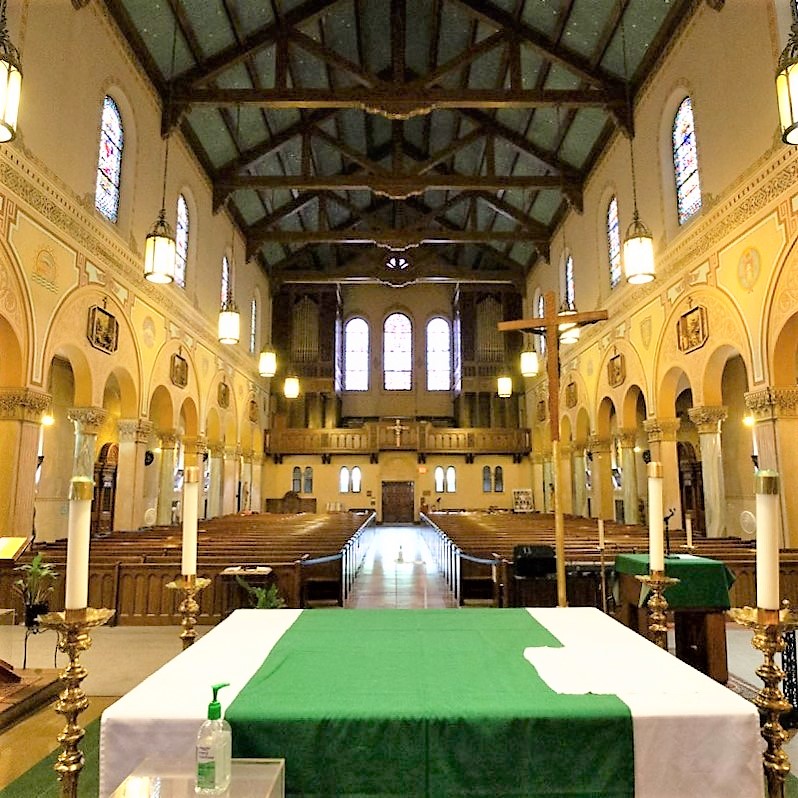

2021-03-21 - Church interior to rear and organ cases (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- 3 manuals
- 43 stops
- 36 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
Notes
2008-04-11 - Identified from factory documents and publications courtesy of Stephen Schnurr. Installed September 1948, according to <i>The American Organist</i>, December 1948, pages 398 and 400. Organist was John F. Callaghan. The Great division was expressive. There was one preparation on each of the Swell, Great, Choir, and Pedal divisions. Console preparations also included the Echo division of 6 named stops (likely 4 ranks) and three additional unnamed stops and Tremulant and Echo Pedal division of two prepared for stops. -Database Manager
2012-04-11 - Updated through online information from Jeff Scofield. -- Parish merged in April 1990 with two other parishes to form St. Augustine/St. Monica Parish, occupying the St. Catherine's facility. -Database Manager
2021-03-30 - Console rebuilt by Covenant Organs in 2019. -Jeff Scofield
Stoplist

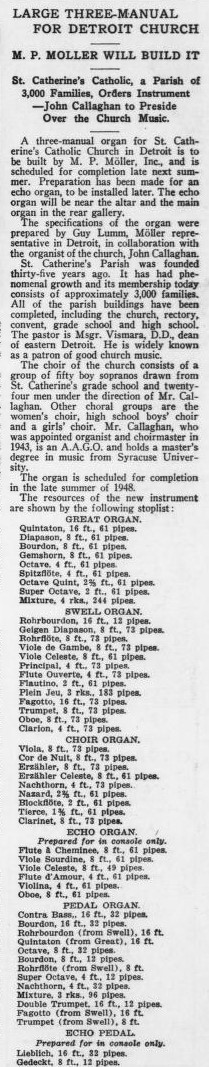

Stoplist from <i>The Diapason</i> January 1948 Source: Source not recorded Date not recorded
Detroit, Michigan
St. Catherine's R. C. Church
Möller Op. 7755 1948 3/42
_______________________________________________
GREAT SWELL
16' Quintaton 61 16' Rohrbourdon 73
8' Diapason 61 8' Geigen Principal 73
8' Bourdon 61 8' Rohrflöte 73
8' Gemshorn 61 8' Viole de Gambe 73
4' Octave 61 8' Viole Celeste 61
4' Spitzflöte 61 4' Principal 73
2 2/3' Octave Quint 61 4' Flute Ouverte 73
2' Super Octave 61 2' Flautino 61
IV Mixture 244 III Plein Jeu 183
Sub 16' Fagotto 73
Unison Off 8' Trumpet 73
Super 8' Oboe 73
4' Clarion 73
ECHO (prepared) Tremulant
8' Flute a Cheminee Sub
8' Viole Sourdine Unison Off
8' Viole Celeste Super
4' Flute d'Amour
4' Violina CHOIR
8' Oboe 8' Viola 73
8' Cor de Nuit 73
ECHO PEDAL (prep) 8' Erzähler 73
16' Lieblich 8' Erzähler Celeste 61
8' Gedeckt 4' Nachthorn 73
2 2/3' Nazard 61
PEDAL 2' Blockflöte 61
16' Contra Bass 32 1 3/5' Tierce 61
16' Bourdon 32 8' Clarinet 73
16' Quintaton GT Tremulant
16' Rohrbourdon SW Sub
8' Octave 32 Unison Off
8' Bourdon 12 Super
8' Rohrflöte SW
4' Super Octave 32
4' Nachthorn 32
III Mixture 96
16' Double Trumpet 12 SW
16' Fagotto SW
8' Trumpet SW
[Received online from Jeff Scofield April 13, 2012]
