Better Pipe Organ Database

M. P. Möller Opus 7764 (1948)

Calvary Episcopal Church
1337 Winchester Avenue
Ashland, KY

Images

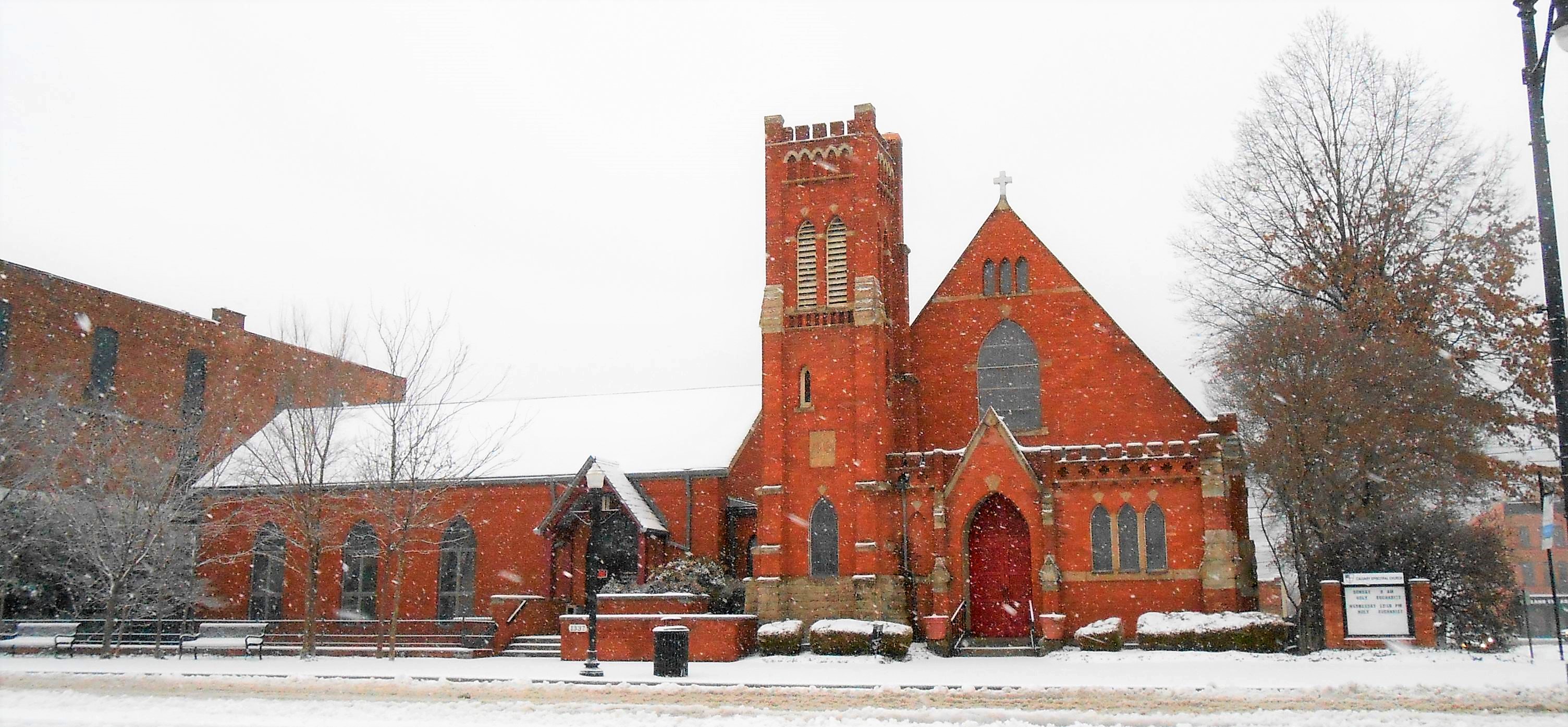

2014-02-03 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

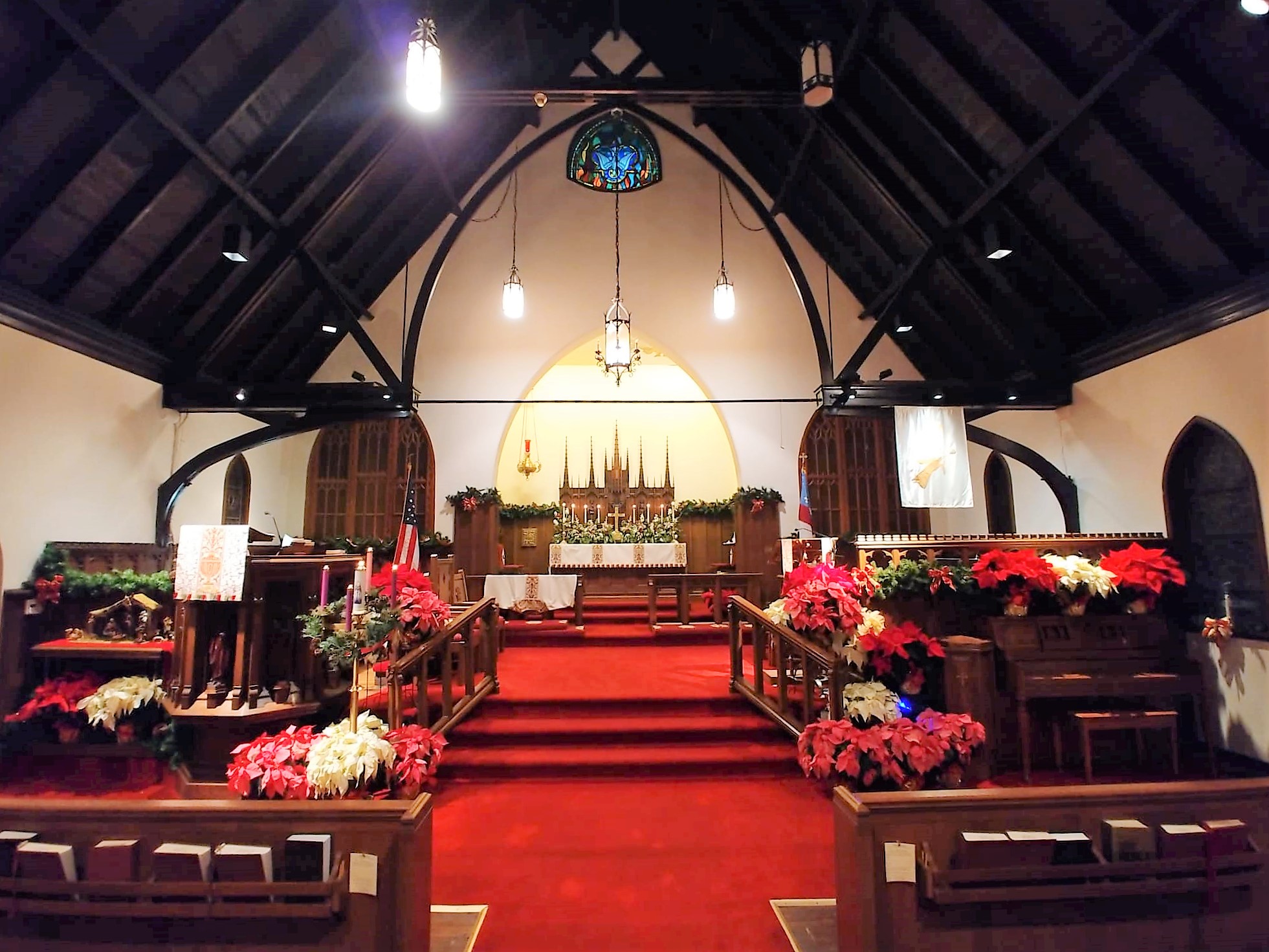

2022-11-21 - Church interior to front and chambers (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
5 stops
25 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons

Notes

2008-04-11 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

Stoplist

Source: Courtesy of the OHS Archives

       Ashland, Kentucky
       Calvary Episcopal Church

       Möller   Op 7764   1948   2/5
       ______________________________________

       GREAT                 SWELL
    8' Diapason    73    16' Bourdon       tc
    8' Gedeckt     85     8' Gedeckt
    8' Viole Dolce 85     8' Viole Dolce
    4' Octave             8' Viole Celeste pf
    4' Flute              4' Flute
    4' Fugara             4' Fugara
2 2/3' Viole 12th     2 2/3' Flute 12th
    2' Viole 15th         2' Flautino
    8' Trumpet            8' Trumpet       73
       Chimes      pf     4' Clarion
                             Tremulant
       PEDAL
   16' Bourdon     32
   16' Gedeckt     12    pf  prepared for
    8' Diapason
    8' Flute
    4' Octave
    4' Flute

[Received from Jeff Scofield February 28, 2023]

Documents

(1947-11-17) Factory specifications, via the OHS Archives Stoplist and accessories -Jeff Scofield
