Schantz Organ Co. Opus 1864 (1988)

First Baptist Church
1610 Russell Avenue
Jefferson City, TN

Images

2023-04-17 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

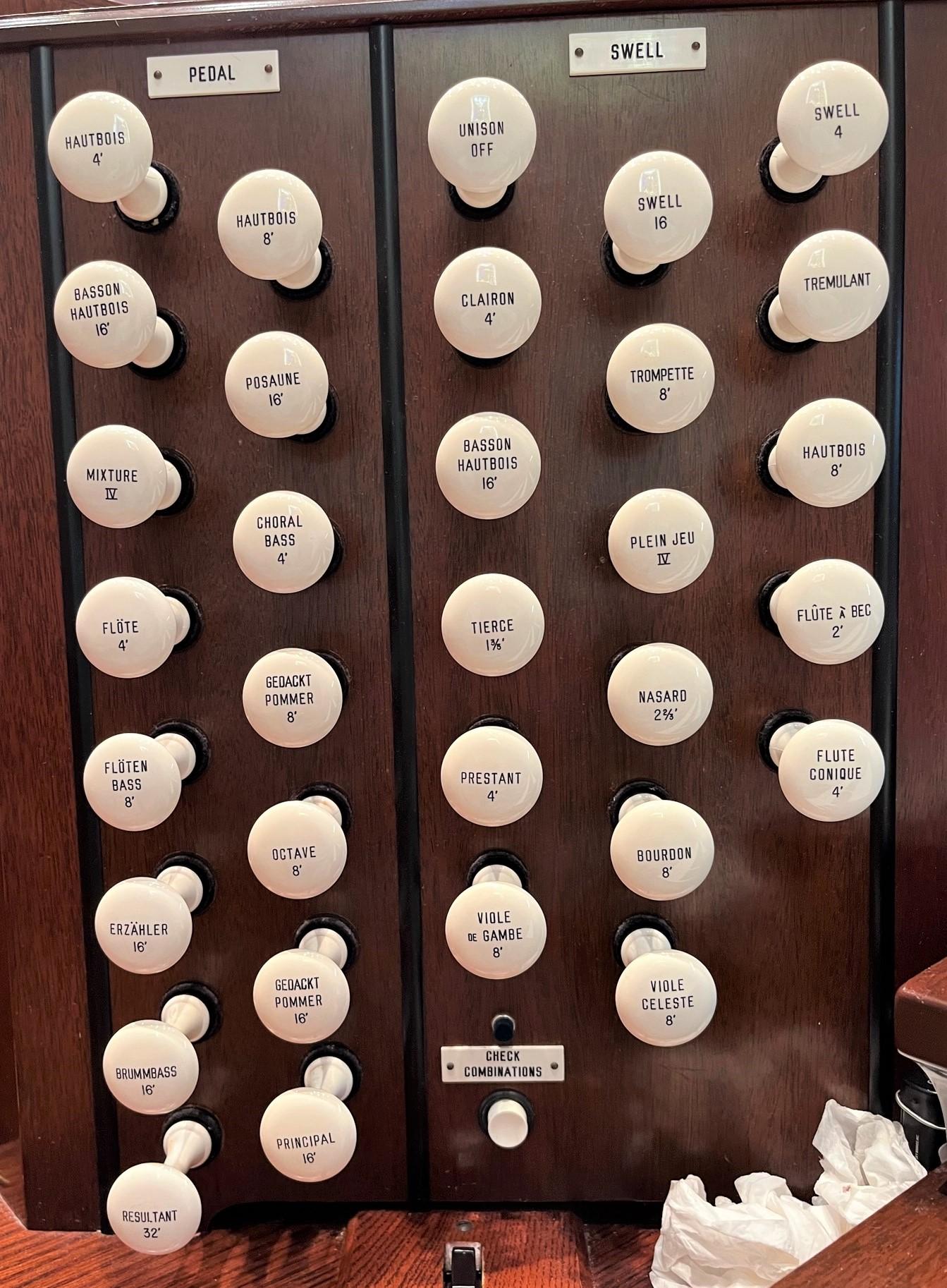

2023-04-17 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

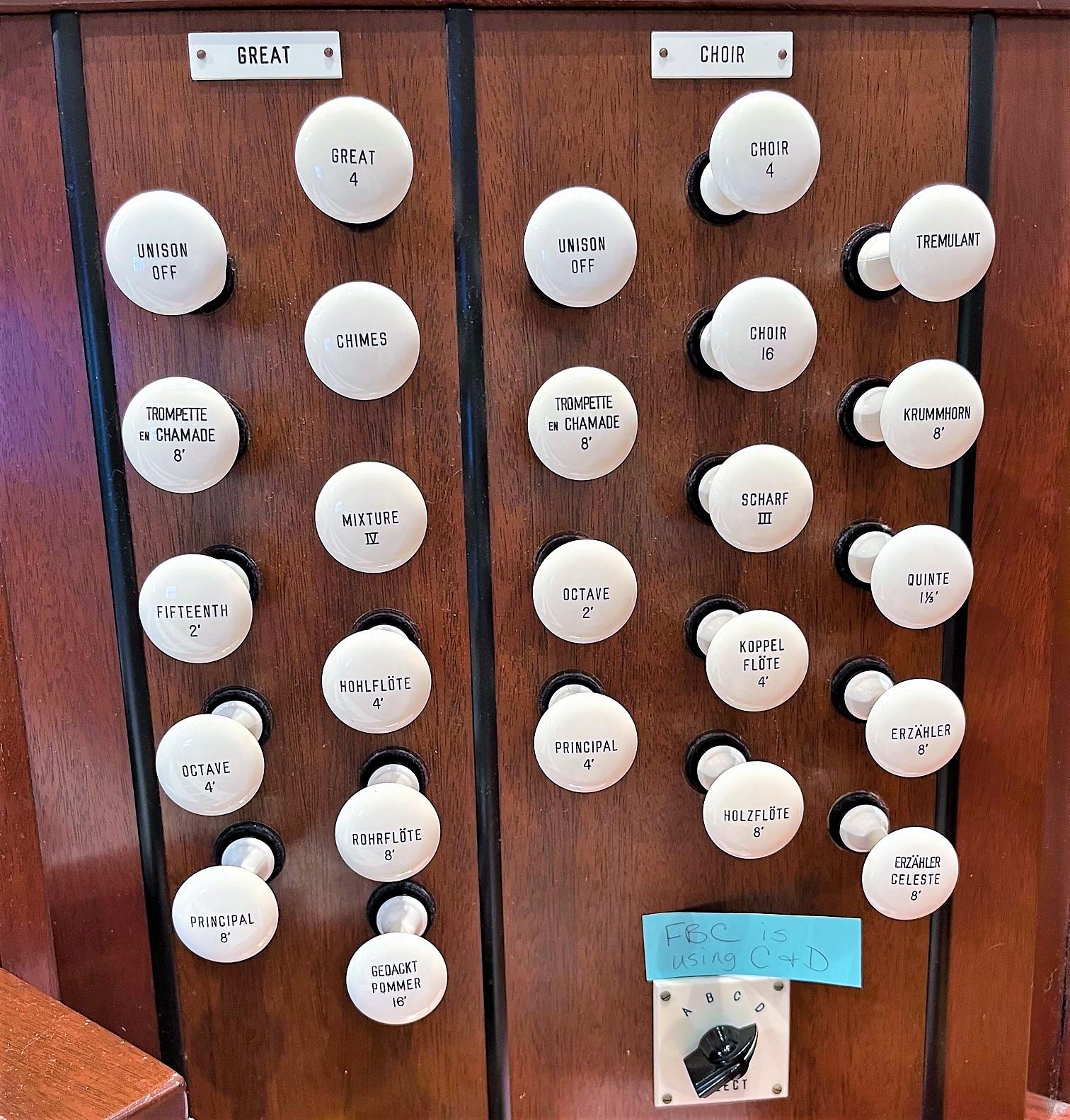

2023-04-17 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Console (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Church interior to the rear (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Organ chamber, en-chamade and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Chancel and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Church interior from the floor (Photograph by Jeff Scofield/Jeff Scofield)

2023-04-17 - Church interior from the balcony (Photograph by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
33 stops
46 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-05-18 - Identified through online information from Michael Valentine. -- New organ in a new building, after a fire in 1985 destroyed existing building and 1946 Möller organ. -Database Manager

2009-02-14 - Updated through online information from Jeff Scofield. -- Replaces 1963 3/37 Schantz Op. 620, which was badly damaged with the sanctuary in a 1985 fire. -Database Manager

Stoplist

Stoplist from Schantz sales flyer Source: Source not recorded Date not recorded

Jefferson City, Tennessee
First Baptist Church

Schantz   Op. 1864   1988   3/44

Replaced Schantz Op. 620 (1963), which was damaged beyond repair
by fire in 1985.

       GREAT                           CHOIR
   16' Gedacktpommer 61             8' Holzflöte 61
    8' Principal 61                 8' Erzähler 61
    8' Rohrflöte 61                 8' Erzähler Celeste tc 49
    4' Octave 61                    4' Principal 61
    4' Hohlflöte 61                 4' Koppelflöte 61
    2' Fifteenth 61                 2' Octave 61
   IV  Mixture 244              1 1/3' Quinte 61
       Sub                        III  Scharf 183
       Unison Off                   8' Krummhorn 61
       Super                           Tremulant
       Chimes 21                       Sub
    8' Trompette-en-Chamade 61         Unison Off
                                       Super
       SWELL                        8' Trompette-en-Chamade GT
    8' Bourdon 61
    8' Viole de Gambe 61               PEDAL
    8' Viole Celeste tc 49         32' Resultant --
    4' Prestant 61                 16' Principal 32
    4' Flûte conique 61            16' Brummbass 32
2 2/3' Nasard 61                   16' Gedacktpommer GT
    2' Flute à Bec 61              16' Erzähler 12
1 3/5' Tierce 61                    8' Octave 32
   IV  Plein Jeu 244                8' Flötenbass 12
   16' Basson-Hautbois 61           8' Gedackpommer GT
    8' Trompette 61                 4' Choralbass 12
    8' Hautbois 12                  4' Flöte 12
    4' Clairon 12                  IV  Mixture 128
       Tremulant                   16' Posaune 32
       Sub                         16' Basson-Hautbois SW
       Unison Off                   8' Hautbois SW
       Super                        4' Hautbois SW

 [Received on line from Jeff Scofield February 17, 2009.]
