East Liberty Presbyterian Church
116 South Highland Avenue
Pittsburgh, PA
OHS convention: 2010
Images

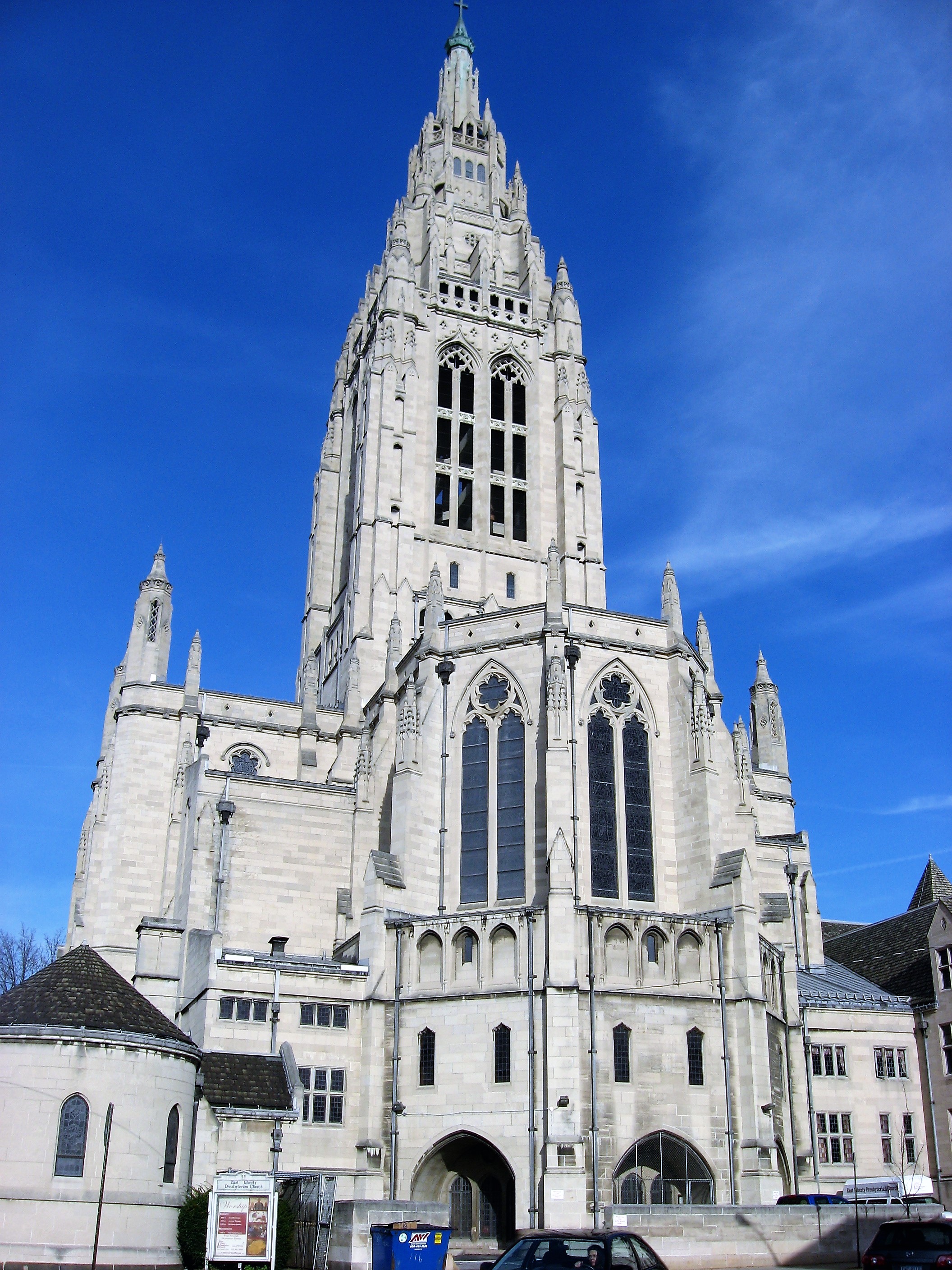

2011-11-19 - Church rear exterior (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)

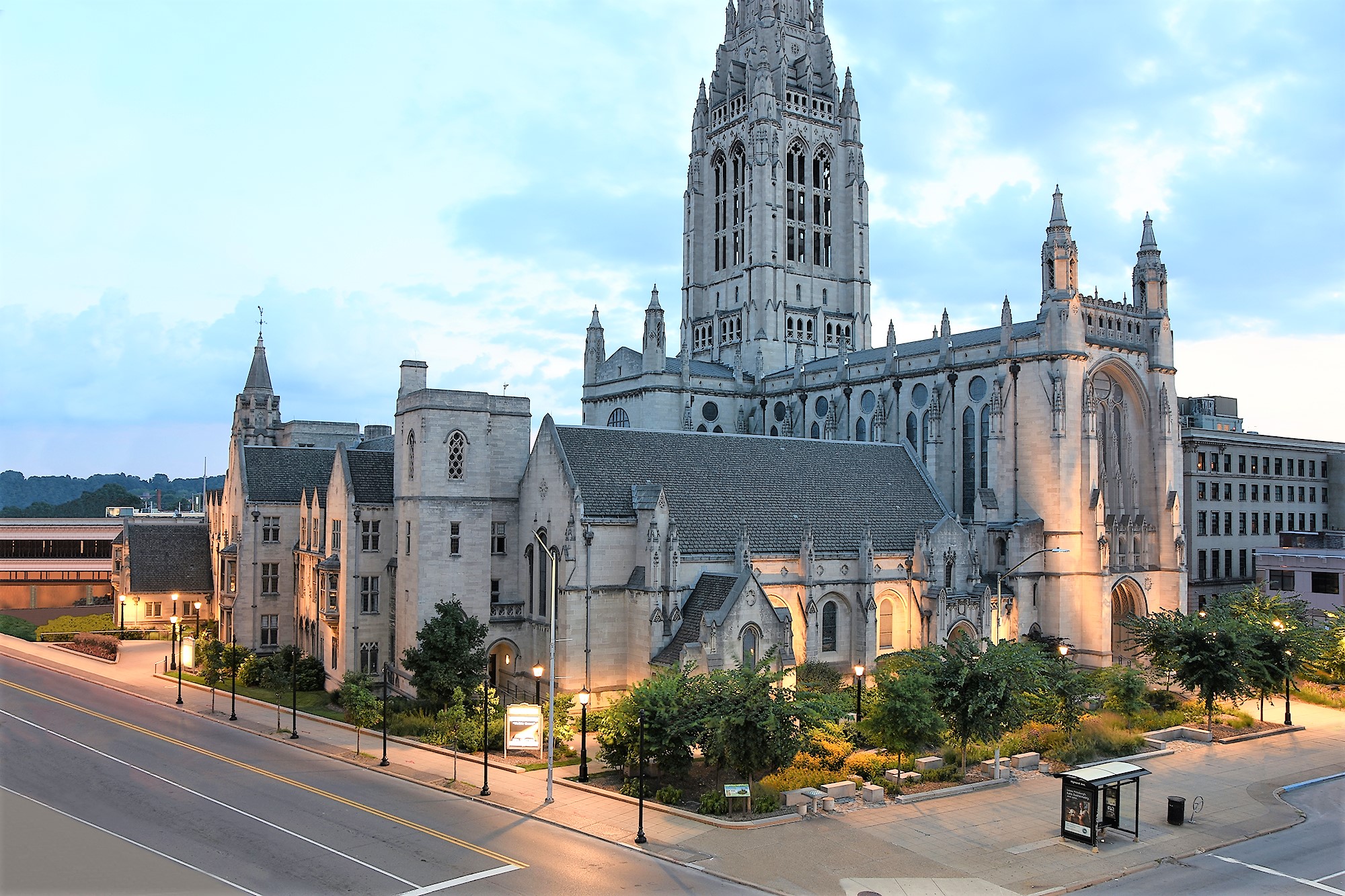

2018-08-08 - Church front exterior (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)
2017-03-21 - Church interior to rear (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)

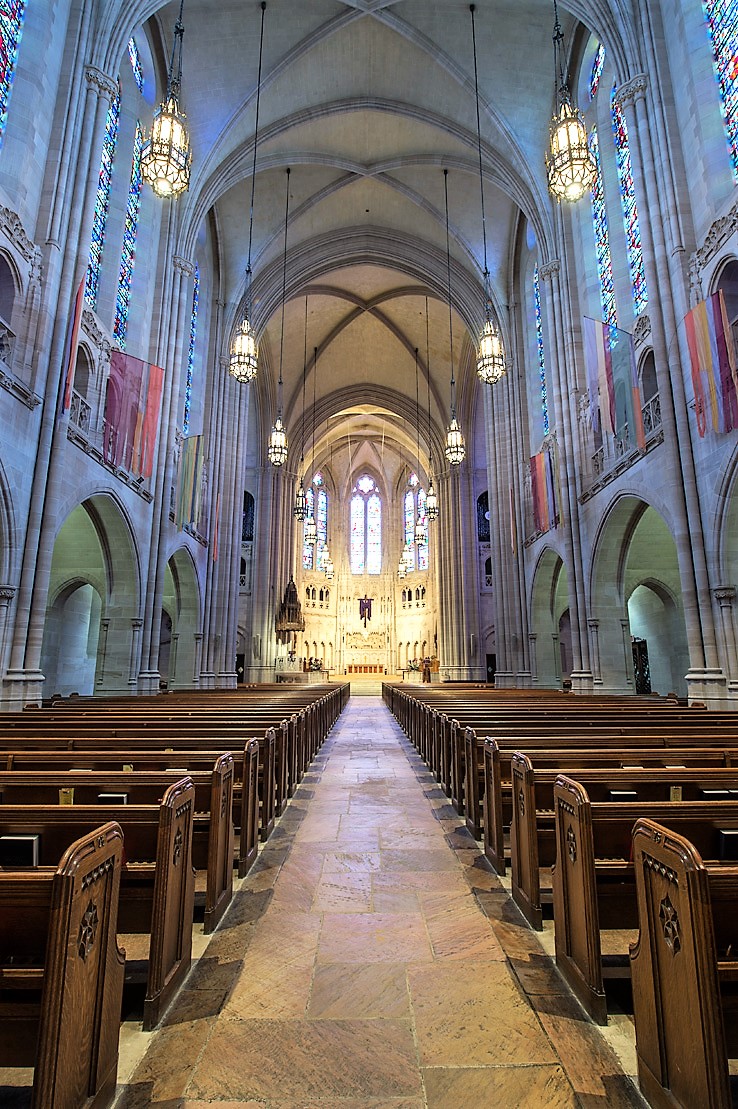

2017-03-21 - Church interior from floor (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)

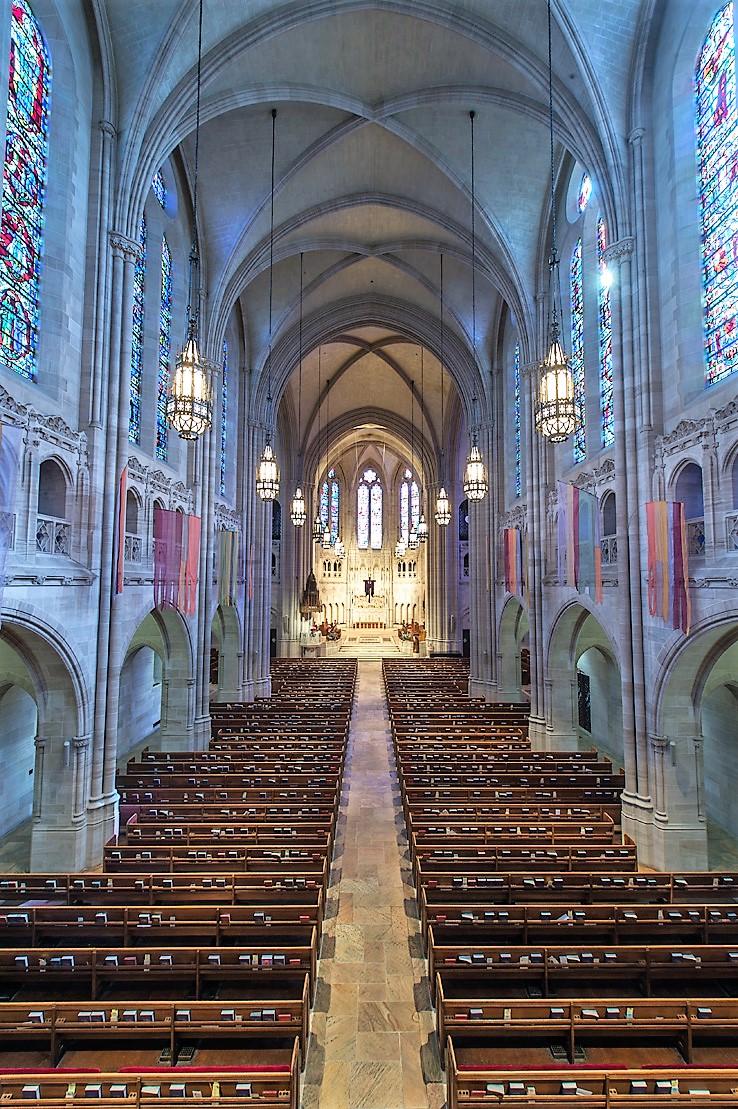

2017-03-21 - Church interior from gallery (Photograph by Church website, submitted by Jeff Scofield/Jeff Scofield)

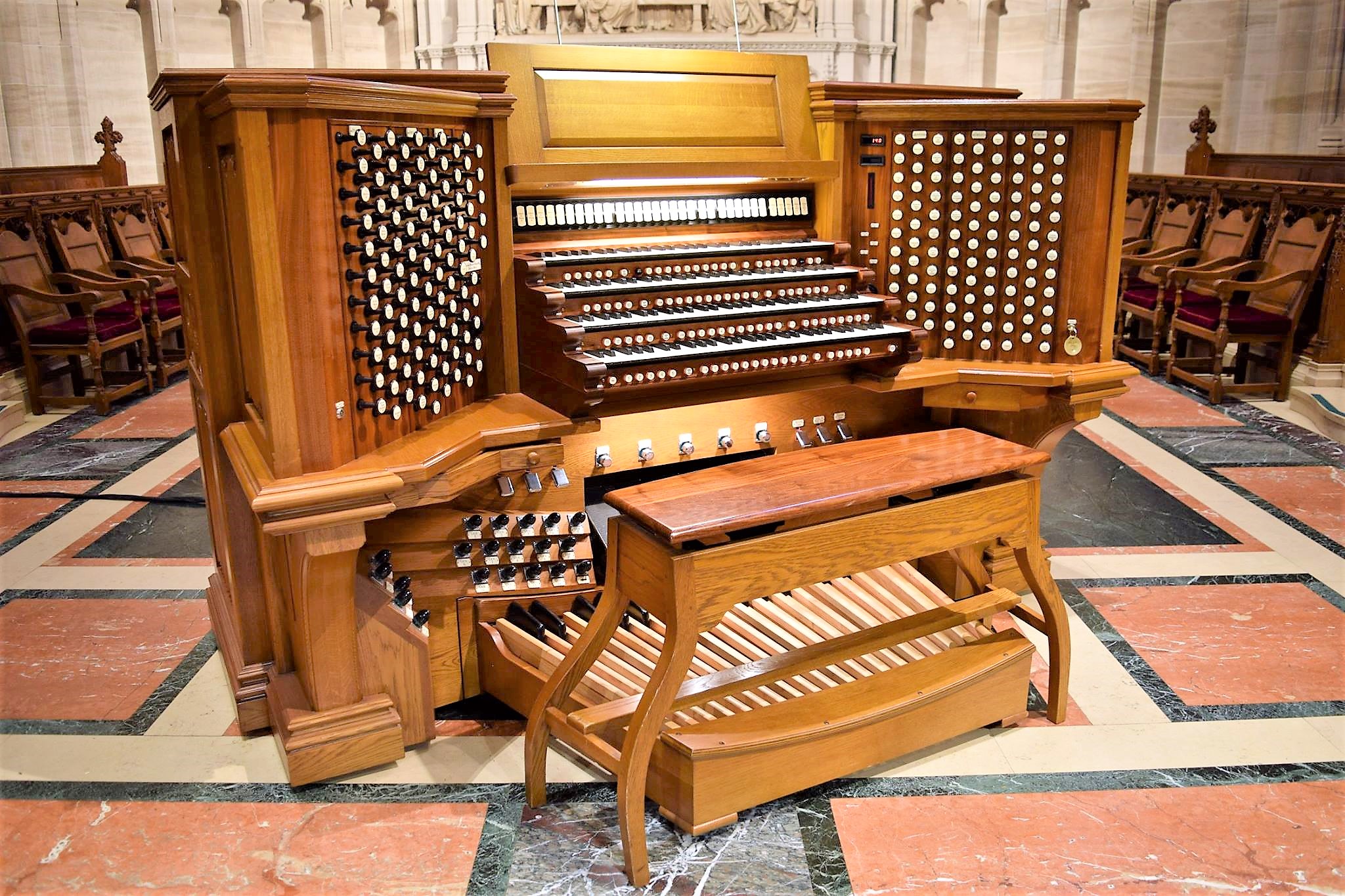

2018-03-05 - Console (Photograph by Nathan Laube, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

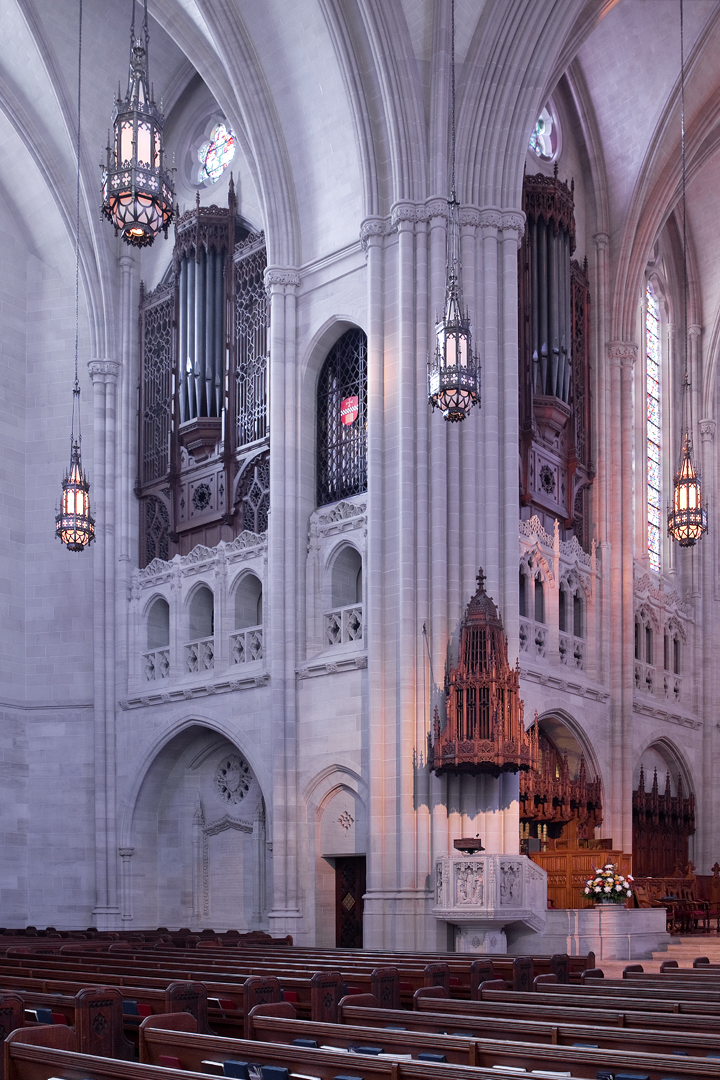

2009-09-14 - Facades (Photograph by Len Levasseur/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- 4 manuals
- 7 divisions
- Key action Type: Multiple Action Types
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2008-05-26 - Major rebuild based on existing and highly altered Aeolian-Skinner of 1931. -Database Manager
2009-05-23 - Updated through on-line information from Phil Lehman. -Database Manager
Stoplist
Source: From builder website, 2021-07-23
Goulding & Wood, Inc. (2007)
East Liberty Presbyterian Church
Pittsburgh, PA
GREAT
16' Diapason
16' Bourdon
8' First Diapason
8' Second Diapason
8' Third Diapason
8' Violoncello
8' Claribel Flute
8' Bourdon
8' Gemshorn
8' String Organ VI (floating)
5⅓' Quint
4' Principal
4' Octave
4' Flute
3⅕' Tenth
2⅔' Twelfth
2' Fifteenth
2' Flageolet
1⅗' Seventeenth
1⅓' Plein Jeu IV
2' Harmonics V (expressive)
16' Contra Tromba (expressive)
8' Tromba (expressive)
4' Octave Tromba (expressive)
8' Trompette en Chamade (Antiphonal)
4' Trompette en Chamade (Antiphonal)
8' Tuba Mirabilis (Solo)
8' State Trumpet (Solo)
Tremulant
Chimes
Harp
Greet Reeds Off Great
Great to Great 16–UO–4
SWELL
16' Contre Gambe (extension of 8‘ Viole de Gambe)
16' Bourdon
8' Diapason
8' Geigen Diapason
8' Nachthorn
8' Stopped Diapason
8' Viole de Gambe
8' Voix celeste (low c)
8' Salicional
8' Salicional Celeste (low c)
8' Flauto dolce
8' Flute celeste (tenor c)
8' String Organ VI (floating)
4' Octave
4' Flute ∆
2' Super Octave
2' Flautino
2' Chorus mixture IV
1' Cymbale III
16' Double Trumpet
8' French Trumpet
8' Cornopean
8' Oboe
8' Vox humana
4' Clarion
8' Tuba Mirabilis (Solo)
8' State Trumpet (Solo)
Tremulant
Harp
Chimes
Great Reeds on Swell
Swell to Swell 16–UO–4
CHOIR
16' Contre Viole (extension of 8‘ Viole d’Orchestre)
16' Quintaton
8' Diapason
8' Concert Flute
8' Chimney Flute
8' Viole d’Orchestre
8' Viole celeste (low c)
8' Erzahler
8' Kleine Erzahler (tenor c)
8' String Organ VI (floating)
4' Fugara
4' Violina
4' Spindle Flute
2⅔' Nasard
2' Piccolo
1⅗' Tierce
1⅓' Larigot
1' Sifflute
2' Full Mixture V
32' Contra Bassoon (extension of 16‘ Bassoon)
16' Bassoon
8' Corno di basetto
8' Orchestral Oboe
8' Trumpet
4' Clarion
8' Trompette en Chamade (Antiphonal)
8' Tuba Mirabilis (Solo)
8' State Trumpet (Solo)
Tremulant
Harp
Chimes
Great Reeds on Choir
Choir to Choir 16–UO–4
SOLO
8' Gamba
8' Gamba celeste (low c)
8' String Organ VI (floating)
8' Flauto Mirabilis
4' Orchestral Flute
8' Cornet V (g20 – c61)
8' English Horn
8' French Horn
8' Tuba Minor
8' State Trumpet (unenclosed)
8' Tuba Mirabilis (hooded)
8' Trompette en Chamade (Antiphonal)
Tremulant
Harp
Celesta
Chimes
Cymbelstern
Rossignol
Great Reeds on Solo
Solo to Solo 16–UO–4
ANTIPHONAL *
8' Diapason
8' Melodia
4' Octave
4' Hohlflöte
2' Fifteenth
1⅓' Mixture IV
8' Tuba
4' Tuba Clarion
ANTIPHONAL EXPRESSIVE*
8' Zartflöte
8' Viole
8' Vox Angelica
4' Fernflöte
2' Blockflöte
16' Bassoon-Oboe
8' Oboe (extension)
8' Echo Vox Humana
Tremulant
Echo Chimes
ANTIPHONAL PEDAL *
16' Major Bass
16' Gemshorn
8' Octave (extension of 16' Major Bass)
8' Gemshorn (extension)
16' Bassoon (from Ant. Exp.)
8' Bassoon (from Ant. Exp.)
4' Bassoon (from Ant. Exp.)
(* - all work on Antiphonal divisions to be done later)
PEDAL
32' Bourdon (extension of 16‘ Bourdon)
16' Double Open Diapason
16' Contrabass
16' Bourdon
16' Diapason (Great)
16' Contre Gambe (Swell)
16' Contre Viole (Choir)
16' Bourdon (Great)
16' Echo Lieblich Gedeckt (Swell)
16' Quintaton (Choir)
8' Octave Metal
8' Principal (extension of 16‘ Contrabass)
8' Octave Wood (extension of 16‘ Diapason)
8' Stopped Flute
8' Gambe (Swell)
8' Bourdon (Great)
8' Still Gedackt (Swell)
8' Quintaton (Choir)
8' String Organ VI (floating)
4' Fifteenth
4' Cantus Flute
2⅔' Nineteenth
2' Twenty-Second
1⅓' Mixture IV
32' Grand Cornet VI (derived)
32' Contra Bombarde (extension of 16’ Bombarde)
32' Contra Bassoon (Choir)
16' Bombarde
16' Double Trumpet (Swell)
16' Bassoon (Choir)
8' Tromba
8' Bassoon (Choir)
4' Tromba Clarion (extension of 8’ Tromba)
4' Schalmei
8' Trompette en Chamade (Antiphonal)
8' Tuba Mirabilis (Solo)
8' State Trumpet (Solo)
Tremulant
Chimes
Harp
Great Reeds On Pedal
Unison Off
Pedal Divide 12/13
COUPLERS
Swell to Great 16–8–4
Choir to Great 16–8–4
Solo to Great 16–8–4
Great to Choir 8
Choir to Swell 8
Solo to Swell 8
Swell to Choir 16–8–4
Solo to Choir 8
Pedal to Choir 8
Great to Solo 8–4
Swell to Solo 8–4
Choir to Solo 8
Great to Pedal 8–4
Swell to Pedal 8–4
Choir to Pedal 8–4
Solo to Pedal 8–4
Antiphonal to Pedal 8
Ant. Exp. to Pedal 8
120 ranks - chancel
20 ranks - antiphonal
