Schantz Organ Co. Opus 1835 (1986)

Broadmoor United Methodist Church: Sanctuary
3715 Youree Drive
Shreveport, LA

Images

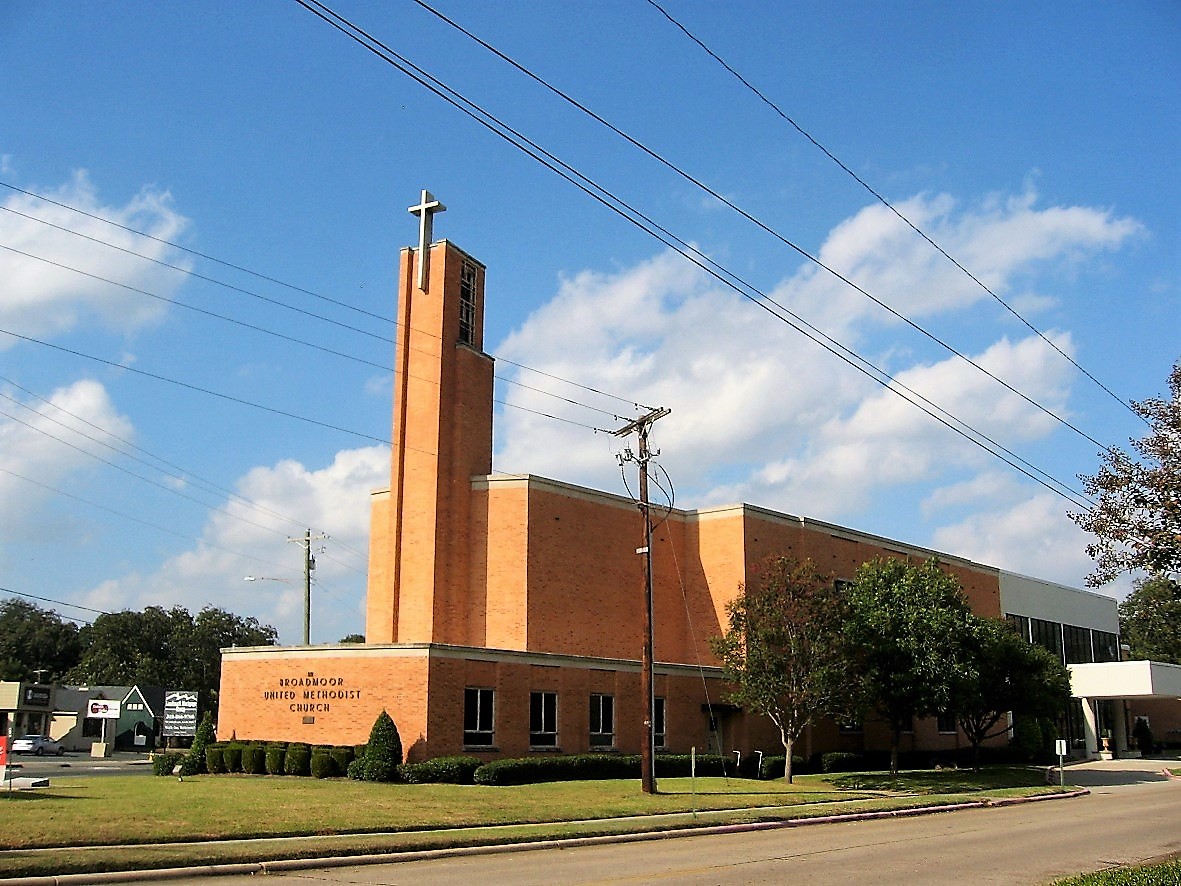

2017-11-02 - Church exterior (Photograph by Jeff Scofield/Database Manager)

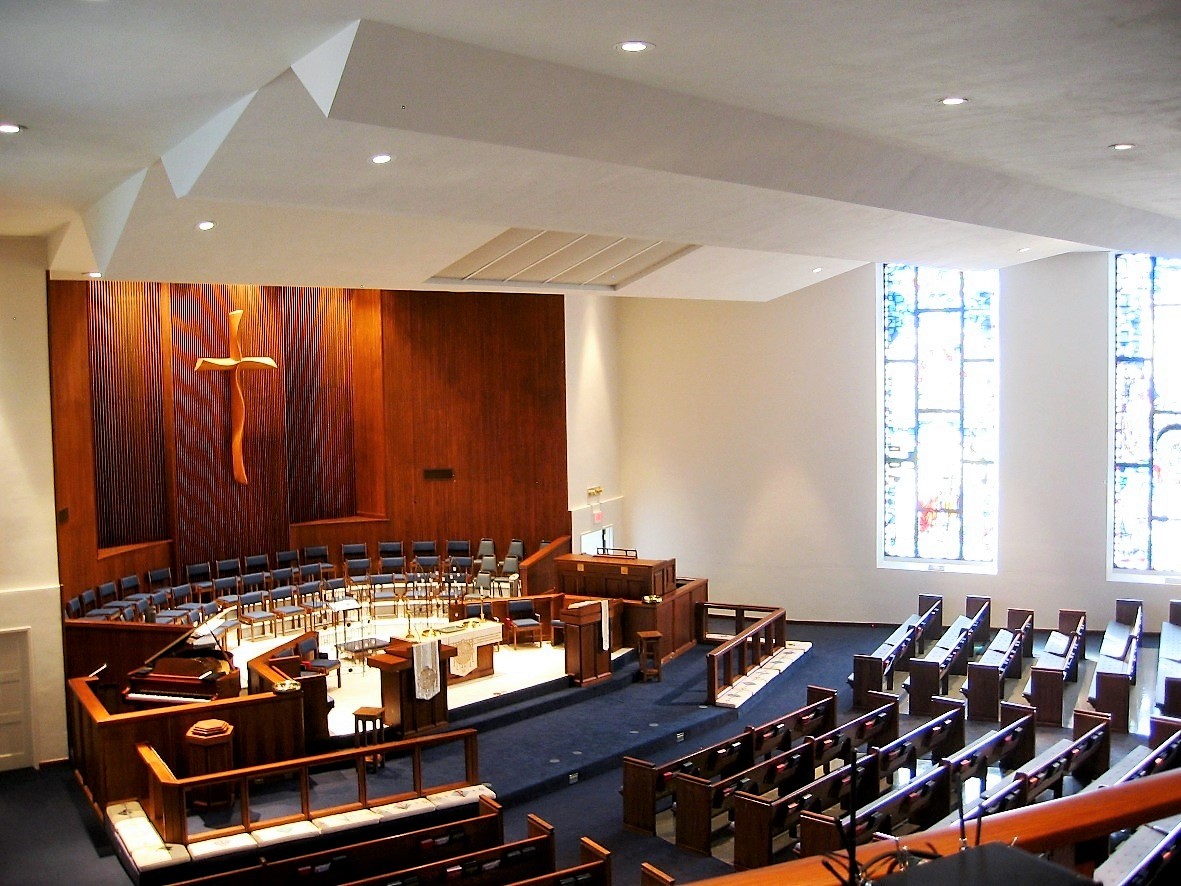

2017-11-02 - Sanctuary interior angle (Photograph by Jeff Scofield/Database Manager)

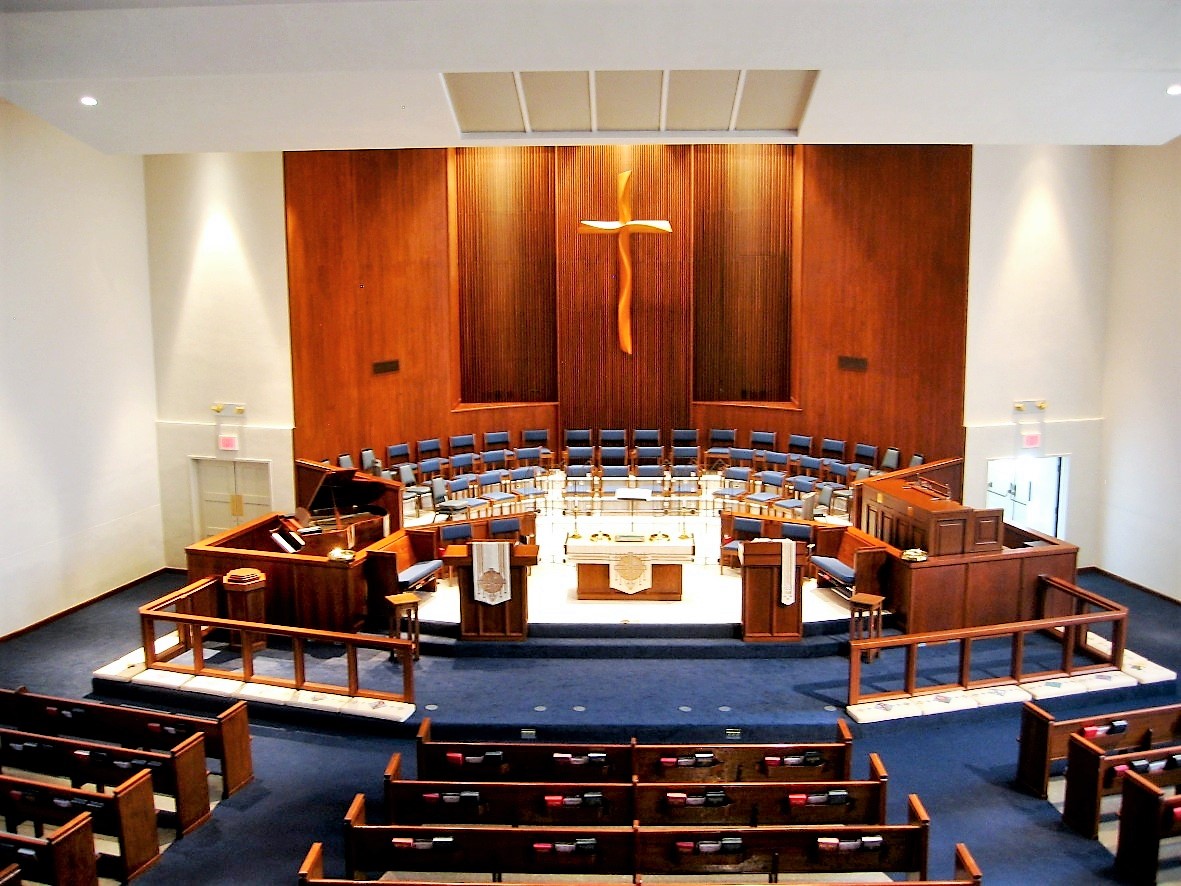

2017-11-22 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

2017-11-02 - Window (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
21 stops
37 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2010-12-07 - Identified through information from Jeff Scofield. -- Combined with 4-manual Allen ca. 2009 -Database Manager

Stoplist

Stoplist courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

    Shreveport, Louisiana
    Broadmoor United Methodist Church

    Schantz   Op. 1835   1986   3/25

    Stopist courtesy of the Schantz Organ Co.
    _______________________________________________

    GREAT                         CHOIR
16' Gemshorn         61        8' Spitzflöte     61
 8' Principal        61        8' Dolcan         61
 8' Holzgedeckt      61        8' Dolcan Celeste 49
 8' Gemshorn         12        4' Principal     [pf]
 4' Octave           61        4' Koppelflöte    61
 4' Hohlflöte       [pf]   2 2/3' Nasat           7
 2' Super Octave     61        2' Octave        [pf]
IV  Mixture         244        2' Flute           5
    Chimes                 1 3/5' Terz           --
                             III  Scharf        [pf]
    SWELL                      8' Clarinet       61
16' Rohrflöte        61           Tremulant
 8' Geigen Principal 61
 8' Rohrflöte        12           PEDAL
 8' Viole de Gambe   61       32' Resultant      --
 8' Viole Celeste FF 56       16' Principal      32
 4' Principal        12       16' Gemshorn       GT
 4' Traverse Flute   61       16' Rohrflöte      SW
 2' Flute            12        8' Octave         12
IV  Mixture         [pf]       8' Gemshorn       GT
16' Basson          [pf]       8' Rohrflöte      SW
 8' Trompette        61        4' Choralbass     32
 8' Oboe             61       II  Mixture        64
 4' Clairon          12       16' Posaune       [pf]
    Tremulant                  8' Trompette      SW
                               4' Clairon        SW

[Received online from Jeff Scofield December 7, 2010]
