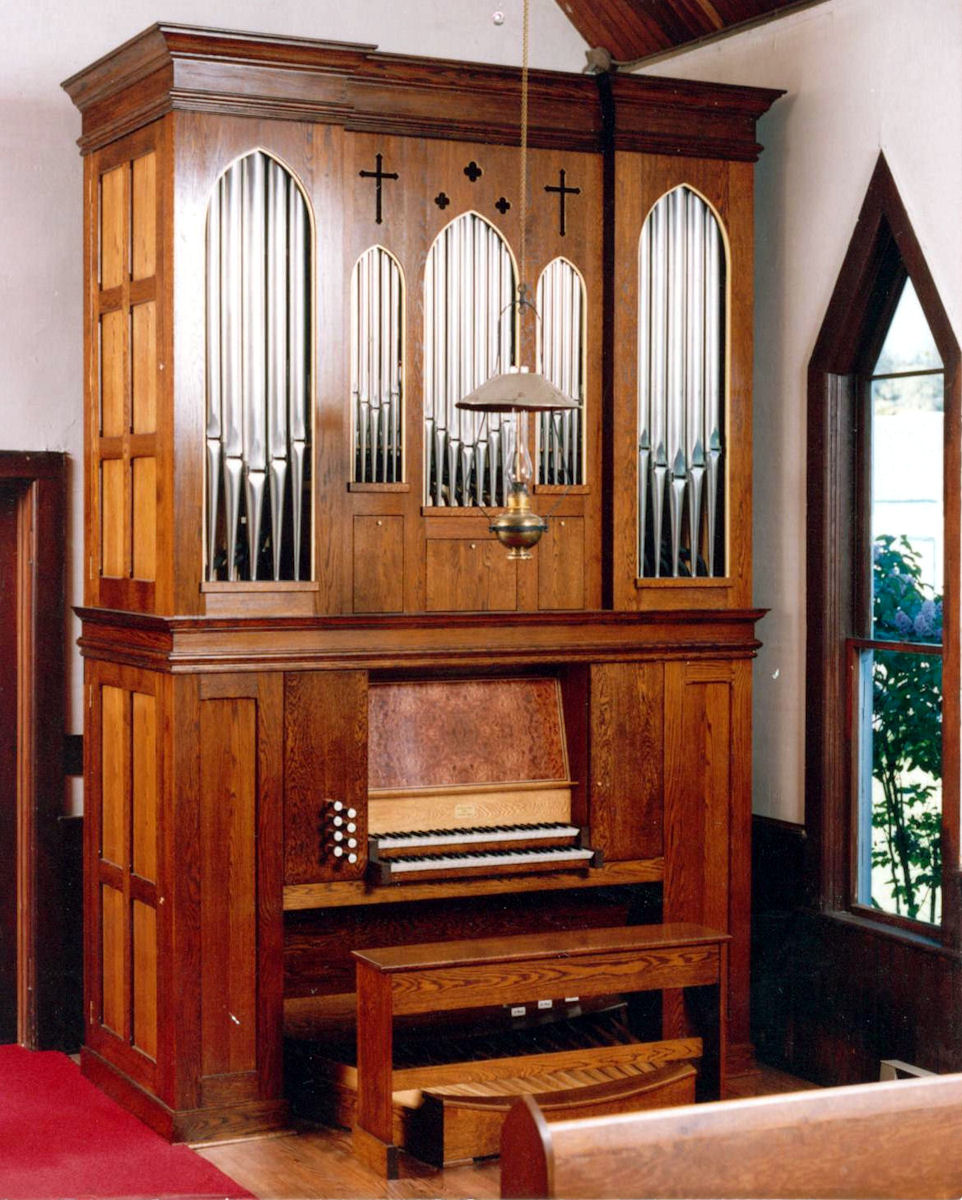

1996-04-05 - Organ case (Photograph by James R. Stettner/Database Manager)
2004-10-30 - Status Note: There 1991. -Database Manager
2006-01-01 - Updated through on-line information from James R. Stettner. -- The case has a 5-sectional façade with 27 pipes in gothic arches arranged: 5-5-7-5-5. The Manual I 4' Principal has its first 27 pipes in the façade. The Manual I 2' Octave is the half-draw (notched shank) position of the II Mixture. The Manual II 8' Gedackt borrows its first 12 notes from the Manual I 8' Rohrflote. The organ was dedicated in recital on May 7, 1990 by Martin W. Olson, who was also the consultant. His wife, Phyllis, was the guest flutist. -Database Manager
2006-01-01 - Updated through on-line information from James R. Stettner. -Database Manager
2012-12-17 - Updated through online information from James R. Stettner. -Database Manager
Stoplist copied from the console April 5, 1996 Source: Source not recorded Date not recorded
Eastsound, Orcas Island, Washington
Emmanuel Episcopal Church
RICHARD L. BOND, Opus 18, 1990 - Original Specifications
MANUAL I COUPLERS (hitch-down; l - r)
8 Rohrflöte 56 I / Ped.
4 Principal (façade) 56 II / Ped.
2 Octave (from Mix.) --
II Mixture [15-19] 112 II / I
MANUAL II ACTION: Mech. key & stop
8 Gedackt (tc) 44
4 Rohrflöte 56 VOICES: 8
2 Gemshorn 56
Tremolo STOPS: 7
RANKS: 8
PEDAL
16 Sub Bass 32 PIPES: 412
NOTES
The organ is located in the back, left corner of the room (when facing forward). The organ
case is of oak, and the music rack is of elm burl. Manual naturals are covered with bone,
and the sharps with ebony. Pedalboard naturals are of oak, and the sharps are of ebony.
Stopknobs are of rosewood with stopfaces carved of cow bone.
The Man. I 4' Principal has its first 27 pipes in the facade. The Man. I 2' Octave is
taken from the II Mixture, and is registered by drawing out the Mixture drawknob halfway
to the notched position. Full draw then adds the second rank. The Man. II 8' Gedackt
borrows its first 12 notes from the Man. I 8' Rohrflöte.
The organ was dedicated in recital on May 7, 1990 at 8:00 p.m. by Martin W. Olson who was
also the consultant. His wife, Phyllis Olson, was the guest flautist.
Sources: Bond opus list and website; JRS; extant organ
[Received from James R. Stettner 2012-12-16.]Regrettably, it is not possible to display the information about the sponsor of this pipeorgandatabase entry or if there is a sponsor. Please see About Sponsors on Pipe Organ Database.
