Better Pipe Organ Database

Schantz Organ Co. Opus 2282 (2007)

St. Martin's in-the-Field Episcopal Church: Sanctuary
375 Benfield Road
Severna Park, MD

Images

2007 - Organ case and console (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

2020-11-21 - Organ Case (Photograph by Hye-Sung Hwang, via Annapolis AGO Facebook, submitted by Jeff Scofield/Jeff Scofield)

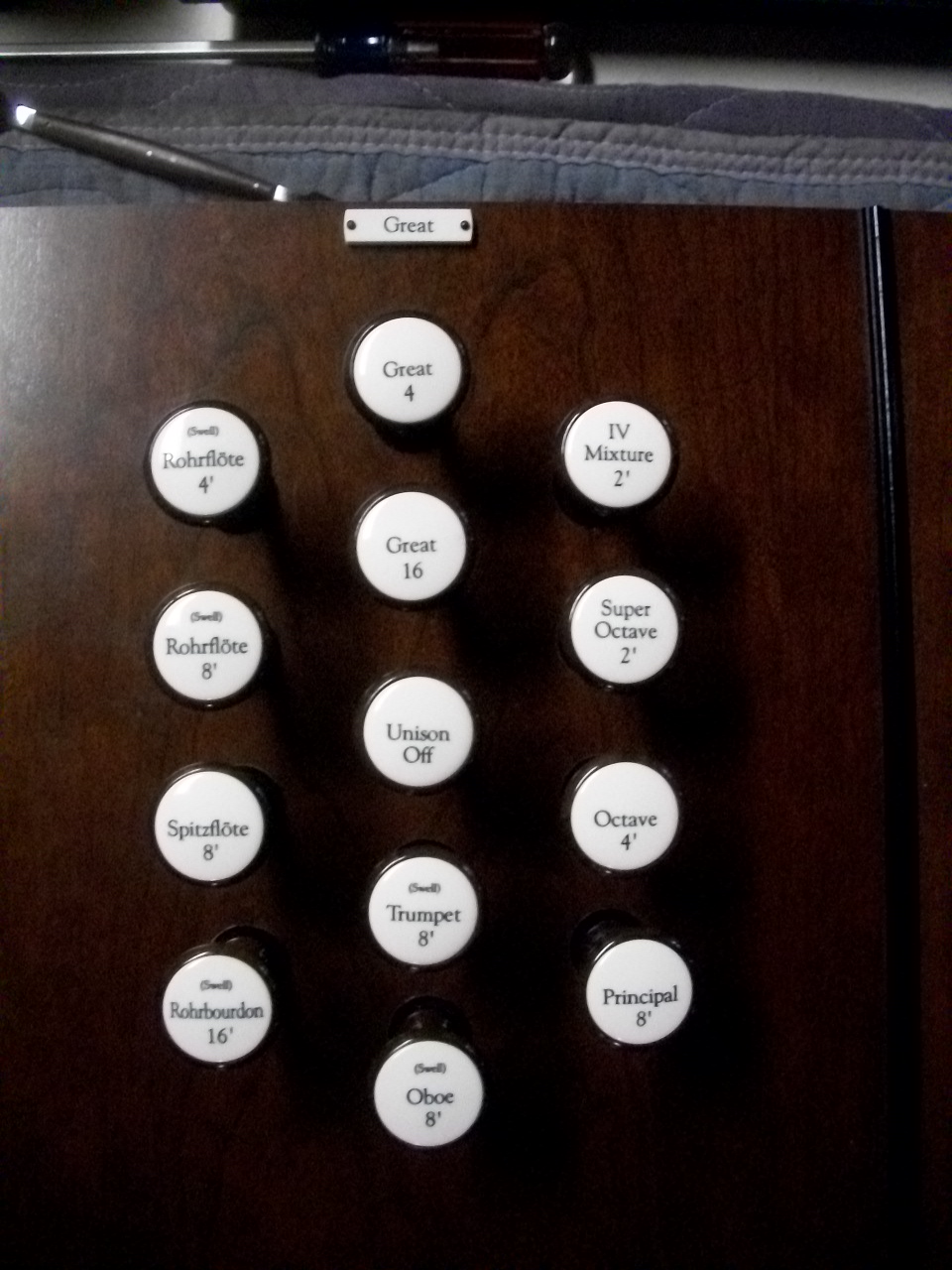

2011-06-06 - Right stop jamb (Photograph by David Storey/David Storey)

2011-06-10 - Left stop jamb (Photograph by David Storey/David Storey)

2010-12-10 - Organ case (Photograph by David Storey/David Storey)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
18 stops
29 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-05-29 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 42, No. 5 [May, 2008] -Database Manager

2009-12-10 - Updated through online information from Chad Boorsma. -Database Manager

2012-06-25 - Updated through online information from Jeff Scofield. -Database Manager

2020-05-31 - In 2011, at the request of the organist, I reprogrammed the solid state relay for the Swell 8' Oboe and Swell 16, 8, 4 Rohrflute to be drawn on and played from the Great manual. Also the Swell Oboe may be drawn in the Pedal at 8 and 4. Additionally, the Swell Rohrflute 8 is also drawn in the Pedal. No additional pipes were added so the pipe count and number of ranks remains the same. The only change was the additiona of stop knobs and reprogramming of solid state. No other changes have been made to the organ. -David Storey

Stoplist

Stoplist from factory specifications Source: Source not recorded Date not recorded

Severna Park, Maryland
ST. MARTIN'S IN-THE-FIELD EPISCOPAL CHURCH

Schantz Organ Company    Opus 2282     2007     25 ranks
_______________________________________________________________

GREAT:                           SWELL:
   8' Principal 61                  16' Rohrbourdon 73
   8' Spitzflöte 61                  8' Viole de Gambe 61
   4' Octave 61                      8' Voix Celeste (GG) 49
   2' Super Octave 61                8' Rohrflöte
  IV  Mixture 244                    4' Principal 61
   8' Trumpet [SW]                   4' Koppelflöte 61
                                 2 2/3' Nazard 61
PEDAL:                               2' Gemshorn 61
  32' Resultant                  1 3/5' Tierce 61
  16' Principal 56                 III  Plein Jeu 183
  16' Subbass 44                     8' Trumpet 73
  16' Rohrbourdon [SW]               8' Oboe 61
   8' Octave                         4' Clarion
   8' Subbass                           Tremulant
   4' Choralbass
  16' Double Trumpet 12
   8' Trumpet [SW]
   4' Clarion [SW]

[Received on line from Chad Boorsma December 10, 2009.]
