Casavant Frères Opus 3857 (2006)

Calvary Lutheran Church
119 N. King St.
Morganton, NC

Images

2023-10-02 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

2023-10-02 - Church interior to rear (Photograph by Jeff Scofield/Jeff Scofield)

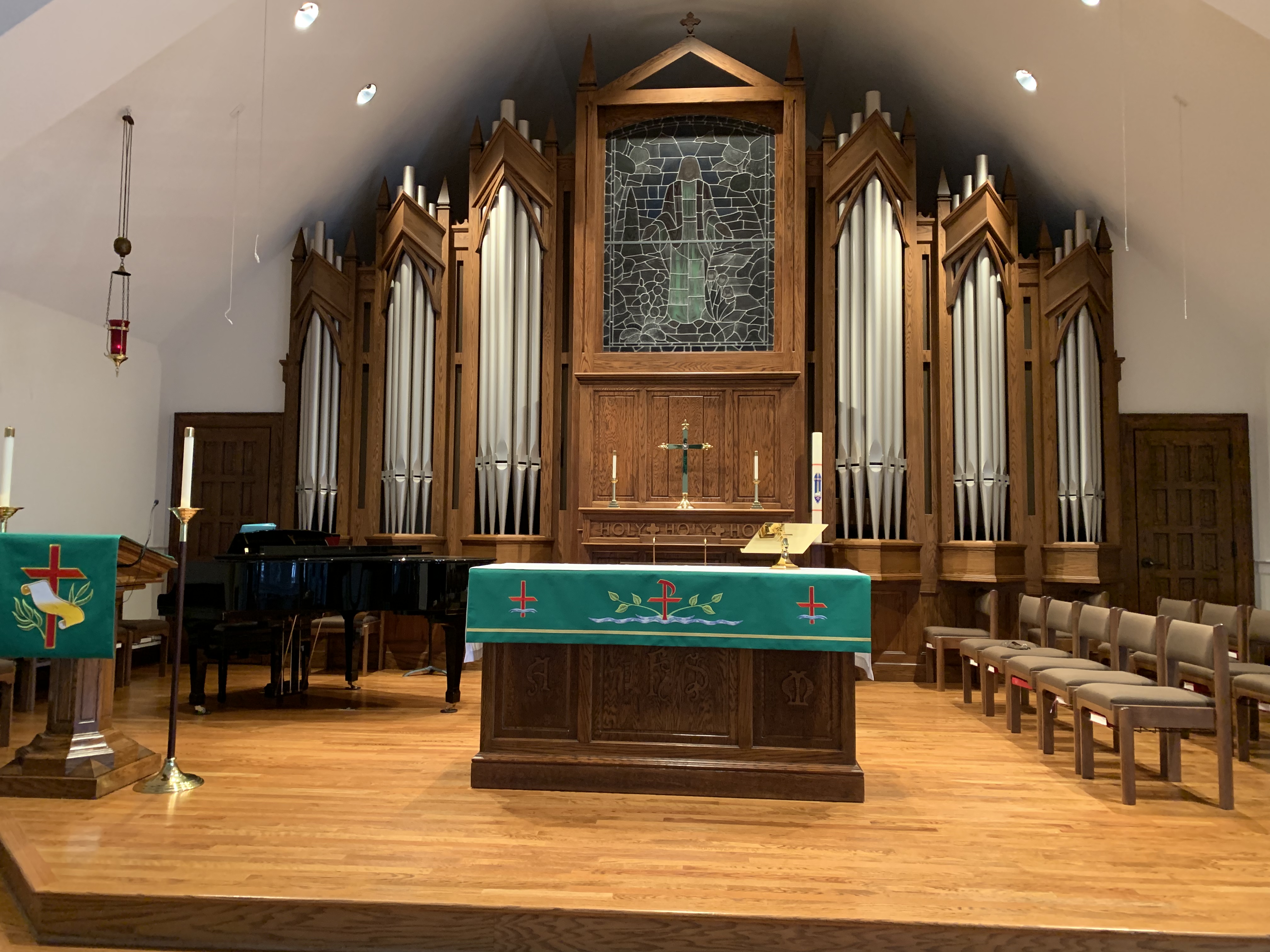

2023-10-02 - Chancel and organ case (Photograph by Jeff Scofield/Jeff Scofield)

2023-10-02 - Church interior to front (Photograph by Jeff Scofield/Jeff Scofield)

2021-07-01 - Facade and Chancel (Photograph by Josiah Riddle/Josiah Riddle)

2021-07-01 - Console (Photograph by Josiah Riddle/Josiah Riddle)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
20 stops
30 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-05-31 - Listed in "Recent Installations," <i>The American Organist</i> Vol. 41 No. 8 [August, 2007] -Database Manager

2009-07-07 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Morganton, North Carolina
       Calvary Lutheran Church

       Casavant   Op. 3857   2006   2/23

       Stoplist courtesy of Casavant Frères

       GREAT                   SWELL                   PEDAL
   16' Bourdon 12           8' Bourdon 61          16' Soubasse 32
    8' Principal 61         8' Viola da Gamba 61   16' Bourdon GT
    8' Chimney Flute 61     8' Voix Celeste 49 tc   8' Octavebass 32
    4' Octave 61            4' Principal 61         8' Chimney Flute GT
    4' Conical Flute 61     4' Spindle Flute 61     4' Octave 32
    2' Fifteenth 61     2 2/3' Nazard 61            4' Chimney Flute GT
II-IV  Mixture 208          2' Flute 61            16' Posaune 12 GT (F/L)
    8' Trumpet 61       1 3/5' Tierce 61           16' Bassoon SW
       Carillon         1 1/3' Quinte 61            8' Trumpet GT
      (existing)           16' Bassoon 12 (L/2)     8' Oboe SW
                            8' Oboe 61              4' Oboe SW
                               Tremulant
                               Sub
                               Super

[Received on line from Jeff Scofield July 07, 2009.]
