Karl Wilhelm Opus 56 (1977)

Mount Tabor Presbyterian Church
5441 SE Belmont
Portland, OR

Images

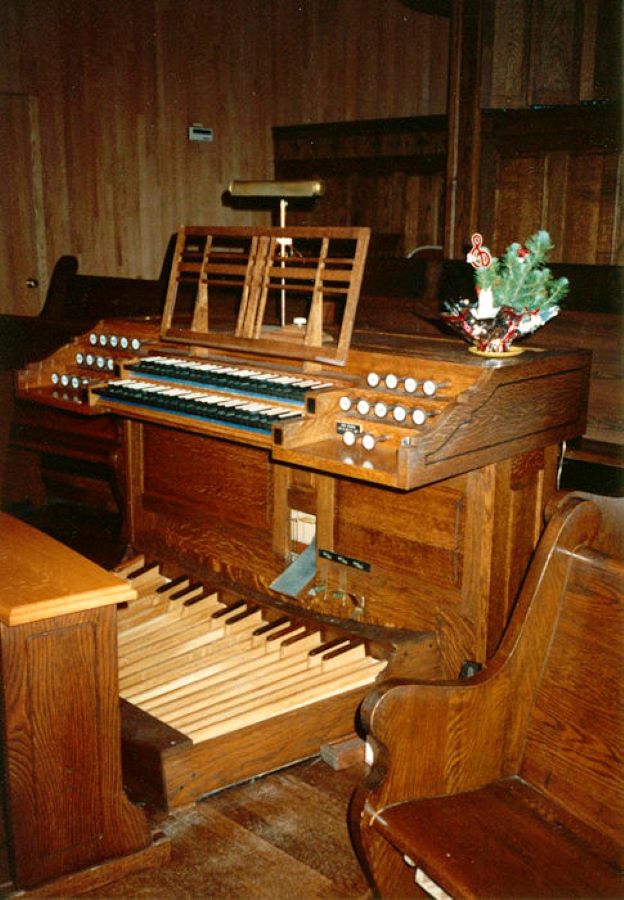

1990-02-09 - Console (Photograph by Jim Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Detached Keydesk (Mechanical Action)
2 manuals
25 stops
23 registers
3 divisions
Key action Type: Mechanical (Balanced Tracker)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 56 notes
Pedal compass: 30 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: None
Has hitchdown couplers

Notes

2007-02-27 - Updated through online information from James R. Stettner. -- Replaced a previous three-man, 26-rank, E-P Guenther organ. -Database Manager

Stoplist

Stoplist from PortlandORgans.com (now inoperative) Source: Source not recorded Date not recorded

Unsupported filetype html, view here.

Typed stoplist from James Stettner Source: Source not recorded Date not recorded

Portland, Oregon
Mount Tabor Presbyterian

Karl Wilhelm, Opus 60, 1978


Great
16     Bourdon                56
8      Prinzipal              56
8      Hohlflote              56
4      Oktave                 56
4      Spitzflöte             56
2 2/3  Nazard                 56
2      Superoctave            56
1 3/5  Terz                   56
V      Mixture               280   Beginning comp: 19-22-26-29-33.
8      Trompete               56


Swell (Expressive)
8      Gedackt                56
8      Salicional       (tc)  44
4      Prinzipal              56
4      Blockflöte             56
2      Gemshorn               56
1 1/3  Quinte                 56
III    Scharf                168   Beginning comp: 22-26-29.
II     Sesquialtera     (GG)  98   Beginning comp: 12-17.
8      Cromorne               56
       Tremolo
       Zimbelstern


Pedal
16     Subbass                30
8      Offenflöte             30
4      Choralbass             30
16     Posaune                30
8      Trompete         (Gt)  --


Couplers (Hitch-down)
Swell to Pedal               [8]
Great to Pedal               [8]

Swell to Great               [8]


FOOT LEVERS (Labeled; l - r)
Sw/Gt
Gt/Ped
Sw/Ped


Pedal Movements
Swell Expression          (bal.)


Action: Mech. Key & Stop
Voices: 23
Stops: 25; inc. zimbelstern
Ranks: 30
Pipes: 1,550


Notes

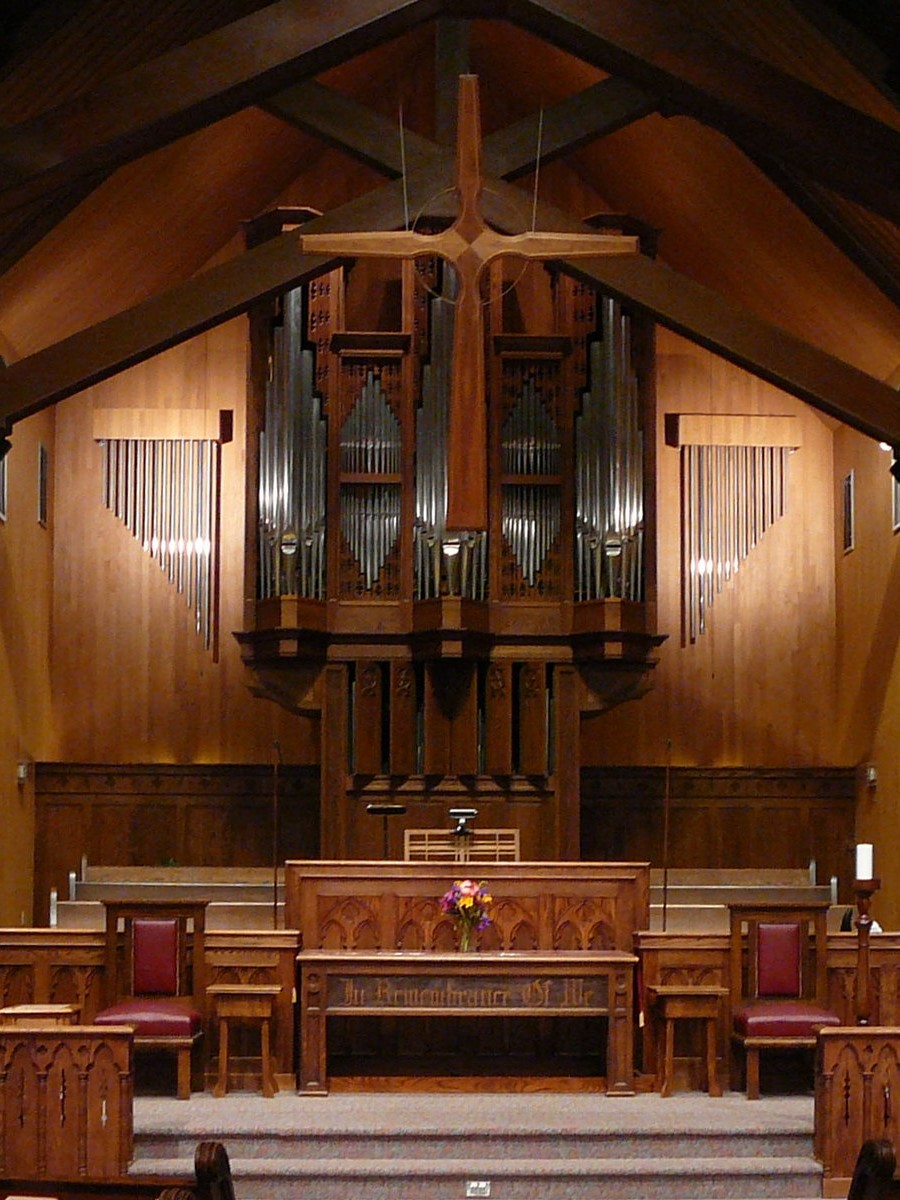

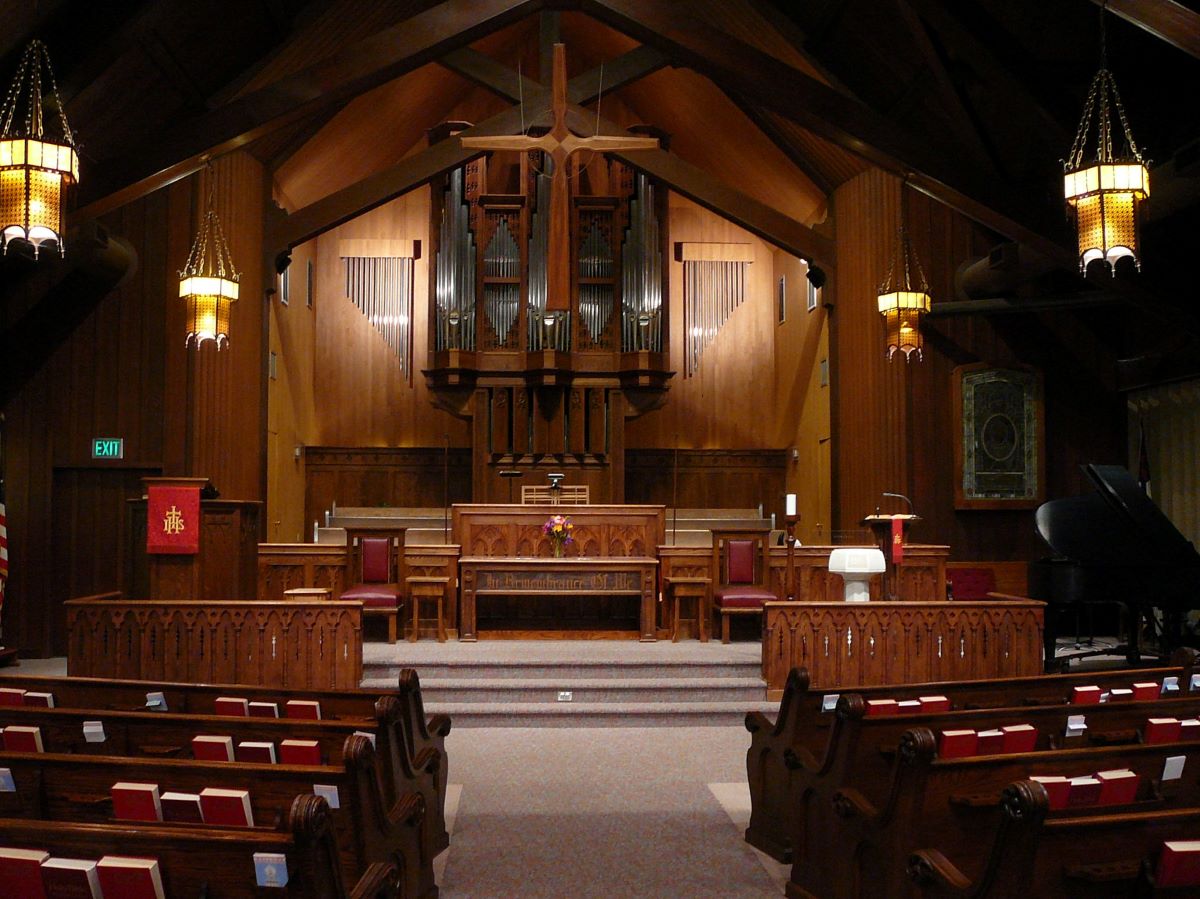

The organ is free-standing and encased at the front of the sanctuary. The console is detached and has terraced stopjambs. The Swell 8' Salicional borrows its bottom octave from the 8' Gedackt. The Pedal 8' Trompete is taken from the Great by transmission. The two stopknobs are in line with one another, the Great over the Pedal.  The stop itself can only be drawn on one of the divisions at a time.


Sources
Wilhelm opus list; extant organ [visited Feb. 9, 1990]; JRS.
