Bond Pipe Organs Inc. Opus 4 (1979)

Resurrection Lutheran Church
1700 NE 132nd Ave.
Portland, OR

Images

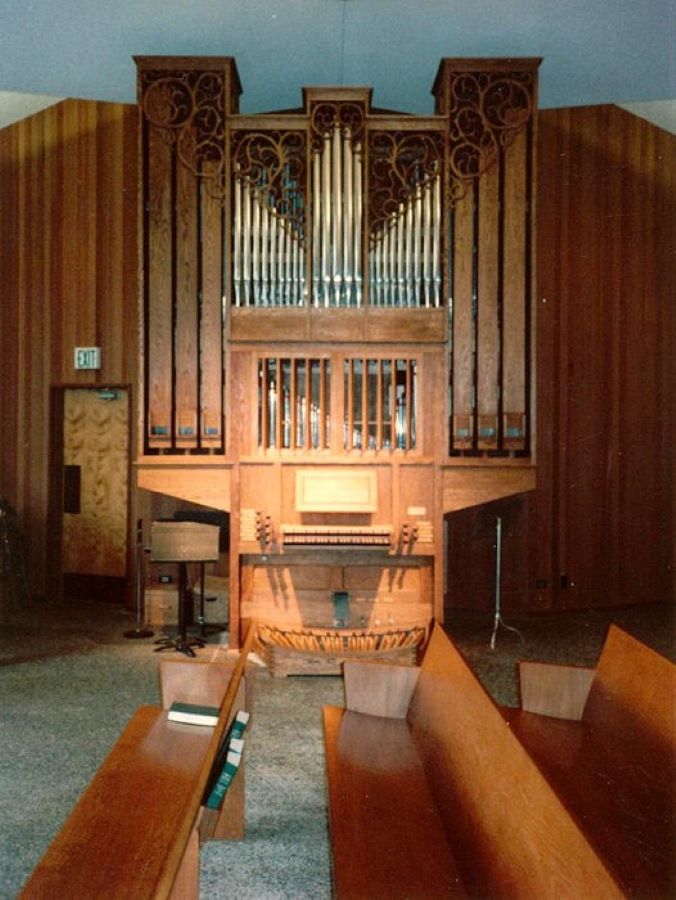

2007-03-13 - "Organ case, full front view" (Photograph by James R. Stettner/Database Manager)

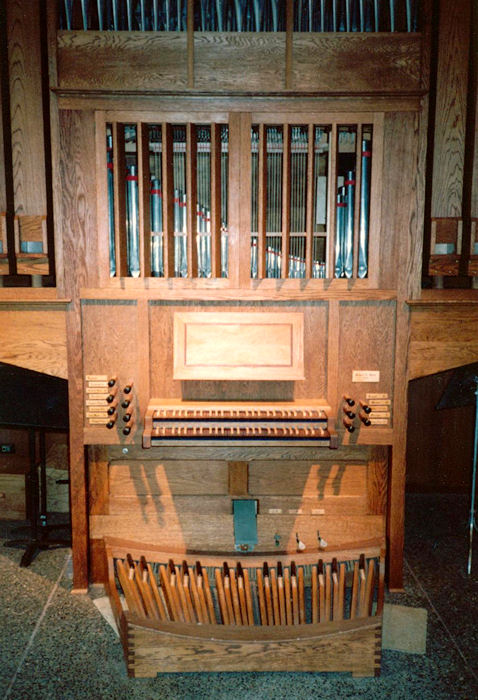

2007-03-13 - Keydesk (Photograph by James R. Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
12 stops
12 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: None
Has hitchdown couplers

Notes

2007-03-15 - Updated through online information from James R. Stettner. -- The organ is free-standing and encased with an attached, projecting keydesk. The facade contains 29 wood and metal pipes arranged: 3 - 9 - 5- -9 - 3. The side towers hold the pedal division, and the first six pipes of the 16' Subbass are in the facade. The center top of the case holds the Great division with the first 23 pipes of the 4' Octave in the facade. The expressive Swell is beneath the Great in Brustwerk position. The organ was dedicated by Doug Butler. The organ was pictured in The American Organist, August 1981, Vol. 15, No. 8 in the "New Organs" section. -Database Manager

Stoplist

Stoplist copied from the keydesk October, 1987 Source: Source not recorded Date not recorded

Portland, Oregon
Resurrection Lutheran

Bond Pipe Organs, Inc., Opus 4, 1979 - Original Specifications

I (GREAT)
   8'   Chimney Flute            61
   4'   Octave                   61
   2'   Octave                   61
   III  Mixture                 183   Beginning composition: 22-26-29.
   8'   Trumpet                  61

II (SWELL - Expressive)
   8'   Stopped Flute            61
   4'   Chimney Flute            61
   2'   Gemshorn                 61
   II   Sesquialtera       (tc)  88   Composition: 12-17.
        Tremolo

PEDAL
   16'  Subbass                  32
   8'   Stopped Bass             32
   4'   Choral Bass              32

COUPLERS (hitch-down)
   Swell to Pedal
   Great to Pedal
   Swell to Great

FOOT LEVERS (labeled; l - r)
   II - P
   I - P
   II - I

PEDAL MOVEMENTS
   Swell Expression          (bal.)

ACTION: Mechanical Key & Stop
VOICES: 12
STOPS:  12
RANKS:  15
PIPES:  744

NOTES
The organ is free-standing and encased with an attached, projecting key-
desk. The facade contains 29 wood and metal pipes arranged: 3-9-5-9-3.
The side towers hold the pedal division and the first six pipes of the
16' Subbass are in the facade.  The center, top of the case holds the
Great division with the first 23 pipes of the 4' Octave in the facade.
The expressive Swell is beneath the Great in Brustwerk position.

The organ was dedicated by Doug Butler.

The organ was pictured in The American Organist, August 1981, Vol. 15,
No. 8 in the "New Organs" section.

 [Received on line from James R. Stettner April 19, 2009.]

Stoplist from PortlandORgans.com (now inoperative) Source: Source not recorded Date not recorded
