Better Pipe Organ Database

Cannarsa Organs (1988)

Gloria Dei Lutheran Church
250 Fox Hill Road
Hampton, VA

Images

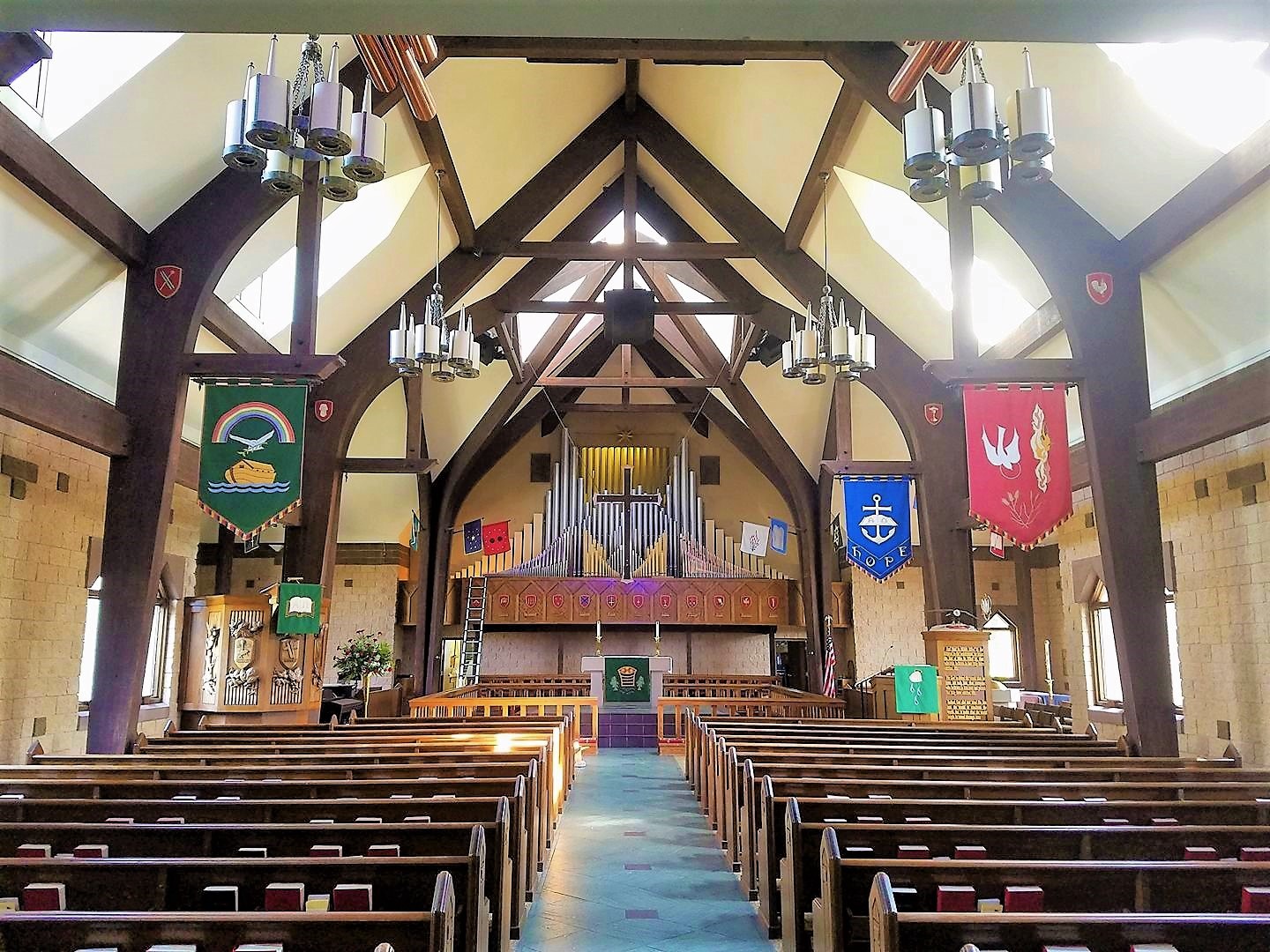

2017-07-12 - Church interior and exposed pipes (Photograph by Kegg Pipe Organ Builders, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

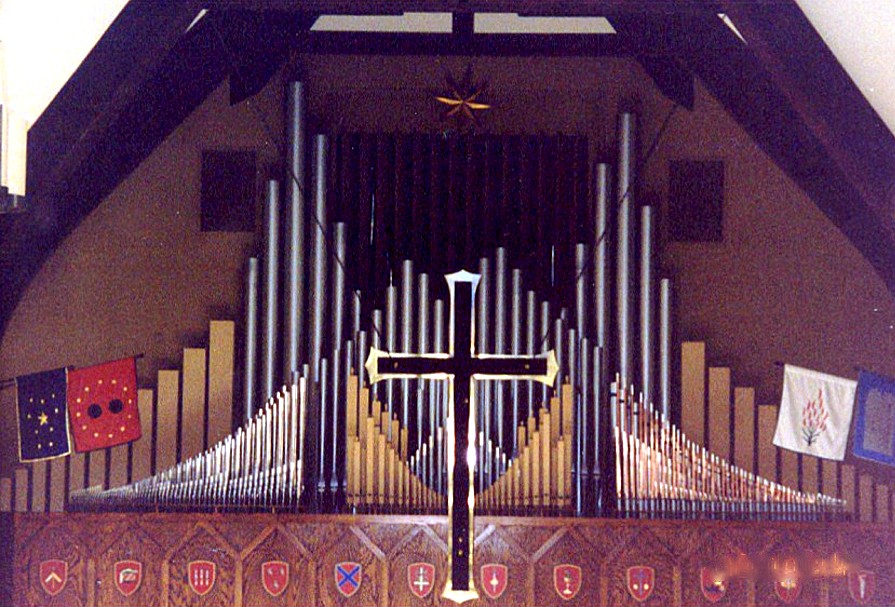

2001-07-18 - Great/Choir Pipework above Main Altar (Archival source not identified by contributor: David Kinyon/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
3 manuals
22 stops
44 registers
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-07-03 - There in 1997 -Database Manager

2017-07-12 - In 1997, Kegg Pipe Organ Co. installed a new 3m console, and connected their new console control system into the existing Cannarsa system. After a significant lightning strike in 2017, Kegg returned to replace the damaged Cannarsa control system with their own. -Database Manager

Stoplist

Typed specification Source: From Charles Kegg Date not recorded

Hampton, Virginia
Gloria Dei Lutheran Church

Cannarsa Organs, Inc.   1988      3 manuals, 44 registers, 22 stops, 27 ranks
New console by Kegg Pipe Organ Co.   1997
_____________________________________________________________________________

         GREAT ORGAN                          SWELL ORGAN
      8' Principal              85        16' Bourdon Doux           73
      8' Hohlflute              73         8' Bourdon (fr. 16')      --
      4' Octave                 61         8' Salicional             61
      4' Flute (fr. 8' HoFl)    --         8' Voix Céleste (TC)      49
      2' Super Octave (fr. 8')  --         4' Principal              73
         Mixture IV            244         4' Flûte à bec            61
      8' Trompette (Sw)         --         2' Octave (fr. 4' Prin)   --
      8' Krummhorn (Pos)        --     1 1/3' Larigot                61
      8' Fanfare Trumpet (Pos)  --        16' Contre Trompette       85
         Great Unison Off                  8' Trompette (fr. 16')    --
         Great 4'                          8' Hautbois               61
                                           4' Clairon (fr. 16')      --
         POSITIV ORGAN                        Tremulant
      8' Gedeckt                61            Swell 16
      4' Koppel Flöte           73            Swell Unison Off
      2' Principal              61            Swell 4
  2 2/3' Nazat (TC)             49            MIDI Chan 2
      2' Flöte (fr. 4' KpFl)    --
  1 3/5' Terz                   61            PEDAL ORGAN
  1 1/3' Quinte (fr. Nazat)     --        32' Bourdon (Sw)           --
         Zimbel III            183        32' Soubasse (resultant)   --
      8' Krummhorn              61        16' Principal              56
         Tremulant                        16' Soubasse               44
         Positiv Unison Off               16' Bourdon (Sw)           --
         Positiv 4                         8' Octave (fr. 16' Prin)  --
     16' Fanfare Trumpet (TC)   --         8' Basse (fr. 16' SB)     --
      8' Fanfare Trumpet        61*        4' Choral Bass (fr. 16')  --
         MIDI Chan 3                      32' Grand Cornet           --
         MIDI Chan 4                      16' Contre Trompette (Sw)  --
         * horizontal in back              4' Clairon (Sw)           --
                                           8' Fanfare Trumpet (Pos)  --
                                              MIDI Chan 1

         COMBINATIONS                         COUPLERS
         Generals   1-15   (thumb)            Great to Pedal        8, 4
         Generals   1-12   (toe)              Swell to Pedal        8, 4
         Swell       1-8   (thumb)            Positiv to Pedal      8, 4
         Great       1-6   (thumb)            Swell to Great    16, 8, 4
         Positiv     1-6   (thumb)            Positiv to Great  16, 8, 4
         Pedal       1-4   (toe)              Swell to Positiv  16, 8, 4
                                              Great/Positiv Transfer
         REVERSIBLES
         Great to Pedal    (thumb & toe)      SWELL SHOES
         Swell to Pedal    (thumb & toe)      Swell Expression
         Positiv to Pedal  (thumb & toe)      MIDI Expression
         Swell to Great    (thumb)            Crescendo (4 levels)
         Positiv to Great  (thumb)
         Full Organ        (thumb & toe)      INDICATORS
         Zimbelstern       (toe)              Crescendo (LED ribbon)
                                              Full Organ
         Transposer                           Wind


[Received from Steven E. Lawson  2017-07-12]
