Casavant Frères Ltée. Opus 2847 (1965)

Sinsinawa Dominican Motherhouse: Queen of the Rosary Chapel
585 County Road Z
Sinsinawa, WI

Images

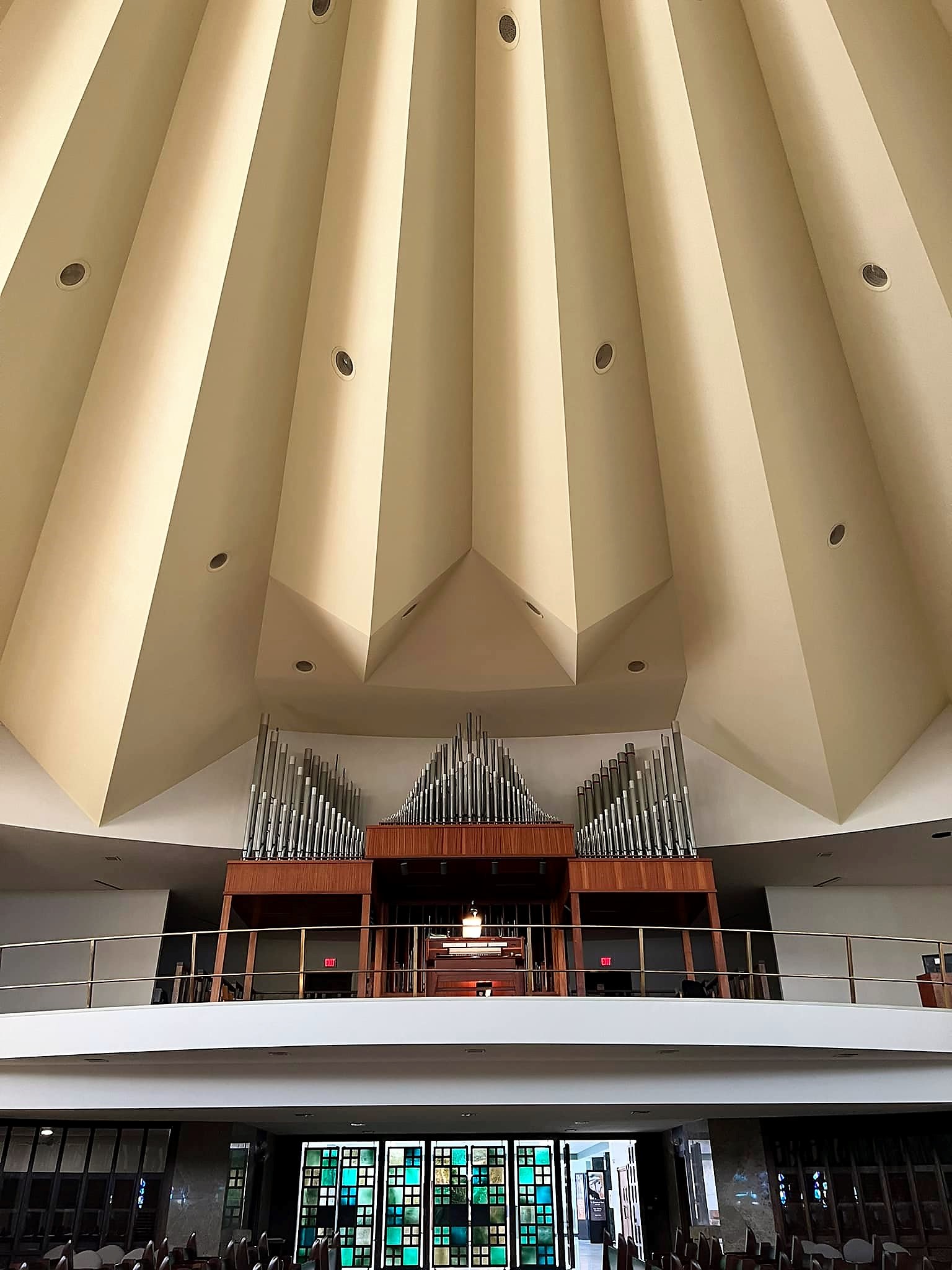

2022-06-29 - Organ gallery (Photograph by Andrew Schaeffer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

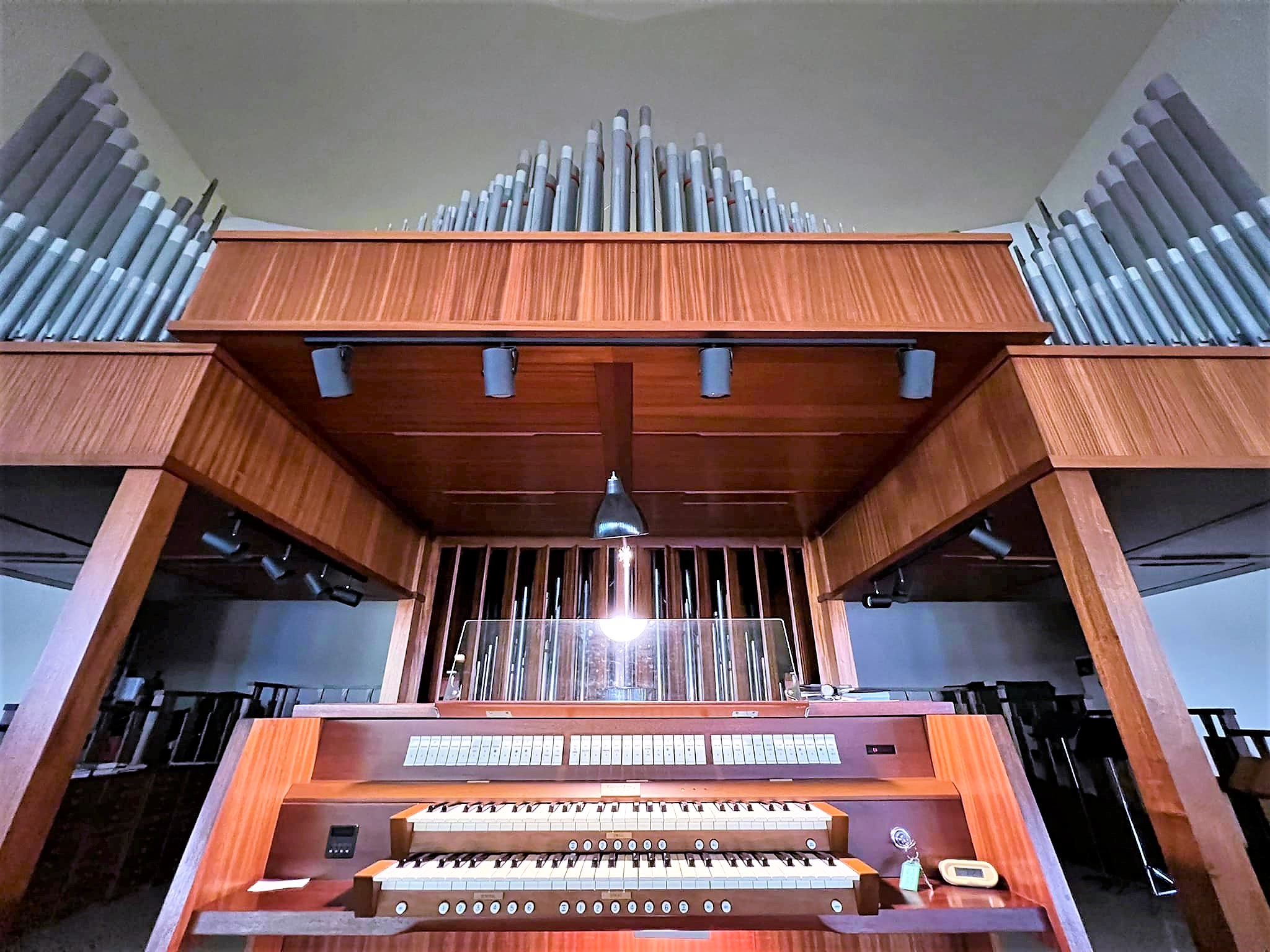

2022-06-29 - Console and exposed pipes (Photograph by Andrew Schaeffer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

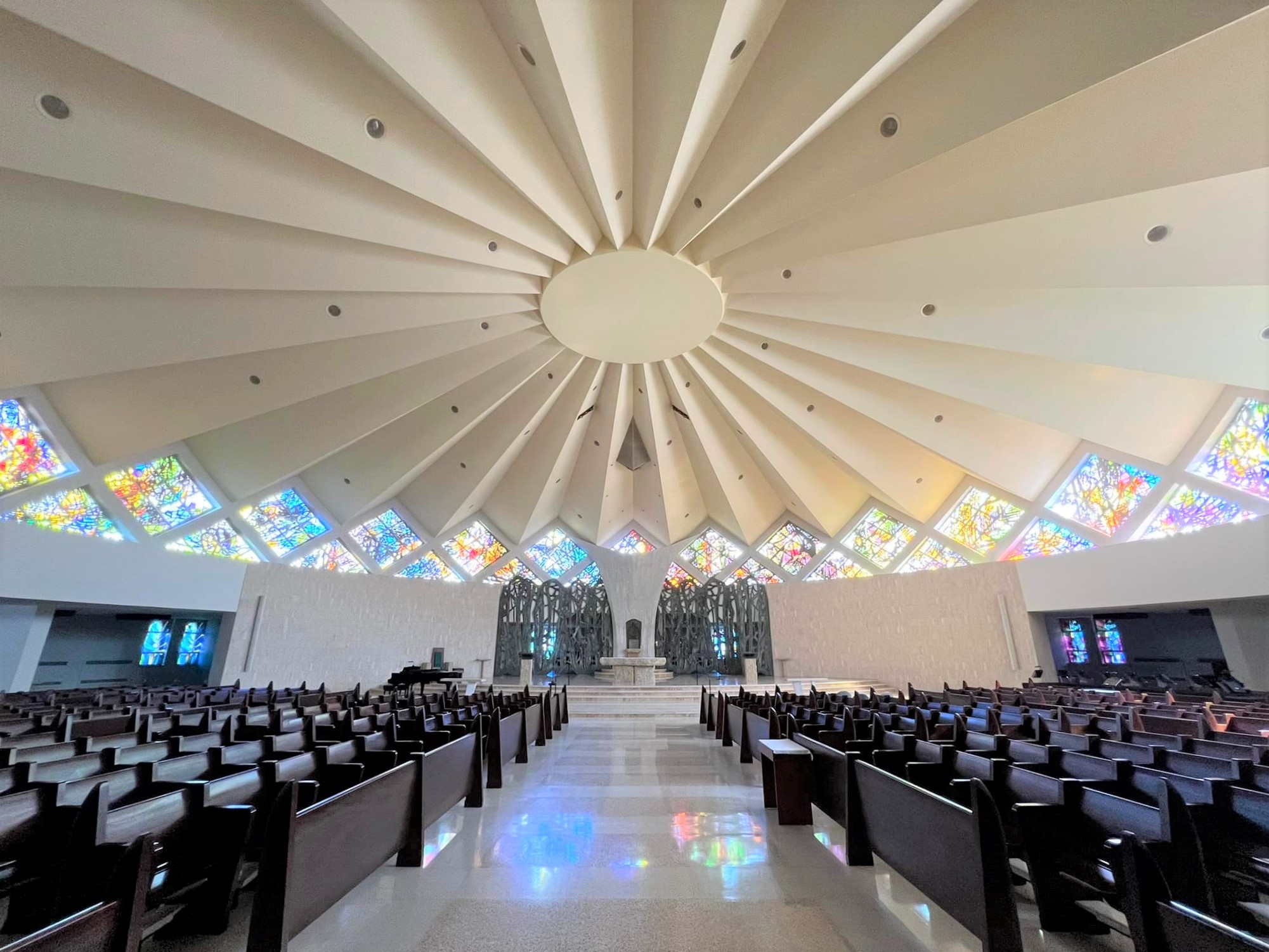

2022-06-29 - Chapel interior (Photograph by Andrew Schaeffer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

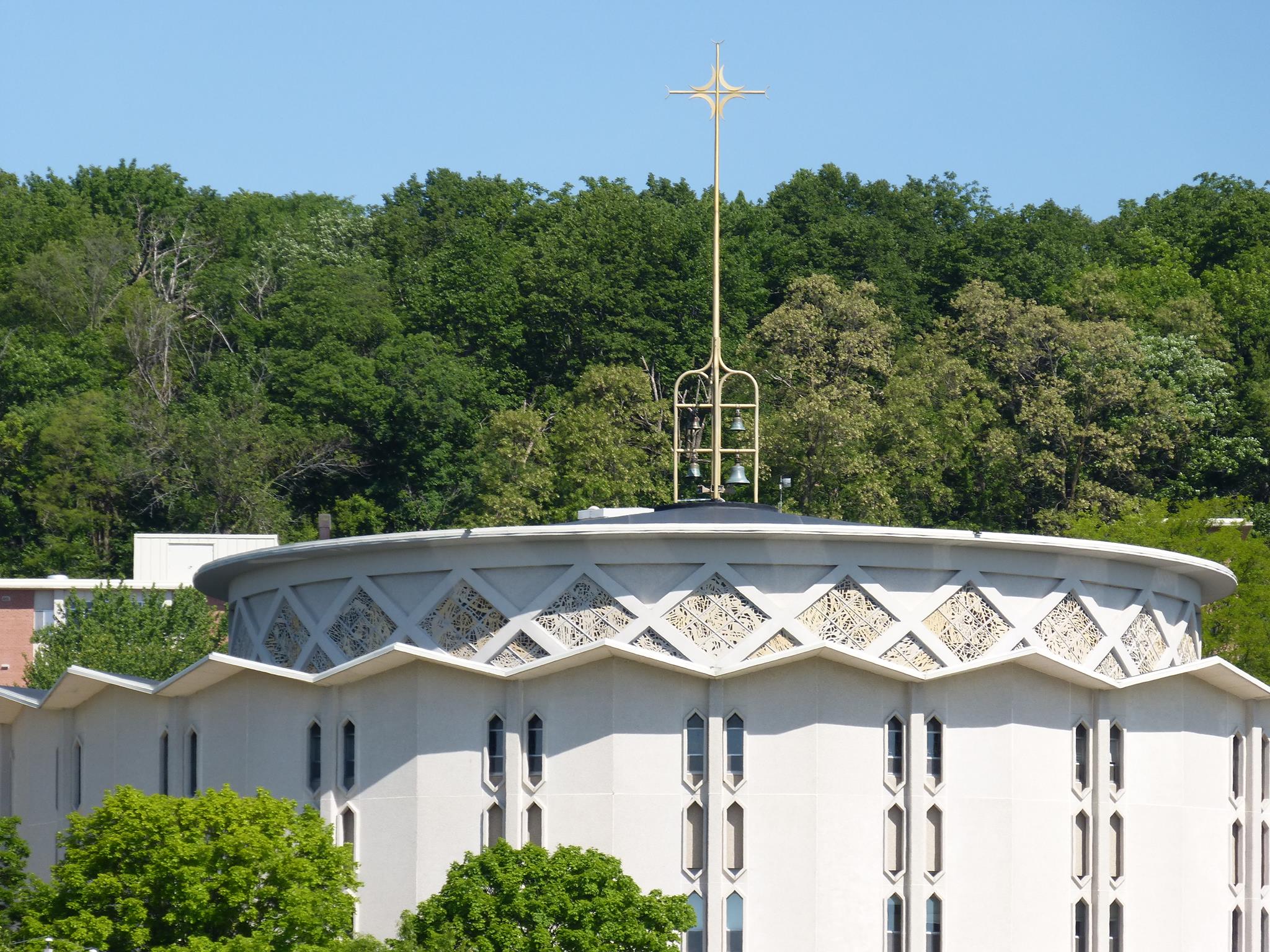

2014-06-05 - Chapel exterior (Photograph from an archival source: Chapel Facebook, submitted by Jeff Scofield/Jeff Scofield)

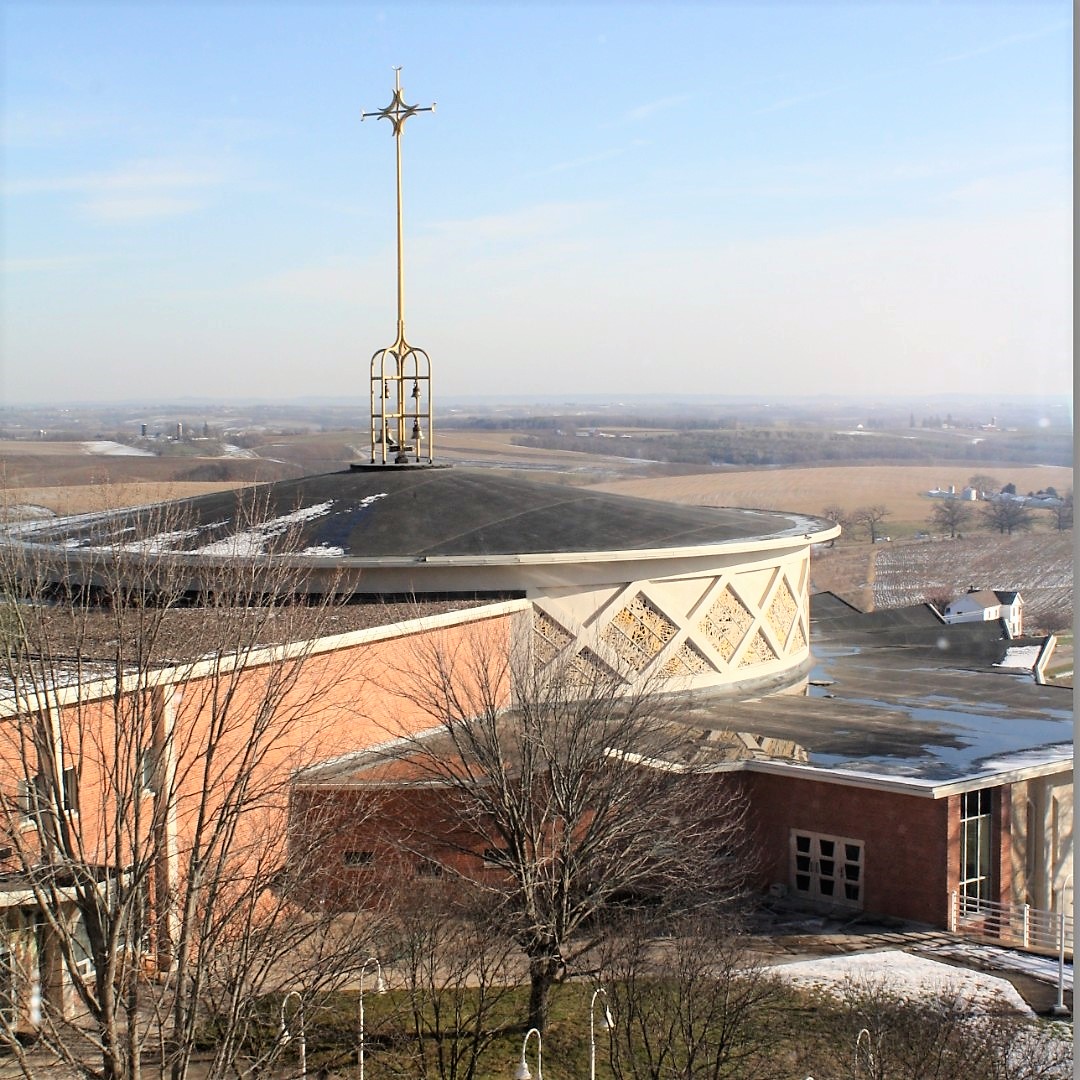

2021-01-26 - Chapel exterior (Photograph from an archival source: Chapel Facebook, submitted by Jeff Scofield/Jeff Scofield)

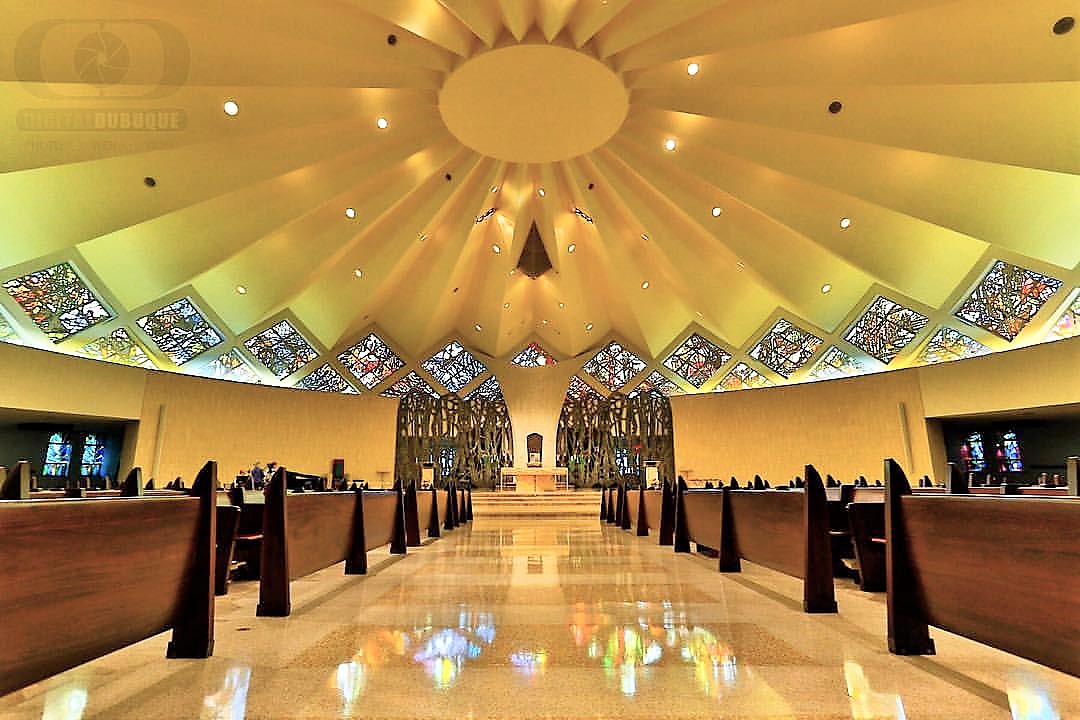

2016-05-22 - Chapel interior (Photograph from an archival source: Digital Dubuque, Chapel Facebook, submitted by Jeff Scofield/Jeff Scofield)

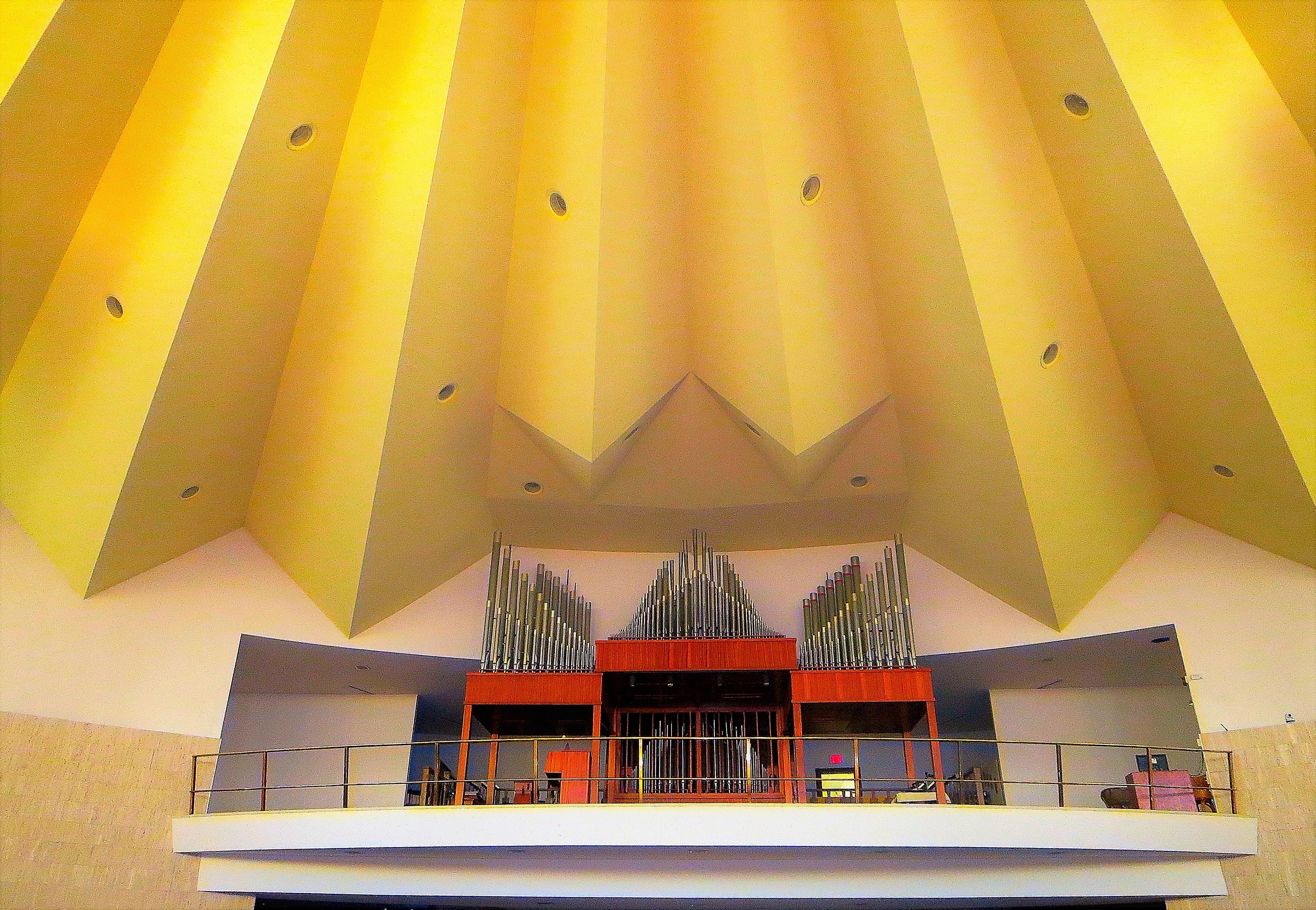

2013-10-01 - Organ and exposed pipes (Photograph by Corey Coyle via Wikimedia, submitted by Jeff Scofield/Jeff Scofield)

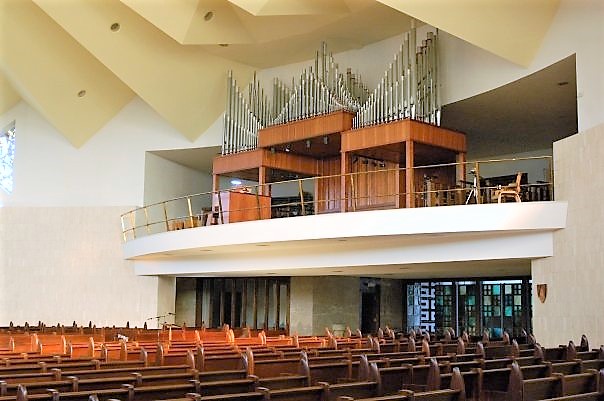

2008-07-04 - Chapel Interior (Photograph by Stephen Schnurr/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
26 stops
28 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-07-05 - Identified through online information from Paul Marchesano. -Database Manager

2010-06-04 - Updated through online information from Jeff Scofield. -- Console renovated by Casavant in 2009 with preparations made for future additions. -Database Manager

2010-06-05 - Updated through online information from Jeff Scofield. -- Official name of the group is now the Dominican Education Center. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Sinsinawa, Wisconsin
    Sinsinawa Dominicans
   (formerly Santa Clara College)

    Casavant   Op. 2847   1965   2/34

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada

    * preparations made during 2009 console
      renovation for future additions
    _______________________________________________________________

    GREAT                   SWELL                    PEDAL
16' Quintade    56       8' Viole de Gambe  56   32' Resultant   --
 8' Prinzipal   56       8' Voix Celeste tc 44      (added in 2009)
 8' Rohrflöte   56       8' Gedackt         56   16' Subbass     32
 8' Erzähler    56       4' Spitzprinzipal  56   16' Quintade    GT
 4' Oktav       56       4' Koppelflöte     56    8' Prinzipal   32
 4' Spitzflöte  56       2' Oktav           56    8' Gemshorn    32
 2' Flachflöte  56   1 1/3' Quinte          56    8' Bourdon (ext)*
IV  Mixtur     224      II  Sesquialtera tc 88    4' Choralbass  32
16' Cromorne    *      III  Scharf         168  III  Mixture     96
 8' Trompete    56      16' Cromorne        *    16' Posaune      *
 8' Cromorne    *        8' Cromorne        *    16' Fagott  L/2 32
                         8' Oboe            56   16' Cromorne     *
                            Tremulant             8' Cromorne     *
                                                  4' Schalmei    32

[Received on line from Jeff Scofield June 04, 2010.]
