Emmanuel Episcopal Church
5 Bryant Street
Wakefield, MA
Images

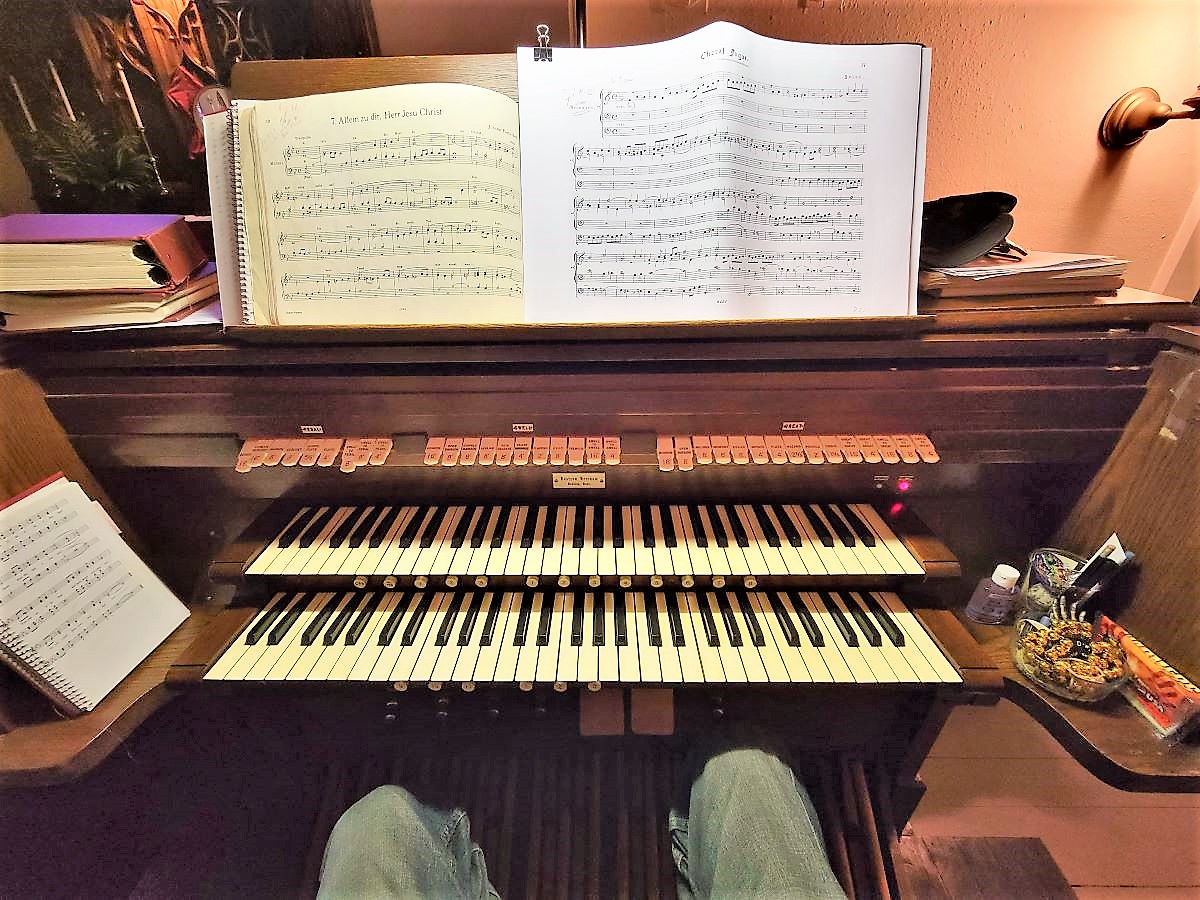

2023-04-03 - Console on the right (Photograph by Gary Wilkins, submitted by Jim Stettner/Jim Stettner)

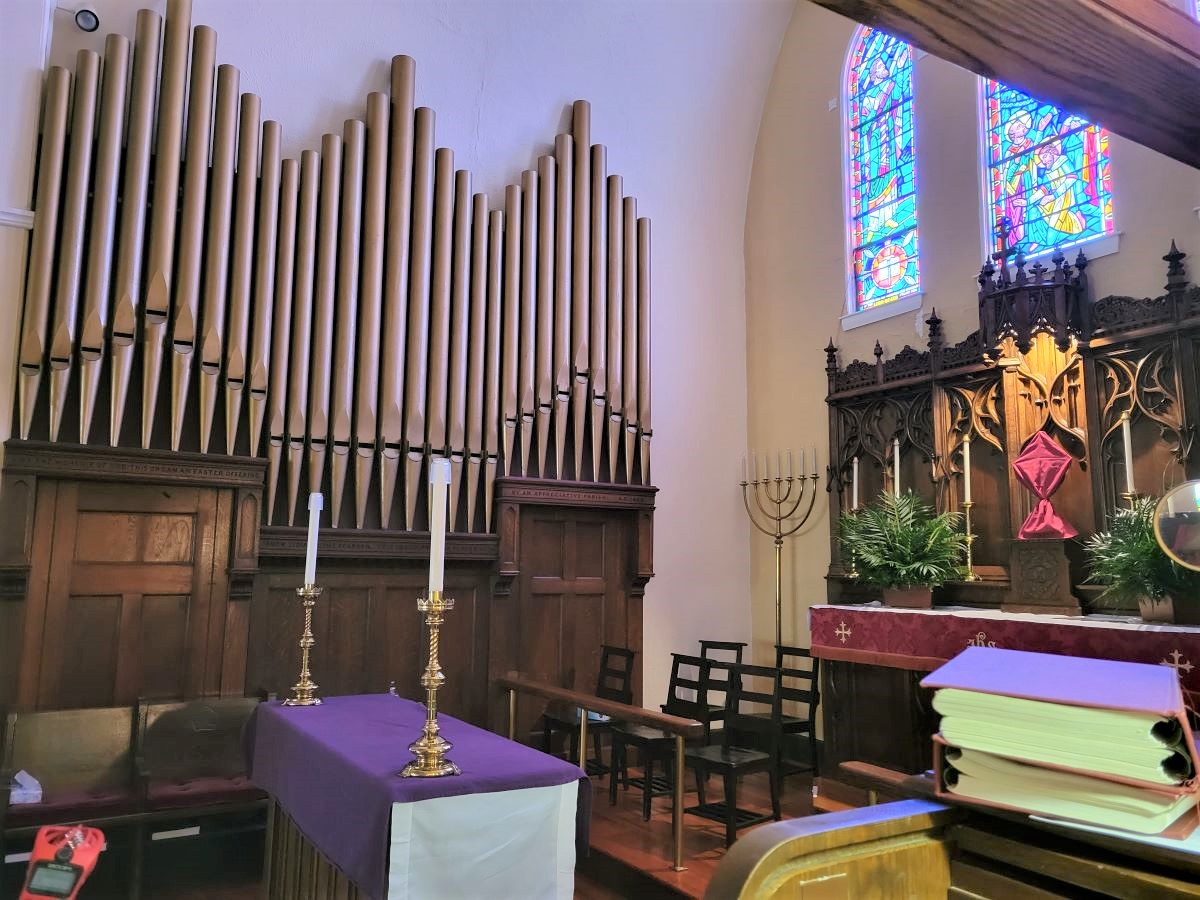

2023-04-03 - Organ case on left chancel wall (Photograph by Gary Wilkins, submitted by Jim Stettner/Jim Stettner)

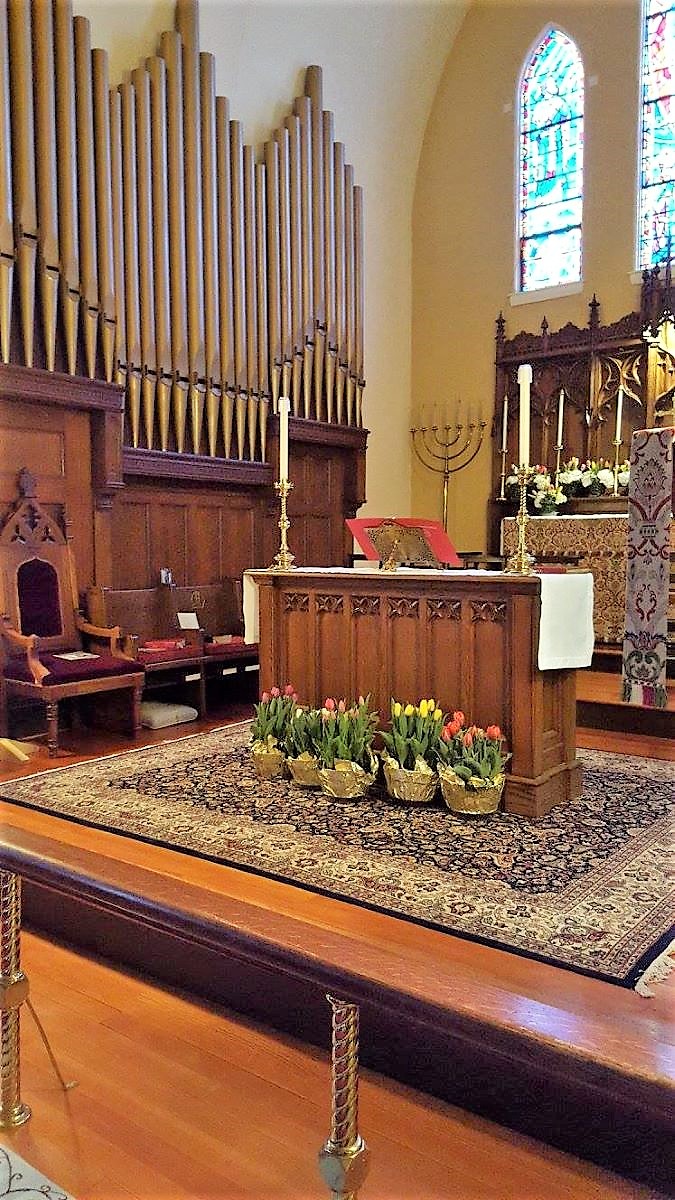

Date unknown - Organ case in the chancel (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

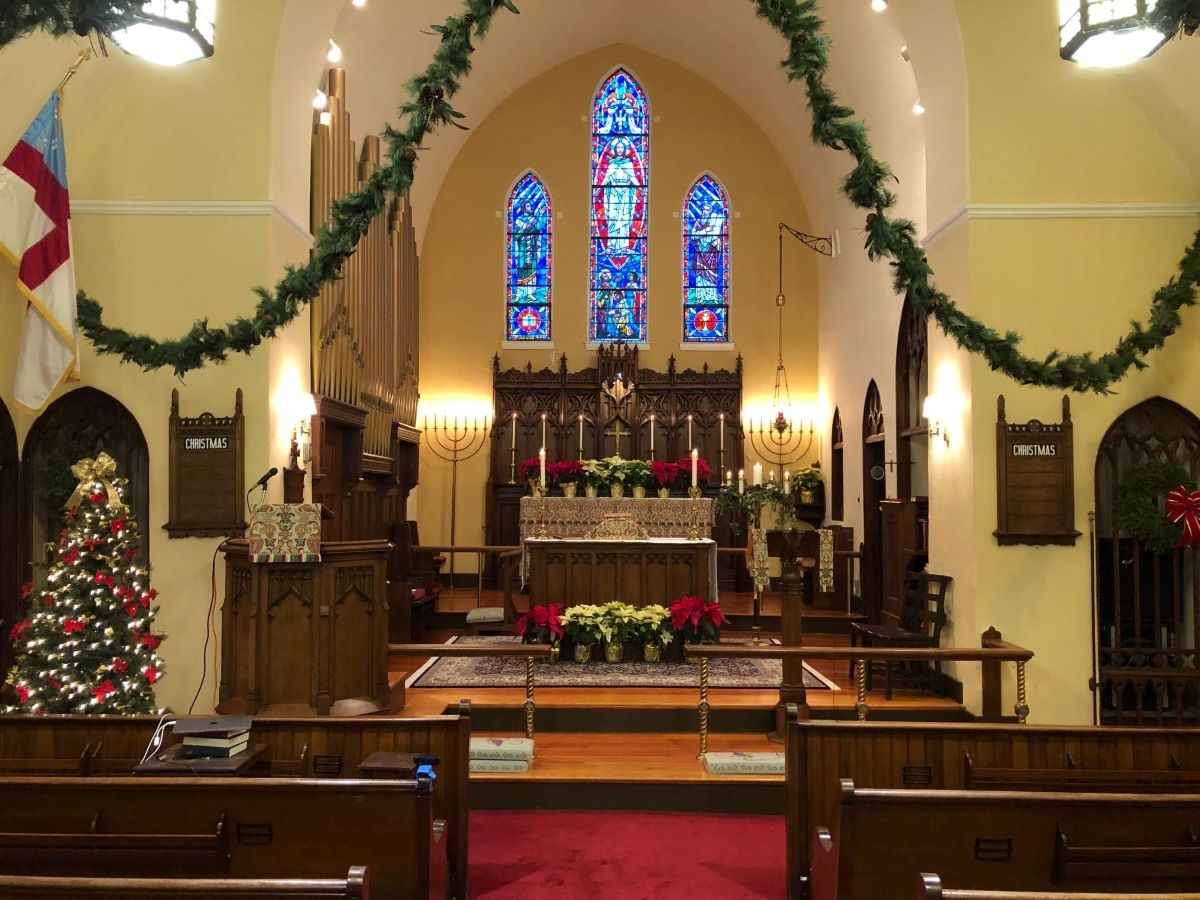

December 2022 - Sanctuary interior with organ in front on the left. (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Date unknown - Church exterior (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 2 manuals
- 13 stops
- 24 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
Notes
2008-07-05 - Identified through online information from James R. Stettner. -- This was the electrification of the existing Hutchings-Votey organ on its original chests. Documented: March 1, 1988. -Database Manager
2010-04-10 - Updated through online information from Jeffrey H. Smith. -- Composed of the original Hutchings of 12 straight ranks with Kershaw's addition of a 13th long rank (approx 97 Gedeckt pipes) that appears on as Great 16', 8',4', 2 2/3', 2', 1 3/5' and as Pedal 16', 8' 5 1/3', 4'. -Database Manager
Stoplist
Source: Stoplist from Memory / verified against submitted console photos April, 2010
Wakefield, Massachusetts
Emmanuel Episcopal Church
Hutchings-Votey, Opus 1507, 1903
Rostron Kershaw, 1953 - Electrification
GREAT:
16' Bourdon 12 Ext. Gedeckt
8' Open Diapason 61
8' Melodia 61
8' Gedeckt 61
8' Dulce 61
4' Octave 61
4' Flute 12 Ext. Gedeckt
2 2/3' Nazard 7 Ext. Gedeckt
2' Piccolo 5 Ext. Gedeckt
1 3/5' Tierce -- From Gedeckt
Great to Great 16'
Great to Great 4'
SWELL (Expressive):
16' Bourdon (Gt) --
8' Open Diapason 61
8' Stopped Diapason 61
8' Aeoline 61
8' Voix Celeste (tc) 49
4' Flute Hamonique 61
2' Flautino 61
8' Oboe 61
Tremolo
Swell to Swell 16'
Swell to Swell 4'
PEDAL:
16' Bourdon 32
16' Lieblich Gedeckt (Gt) --
8' Bourdon 12 Ext. 16' Bourdon
8' Gedeckt (Gt) --
5 1/3' Quinte Flute 7 Ext. 16' Bourdon
4 Flute 5 Ext. 16' Bourdon
COUPLERS
Swell to Pedal 8,4
Great to Pedal 8
Swell to Great 16,8,4
FINGER PISTONS
General 1 - 11
Swell & Pedal 1 - 3
Great & Pedal 1 - 3
Gt Ped (rev)
Can
TOE STUDS
General 1 - 4
Great to Pedal (rev)
PEDAL MOVEMENTS
Swell Expression (bal.)
Crescendo (bal.)
[Received online from Jeffrey H. Smith April 10, 2010.]
[Updated & Augmented by James R. Stettner May 5, 2023.]
