M. P. Möller Opus 8619 (1954)

First United Methodist Church-Chapel: Slade Memorial Chapel
502 6th Street
Orange, TX

Images

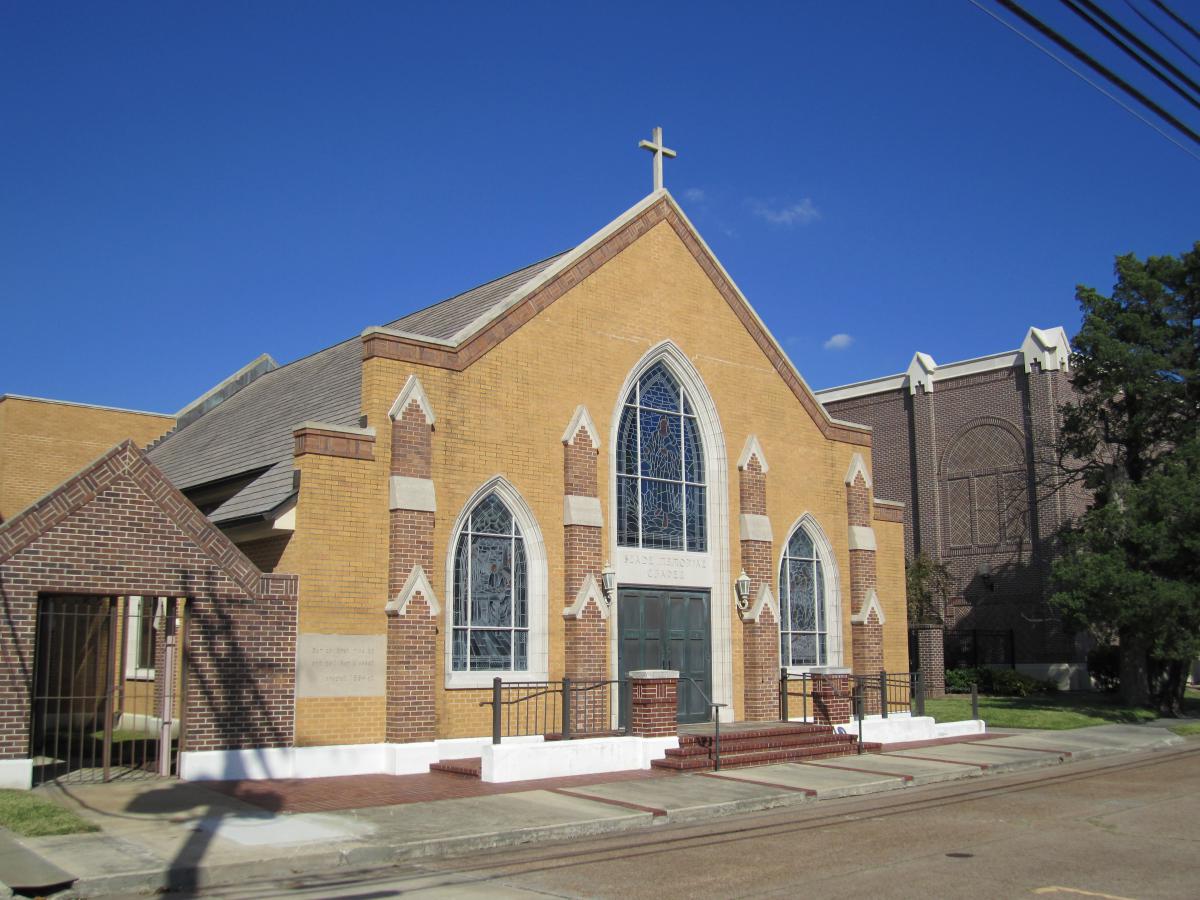

Unknown - Chapel Exterior ((2013) Photograph by Justin Sanders/Database Manager)

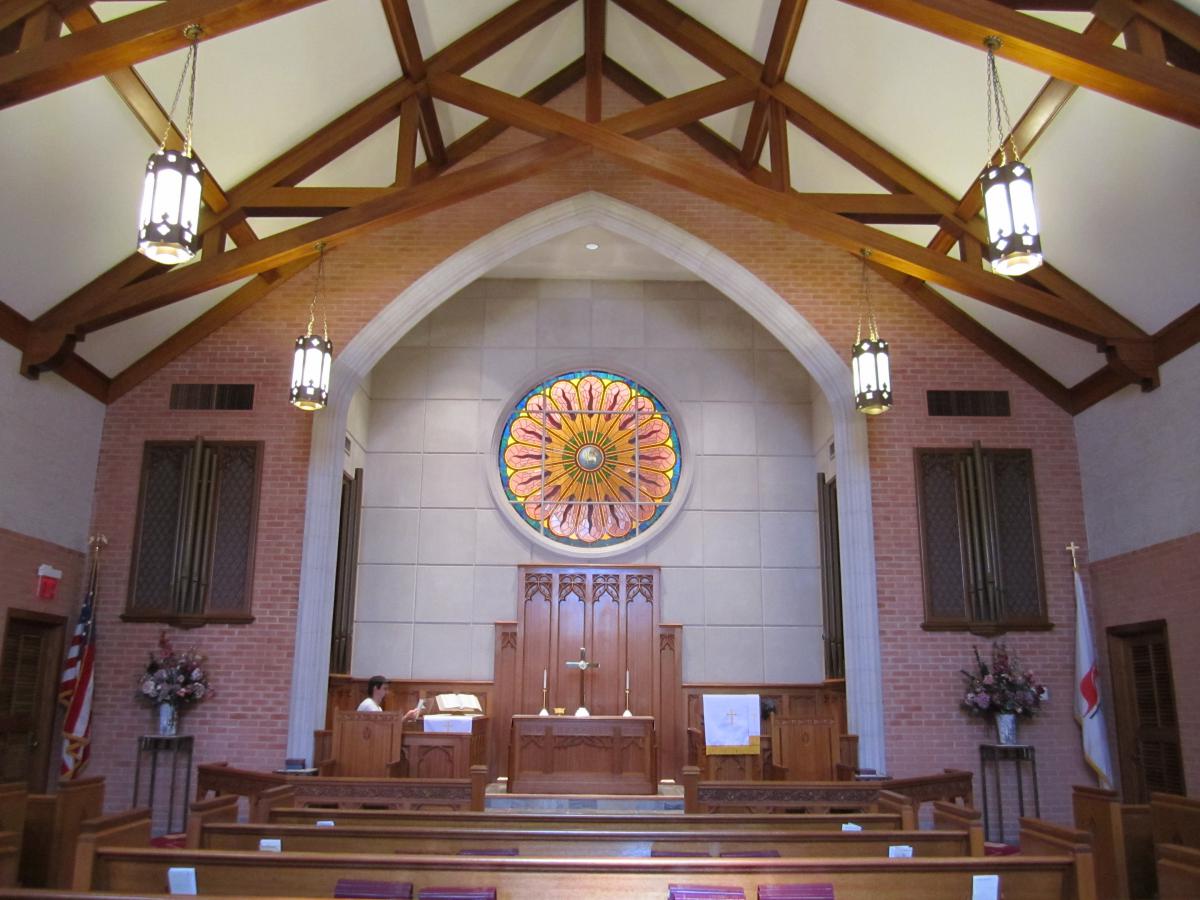

Unknown - Chapel Interior, Chancel, and Chamber Grillework ((2013) Photograph by Justin R. Sanders/Database Manager)

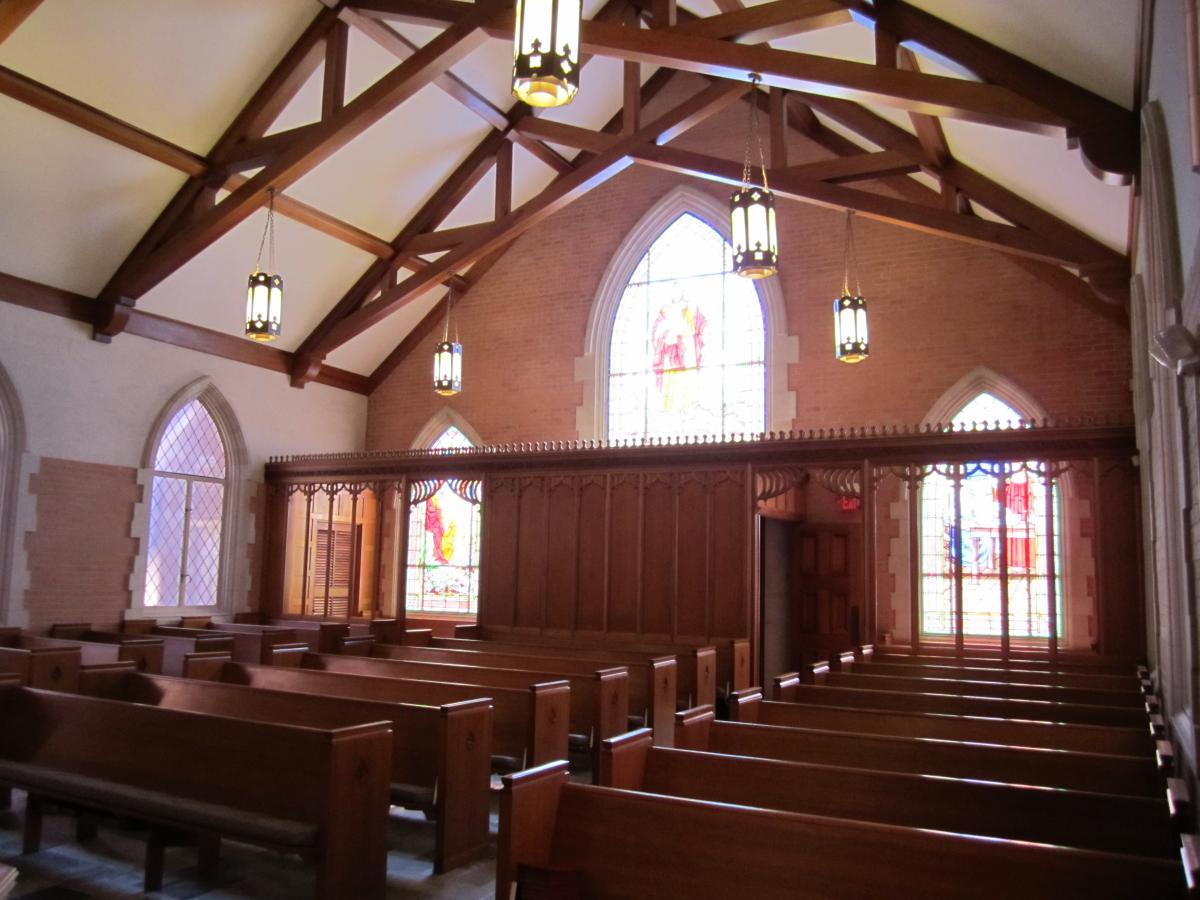

Unknown - Nave of Chapel ((2013) Photograph by Justin R. Sanders/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
22 stops
35 registers
2 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2008-07-13 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2010-11-15 - Updated through on-line information from Justin Sanders. -Database Manager

2015-11-29 - Updated through online information from Justin R. Sanders. -Database Manager

Stoplist

Stoplist taken from console Source: Source not recorded Date not recorded

Orange, Texas
First United Methodist Church-Slade Memorial Chapel

M. P. Moller, Opus 8619, 1954

GREAT (Expressive)

8' Diapason 73
8' Harmonic Flute 73
8' Dulciana 73
4' Octave 12
4' Flute 12
4' Dulciana 12
Tremulant
Great to Great 16'
Great to Great 4'
Swell to Great 16'
Swell to Great 8'
Swell to Great 4'

SWELL (Expressive)

16' Rohrgedeckt 61
8' Rohrflute 12
8' Viole de Gamba 73
8' Viole Celeste 61
4' Rohrflute 12
4' Gambette 12
2 2/3' Nazard 7
2' Flautino 5
8' Trompette 73
4' Clarion 12
Tremulant
Swell to Swell 16'
Swell Unison Off
Swell to Swell 4'

PEDAL (Expressive)

16' Bourdon 32
16' Rohrgedeckt (Sw)
8' Bourdon 12
8' Rohrflute (Sw)
4' Bourdon 12
Great to Pedal 8'
Great to Pedal 4'
Swell to Pedal 8'
Swell to Pedal 4'

MISCELLANEOUS

4 General Pistons
4 Great Pistons
4 Swell Pistons
Crescendo Pedal
Tutti Toe Stud
Great to Pedal Reversible Toe Stud


 [Received from Justin R. Sanders 2012-04-05.]

Documents

(1953-09-11) Factory Documentation Original Factory Documentation courtesy of the OHS Archive -Roman Lizak
