Better Pipe Organ Database

M. P. Möller Opus 8776 (1955)

Eighth Reformed Church: Sanctuary
841 Burton Street SW
Wyoming, MI

Images

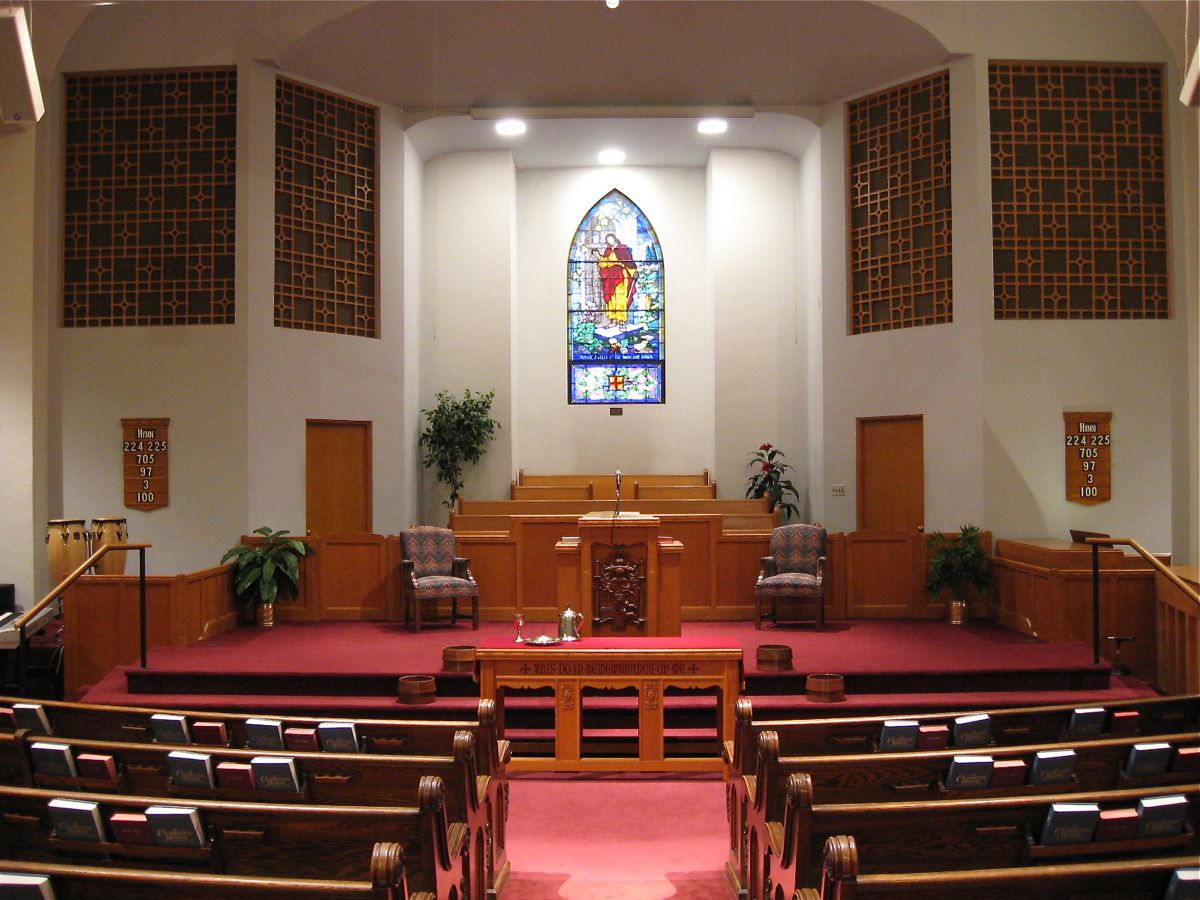

2012-07-10 - Sanctuary Interior, Chancel, and Chamber Grillework (Photograph by Chad Boorsma/Database Manager)

2012-07-10 - Console (Photograph by Chad Boorsma/Database Manager)

2012-07-10 - Left Drawknobs (Photograph by Chad Boorsma/Database Manager)

2012-07-10 - Right Drawknobs (Photograph by Chad Boorsma/Database Manager)

2012-07-10 - Builder's Nameplate (Photograph by Chad Boorsma/Database Manager)

2012-07-10 - Stained Glass Window (Photograph by Chad Boorsma/Database Manager)

2012-07-10 - Sanctuary Interior, Chancel, and Chamber Grillework (Photograph by Chad Boorsma/Database Manager)

2010-11-28 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
30 stops
24 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-07-13 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-03-27 - Updated through on-line information from Jeff Scofield. -Database Manager

2009-08-04 - Updated through on-line information from Chad Boorsma. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Grand Rapids, Michigan
Eighth Reformed Church

Möller   Op. 8776   1955   3/28

       GREAT (3 3/4" wind)        SWELL (4")
   16' Quintade 61             8' Rohrflöte 61
    8' Principal 61            8' Salicional 61
    8' Bordun 61               8' Voix Celeste 61 tc
    4' Octave 61               4' Spitzprinzipal 61
    2' Waldflöte 61            4' Nachthorn 61
  III  Fourniture 183        III  Plein Jeu 183
       Tremolo                 8' Trompette 61
       Sub                     4' Rohrschalmei 61
       Unison Off                 Tremolo
       Super                      Sub
       Chimes 21 (Deagan D)       Unison Off
                                  Super
       CHOIR (4")
    8' Lochgedackt 61             PEDAL (4")
    8' Erzähler 61            16' Sub Bass 32
    8' Unda Maris 49 tc       16' Quintade GT
    4' Koppelflöte 61         16' Rohrbordun 12 SW
2 2/3' Nasard 61               8' Prinzipal 32
    2' Blockflöte 61           8' Quintade GT
1 3/5' Terz 61                 8' Rohrgedackt SW
       Tremolo             5 1/3' Quinte 32
       Sub                     4' Oktav 12
       Unison Off              4' Rohrflöte SW
       Super

 [Received on line from Jeff Scofield March 27, 2009.]

Documents

(1955-01-11) Factory specifications Stoplist and accessories -Jeff Scofield
