Covenant Presbyterian Church: Sanctuary
326 S. Segoe Road
Madison, WI
Images
2019-04-02 - Nave & Chancel (Photograph by Andrew Schaeffer/Database Manager)
2019-04-02 - Tuba (Photograph by Andrew Schaeffer/Database Manager)
2019-04-02 - Right Stop Jamb (Photograph by Andrew Schaeffer/Database Manager)
2019-04-02 - Left Stop Jamb (Photograph by Andrew Schaeffer/Database Manager)
2019-04-02 - "Thermonunciator" (Photograph by Andrew Schaeffer/Database Manager)
2019-04-02 - Chancel and Organ Chambers (Photograph by Andrew Schaeffer/Database Manager)

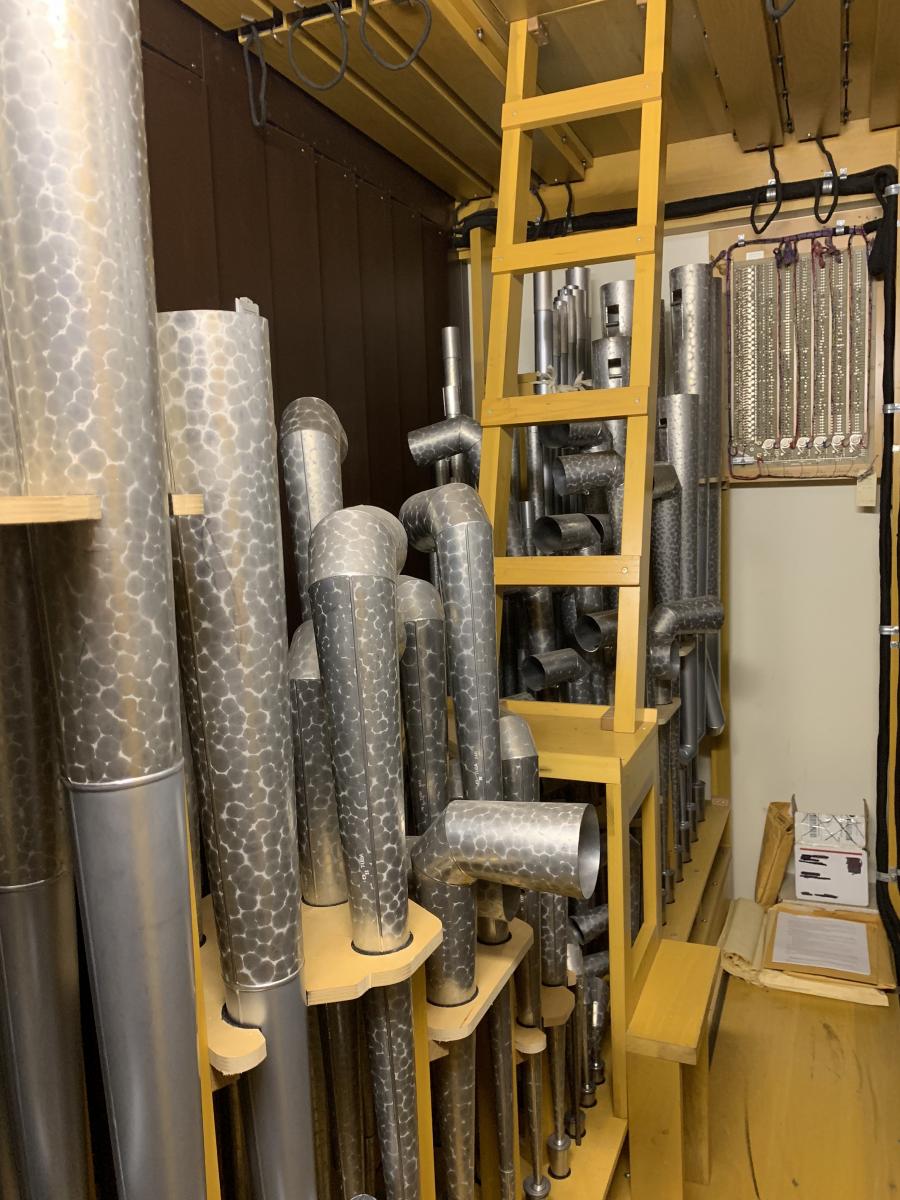

2019-04-02 - Solo Division (Photograph by Andrew Schaeffer/Database Manager)
Consoles
Main
- 3 manuals
- 39 registers
- Manual compass: 61 notes
- Pedal compass: 32 notes
Notes
2008-07-28 - Identified through information submitted by Jack Bethards, Schoenstein & Co. -Database Manager
2019-06-06 - Updated by Andrew Schaeffer, who has heard or played the organ. <br> <br> -Database Manager
Stoplist
From Schoenstein website Source: Source not recorded Date not recorded
Covenant Presbyterian Church, Madison, WI
Schoenstein & Co. Opus 129
Great (II - Expressive - 4 1/2" Wind):
16' Corno Dolce
8' Open Diapason
8' Harmonic Flute (Corno Dolce Bass)
8' Lieblich Gedeckt
8' Corno Dolce
8' Flute Celeste (TC)
4' Principal
4' Lieblich Gedeckt
2' Fifteenth
1 1/3' Mixture (IV Ranks)
8' Clarinet (Choir)
Tremulant
16' Bass Tuba (Ethereal)
8' Tuba (Ethereal)
4' Tuba Clarion (Ethereal)
Chimes (Solo)
Harp (Choir)
Celesta (Choir)
Swell (III - Expressive - 5" Wind):
16' Bourdon (Wood)
8' Open Diapason
8' Bourdon (Metal)
8' Echo Gamba
8' Vox Angelica
8' Corno Dolce (Great)
8' Flute Celeste (Great)
4' Gemshorn
4' Forest Flute
4' Flute Celeste (II - Great)
2' Flageolet
8' Oboe
Tremulant
Swell Sub Octave
Swell Nominal Pitch Off
Swell Super Octave
Celestial (Expressive - Inside Swell - 10" Wind):
16' Contra Fagotto
8' Cornopean
2' Mixture (III-V Ranks - 5" Wind)
8' Vox Humana (5" Wind)
Choir (I - Expressive - 4 1/2" Wind):
16' Contra Salicional
8' Stopped Diapason (Wood)
8' Salicional
8' Unda-Maris (TC)
4' Salicet
4' Chimney Flute (Metal)
2 2/3' Twelfth (TC)
2 2/3' Nazard (Chimney Flute)
2' Fifteenth
2' Harmonic Piccolo
1 3/5' Tierce (TC)
1 1/3' Nineteenth (TC)
8' Clarinet
Tremulant
Choir Sub Octave
Choir Nominal Pitch Off
Choir Super Octave
Chimes (Solo Expression Walker Digital)
Harp (Walker Digital)
Celesta (Walker Digital)
Cymbelstern
Solo (I - Expressive - 10" Wind):
8' Concert Flute (Wood)
8' Gamba
8' Celeste
8' French Horn
8' English Horn
Tremulant
Solo Sub Octave
Solo Nominal Pitch Off
Solo Super Octave
Ethereal (Expressive - Inside Solo - 15" Wind):
16' Bass Tuba
8' Tuba (Hooded)
4' Tuba Clarion
8' Voix Sérénissime (5" Wind)
8' Voix Celeste (TC - 5" Wind)
4' Voix Celeste (II)
Pedal (5" Wind):
32' Open Diapason (Walker Digital)
32' Contra Gamba (Walker Digital)
32' Contra Bourdon (Walker Digital)
16' Open Wood
16' Sub Bass
16' Salicional (Choir)
16' Bourdon (Swell)
16' Corno Dolce (Great)
8' Principal
8' Salicional (Choir)
8' Stopped Diapason (Choir)
8' Bourdon (Swell)
4' Fifteenth
4' Flute (Great)
32' Contra Posaune (Walker Digital)
16' Bass Tuba (Ethereal)
16' Contra Fagotto (Celestial)
8' Tuba (Ethereal)
8' Fagotto (Celestial)
4' Tuba (Ethereal)
4' Clarinet (Choir)
Chimes (CC - Solo)
[Received from Connor Annable 2012-04-11.]
