St. Matthew's Episcopal Church
2120 Lincoln Street
Evanston, IL
Images
2014-12-15 - Organ case behind altar (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

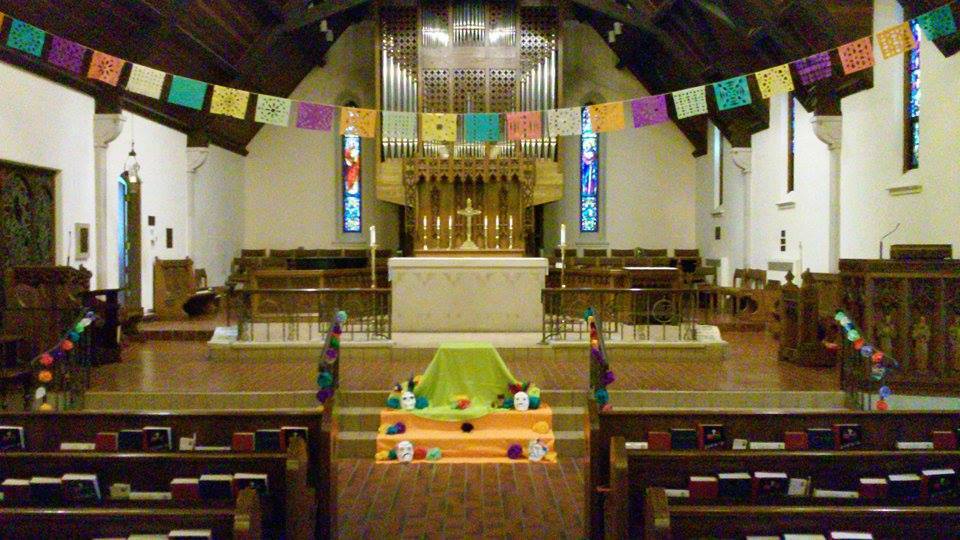

2015-10-28 - Church interior with organ in front (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

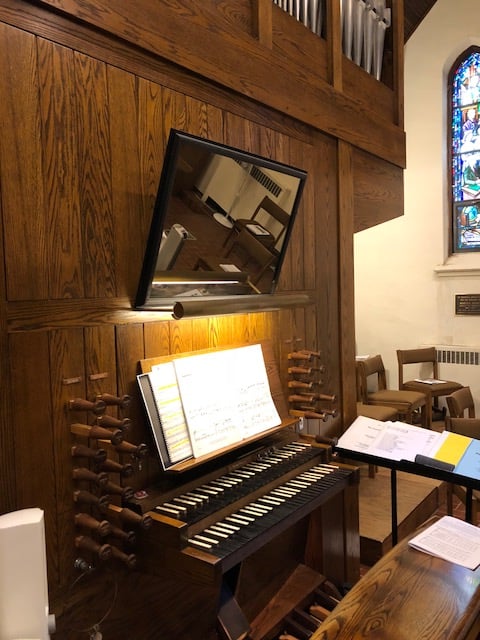

2021-11-21 - Keydesk (Photograph by Robert Woodworth Jr., submitted by Jim Stettner/Jim Stettner)
2021-11-21 - Organ case and attached keydesk (Photograph by Robert Woodworth Jr., submitted by Jim Stettner/Jim Stettner)

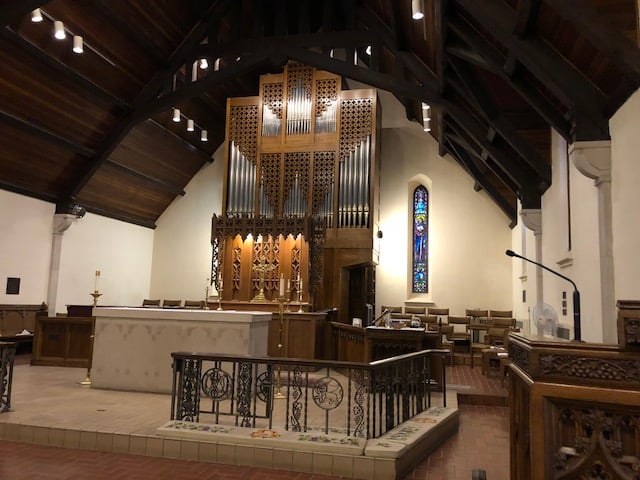

2021-11-21 - Organ in front from left (Photograph by Robert Woodworth Jr., submitted by Jim Stettner/Jim Stettner)

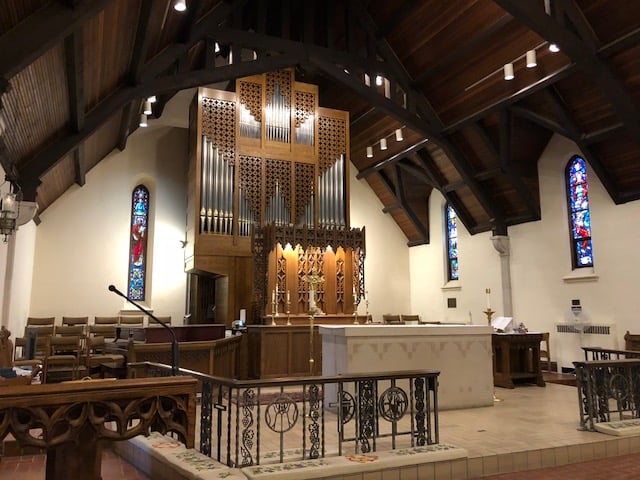

2021-11-21 - Organ in front from right (Photograph by Robert Woodworth Jr., submitted by Jim Stettner/Jim Stettner)

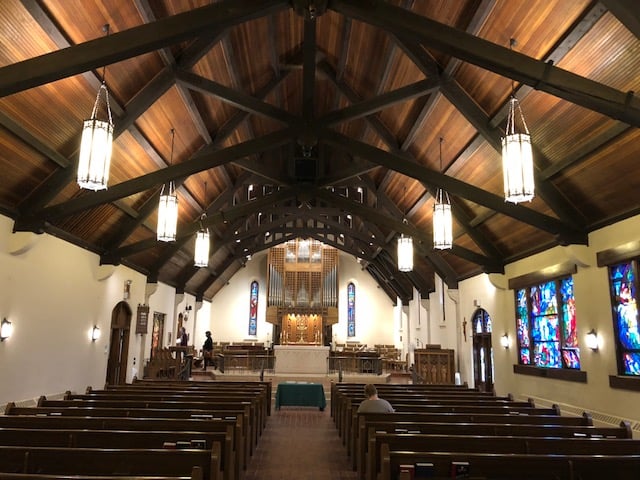

2021-11-21 - Nave interior with organ in front (Photograph by Robert Woodworth Jr., submitted by Jim Stettner/Jim Stettner)
Date unknown - Church campus: sanctuary at right; chapel at left (Photograph from an archival source: Parish Facebook page, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Console position: Keydesk Attached
- 2 manuals
- 25 stops
- 25 registers
- 3 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Mechanical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 56 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
- Combination action: None
Notes
2005-12-06 - This entry represents the installation of a new organ. Identified from the Casavant opus list. -Database Manager
2010-08-08 - Updated through online information from Jeff Scofield. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Evanston, Illinois
St. Matthew's Episcopal Church
Casavant Op. 3354 1977 2/37
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
____________________________________________________________
HAUPTWERK OBERWERK (exp) PEDAL
16' Bordun 56 8' Gedackt 56 16' Subbass 32
8' Praestant 53 8' Salizional 44 8' Prinzipal 32
(1-3 Hohlflöte) (1-12 Gedackt) 4' Oktave 32
8' Hohlflöte 56 4' Praestant 56 III Mixtur 96
4' Oktave 56 (in façade) 16' Posaune 32
2 2/3' Quinte 56 4' Rohrflöte 56 8' Trompete 32
2' Oktave 56 2' Gemshorn 56 4' Schalmei 32
V Kornett TA 175 1 1/3' Quinte 56
IV Mixtur 224 II Sesquialtera 112
8' Trompette 56 III Scharf 168
8' Dulzian 56
Tremulant
[Received online from Jeff Scofield August 8, 2010]
