Chapel of the Incarnate Word / Sisters of Charity of the Incarnate Word: Chapel
4503 Broadway Street
San Antonio, TX
Images
2018-05-03 - Stained Glass Window (Photograph by T. Bradford Willis, DDS/Database Manager)

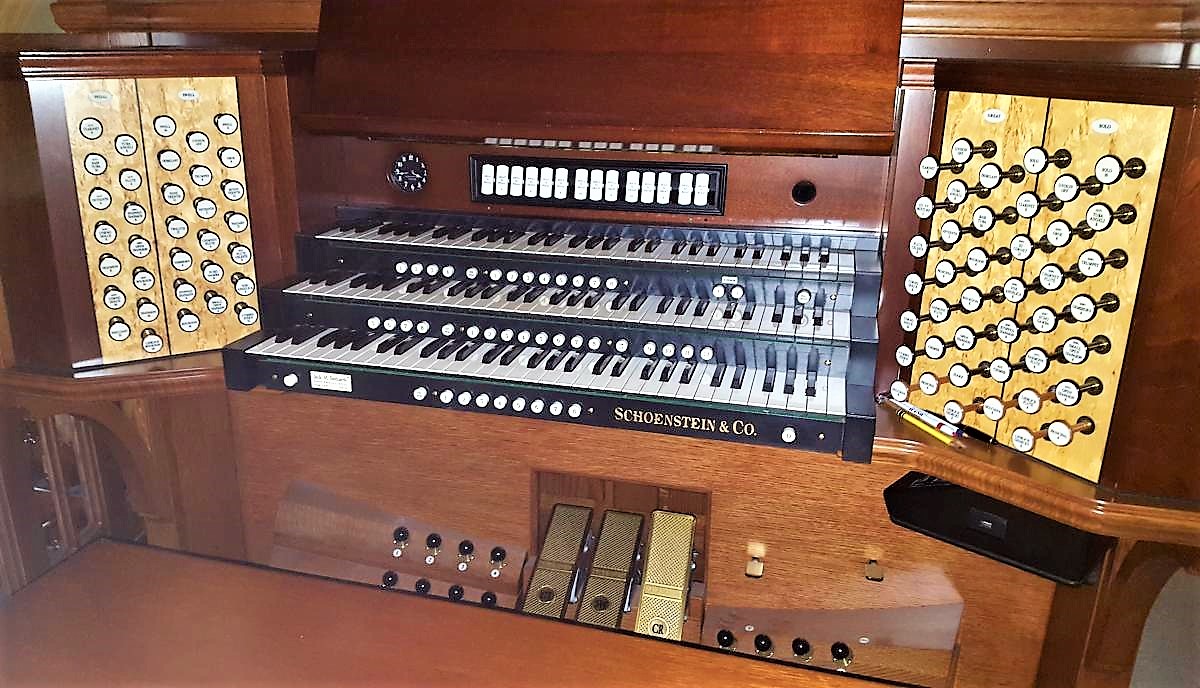

2018-05-03 - Console (Photograph by T. Bradford Willis, DDS/Database Manager)

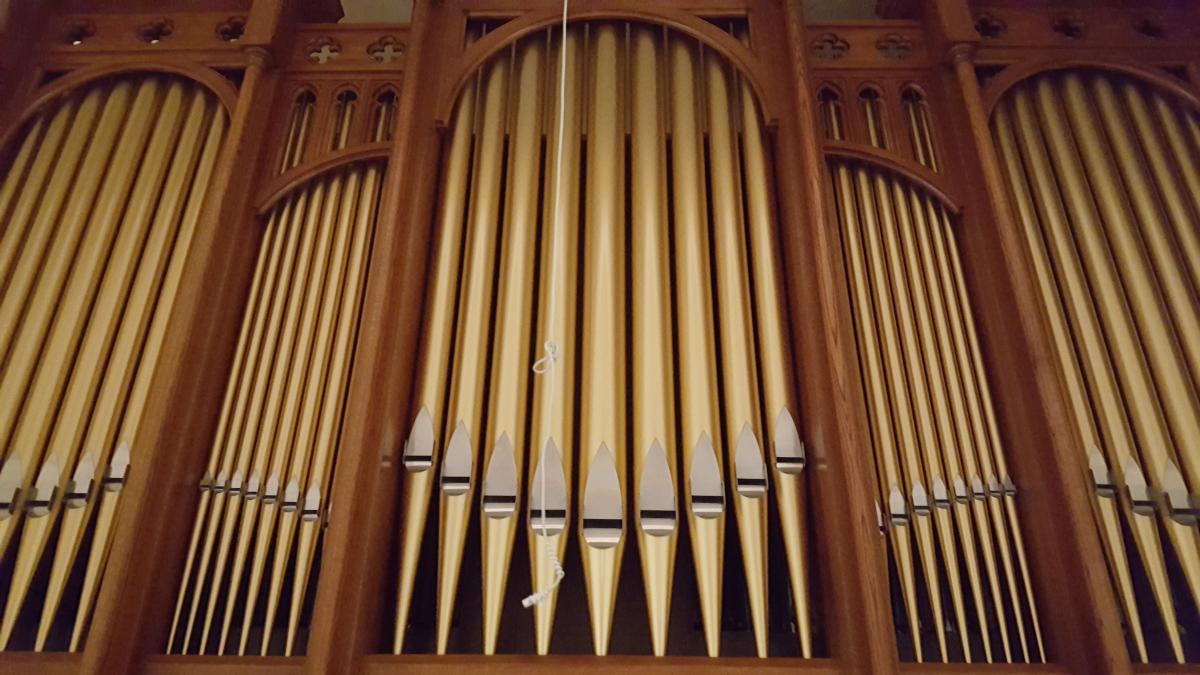

2018-05-03 - Organ Case (Photograph by T. Bradford Willis, DDS/Database Manager)

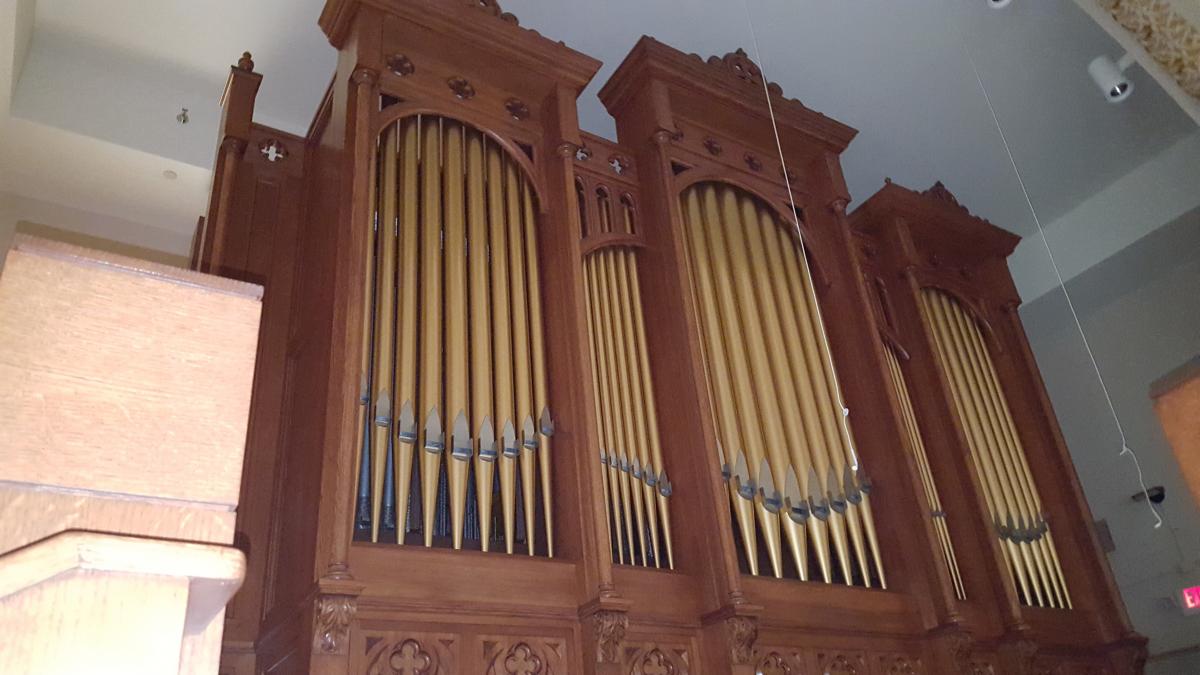

2018-05-03 - Organ Case (Photograph by T. Bradford Willis, DDS/Database Manager)

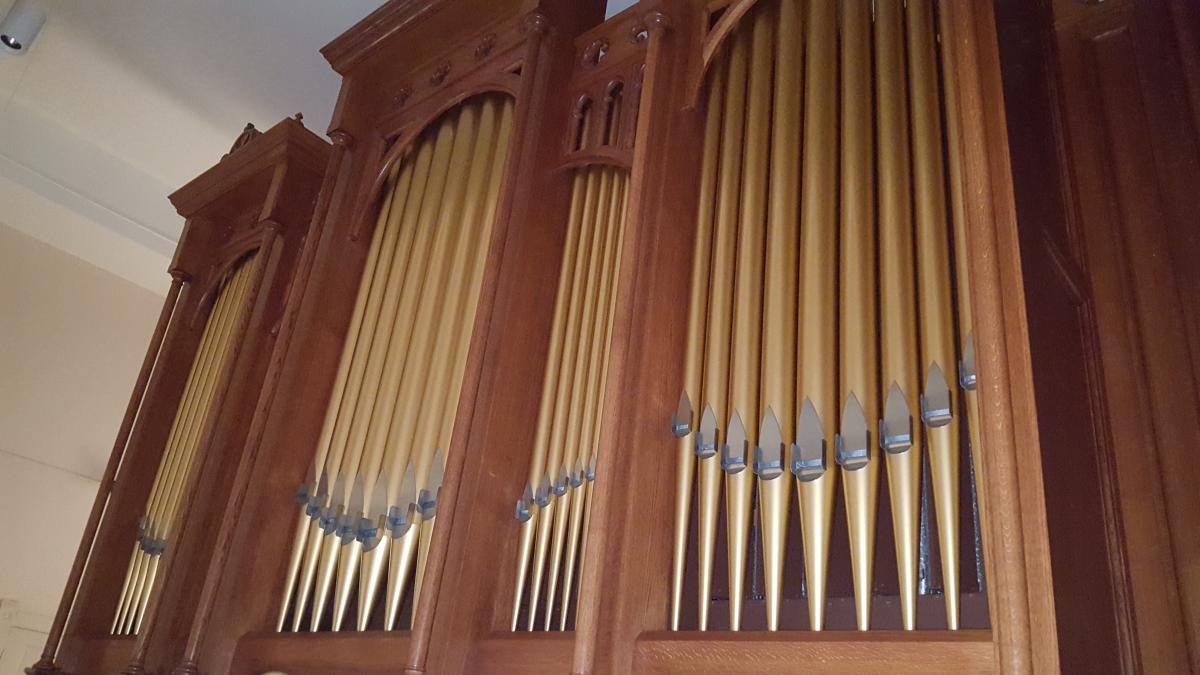

2018-05-03 - Organ Case (Photograph by T. Bradford Willis, DDS/Database Manager)

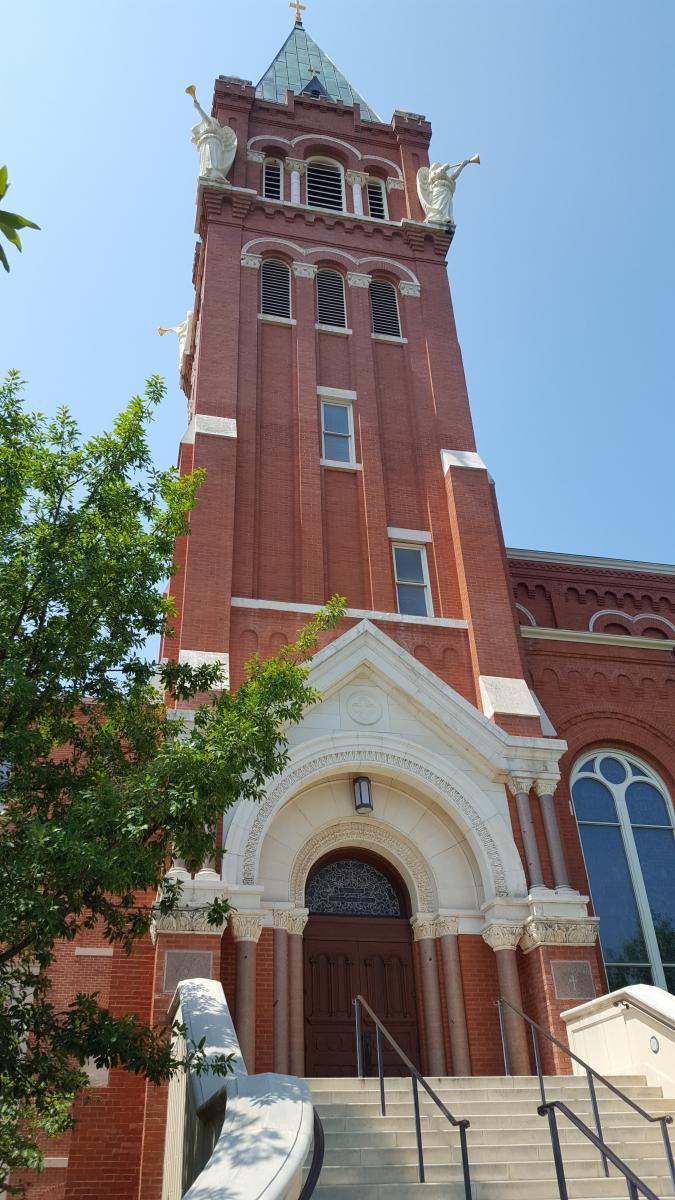

2018-05-03 - Chapel Tower (Photograph by T. Bradford Willis, DDS/Database Manager)

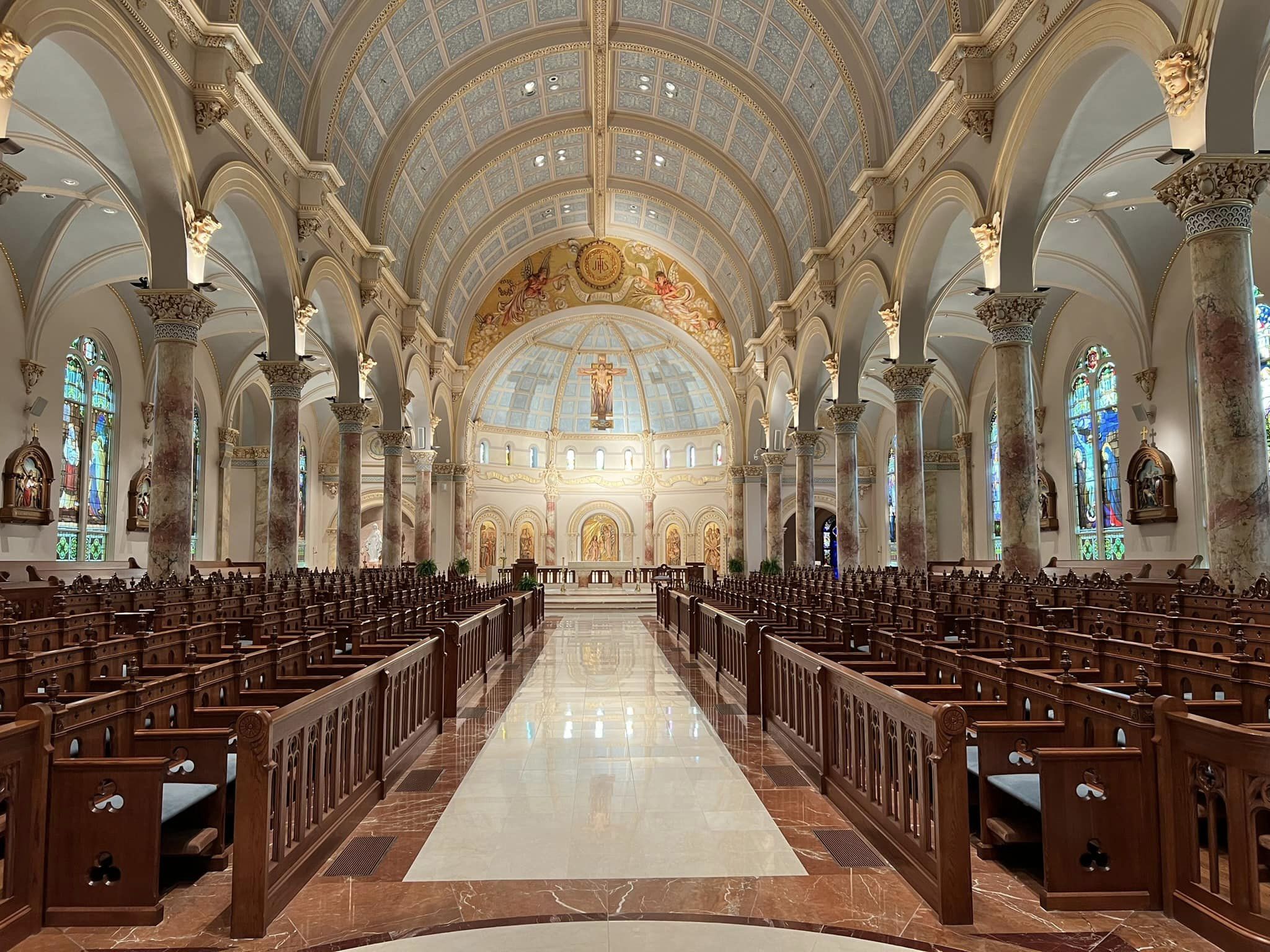

2024-05-20 - Chapel interior (Diane Meredith Belcher, via Facebook/Jeff Scofield)

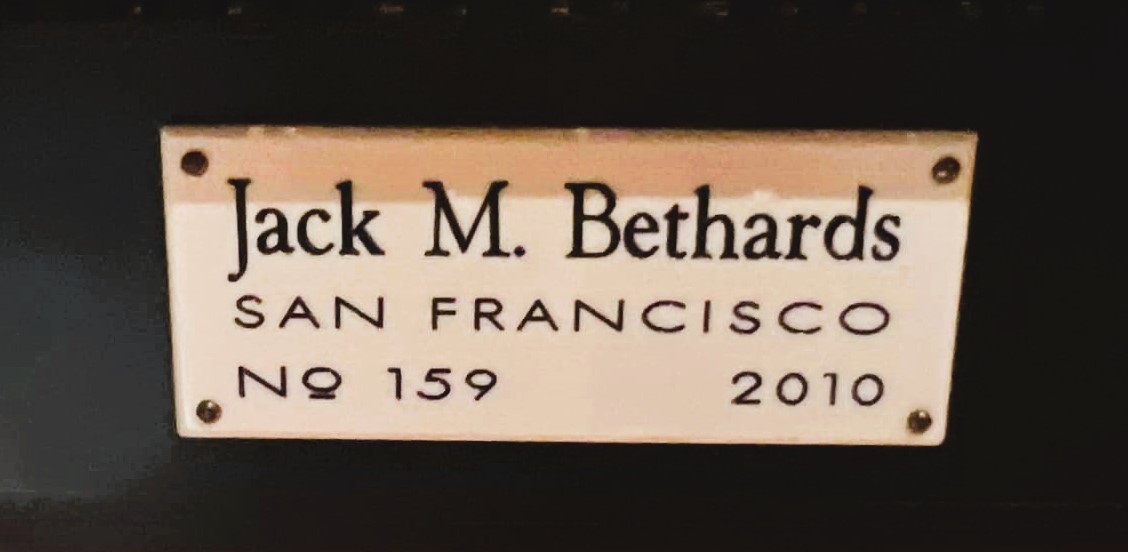

2024-05-20 - Builder's nameplate (Diane Meredith Belcher, via Facebook/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 24 stops
- 67 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Has transposer
- Combination action: Computerized/Digital
- Has sequencer
- Has record/playback
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2008-07-28 - Identified through information submitted by Jack Bethards, Schoenstein & Co. -Database Manager
2013-12-31 - Updated through online information from Connor Annable. -Database Manager
2022-01-28 - The Chapel of the Incarnate Word is the spiritual center of the Sisters of Charity of the Incarnate Word - their Motherhouse; not university property. -Lena Gokelman
Stoplist
Typed Specification Source: From builder's website Date not recorded
San Antonio, Texas
University of the Incarnate Word - Chapel
Schoenstein & Co. Opus 159 2010 3 manuals, 24 stops, 27 ranks
___________________________________________________________________________________
GREAT ORGAN (II) SWELL ORGAN (III)
16' Corno Dolce 73 16' Bourdon 73
8' Open Diapason 61 8' Small Open Diapason 61
8' Harmonic Flute 42* 8' Stopped Diapason (fr. 16') --
8' Bourdon 73 8' Echo Gamba 61
8' Corno Dolce (fr. 16') -- 8' Vox Angelica (TC) 49
8' Flute Celeste (TC) 49 8' Flute Celeste II (Gt) --
4' Principal 61 4' Gemshorn 73
4' Bourdon (fr. 8') -- 4' Chimney Flute 61
2' Fifteenth 61 2 2/3' Twelfth (TC; fr. 19th) --
2' Mixture III-IV 187 2 2/3' Nazard (fr. Chim.Fl.) --
16' Bass Tuba 73+ 2' Fifteenth (fr. Gems.) --
8' Tuba Angeli (fr. 16') -- 1 3/5' Seventeenth (TC) 42
8' Clarinet (TC) 49 1 1/3' Nineteenth 54
8' Lieblich Gedeckt (Sanc) -- 8' Trumpet 61
8' Dulciana (Sanc) -- 8' Oboe 61
4' Principal (Sanc) -- Tremulant
Tremulant Cymbelstern II
Harp (digital) Swell 16'
Chimes (digital) Swell Unison Off
Cymbelstern I Swell 4'
Great Unison Off
* Corno Dolce Bass PEDAL ORGAN
+ Heavy Pressure 32' Resultant --
16' Diapason (1-12 wood) 44
SOLO ORGAN (I) 16' Corno Dolce (Gt) --
8' Open Diapason (Gt) -- 16' Bourdon (Sw) --
8' Harmonic Flute (Gt) -- 8' Diapason (fr. 16') --
8' Tuba Angeli (Gt) -- 8' Open Diapason (Sw) --
8' Clarinet (Gt) -- 8' Corno Dolce (Gt) --
Chimes (Gt) 8' Stopped Diapason (Sw) --
8' Small Open Diapason (Sw) -- 4' Fifteenth (Gt Op.Diap.) --
8' Stopped Diapason (Sw) -- 4' Flute (Gt Harm Fl) --
8' Echo Gamba (Sw) -- 16' Bass Tuba (Gt) --
8' Vox Angelica (Sw) -- 8' Tuba Angeli (Gt) --
4' Gemshorn (Sw) -- 4' Clarinet (Gt) --
2 2/3' Cornet III (Sw; derived) -- 16' Lieblich Bourdon (Sanc) --
8' Trumpet (Sw) --
8' Oboe (Sw) -- SANCTUARY ORGAN
8' Lieblich Gedeckt (Sanc) -- (One Manual Console)
8' Dulciana (Sanc) -- 16' Lieblich Bourdon 85
4' Principal (Sanc) -- 8' Lieblich Gedeckt (fr. LB) --
4' Lieblich Flute (Sanc) -- 8' Dulciana 49
Solo 16' 4' Principal 61
Solo Unison Off 4' Lieblich Flute (fr. LB) --
Solo 4' 4' Dulcet (fr. 8') --
MECHANICALS COUPLERS
Solid State Combination Action with: Great to Pedal 8 4
• 100 Memory levels Swell to Pedal 8 4
• 50 Pistons and toe studs Solo to Pedal 8 4
• Programmable piston range Swell to Great 16 8 4
• 5 Reversible controls Solo to Great 16 8 4
• Record/Playback Swell to Solo 8
• Transposer Great to Solo 8
• Piston Sequencer
Crescendo Pedal
Balanced Swell Pedal
[Received from Steven E. Lawson 2018-05-06]
