Better Pipe Organ Database

Holtkamp Organ Co. Opus 1836 (1968)

Oklahoma City University: Bishop W. Angie Smith Chapel
2501 N. Blackwelder Avenue
Oklahoma City, OK

Images

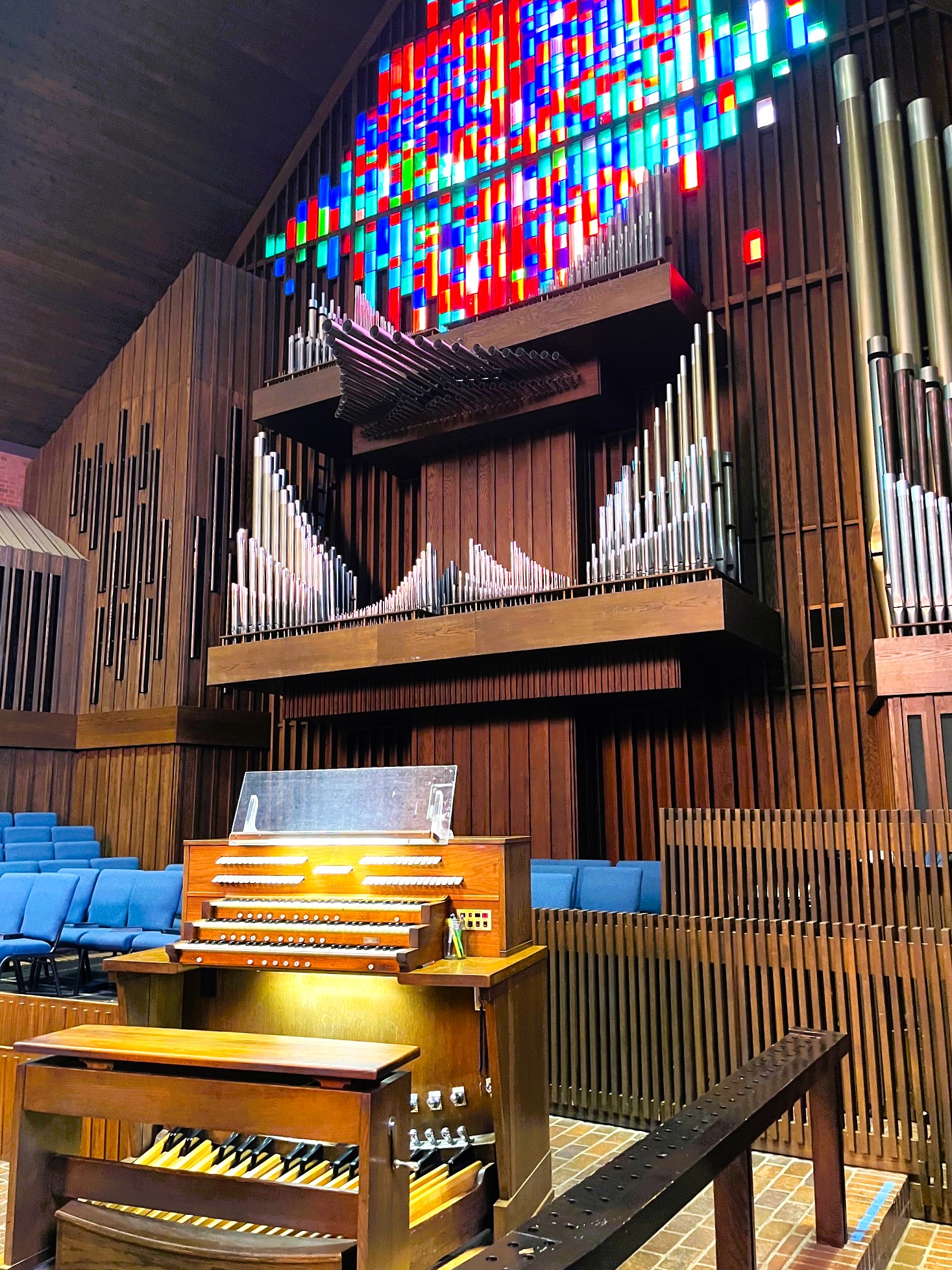

2021-03-12 - Chancel, console and exposed pipes (Photograph by Luke Staisiunas, submitted by Jeff Scofield/Jeff Scofield)

1991-06-24 - Chapel exterior (Photograph by Jeff Scofield/Database Manager)

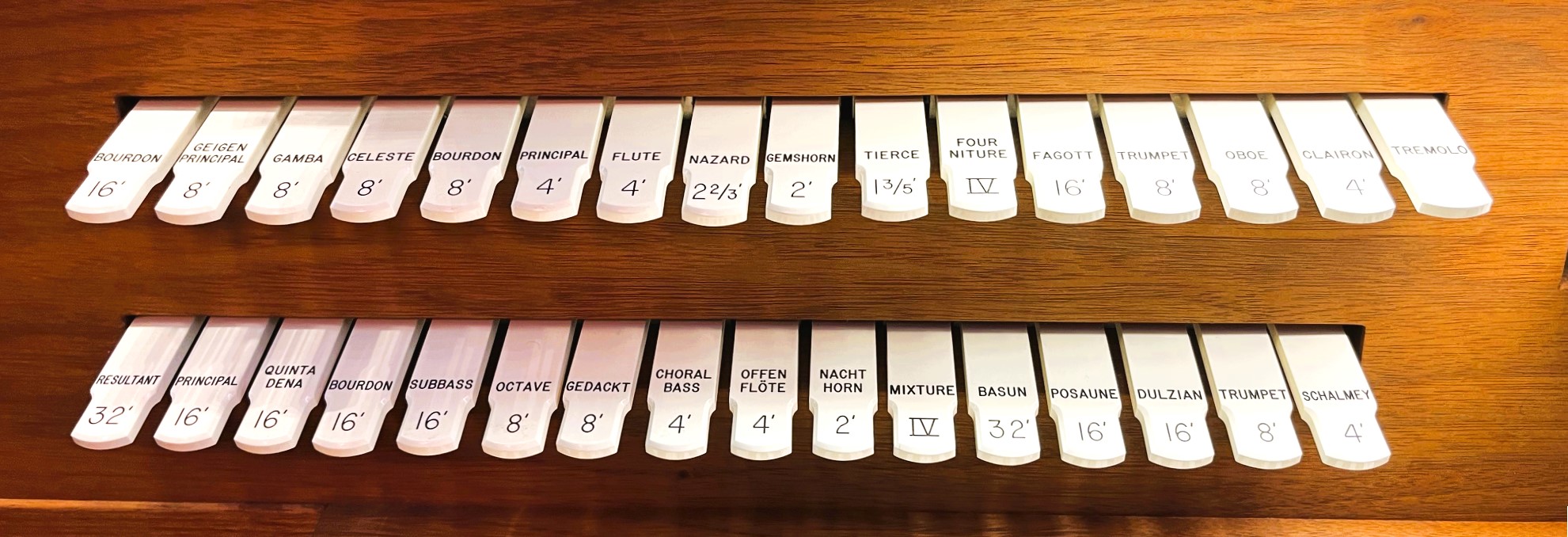

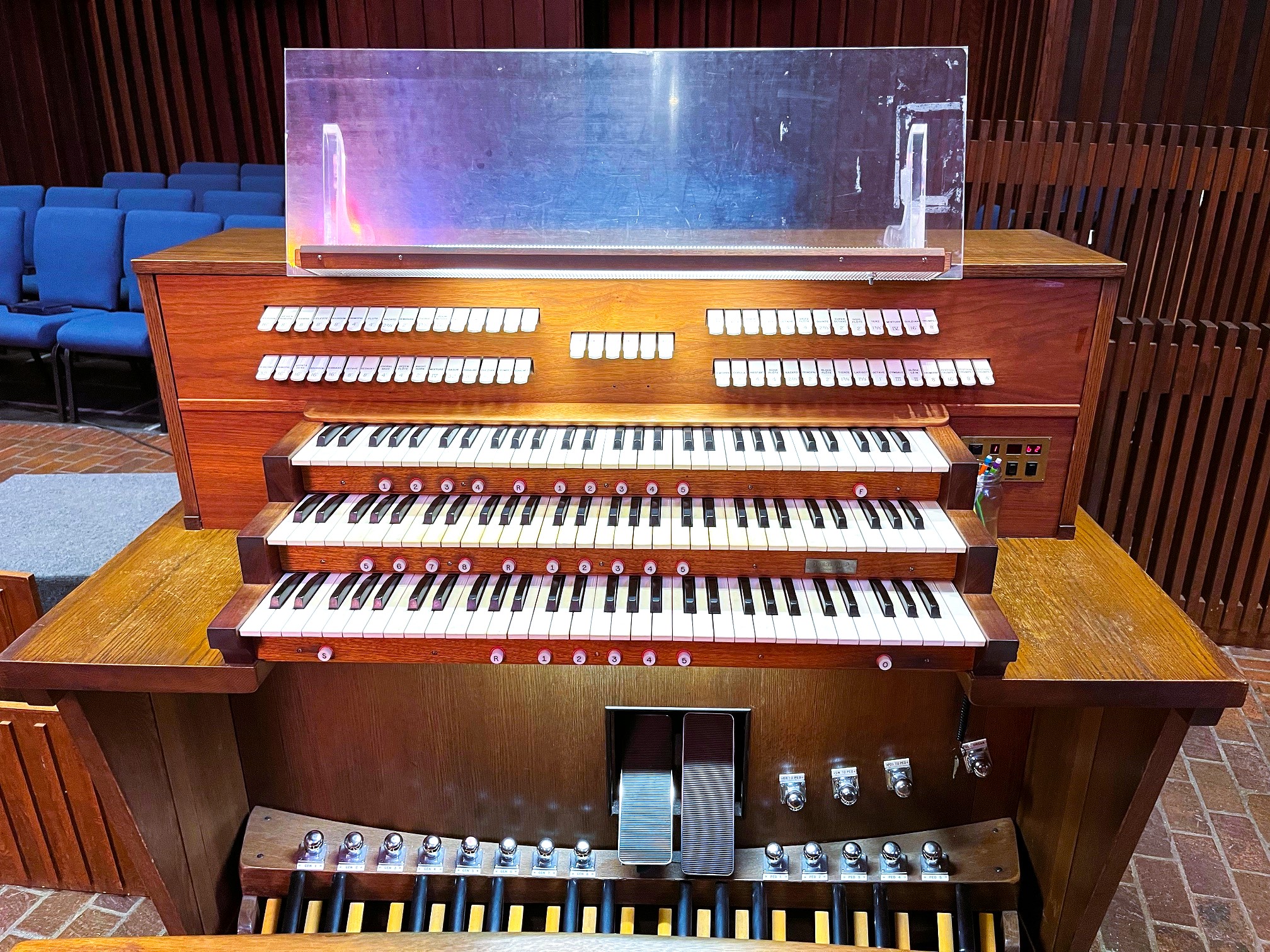

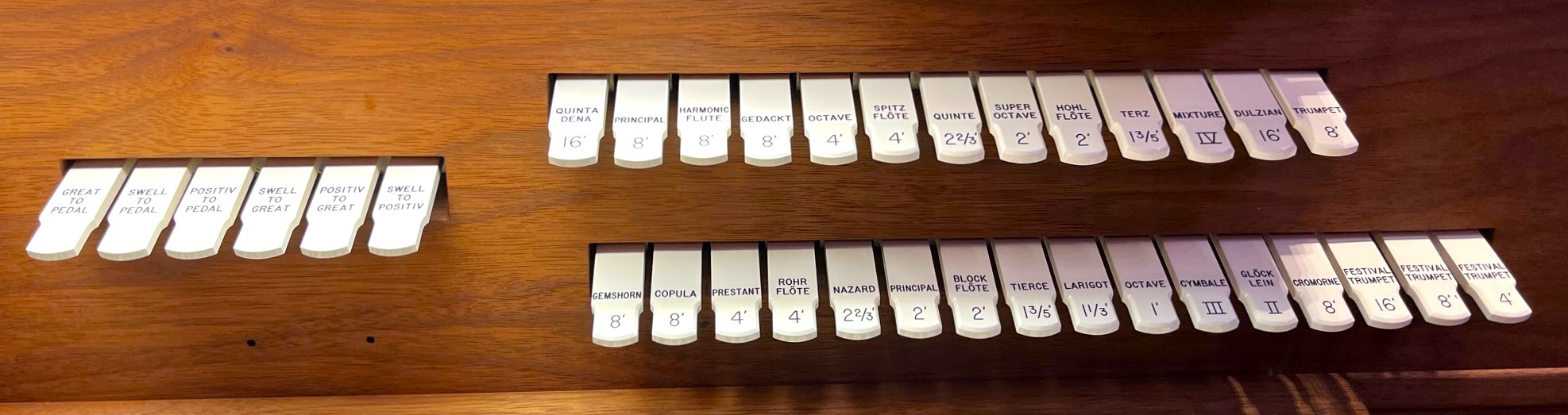

1991-06-24 - Console (Photograph by Jeff Scofield/Database Manager)

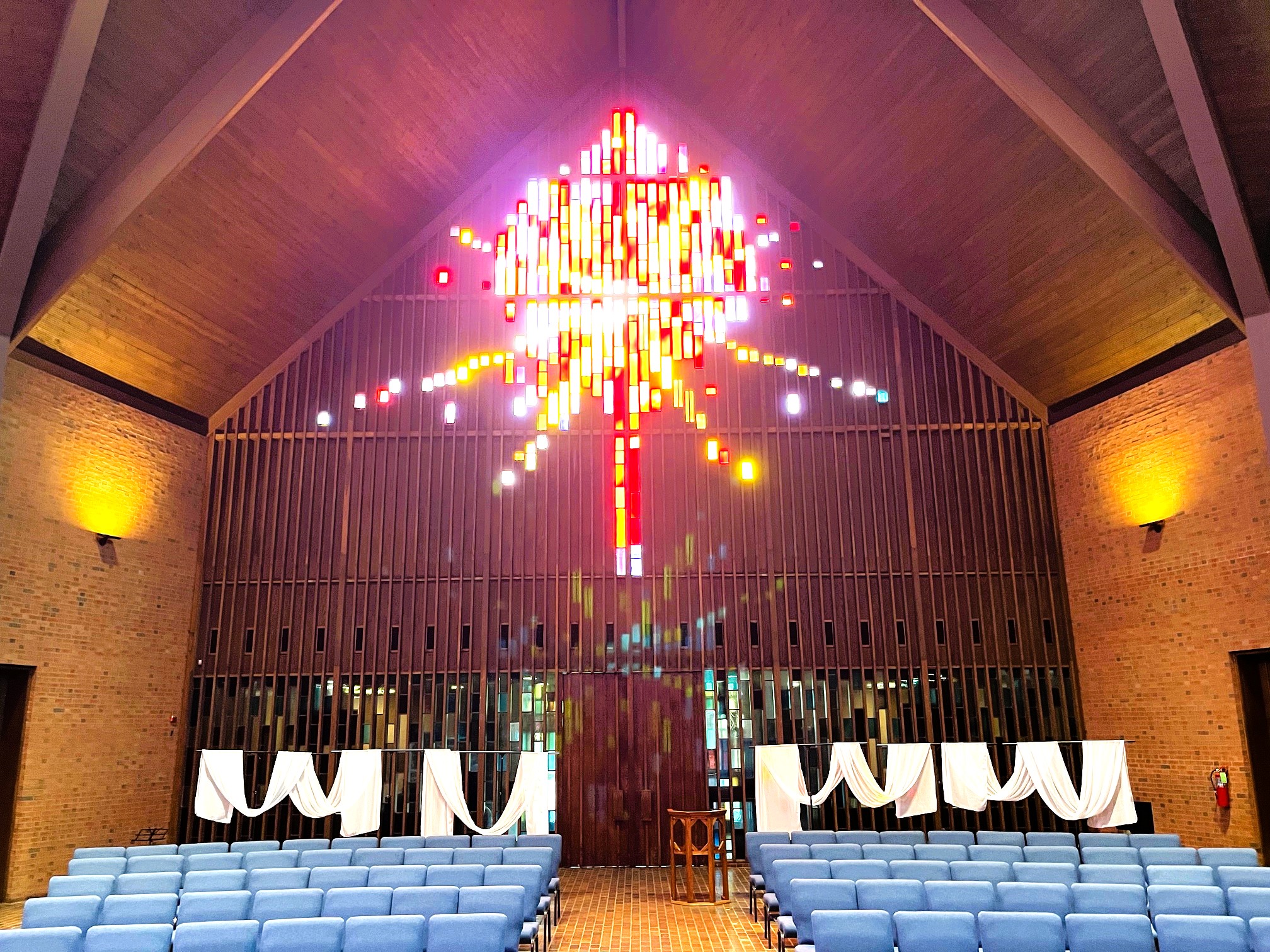

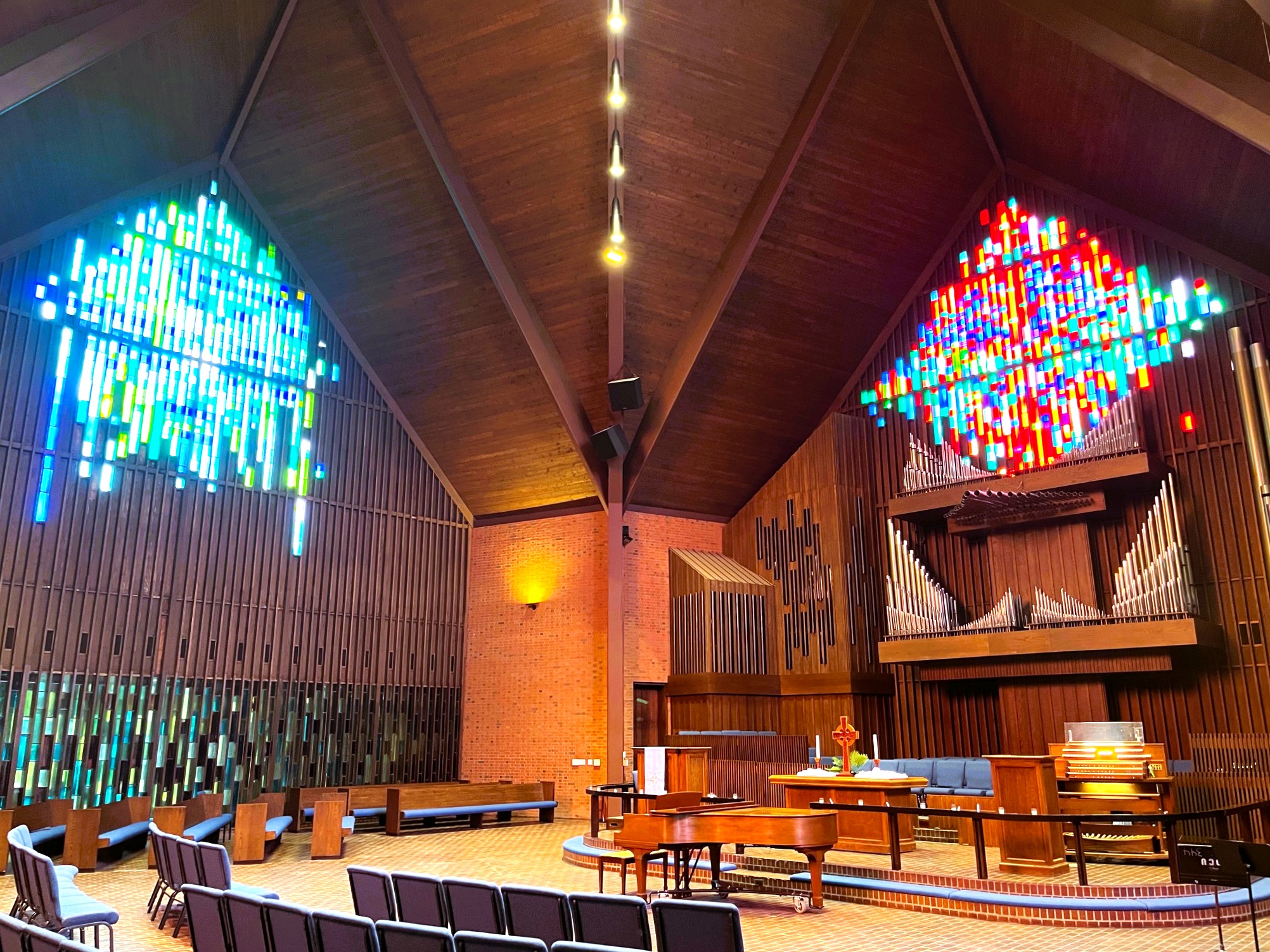

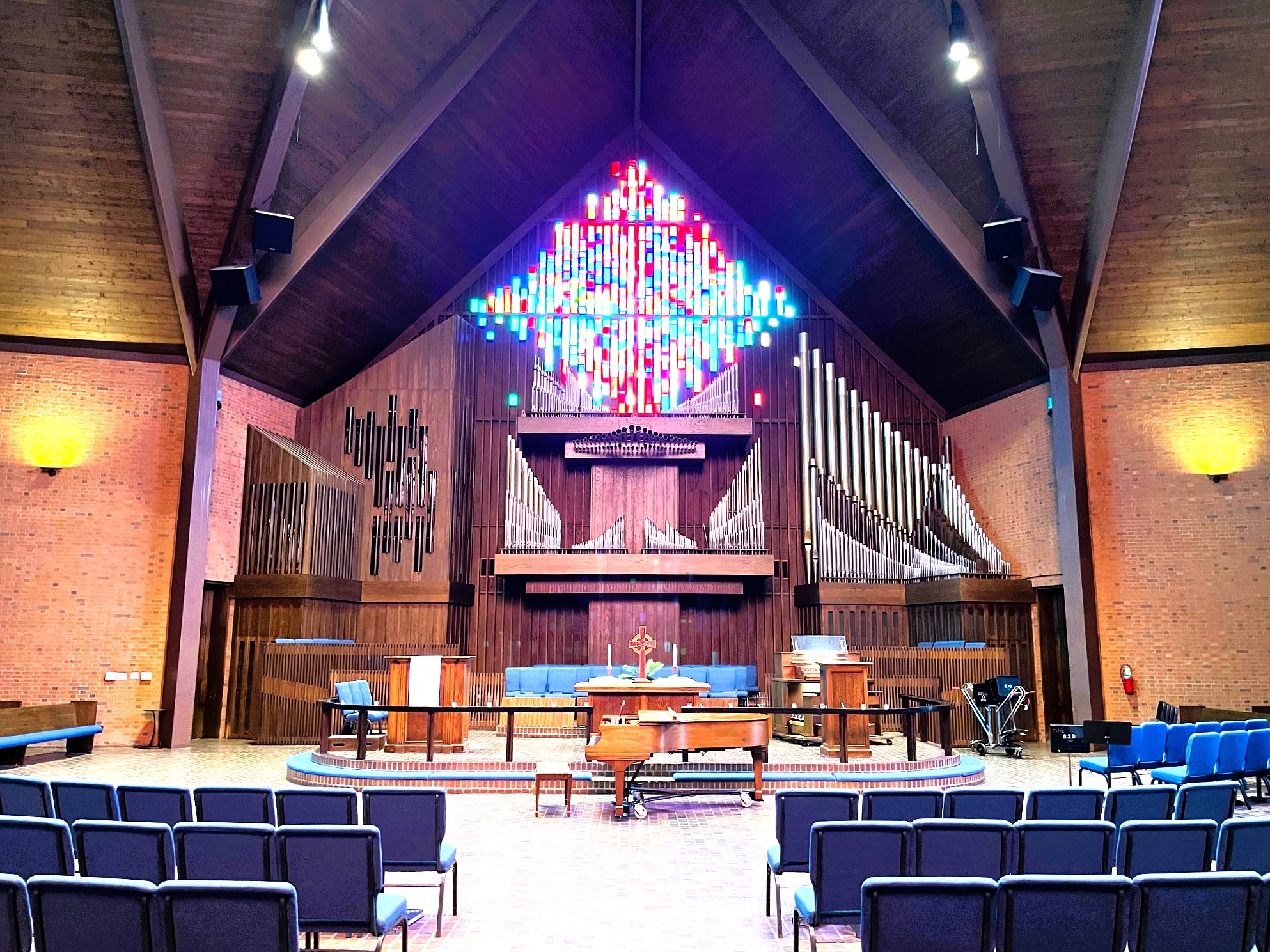

2016-08-04 - Chapel Interior, Chancel, and Pipe Displays (Photograph by Andrew Schaeffer/Database Manager)

Consoles

Main

Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
Console position: Movable Console
3 manuals
52 stops
56 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-08-19 - Identified through online information from Jeff Scofield. -Database Manager

2008-09-13 - Updated through online information from Jeremy Wance. -Database Manager

2015-02-18 - Updated through online information from Jim Thompson. -- A Festival Trumpet was added in 2002 at 16', 8', and 4' to the Positiv division by Holtkamp. According to the Holtkamp home site "Opus List" section this instrument would be Job 1836. -Database Manager

2016-06-05 - Updated through online information from Eric Brown. -Database Manager

2018-05-23 - Updated by Roger Banks, the builder. -Database Manager

Stoplist

Specification from University web site Source: Source not recorded Date not recorded

Oklahoma City, Oklahoma
Oklahoma City University - Bishop W. Angie Smith Chapel

Holtkamp Organ Company   Job 1836   1968/2002      3 manuals, 54 stops, 70 ranks
________________________________________________________________________________

          GREAT ORGAN                              SWELL ORGAN
      16' Quintadena            61             16' Bourdon (ext)         12
       8' Principal             61              8' Geigen Principal      61
       8' Gemshorn              61              8' Gamba                 61
       8' Gedackt               61              8' Celeste               61
       4' Octave                61              8' Bourdon               61
       4' Spitzflöte            61              4' Principal             61
   2 2/3' Quinte                61              4' Flute                 61
       2' Superoctave           61              2' Gemshorn              61
       2' Hohlflöte             61          1 1/3' Larigot               61
          Mixture IV           244                 Sesquialtera II      122
          Scharf III           183                 Fourniture IV        244
      16' Dulzian               61             16' Fagott                61
       8' Trumpet               61              8' Trumpet               61
                                                8' Oboe                  61
          POSITIV ORGAN                         4' Clarion               61
       8' Quintflöte            61                 Tremolo
       8' Copula                61
       4' Prestant              61                 PEDAL ORGAN
       4' Rohrflöte             61             16' Principal             32
   2 2/3' Nazard                61             16' Quintadena            GT
       2' Principal             61             16' Bourdon               SW
       2' Blockflöte            61             16' Subbass               32
   1 3/5' Tierce                61              8' Octave                32
       1' Octave                61              8' Gedackt               32
          Cymbale III          183              4' Choralbass            32
          Glocklein II         122              4' Offenflöte            32
       8' Cromorne              61              2' Nachthorn             32
       4' Regal                 61                 Rauschpfeife II       64
      16' Festival Trumpet (tc) -- *               Mixture IV           128
       8' Festival Trumpet      61 *           32' Basun (L/4)           32
       4' Festival Trumpet      12 *           16' Posaune               32
                                               16' Dulzian               GT
          * added by Holtkamp (2002)            8' Trumpet               32
                                                4' Schalmey              32

          COMBINATIONS (99 levels)                 COUPLERS
          Swell     1-5     (thumb)                Great to Pedal
          Great     1-5     (thumb)                Swell to Pedal
          Positiv   1-5     (thumb)                Positiv to Pedal
          Pedal     1-5     (toe)                  Swell to Great
          General   1-8     (thumb & toe)          Positiv to Great
                                                   Swell to Positiv
          REVERSIBLES
          Full Organ        (thumb & toe)          EXPRESSION
          Great to Pedal    (thumb & toe)          Balanced Swell Pedal
          Swell to Pedal    (thumb & toe)          Crescendo Pedal
          Positiv to Pedal  (thumb & toe)


[Received from Steven E. Lawson  2015-05-10]
