Schantz Organ Co. Opus 878 (1968)

Images

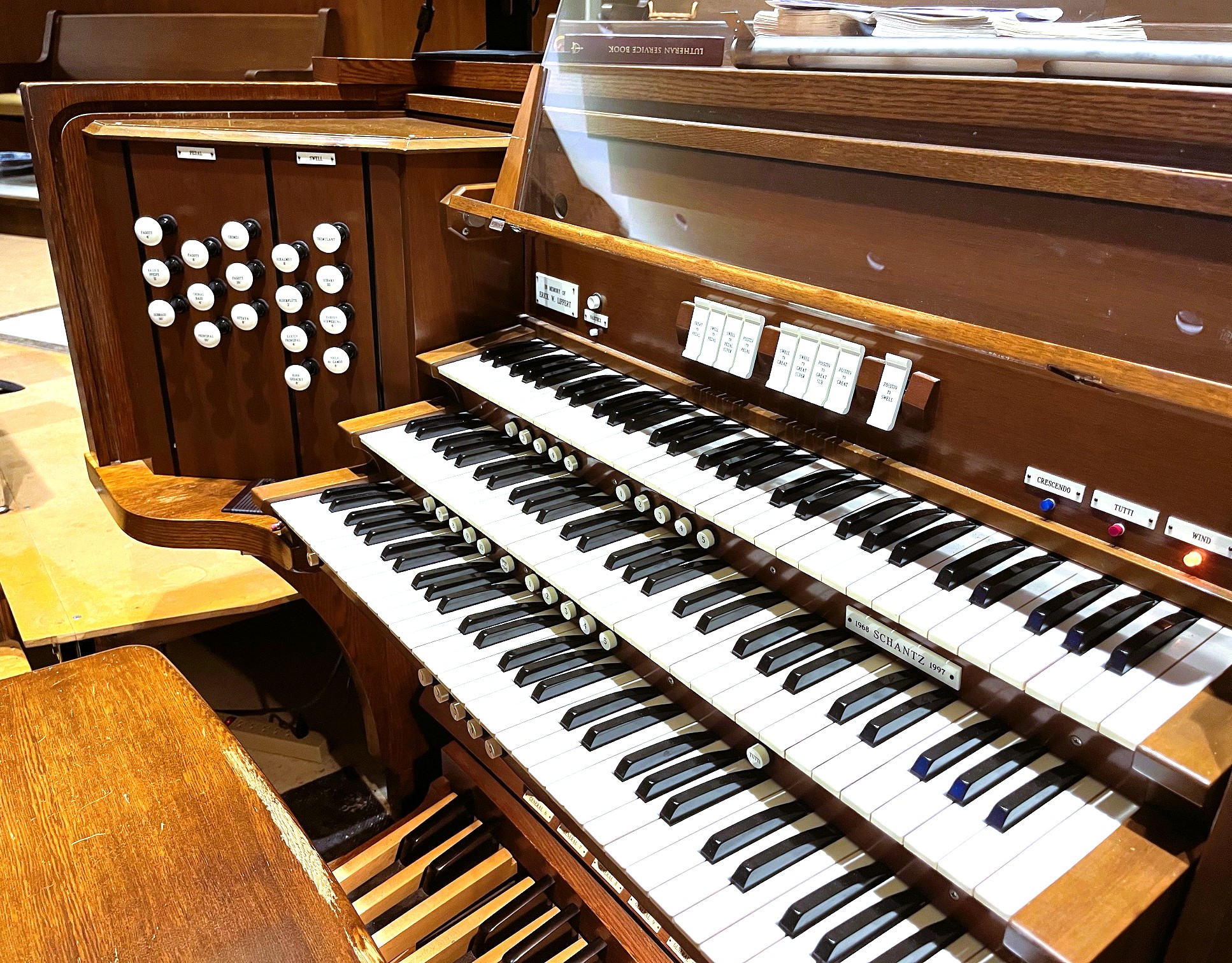

1991-06-24 - Console to left (Photograph by Jeff Scofield/Database Manager)

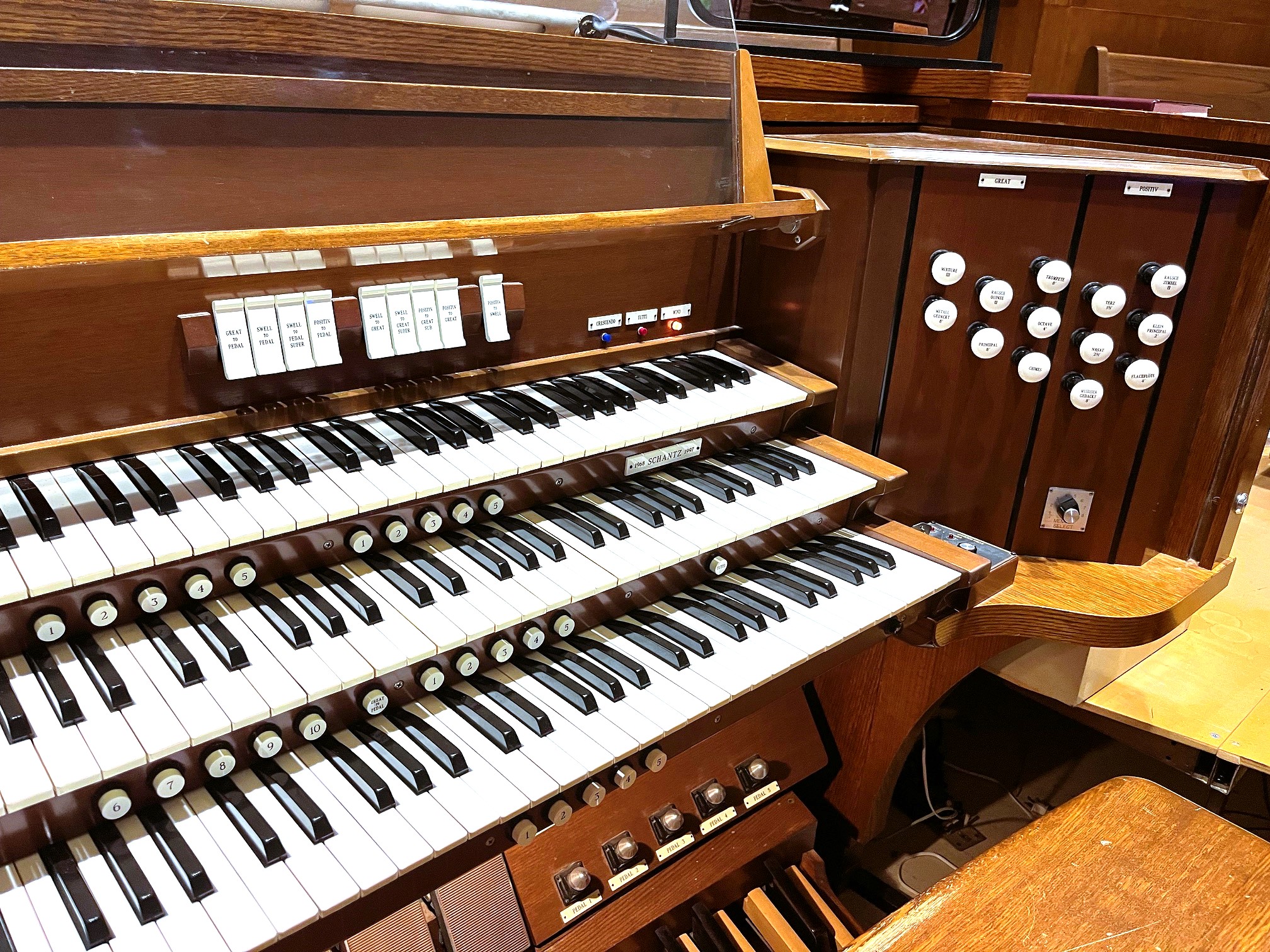

1991-06-24 - Console to right (Photograph by Jeff Scofield/Database Manager)

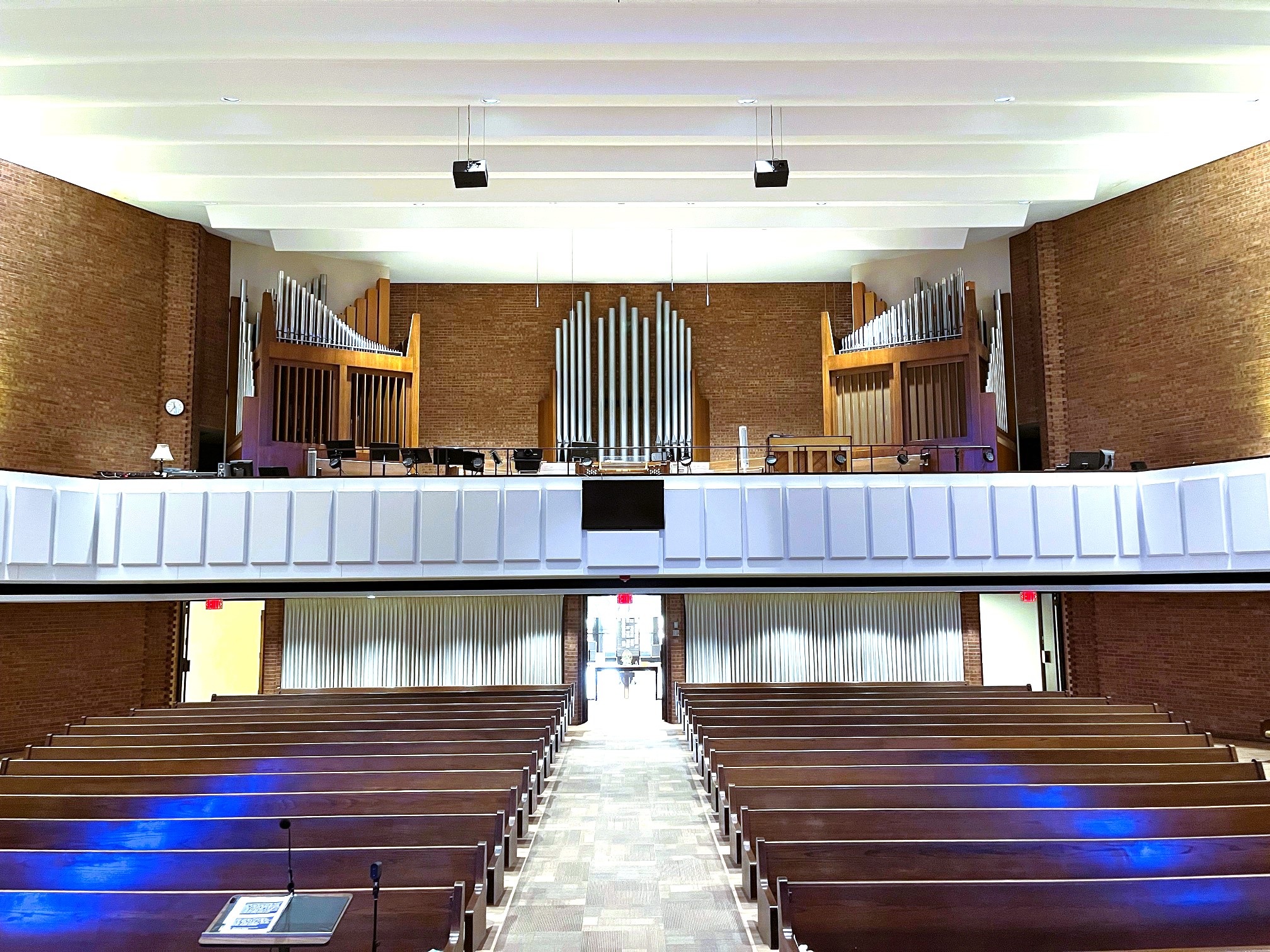

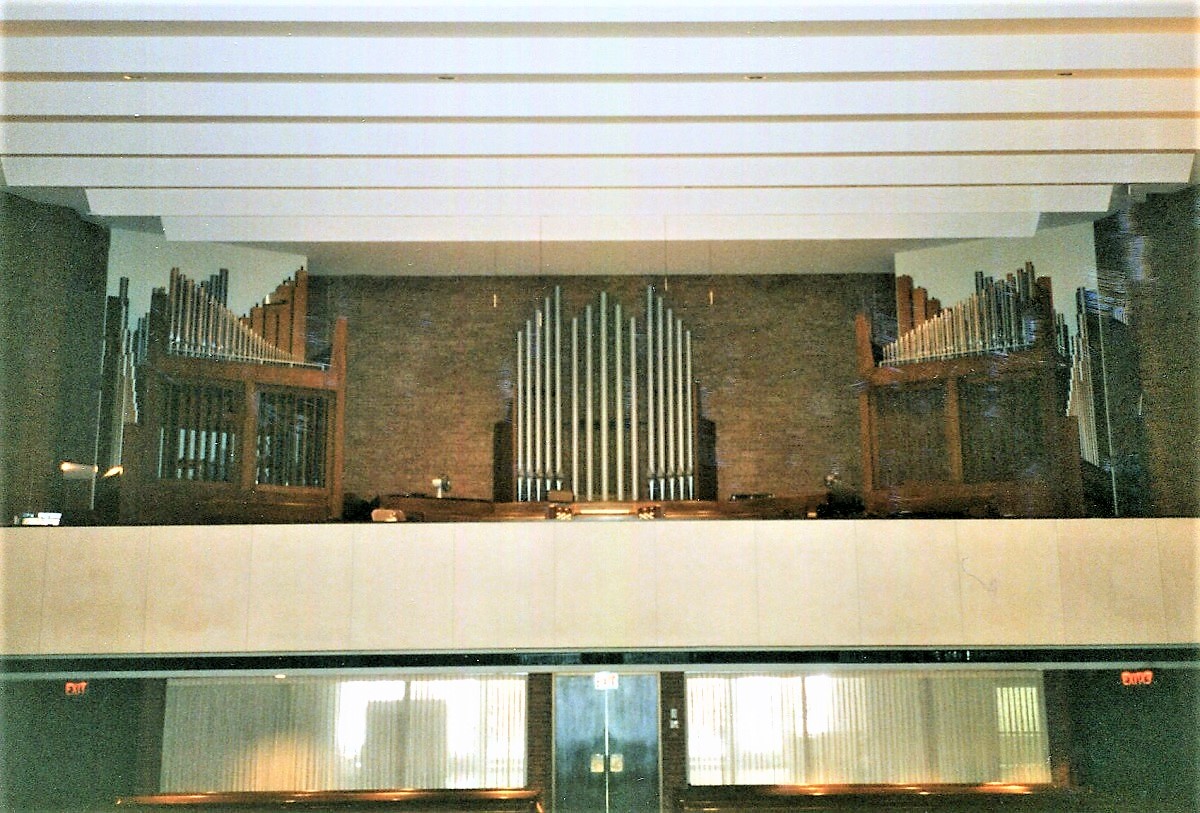

1991-06-24 - Gallery exposed pipes (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Center
• 3 manuals
• 23 stops
• 26 registers
• 4 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Adjustable Combination Pistons
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler toe pistons
• Has tutti toe pistons

Notes

2008-08-20 - Identified through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the console June 24, 1991 Source: Source not recorded Date not recorded

     Oklahoma City, Oklahoma
     Messiah Lutheran Church

     Schantz   Op. 878   1968   3/30
     ___________________________________________

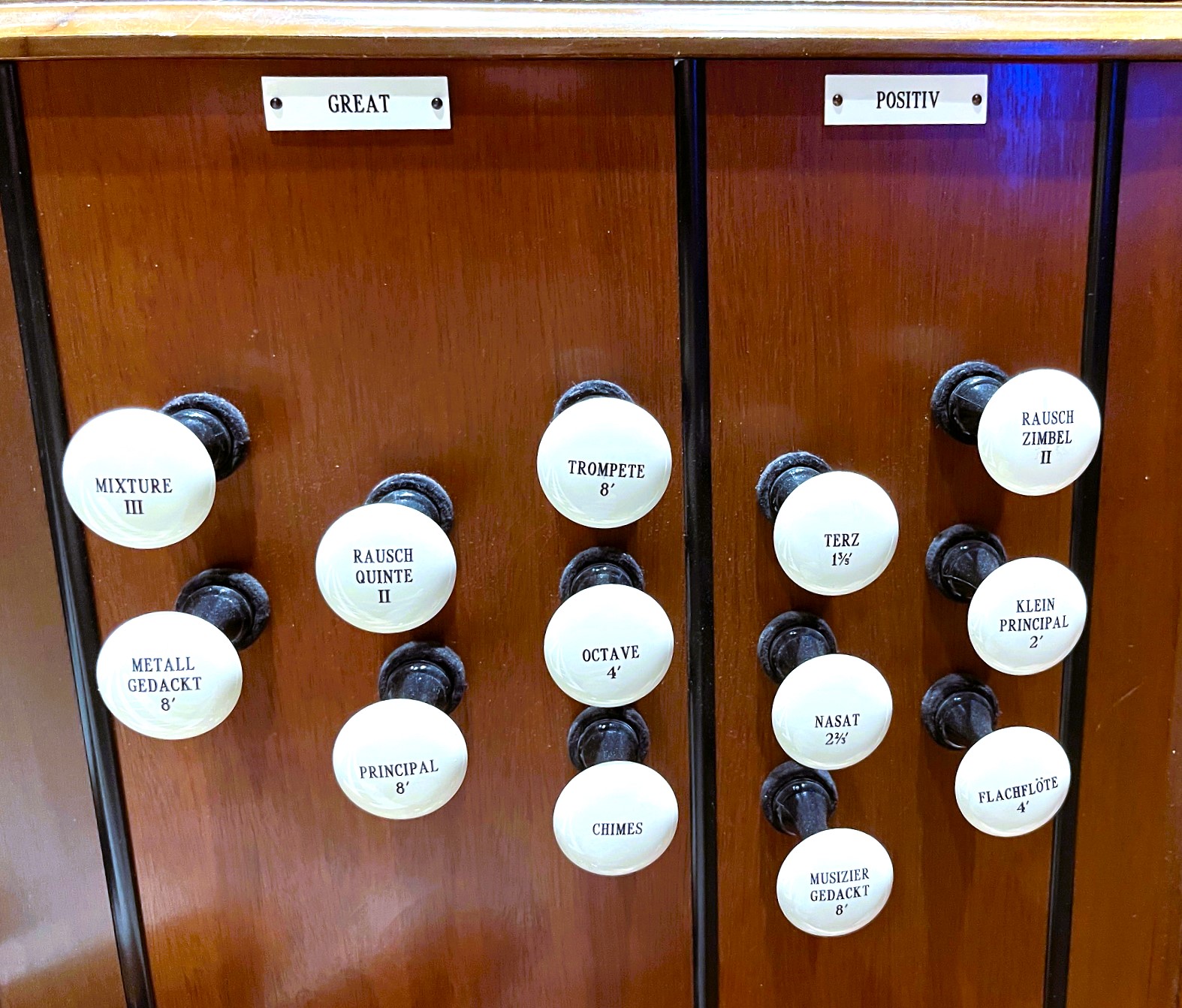

     GREAT                       POSITIV
  8' Principal                8' Musiziergedackt
  8' Metallgedackt            4' Flachflote
  4' Octave               2 2/3' Nasat
 II  Rauschquint              2' Kleinprinzipal
III  Mixtur               1 3/5' Terz
  8' Trompete                II  Rauschzimbel
     Chimes

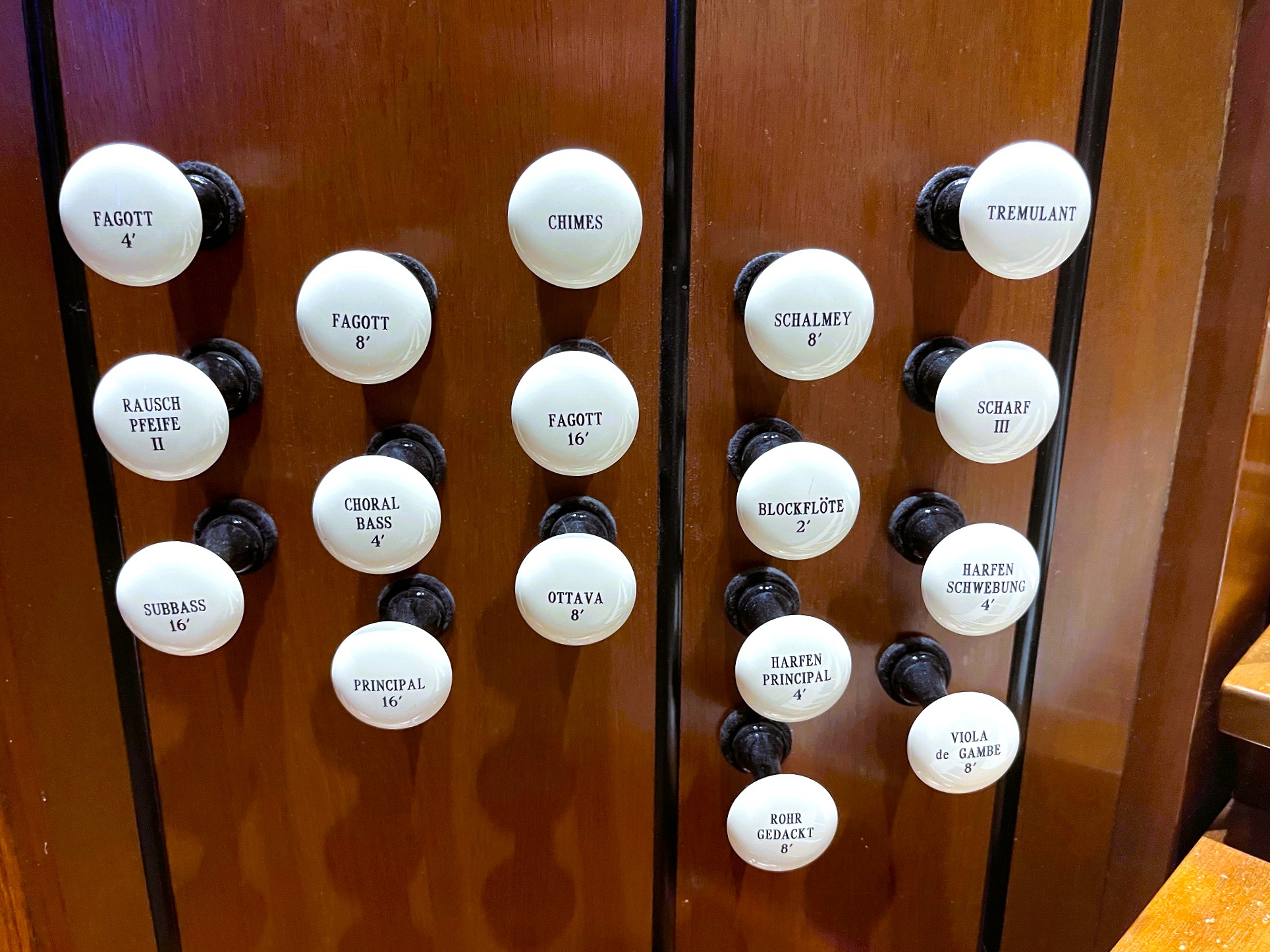

                                 PEDAL
     SWELL                   16' Prinzipal
  8' Rohrgedeckt             16' Subbass
  4' Harfenprinzipal          8' Ottava       12
  4' Harfenschwebung          4' Choralbass
  2' Blockflote              II  Rauschpfeife
III  Scharf                  16' Fagott
  8' Schalmei                 8' Fagott       12
     Tremulant                4' Fagott       12
                                 Chimes       GT

   [Received from Jeff Scofield December 3, 2012]
