Better Pipe Organ Database

Schantz Organ Co. Opus 820 (1968)

First Baptist Church: Sanctuary
411 Market St.
Wilmington, NC

Images

1994-09-01 - Church exterior and 197' steeple (Photograph by Jeff Scofield/Database Manager)

1994-09-01 - Console to left (Photograph by Jeff Scofield/Database Manager)

1994-09-01 - Sanctuary interior and display pipes after 1992 renovation (Photograph by Jeff Scofield/Database Manager)

1994-09-01 - Console to right (Photograph by Jeff Scofield/Database Manager)

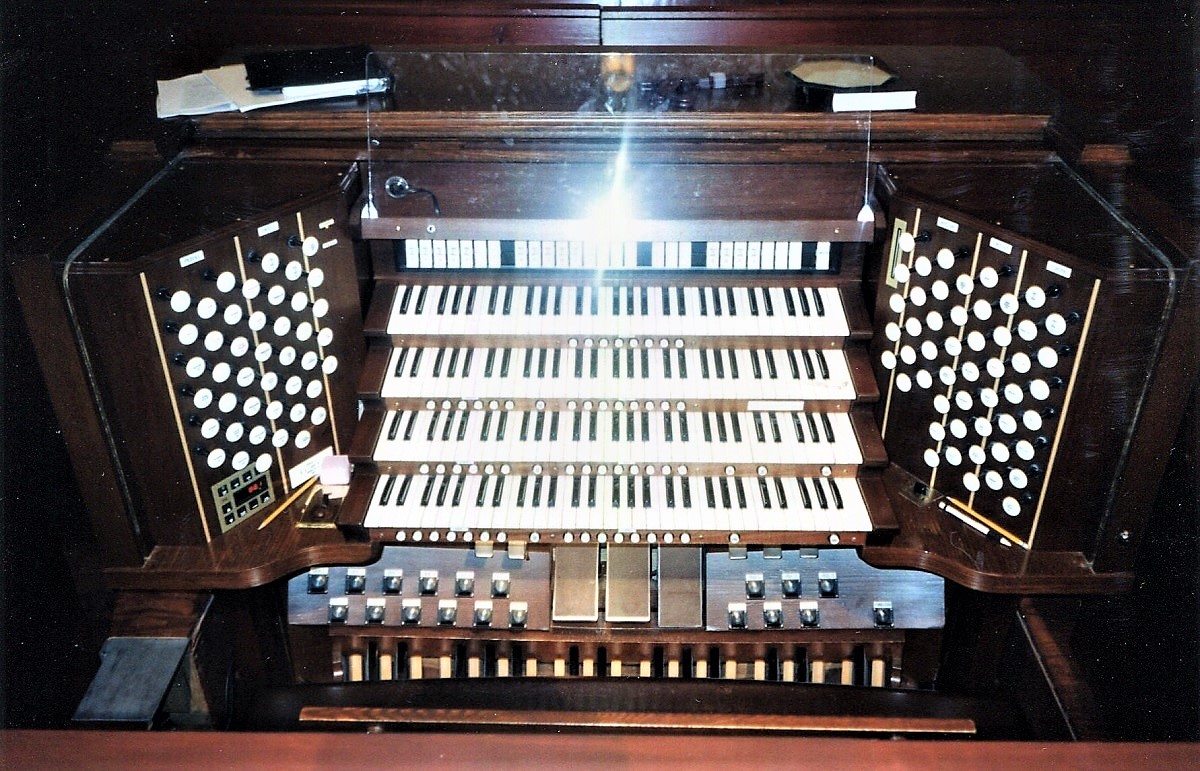

1994-09-01 - Console after 1992 renovation (Photograph by Jeff Scofield/Database Manager)

1994-09-01 - 1968 chancel and choirloft (Church postcard, collection of Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
4 manuals
38 stops
52 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-08-31 - Identified through online information from Jeff Scofield. -- In 1992, console and choir lowered from center gallery to pulpit level; at that time, R. A. Colby renovated the console and added facade pipes. The fourth manual division, first called Antiphonal and later Ancillary, is prepared-for. -Database Manager

2011-10-14 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist copied from the console June 2, 1988 Source: Source not recorded Date not recorded

     Wilmington, North Carolina
     First Baptist Church

     Schantz   Op. 820   1968   4/48
     ______________________________________________

     GREAT                      SWELL
 16' Quintaton     61        8' Flute a Cheminee 61
  8' Principal     61        8' Viole de Gambe   61
  8' Holzgedackt   61        8' Viole Celeste    49
  4' Octave        61        8' Dulciana         61
  4' Nachthorn     61        8' Unda Maris       49
  2' Super Octave  61        4' Prestant         61
 IV  Mixture      244        4' Flute Harmonique 61
III  Scharff      183        2' Flute des Bois   61
     Unison Off             IV  Plein Jeu       244
     Chimes                 16' Basson           61
                             8' Trompette        61
     ANTIPHONAL              8' Basson           12
  5  blank drawknobs         4' Clairon          61
                                Tremulant
     PEDAL                      Sub
 32' Resultant     --           Unison Off
 16' Principal     32           Super
 16' Bourdon       32
 16' Quintaton     GT           CHOIR
 16' Flauto Dolce  CH       16' Flauto Dolce     61
  8' Octave        32        8' Bourdon          61
  8' Bourdon       12        8' Flauto Dolce     12
  8' Quintaton     GT        8' Flute Celeste    59
  8' Flauto Dolce  CH        4' Koppelflöte      61
  4' Super Octave  32    2 2/3' Nasat            61
  4' Hohlflöte     32        2' Principal        61
  2' Hohlflöte     12    1 3/5' Terz             61
III  Mixture       96    1 1/3' Quinte           61
 32' Kontraposaune 12        1' Sifflöte         61
 16' Posaune       32        8' Krummhorn        61
 16' Basson        SW        4' Rohrschalmei     61
  8' Trompete      12           Tremulant
  8' Basson        SW           Sub
  4' Klarine       12           Unison Off
  4' Rohrschalmei  CH           Super

[Received online from Jeff Scofield August 19, 2011]
