Better Pipe Organ Database

Noack Opus 150 (2008)

Our Lady of Guadalupe Catholic Shrine: Sanctuary; rear gallery
5250 Justin Road
La Crosse, WI

Images

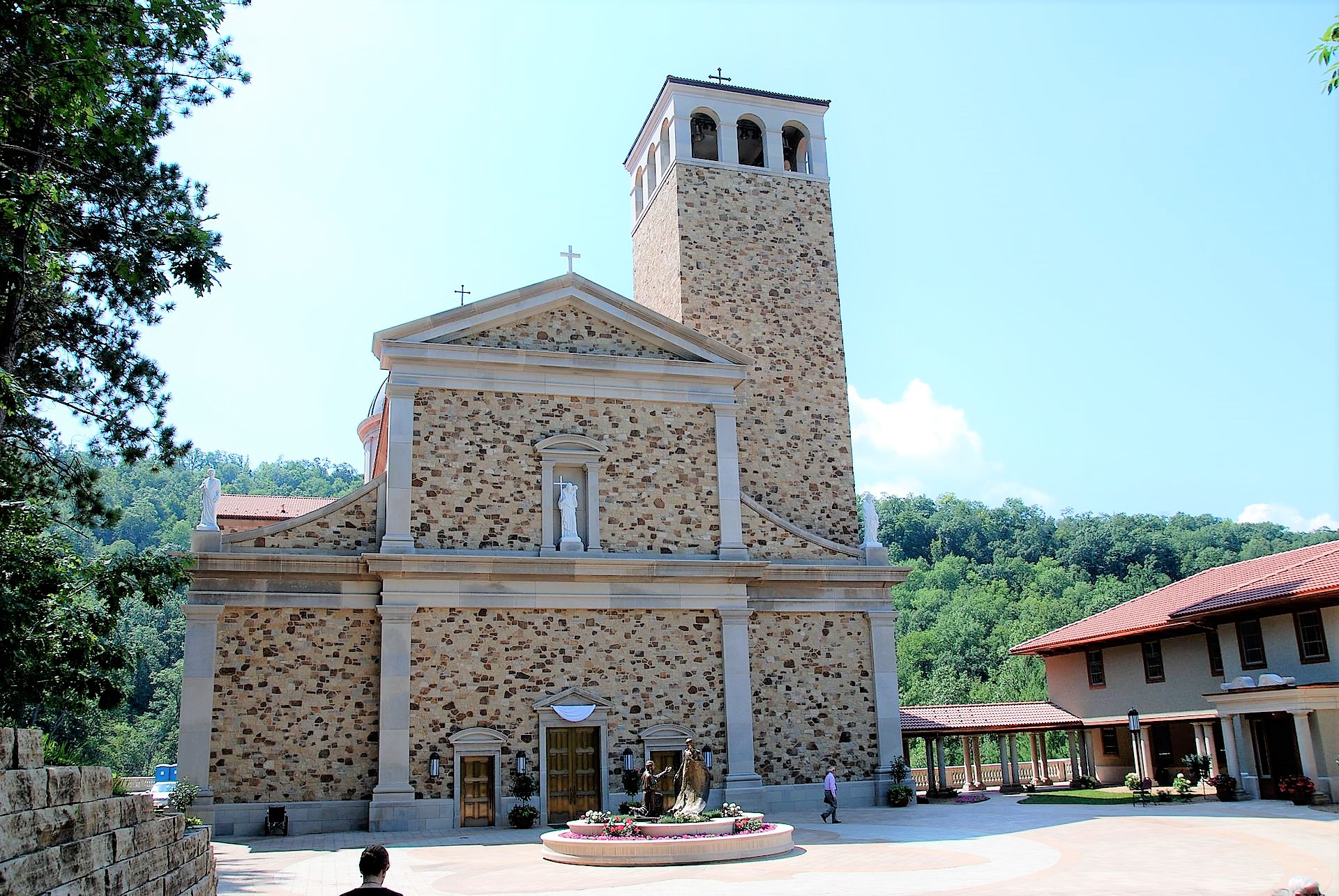

2010-04-29 - Shrine exterior (Photograph by Wikipedia, submitted by Jeff Scofield/Jeff Scofield)

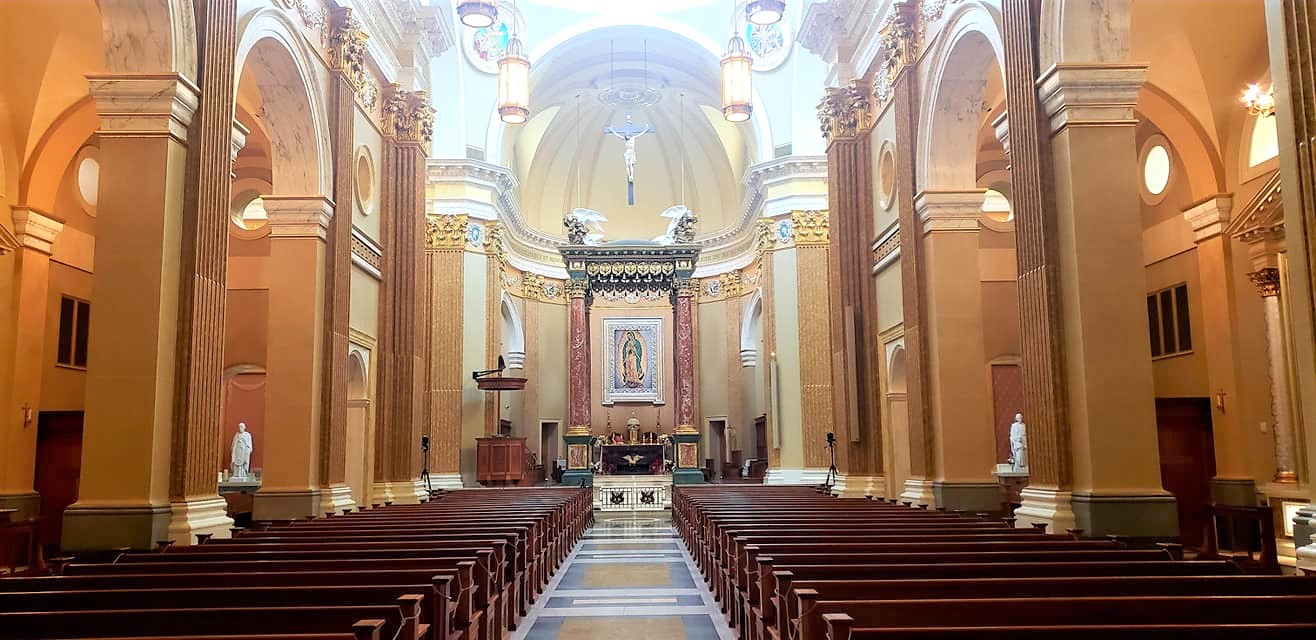

2021-02-05 - Shrine interior (Photograph by Shrine Facebook, submitted by Jeff Scofield/Jeff Scofield)

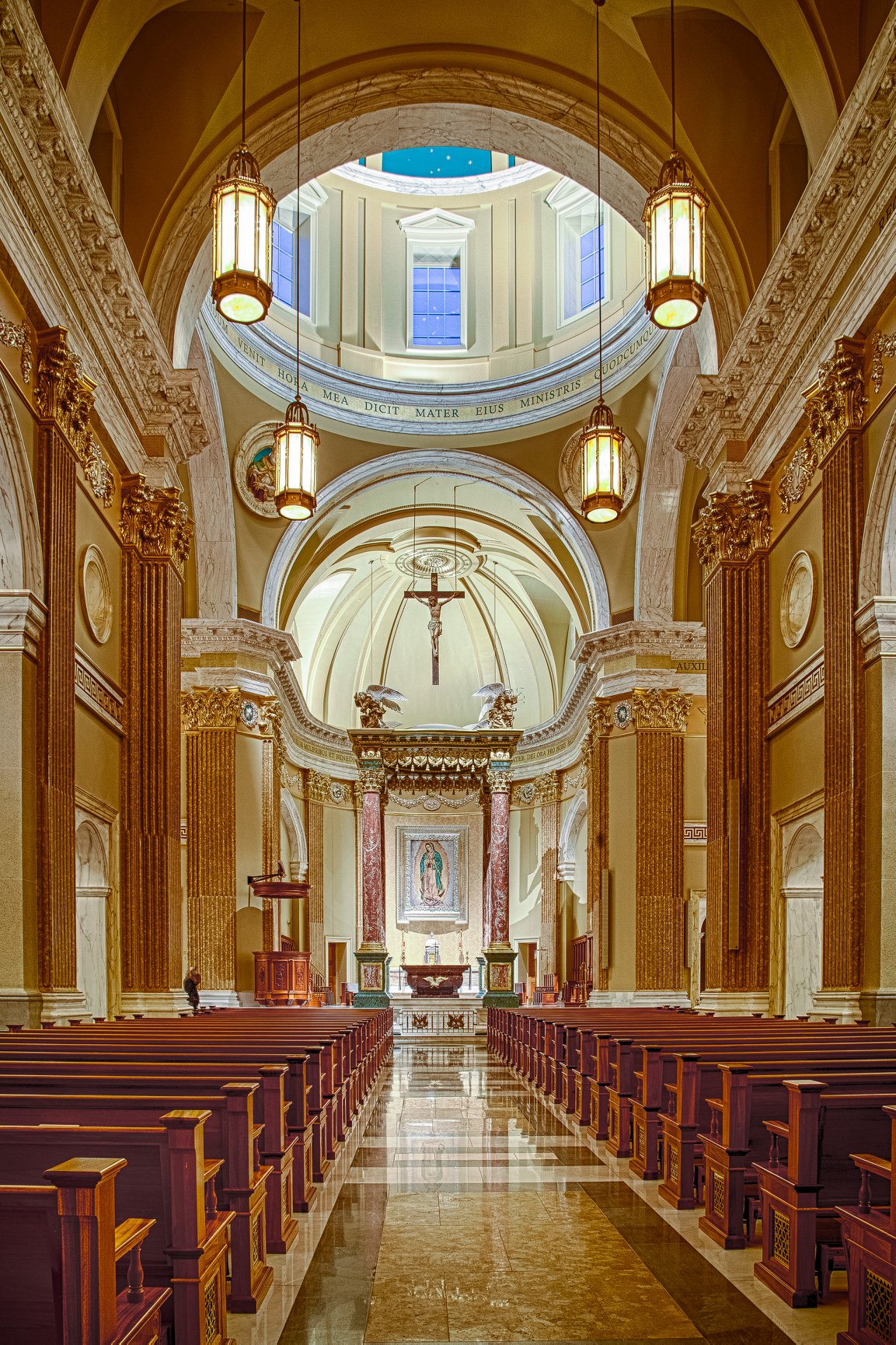

2019-02-07 - Shrine interior to front and dome (Photograph by Shrine Facebook, submitted by Jeff Scofield/Jeff Scofield)

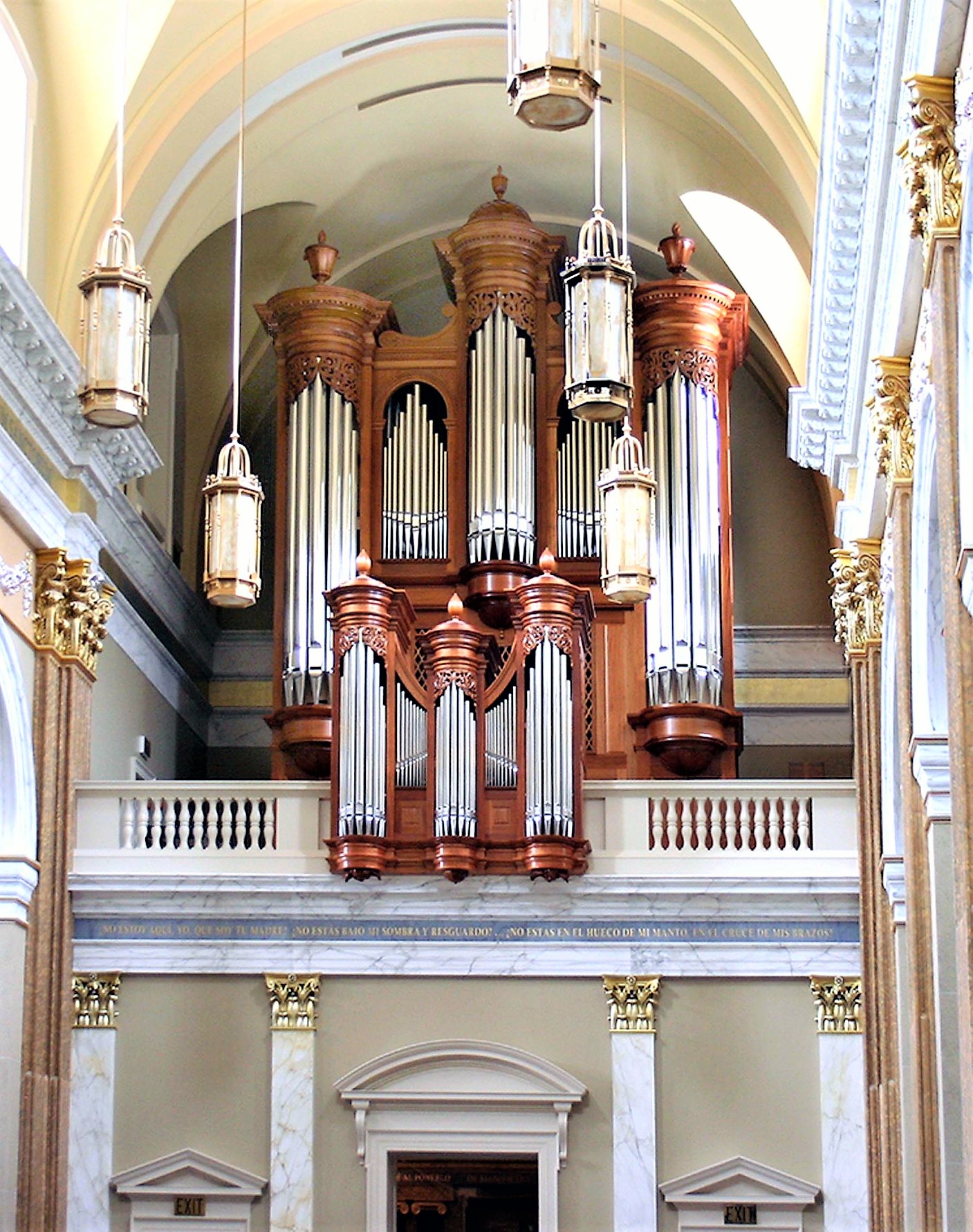

2019-05-21 - Gallery and organ case (Photograph by Noack Organ Co. , submitted by Jeff Scofield/Jeff Scofield)

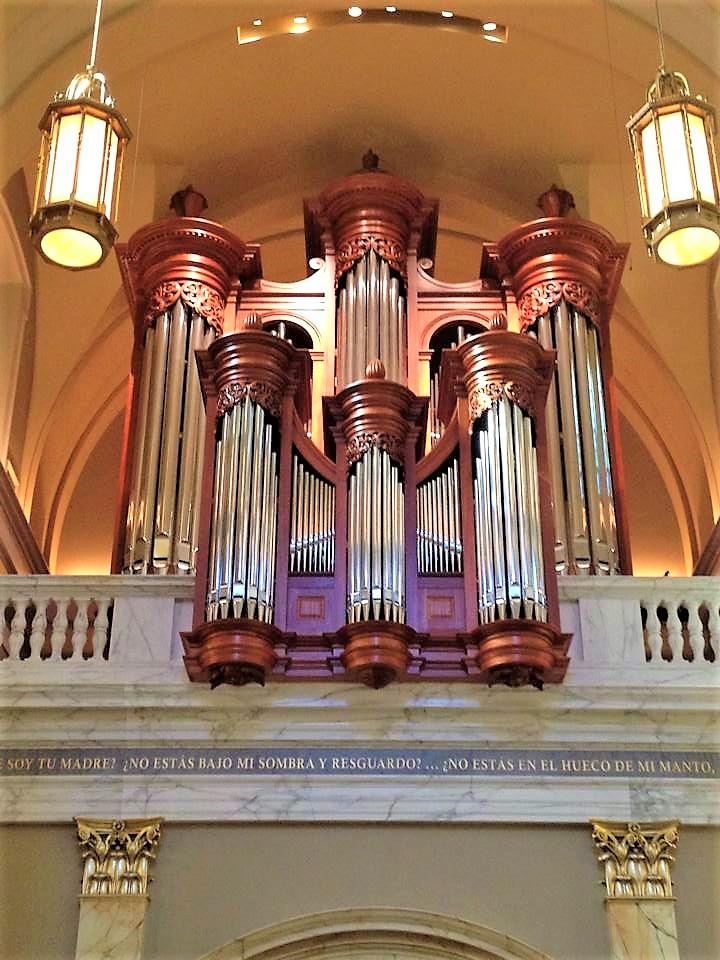

2014-08-25 - Organ case (Photograph by Chris Stroh, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Console position: Console in Fixed Position, Center
3 manuals
40 stops
4 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs
Manual compass: 58 notes
Pedal compass: 32 notes
Has combination thumb pistons
Has coupler toe pistons

Notes

2008-10-13 - Identified by Dennis Steckley from information in "Recent Installations," <i>The American Organist</i> Vol. 42, No 7 [July, 2008] -Database Manager

2009-02-13 - Updated through online information from Stephen Hall. -- Photo and stoplist at builder's website. -Database Manager

2015-03-01 - Updated through online information from Connor Annable. -Database Manager

2023-02-18 - Updated through online information from Scott Turkington. -Jim Stettner

Stoplist

Stoplist from Noack. Source: THE DIAPASON, October 2008 2008

La Crosse, Wisconsin
Shrine of Our Lady of Guadalupe

Noack Organ Co. (Opus 150, 2008)  3/52


     GREAT ORGAN
1    16'    Double Diapason     a  51
2    8'     Diapason               58
3    8'     Chimney Flute          58
4    8'     Viola                  58
5    4'     Octave                 58
6    4'     Harmonic Flute         58
7    2 2/3' Twelfth                58
8    2'     Fifteenth              58
9    V      Cornet 8' c'-c'''     125
10   IV-VI  Mixture  1 1/3'       318
11   8'     Trumpet                58


     SWELL ORGAN (Expressive)
12   8'     Diapason            b  58
13   8'     Gedackt                58
14   8'     Bell Gamba          c  52
15   8'     Céleste          (GG)  51
16   4'     Octave                 58
17   4'     Recorder               58
18   2'     Gemshorn               58
19   IV     Mixture  2'           232
20   8'     Cornopean              58
21   8'     Oboe                   58


     CHOIR ORGAN
22   8'     Stopt Flute            58
23   8'     Dulciana               58
24   4'     Prestant               58
25   4'     Chimney Flute          58
26   2 2/3' Nasard                 58
27   2'     Octave                 58
28   1 3/5' Tierce                 58
29   1'     Whistle                58
30   III    Sharp  1'             174
31   8'     Cremona                58


     PEDAL ORGAN
32   16'    Double Diapason        32
33   16'    Stopt Bass             32
34   10⅔'   Quinte                 32
35   8'     Diapason               32
36   8'     Gedackt                32
37   4'     Octave                 32
38   16'    Trombone               32
39   8'     Trumpet                32
40   4'     Clarion                32

a  C–F# = Ped Dbl Diap 16′
b  C–F Haskells
c  C–F = Diapason 8′

[Received from Jeff Scofield  April 6, 2021.]

Websites

The Noact Organ Company [Opus 150] - Photograph, stoplist (Check Internet Archive, archive.is)
