M. P. Möller Opus 8942 (1956)

St. John's Episcopal Church: Parish House
101 South Prospect Street
Hagerstown, MD

Images

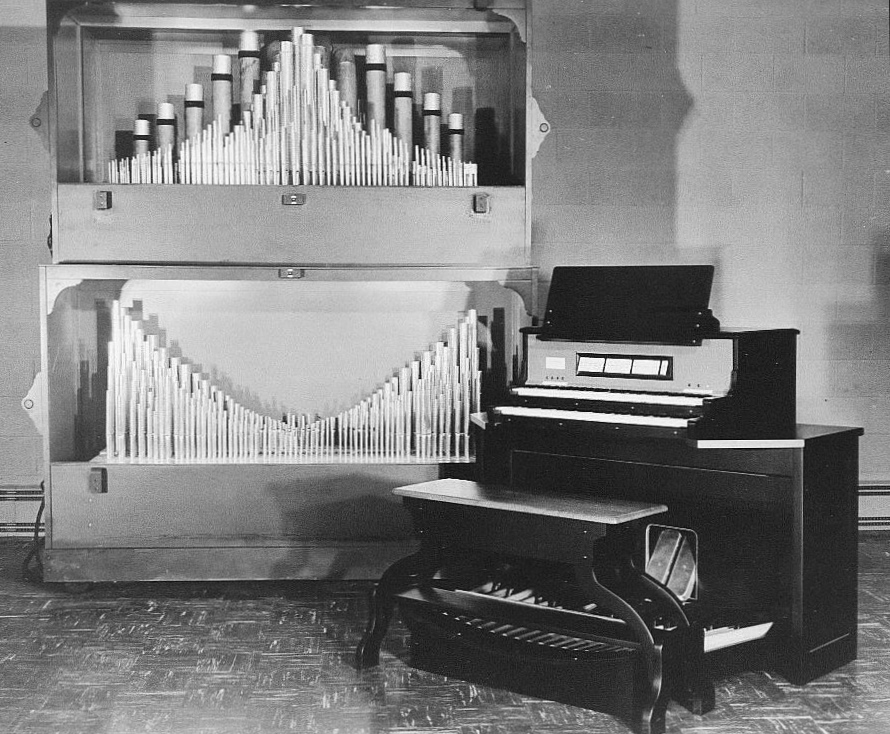

1957-10-22 - Organ Case and Console (Möller Promotional Photo; collection of Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Non-Traditional Style, As Consoles by Holtkamp, Schlicker, et al
2 manuals
9 stops
16 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Combination action: None

Notes

2008-11-13 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2011-10-31 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Specification from OHS Archives via Bynum Petty Source: Source not recorded Date not recorded

Hagerstown, Maryland
St. John's Episcopal Church - Parish House

M. P. Möller, Inc.   Opus 8942   1956      2 manuals, 9 stops, 12 ranks
_______________________________________________________________________

        GREAT ORGAN                         POSITIV ORGAN
     8’ Gedeckt           61 m           8’ Rohrflöte         61 m
     4’ Principal         61 m       1 1/3’ Quint             61 m
   III  Mixture          183 m          II  Sesquialtera     122 m

        PEDAL ORGAN                         COUPLERS
    16’ Sordun Regal      32 m              Positiv to Great 16’
     8’ Sordun Regal      12 m              Positiv to Great 8’
     4’ Sordun Regal      12 m              Positiv 16’
                                            Great to Pedal 8’
                                            Positiv to Pedal 8’

        MECHANICALS
	Balanced Crescendo Pedal (regular style)
	Balanced Crescendo Pedal (Four contact points spaced
	through the available movement. Each point fitted with
	an 8-point relay switch to be wired as stop combination
	movements, not moving tablets.)


[Received from Bynum Petty  2015-04-21]
