Better Pipe Organ Database

M. P. Möller Opus 9001 (1957)

St. Mark Evangelical Lutheran Church
200 South Wille Street
Mount Prospect, IL

Images

2022-11-29 - Builder nameplate (Photograph by Nicholas Cronk/Nicholas Cronk )

2022-11-29 - Right stopjamb (Great and Choir stops) (Photograph by Nicholas Cronk/Nicholas Cronk )

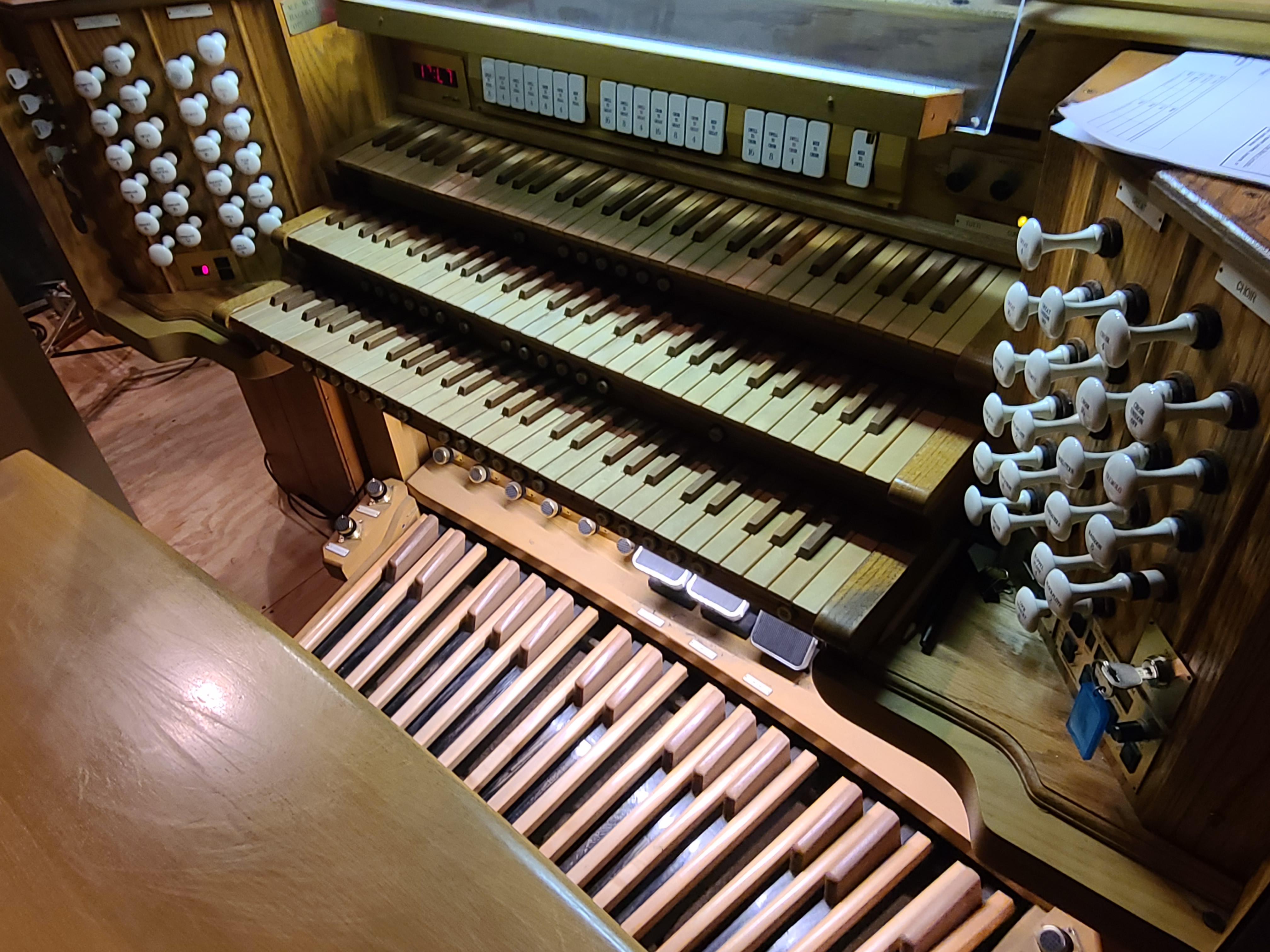

2022-11-29 - Console. (Photograph by Nicholas Cronk/Nicholas Cronk )

1958 - Console (Photograph by Moller promotional photo, collection of Jeff Scofield, submitted by Jeff Scofield/Jeff Scofield)

1958-07-02 - Console (Möller Promotional Photo; collection of Jeff Scofield/Database Manager)

2024-12-04 - Organ in rear gallery (Daniel Boin/Daniel Boin)

2024-12-04 - Left stopjamb (Swell/Pedal stops) (Daniel Boin/Daniel Boin)

2024-12-04 - Choir pipework (Daniel Boin/Daniel Boin)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
14 stops
24 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-11-14 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-04-07 - Updated through online information from Jeff Scofield. -- Great is played from bottom manual and Swell and Choir from top manual -Database Manager

2024-12-06 - Console was rebuilt into a 3 manual at some point, rolltop removed. 32’ reed is digital. Swell and choir enclosed on either side of balcony, great unenclosed above in middle. -Daniel Boin

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Mount Prospect, Illinois
St. Mark Evangelical Lutheran Church

Möller   Op. 9001   1957   2/19

Great is at home on the bottom manual, Swell
and Choir at home on the top manual.

     GREAT (I)               SWELL (II)
 16' Quintade 61          8' Viola 61
  8' Rohrflöte 61         8' Viola Celeste (pf)
  8' Quintaton 12         4' Harmonic Flute 61
  4' Principal 61       III  Plein Jeu 183
  2' Waldflöte 61        16' Trompette L/2) 61
III  Mixture 183          8' Trompette 12
     Unison Off              Tremolo
     Super                   Sub
     Chimes 21               Unison Off
     (Deagan D)              Super

     CHOIR (II)              PEDAL
  8' Lochgedackt 61      16' Quintade GT
  4' Koppelflöte 61      16' Gedackt 12 CH
  2' Blockflöte 61        8' Spitzprinzipal 32
 II  Sesquialtera 122     8' Quintade GT
  8' Krummhorn (pf)       8' Gedackt CH
     Tremolo              4' Oktav 12
     Unison Off           4' Gedackt CH
     Super               16' Trompette SW
                          4' Clarion SW

     ADJUSTABLE COMBINATIONS
Pistons No. 1-2-3-4       Affecting Great Organ
Pistons No. 1-2           Affecting Swell Organ and Choir Unison Off
Pistons No. 3-4           Affecting Choir Organ and Swell Unison Off
Pistons No. 5-6-7-8       Affecting Swell and Choir Organs
Toe Studs No. 1-2-3       Affecting Pedal Organ, at right
Pistons No. 1-2-3-4-5-6   General, affecting entire organ

 [Received on line from Jeff Scofield April 12, 2009.]

Documents

(1956-10-04) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
