M. P. Möller Opus 9024 (1956)

St. John's Evangelical & Reformed Church / St. John's U.C.C.: Sanctuary; front
102 South Clark Street
Black Creek, WI

Images

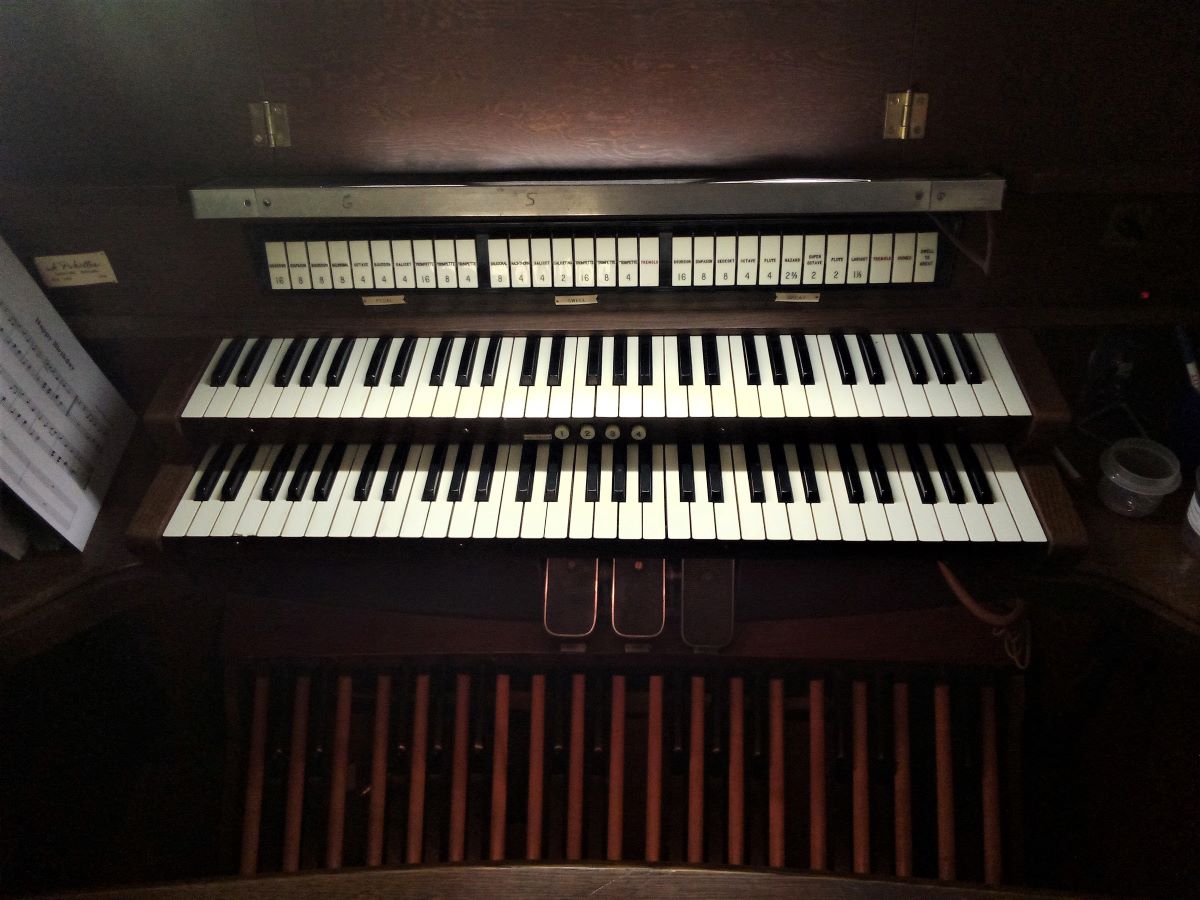

2023-01-08 - Console (Photograph by Hunter Erickson, submitted by Jim Stettner/Jim Stettner)

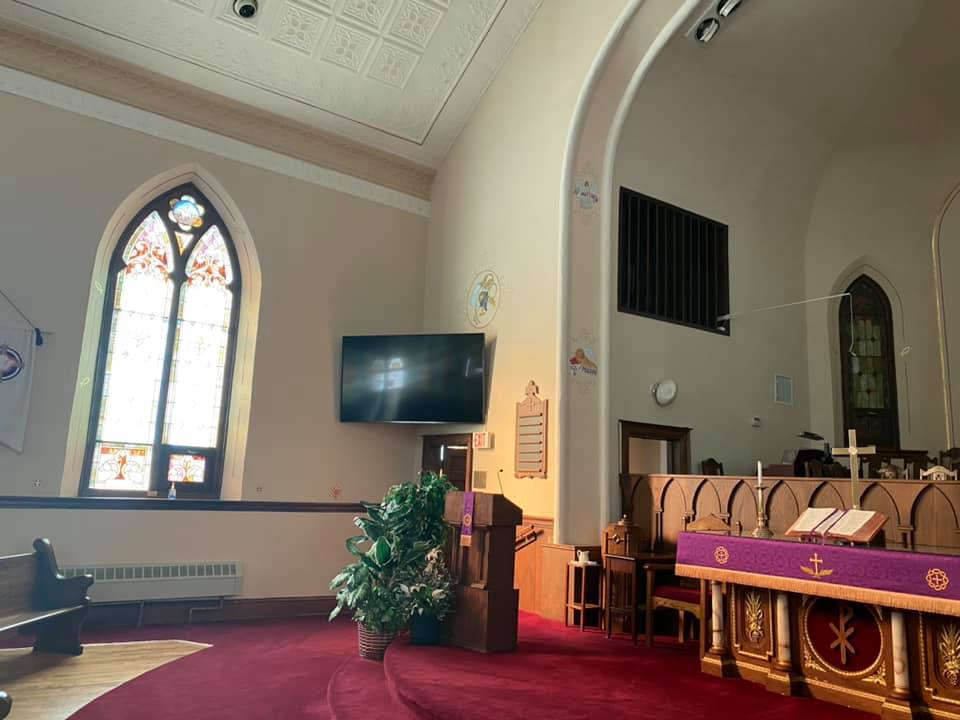

2021-03-04 - Chancel showing Swell chamber grille on left side (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

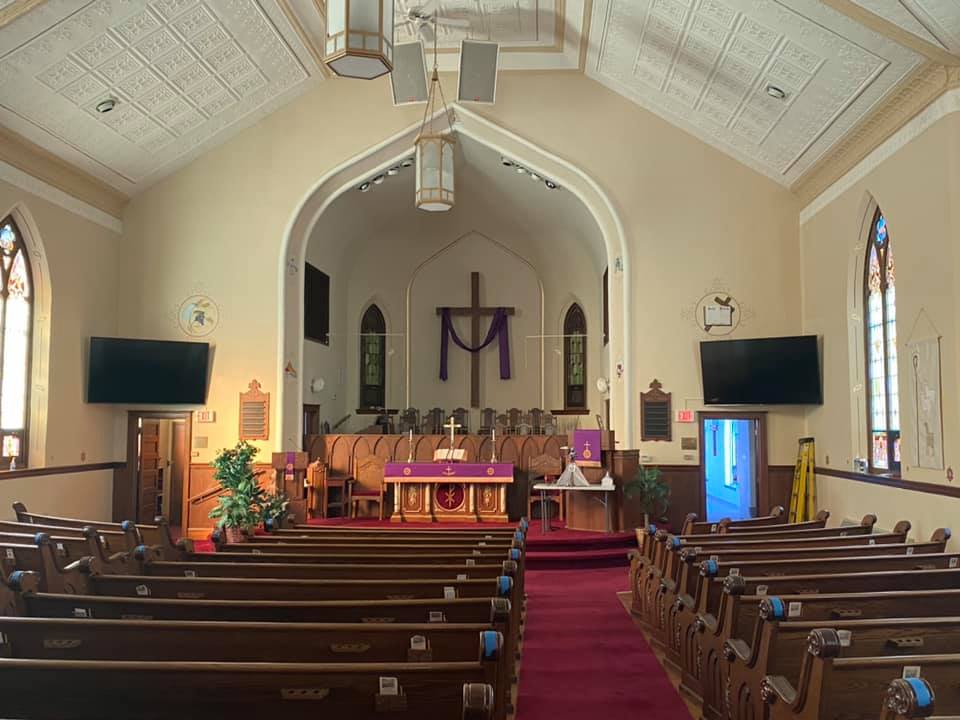

2021-03-04 - Chancel with organ chambers on each side (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

2023-01-08 - Newly restored stained glass (Photograph by Hunter Erickson, submitted by Jim Stettner/Jim Stettner)

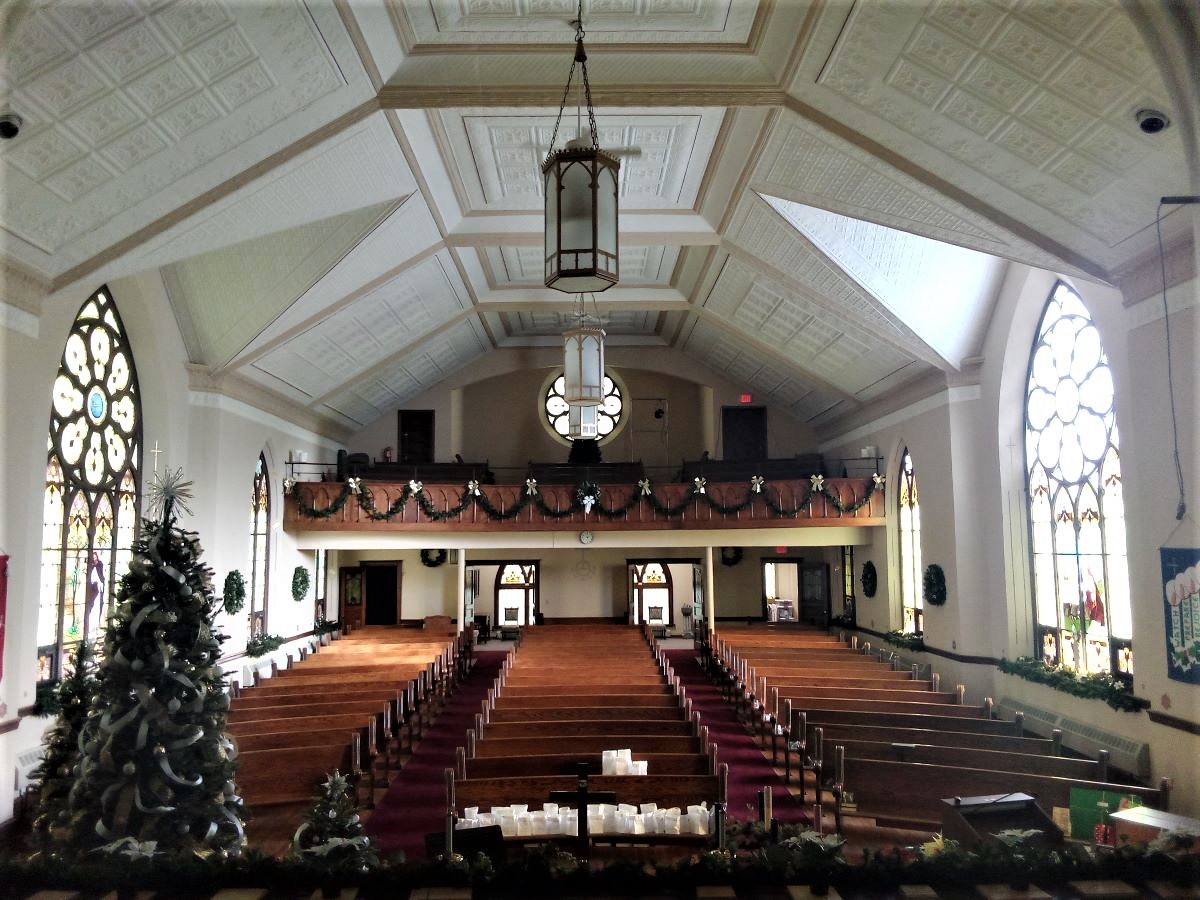

2023-01-08 - Sanctuary interior (Photograph by Hunter Erickson, submitted by Jim Stettner/Jim Stettner)

2020-07-30 - Church exterior (Photograph from an archival source: Church Facebook page, submitted by Jim Stettner/Jim Stettner)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
1 manuals
6 stops
25 registers
2 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2008-11-14 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2023-02-03 - Divisions, console, stoplist, and photos updated by Hunter Erickson. -Jim Stettner

Stoplist

Source: Stoplist copied from the console Originally published 01/08/2023

Black Creek, Wisconsin
St. John's Evangelical & Reformed Church / St. John's U.C.C.

M. P. Moller (Möller), Opus 9024, 1956


	GREAT (Expressive in Chancel - Right Side)
16'	Bourdon                  12
8'	Diapason	         61
8'	Gedeckt                  61
4'	Octav                    12
4'	Flute                    12
2 2/3'	Nazard                   61
2'	Super Octave              7
2'	Flute                     7
1 1/3'	Larigot                  --
	Chimes                  (2_)
	Tremolo


	SWELL (Expressive in Chancel - Left Side)
8'	Salicional               61
4'	Nachthorn                61
4'	Salicet                  12
2'	Salicetina                7
16'	Trompette                12
8'	Trompette                61
4'      Trompette                12
	Tremolo


	PEDAL (Borrowed from Great and Swell)
16'     Bourdon            (Gt)  --
8'	Diapason           (Gt)  --
8'	Bourdon            (Gt)  --
8'	Salicional         (Sw)  --
4'	Octave             (Gt)  --
4'	Bourdon            (Gt)  --
4'	Salicet	           (Sw)  --
16'	Trompette	   (Sw)  --
8'	Trompette          (Sw)  --
4'	Trompette          (Sw)  --


        COUPLERS
Swell to Great                    8


       FINGER PISTONS
Full Organ                    1 - 4


       TOE STUDS
None


       PEDAL MOVEMENTS
Swell Expression             (bal.)
Great Expression             (bal.)
Crescendo                    (bal.)


[Stoplist courtesy of Hunter Erickson  2023-02-03]
