M. P. Möller Opus 9094 (1958)

Trinity Episcopal Church: Church
301 N. Chester Rd.
Swarthmore, PA

Note: Not extant. Not playable. (in this location)

Images

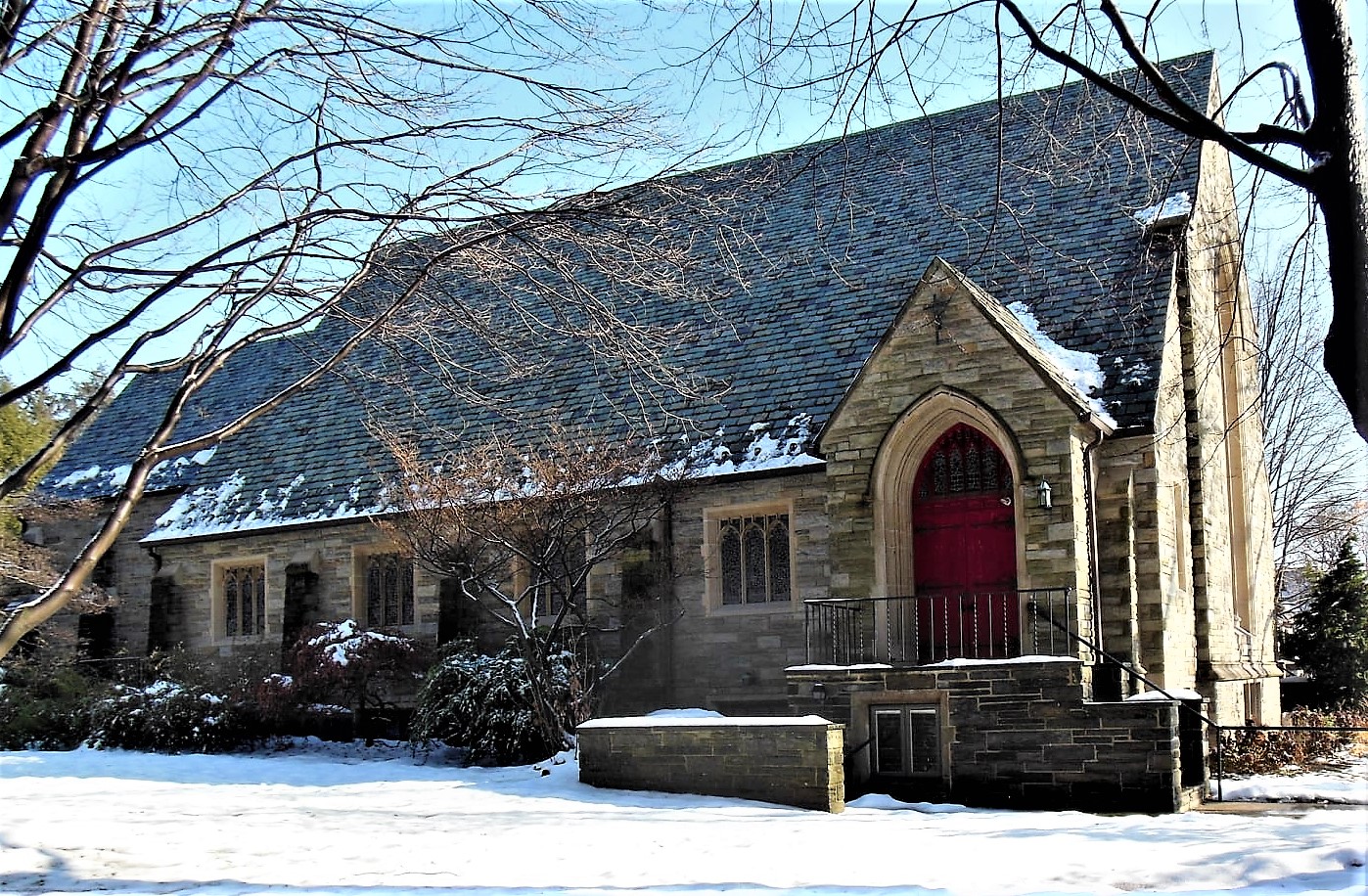

2021-01-30 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

1958 - Chamber and exposed pipes (Photograph from an archival source: Moller promotional photo, collection of Jeff Scofield, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
15 stops
24 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-11-24 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-04-11 - Updated through on-line information from Jeff Scofield. -- Replaced in 1979 by 2/19 Casavant Op. 3420 -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Swarthmore, Pennsylvania
Trinity Episcopal Church

Möller   Op. 9094   1958   2/17

The Great principal chorus is unenclosed on 3 1/2" wind; the Bourdon
and Erzähler are enclosed on 4" wind.  The Positiv, playable on the
Great, is exposed in the Chancel.  Swell and Pedal are on 4" wind.

     GREAT                 SWELL                  PEDAL
  8' Principal 61       8' Rohrflöte 61       16' Bourdon 12 GT
  8' Bourdon 61         8' Gamba 61           16' Erzähler 12 GT
  8' Erzähler 61        8' Gamba Celeste 49    8' Principal 32
  4' Octave 61          4' Nachthorn 61        8' Bourdon GT
III  Mixture 183       16' Bassoon 61  L/2     8' Erzähler GT
     Tremulant            (Eng. Horn pattern)  4' Super Octave 12
     Sub                8' Trompette 61        4' Flute GT
     Unison Off         4' Bassoon 24          2' Octavin 12
     Super                 Tremulant          16' Bassoon SW
                           Sub
     POSITIV               Unison off
  8' Lochgedeckt 61        Super
  4' Koppelflöte 61
  2' Blockflöte 61

 [Received on line from Jeff Scofield April 11, 2009.]

Documents

(1957-05-02) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
