M. P. Möller Opus 9348 (1960)

Community Presbyterian Church: Sanctuary
415 Forest Avenue
Laguna Beach, CA

Images

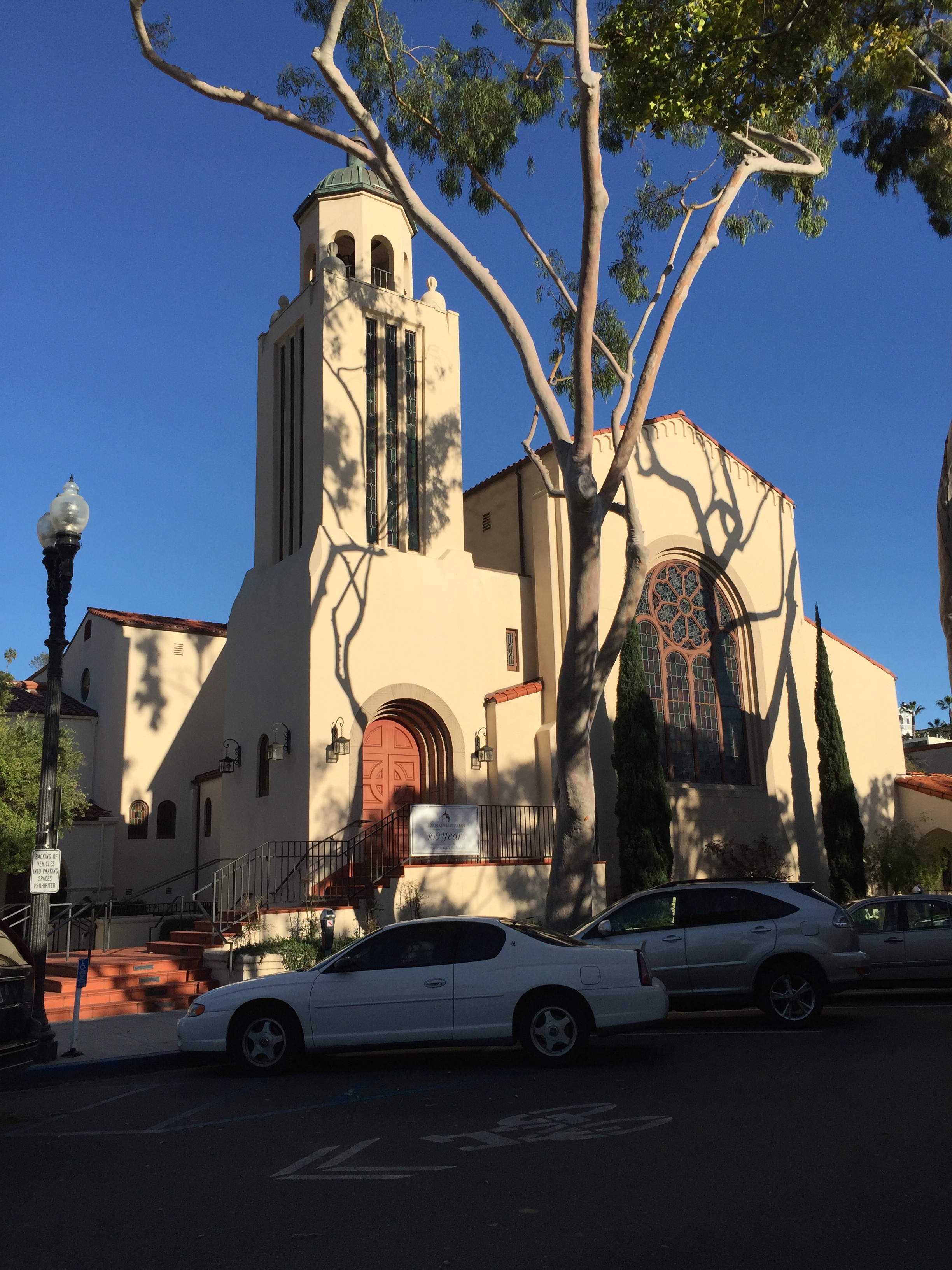

2017-02-12 - Church Exterior (Photograph by Brad Engelland/Database Manager)

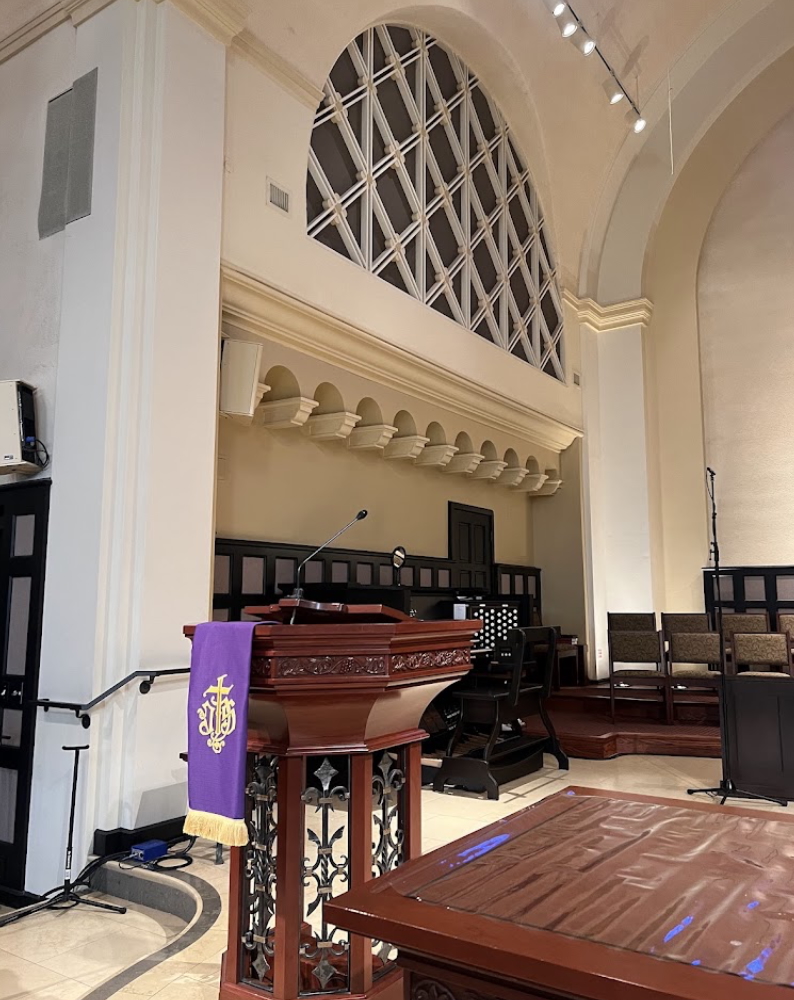

February 2024 - Left chamber and console (Soheila Memarian from church website/Brad Engelland)

February 2024 - Right chamber (Soheila Memarian from church website/Brad Engelland)

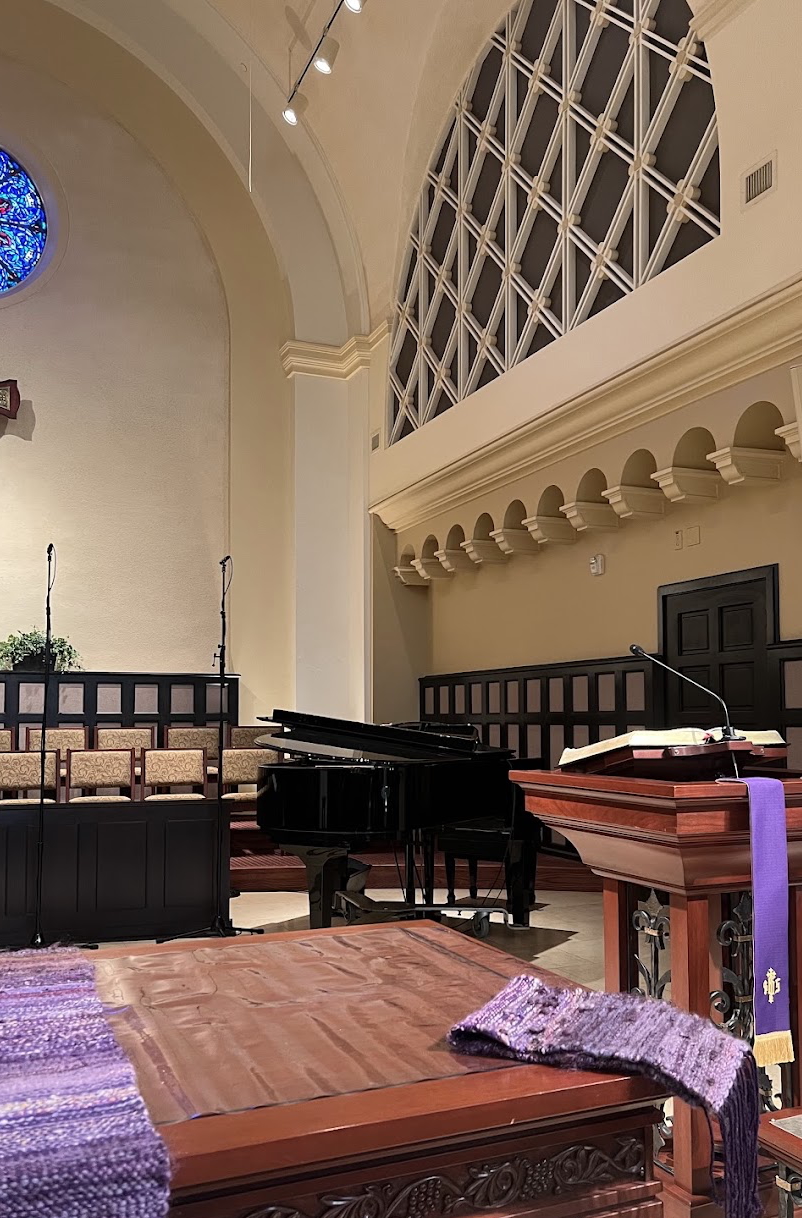

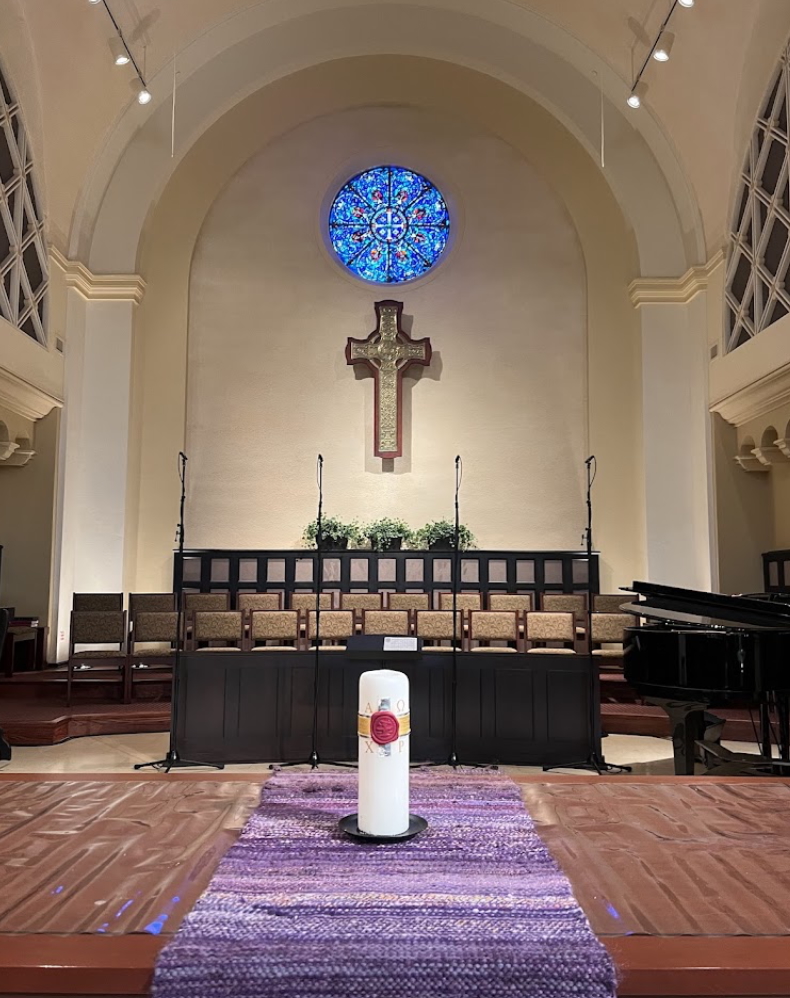

February 2024 - Chancel and organ chambers (Soheila Memarian from church website/Brad Engelland)

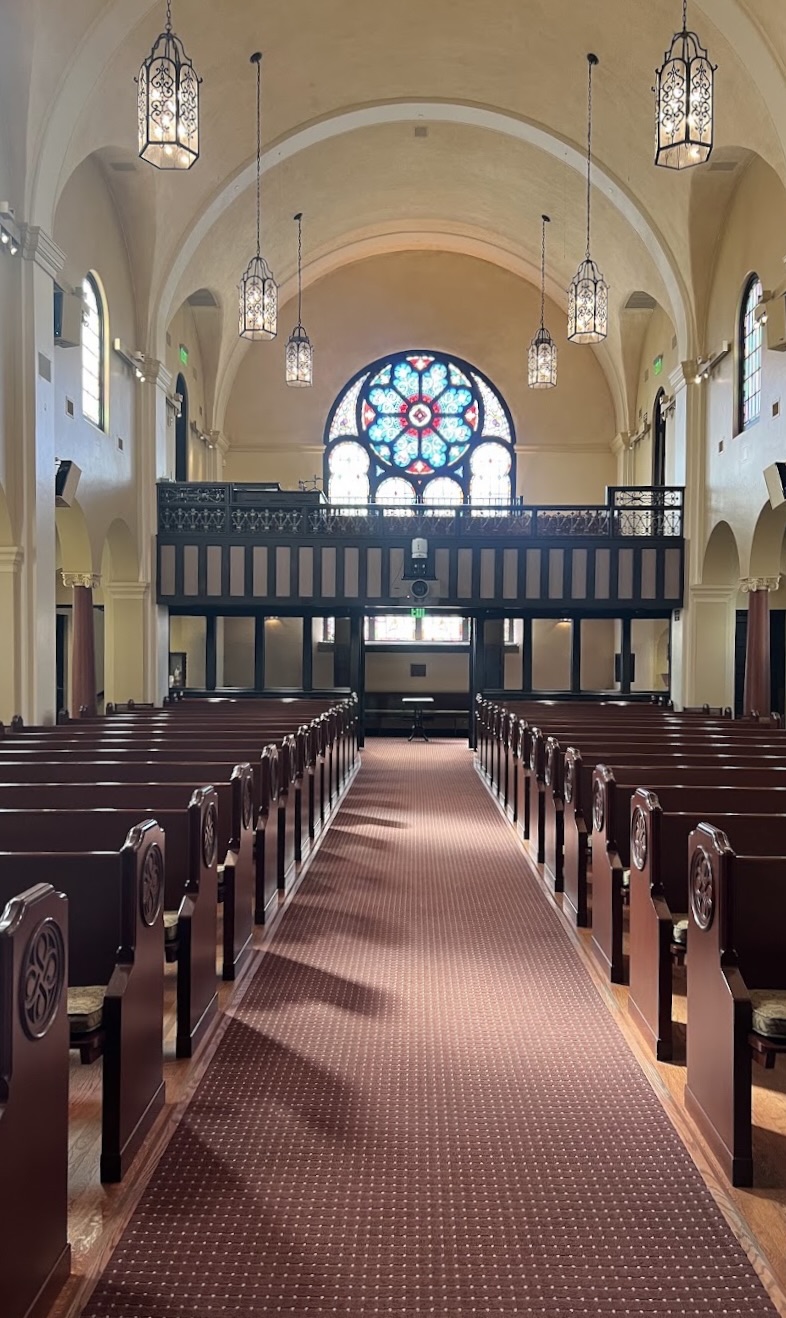

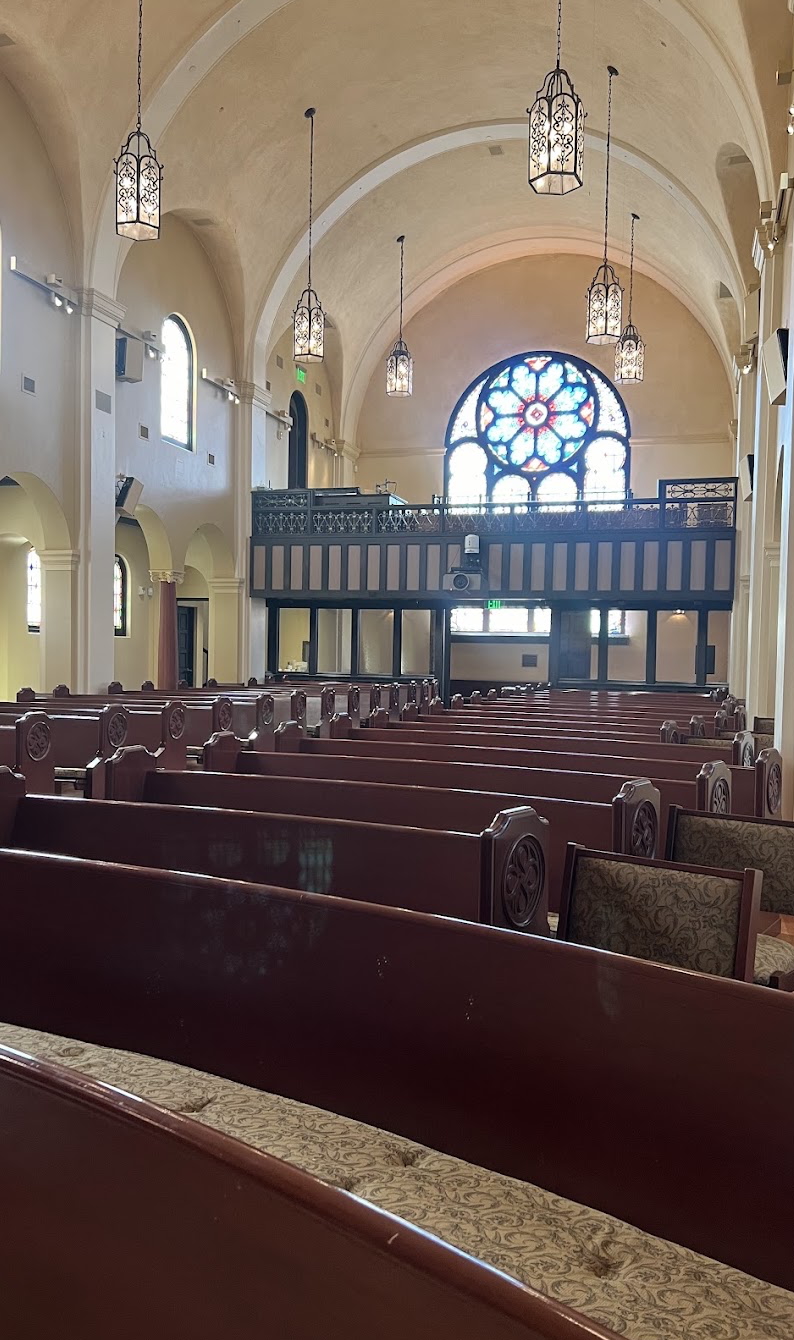

February 2024 - Church interior to rear gallery (Soheila Memarian from church website/Brad Engelland)

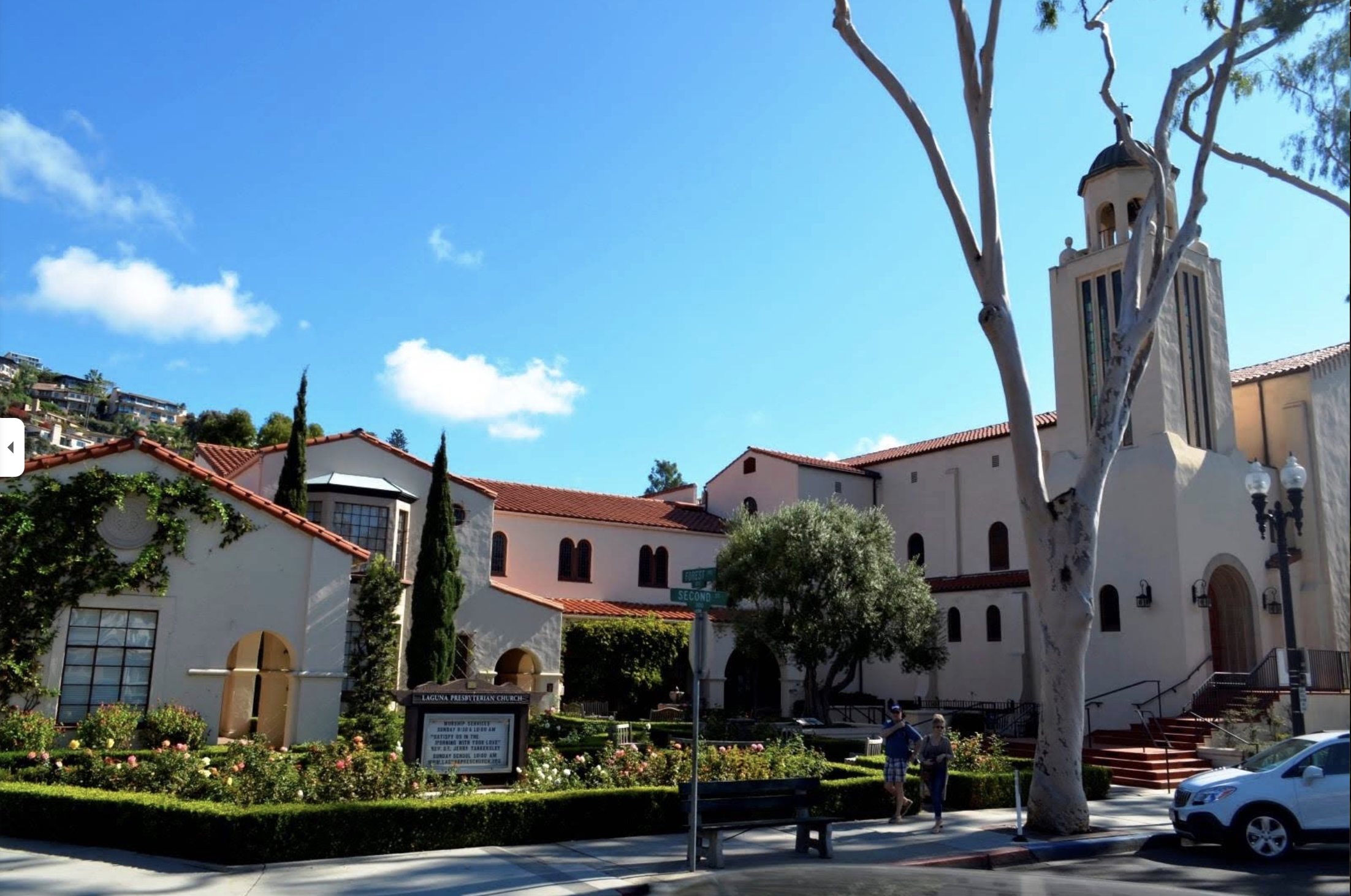

November 2017 - Church exterior (RC from church website/Brad Engelland)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
25 stops
33 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-12-12 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-04-29 - Updated through online information from Jeff Scofield. -- The factory specifications indicate that the entire organ is under expression, but does not say which chambers house the three Pedal ranks. -Database Manager

2011-12-26 - Updated through online information from Jeff Scofield. -- A new three-manual Wicks console was added at some point, perhaps upon the sanctuary's extensive renovation in 2007 that also made the sanctuary seismically-sound. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Laguna Beach, California
Community Presbyterian Church

Möller   Op. 9348   1960   3/27

Each manual divisions under separate expression.
The Pedal pipework is apparently divided amongst
the different swell boxes.

       GREAT                        CHOIR
    8' Diapason 61               8' Concert Flute 61
    8' Bourdon 61                8' Dulciana 61
    8' Salicional 61             8' Unda Maris 61
    8' Aeoline 61                4' Nachthorn 61
    4' Octave 61             2 2/3' Nasard 61
2 2/3' Quint 61                  2' Bockflöte 61
    2' Fifteenth 61              8' Clarinet 61
       Tremulant                    Tremulant
       Sub                          Sub
       Unison Off                   Unison Off
       Super                        Super
       Carillonic Bells             Harp

       SWELL                        PEDAL
   16' Flute Conique 68         16' Violone 32
    8' Flute Conique 12         16' Bourdon 32
    8' Viole de Gambe 61        16' Flute Conique SW
    8' Viole Celeste 68         16' Dulciana 12 CH
    4' Principal 61              8' Octave 32
    4' Flute Triangulaire 61     8' Bourdon 12
    2' Flautino 61               8' Flute Conique SW
  III  Plein Jeu 183             8' Dulciana CH
    8' Trompette 68              4' Super Octave 12
       Tremulant                16' Double Trompette 12 SW
       Sub                       8' Trompette SW
       Unison Off                4' Clarion SW
       Super                        Unison Off
                                    Super

 [Received on line from Jeff Scofield April 29, 2009.]
