Better Pipe Organ Database

M. P. Möller Opus 9445 (1961)

Faith Evangelical Lutheran Church: Sanctuary
431 South Arlington Heights Rd.
Arlington Heights, IL

Images

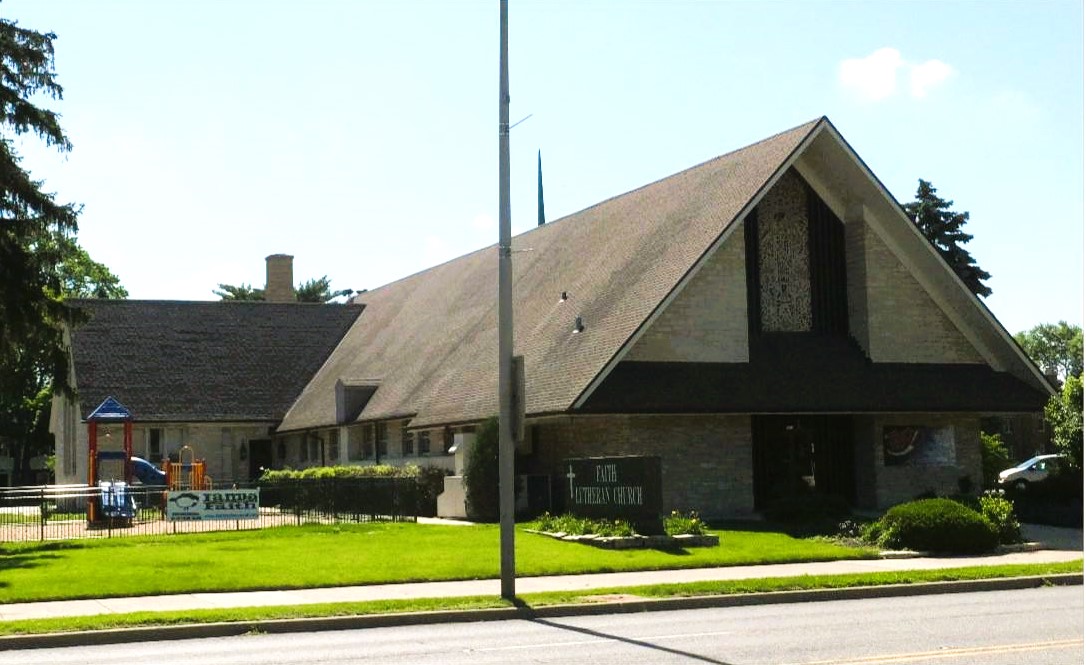

2017-07-21 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

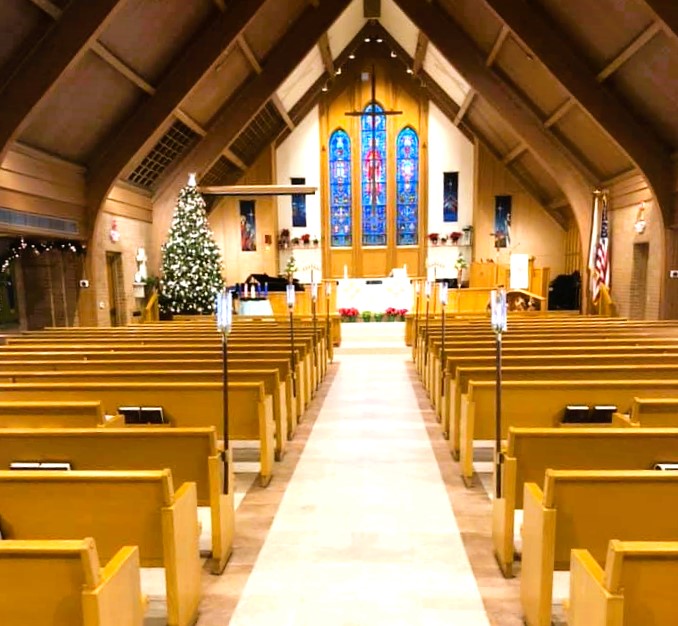

2019-12-24 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

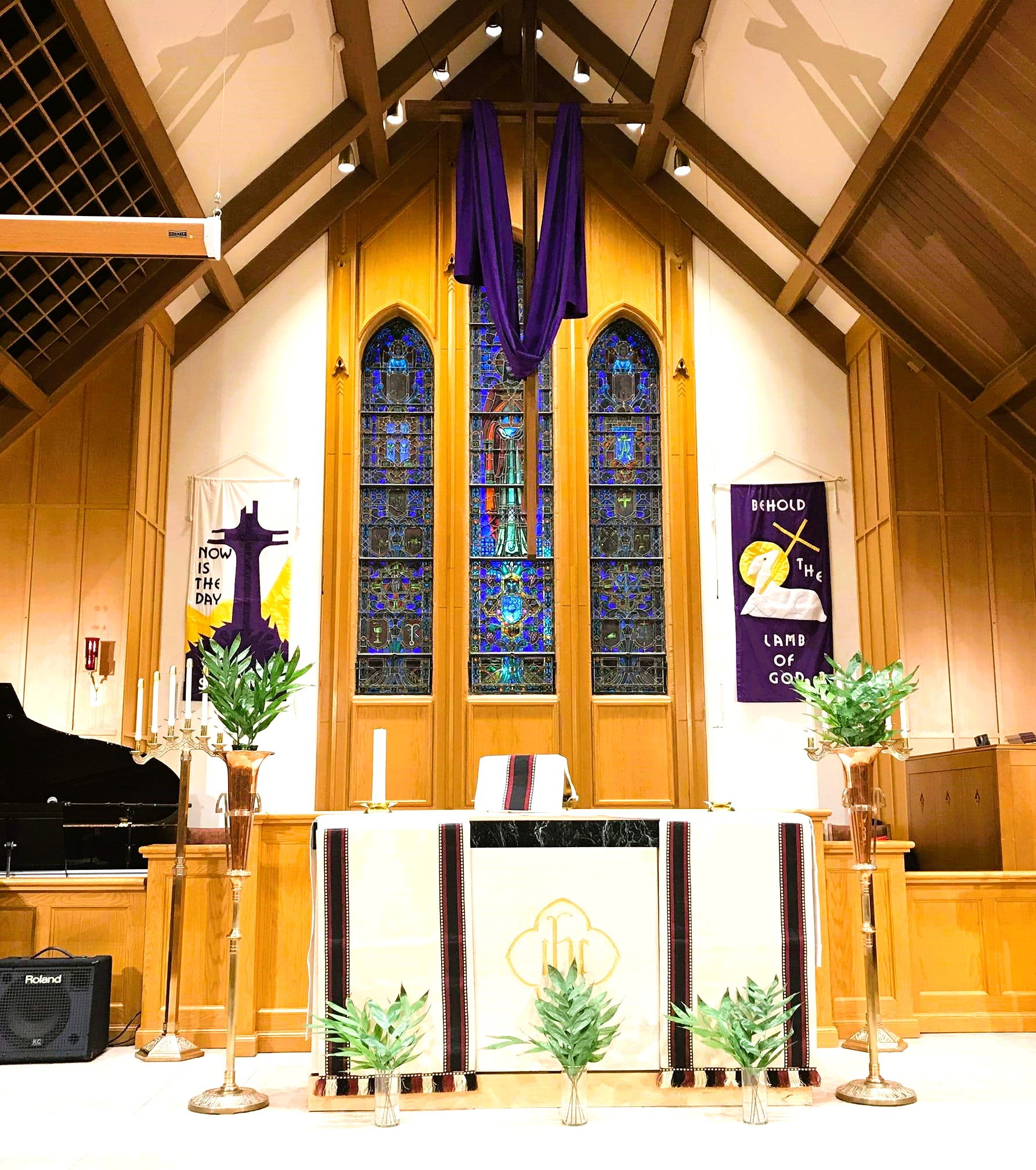

2020-04-05 - Organ chamber in left ceiling, console on right (Photograph by Church Facebook/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
27 stops
19 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2008-12-12 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-05-04 - Updated through on-line information from Jeff Scofield. -Database Manager

2011-01-03 - Updated through on-line information from Connor Annable. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Arlington Heights, Illinois
Faith Evangelical Lutheran Church

Möller   Op. 9445   1961   3/24

     GREAT                      SWELL
 16' Quintade 61            16' Bourdon 61
  8' Rohrflöte 61            8' Bourdon 12
  8' Salicional 61           8' Viola 61
  8' Quintaton 12            8' Viola Celeste 54 GG
  4' Principal 61            4' Spitzflöte 61
  2' Nachthorn 61          III  Plein Jeu 183
III  Fourniture 183          8' Trompette 61
     Tremolo                 4' Schalmei 61
     Unison Off                 Tremolo
     Super                      Sub
     Chimes 21 (Deagan M)       Unison Off
                                Super
     CHOIR
  8' Gedeckt 61                 PEDAL
  8' Erzähler 61            16' Violone 32
  4' Koppelflöte 61         16' Quintade GT
  2' Doublette 61           16' Bourdon SW
 II  Sesquialtera 122        8' Geigen Principal 12
     Tremolo                 8' Quintade GT
     Sub                     8' Bourdon SW
     Super                   4' Octave 12

 [Received on line from Jeff Scofield May 04, 2009.]

Documents

(1960-05-11) Factory specifications, OHS Archives, via Jeff Scofield Stoplist and accessories -Jeff Scofield
