St. John's Episcopal Church
3 Trumbull Place
North Haven, CT
Images

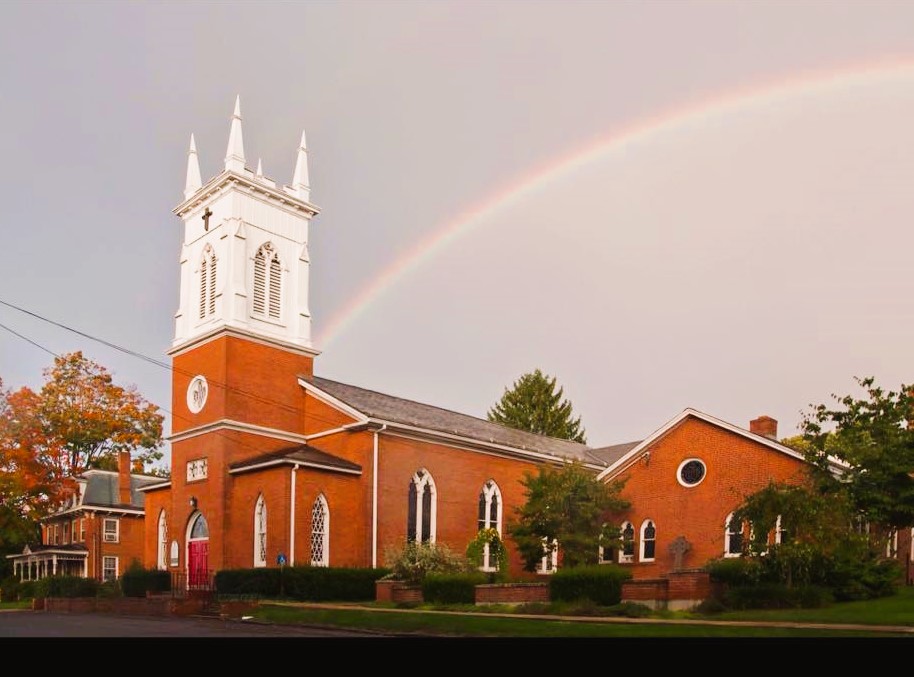

2016-01-19 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

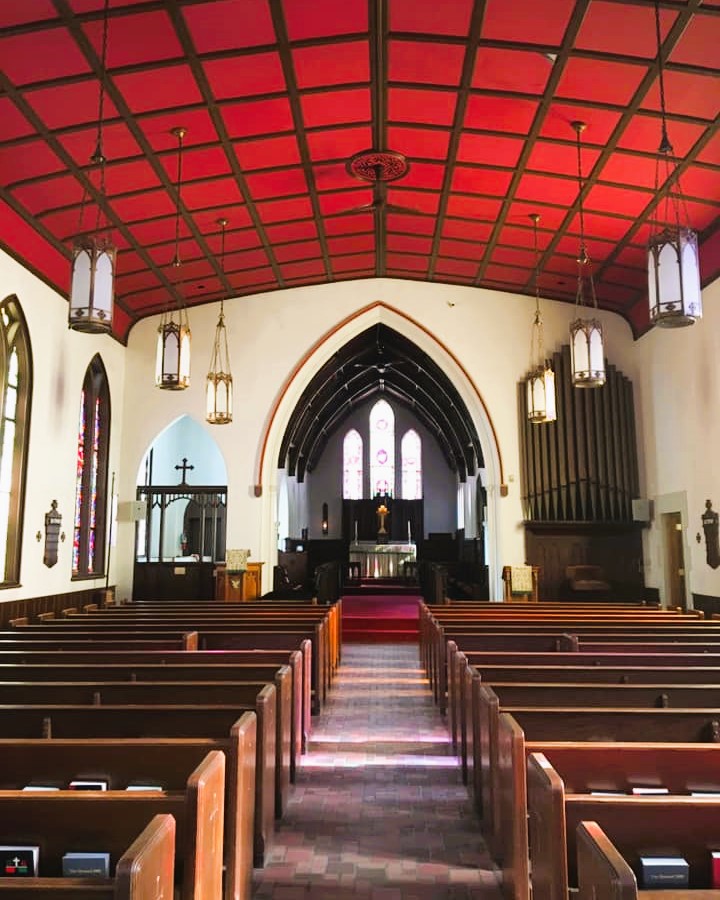

2022-01-14 - Church interior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

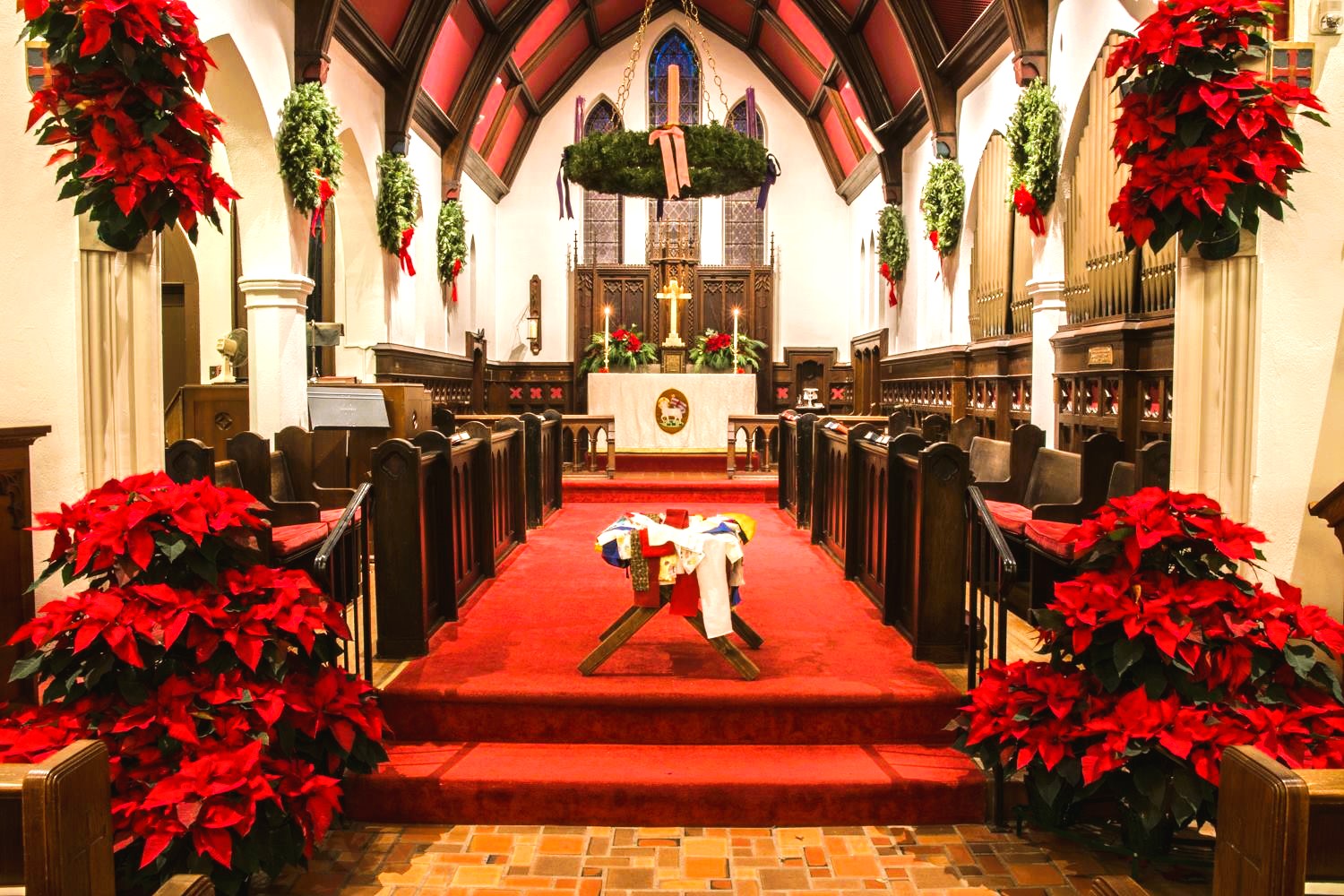

2022-12-20 - Chancel, console and façade pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Console position: Console in Fixed Position, Left
- 2 manuals
- 12 stops
- 15 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: 'Hold and Set' Pneumatic/Mechanical
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2008-12-14 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager
Stoplist
Source: Factory specifications, OHS Archives via Jeff Scofield
GREAT (Unenclosed) Principal 8, Spitzflote 8, Gedeckt 8 (Swell), Octave 4, Mixture II, Unison Off, Super, Chimes
SWELL Gedeckt 8, Viola 8, Viola Celeste 8, Rohrflote 4, Principal 2, Trompette 8 (61---notes 1-12 half-length), Tremulant, Sub, Unison Off, Swell
PEDAL Sub Bass 16, Principal 8, Flute 8, Octave 4, Contre Trompette 16 (12 Swell, half-length), Blank, Blank
