Better Pipe Organ Database

M. P. Möller Opus 9588 (1961)

Images

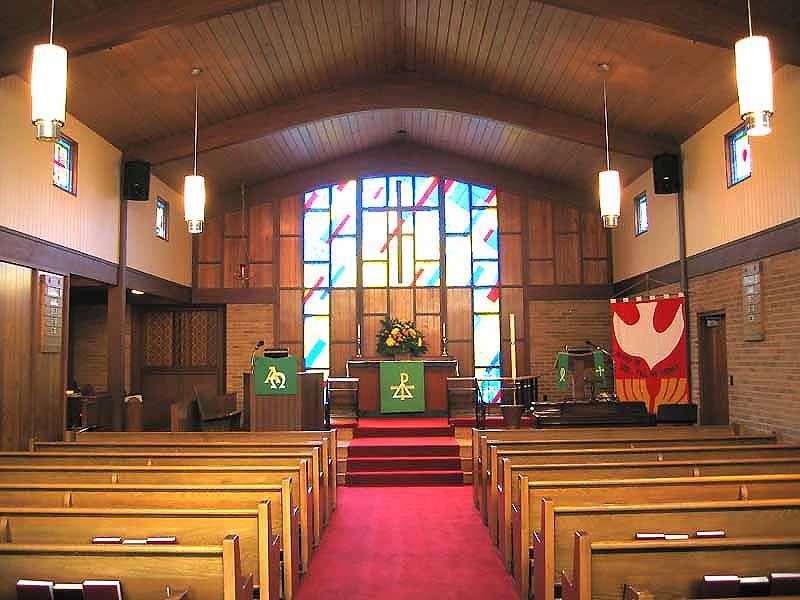

2009-07-23 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

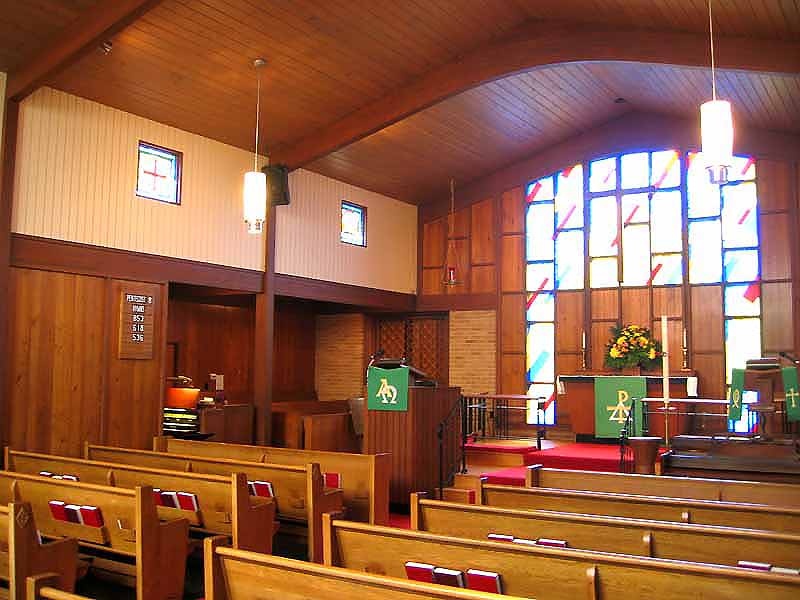

2009-07-23 - Front of church with console (Photograph by Jeff Scofield/Database Manager)

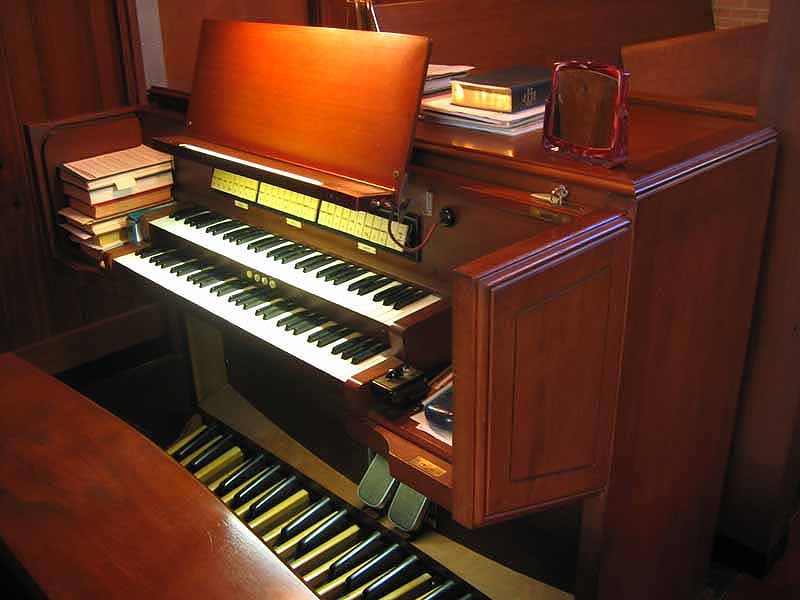

2009-07-23 - Console (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Left
• 2 manuals
• 25 stops
• 4 registers
• 3 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Tilting/Rocking Tablets Above Top Manual
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Combination action: Adjustable Combination Pistons
• Has combination thumb pistons

Notes

2008-12-18 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2012-02-10 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist courtesy of Barger & Nix organs and from the console Source: Source not recorded Date not recorded

       Chattanooga, Tennessee
       Lutheran Church of the Ascension

       Möller   Op. 9588   1961   2/4
       ______________________________________________________

       GREAT                 SWELL                PEDAL
    8' Diapason B/C       8' Gedeckt   A      16' Bourdon   A
    8' Gedeckt    A       8' Viola     B       8' Gedeckt   A
    8' Viola      B       4' Gedeckt   A       8' Viola     B
    4' Octave     C       4' Viola     B   5 1/3' Quint     A
    4' Flute      A   2 2/3' Nasard    A       4' Octave    C
    4' Viola      B       2' Flautino  A       4' Flute     A
2 2/3' Twelfth    B       8' Trompette D       8' Trompette D
    2' Fifteenth  B       4' Trompette D       4' Trompette D
    8' Trompette  D          Tremolo
       Chimes

       TONAL RESOURCES
    A  Bourdon/Gedeckt 16'  92
    B  Viola 8'             80
    C  Diapason 4'          61
    D  Trompette            73

      [Received online from Jeff Scofield February 6, 2012]
