Better Pipe Organ Database

M. P. Möller Opus 9593 (1962)

Sacred Heart Convent: Chapel
100 Mercy Drive
Belmont, NC

Images

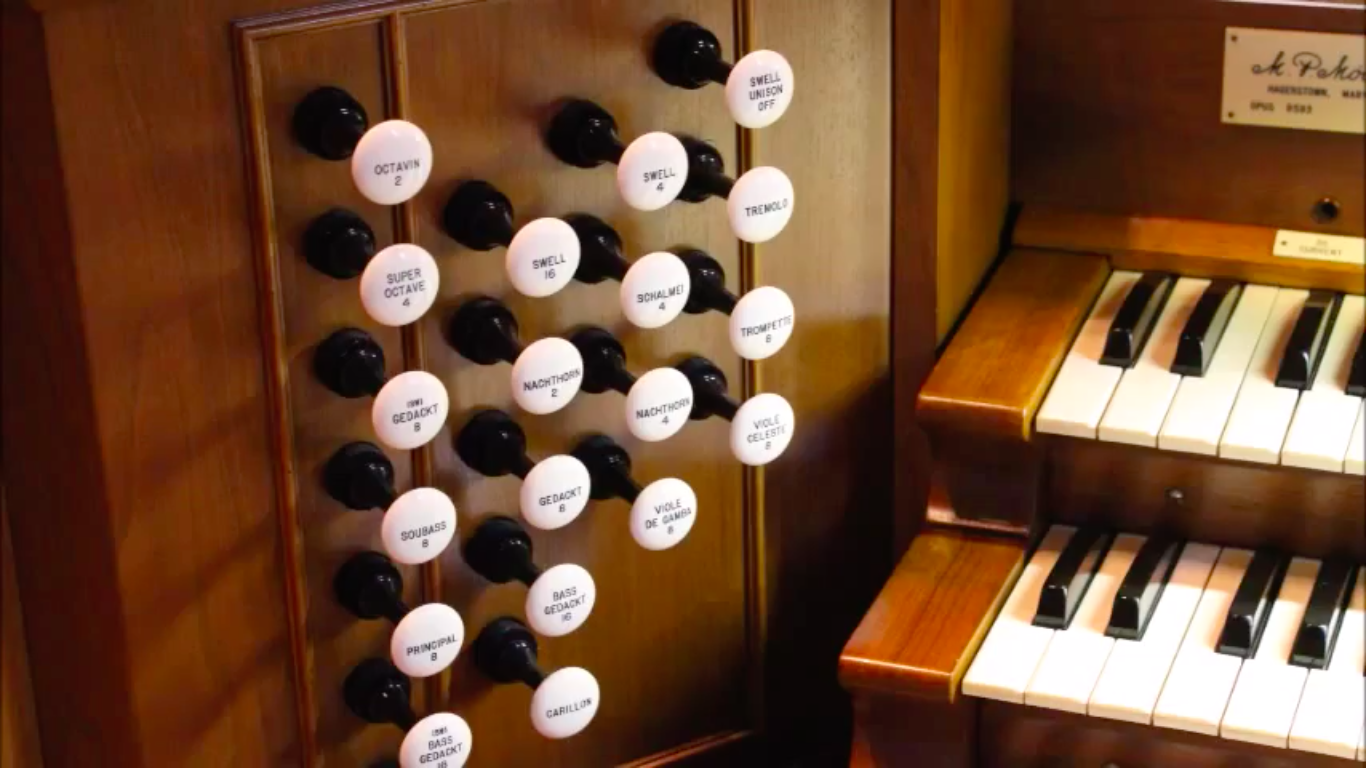

Unknown - Right Drawknobs (Photograph by Alex Wilson (2016)/Database Manager)

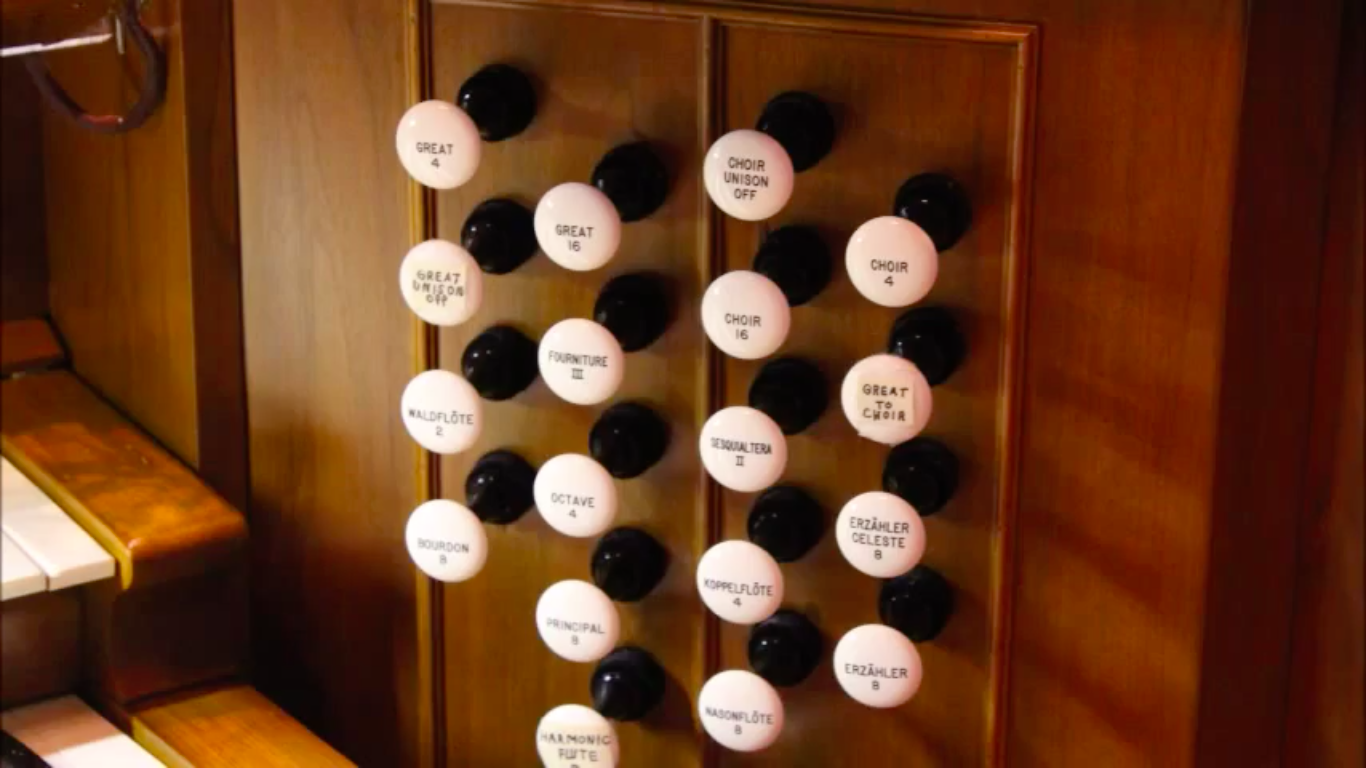

Unknown - Left Drawknobs (Photograph by Alex Wilson (2016)/Database Manager)

Consoles

Main

3 manuals
18 stops
25 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 32 notes
Has crescendo
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2008-12-18 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-05-11 - Updated through on-line information from Jeff Scofield. -Database Manager

2017-12-19 - Updated by Alex Wilson, who has heard or played the organ. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Belmont, North Carolina
Sacred Heart Convent, Chapel

Möller   Op. 9593   1962   3/21

     GREAT                       SWELL
  8' Principal 61            16' Bass Gedackt 61
  8' Bourdon 61               8' Gedackt 12
  4' Octave 61                8' Viole de Gambe 61
  2' Waldflöte 61             8' Viole Celeste 49
III  Fourniture 183           4' Nachthorn 61
     Tremulant                2' Nachthorn 12
     Sub                      8' Trompette 61
     Super                    4' Schalmei 61
     Carillon                    Tremulant
                                 Sub
     CHOIR                       Unison Off
  8' Nasonflöte 61               Super
  8' Erzähler 61
  8' Erzähler Celeste 49         PEDAL
  4' Koppelflöte 61          16' Soubass 32
 II  Sesquialtera 122        16' Bass Gedackt SW
     Tremulant                8' Principal 32
     Sub                      8' Soubass 12
     Unison Off               8' Gedackt SW
     Super                    4' Super Octave 12
                              2' Octavin 12

 [Received on line from Jeff Scofield May 11, 2009.]

Documents

(1962-06-25) Factory Drawings Factory Drawings courtesy of the OHS Archive -Roman Lizak
