Better Pipe Organ Database


Votteler-Holtkamp-Sparling Opus 1631 (1948)

St. John the Evangelist Roman Catholic Cathedral: Chancel
1007 Superior Avenue
Cleveland, OH

OHS convention: 2009


Images

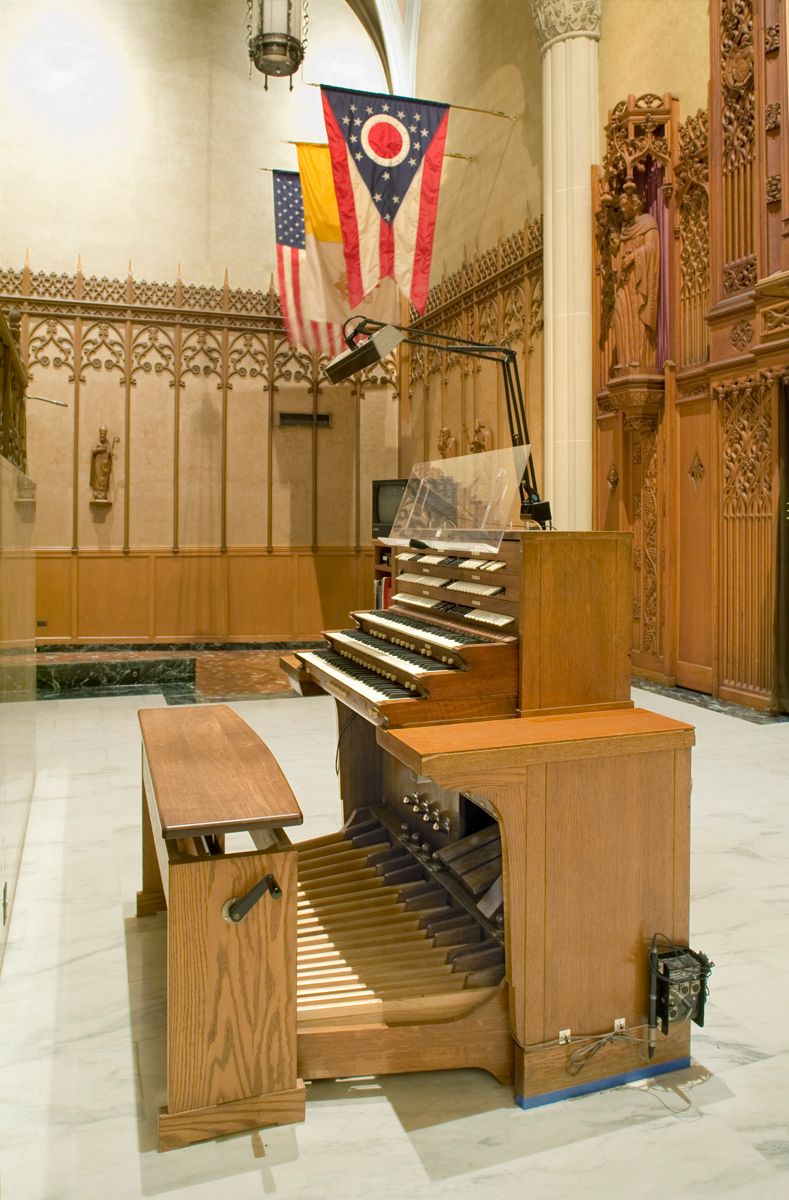

2008-06-26 - Console (Photograph by William T. Van Pelt/Database Manager)

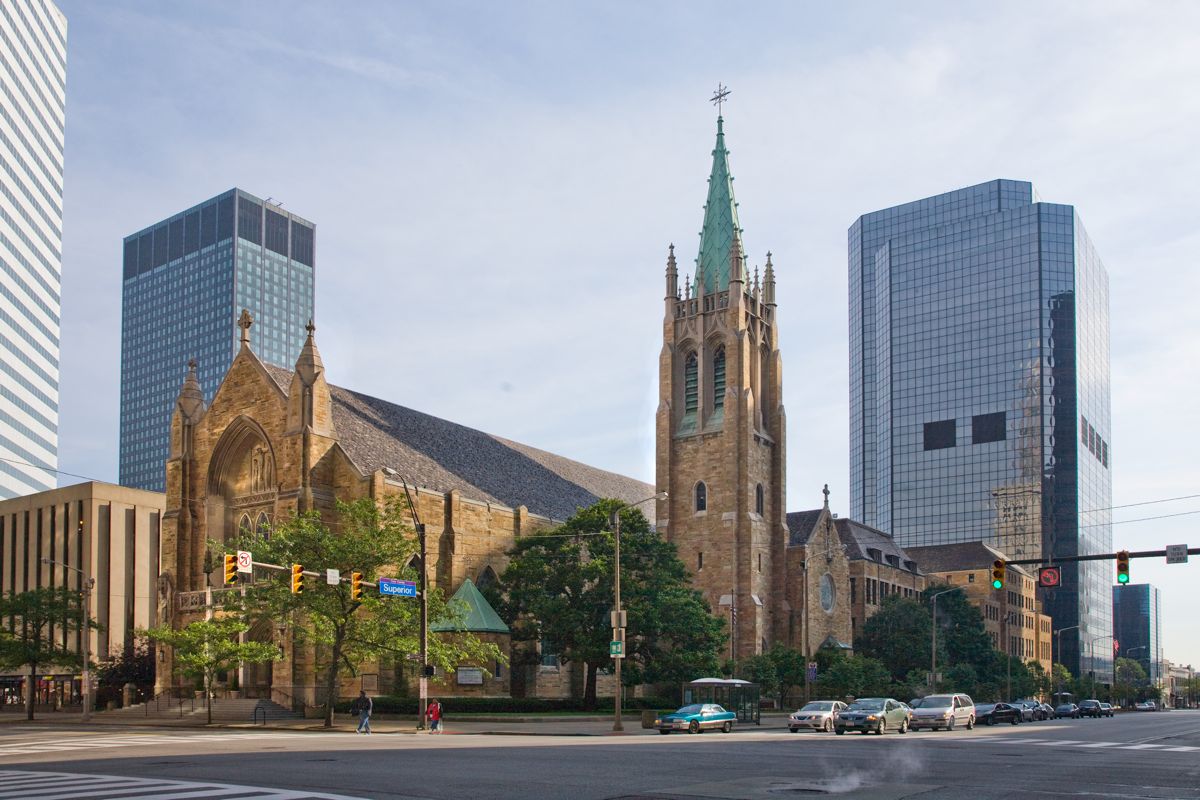

2008-06-26 - Cathedral Exterior (Photograph by William T. Van Pelt/Database Manager)

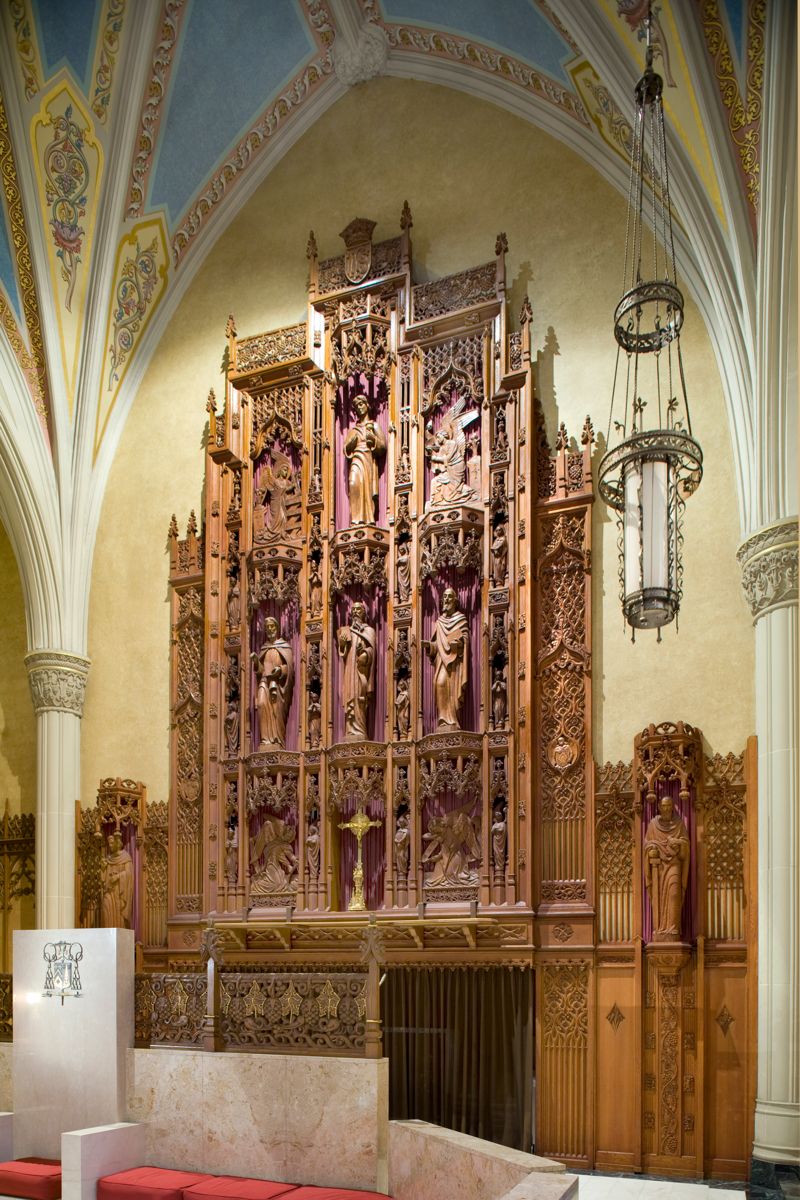

2008-06-26 - Reredos (Photograph by William T. Van Pelt/Database Manager)

Consoles

Main


Notes

2008-12-20 - Identified through information published in John Ferguson's <i>Walter Holtkamp: American Organ Builder</i> (DMA treatise, Eastman School of Music, 1976). Although neither Votteler-Holtkamp-Sparling nor their successor Holtkamp Organ Co. assigned Opus numbers to their instruments, this organ was identified in factory documents as Job number 1631. That number appears here as the Opus number of this instrument. This is the Chancel Organ; Job no. 1630 applied to the Gallery organ. -Database Manager


Stoplist

Source: 2009 OHS Atlas

Chancel Great (unenclosed, 61 notes) SWELL TO GREAT 16ʹ, SWELL TO GREAT , SWELL TO GREAT 4ʹ, Quintaton 16 (61 pipes), Principal 8 (61 pipes), Copula 8 (61 pipes), Octave 4 (61 pipes), Spitzflote 4 (61 pipes), Great to Great 4', Chimes (tab added 1991, originally operated by reversible toe stud). 20 tubes, mounted on left side of swell box, a0-e2, Gallery Off

Chancel Swell (enclosed, 61 notes) Gallery Swell Off, Viola 8 (61 pipes), Bourdon 8 (61 pipes), Aeoline 8 (61 pipes), Rohrflote 4 (61 pipes), Cornet III (183 pipes), Oboe Clarion 4 (61 pipes), Tremolo, Swell to Swell 16', Swell Unison Off (added 1991), Chancel Swell to Choir (added 1991)

Chancel Pedal (32 notes) Sub Bass 16 (32 pipes), Quintaton 16 (From Chancel Great), Flauto Dolce 8 (32 pipes), Choral Bass 4 (32 pipes), Fagotto 8 (32 pipes), Great to Pedal, Great to Pedal 4', Swell to Pedal


Related Pipe Organ Database Entries


Other Links

Regrettably, it is not possible to display the information about the sponsor of this pipeorgandatabase entry or if there is a sponsor. Please see About Sponsors on Pipe Organ Database.
