Better Pipe Organ Database

Schantz Organ Co. Opus 690 (1963)

Hiram College: Bates Hall, Hayden Auditorium
6832 Hinsdale St.
Hiram, OH

Images

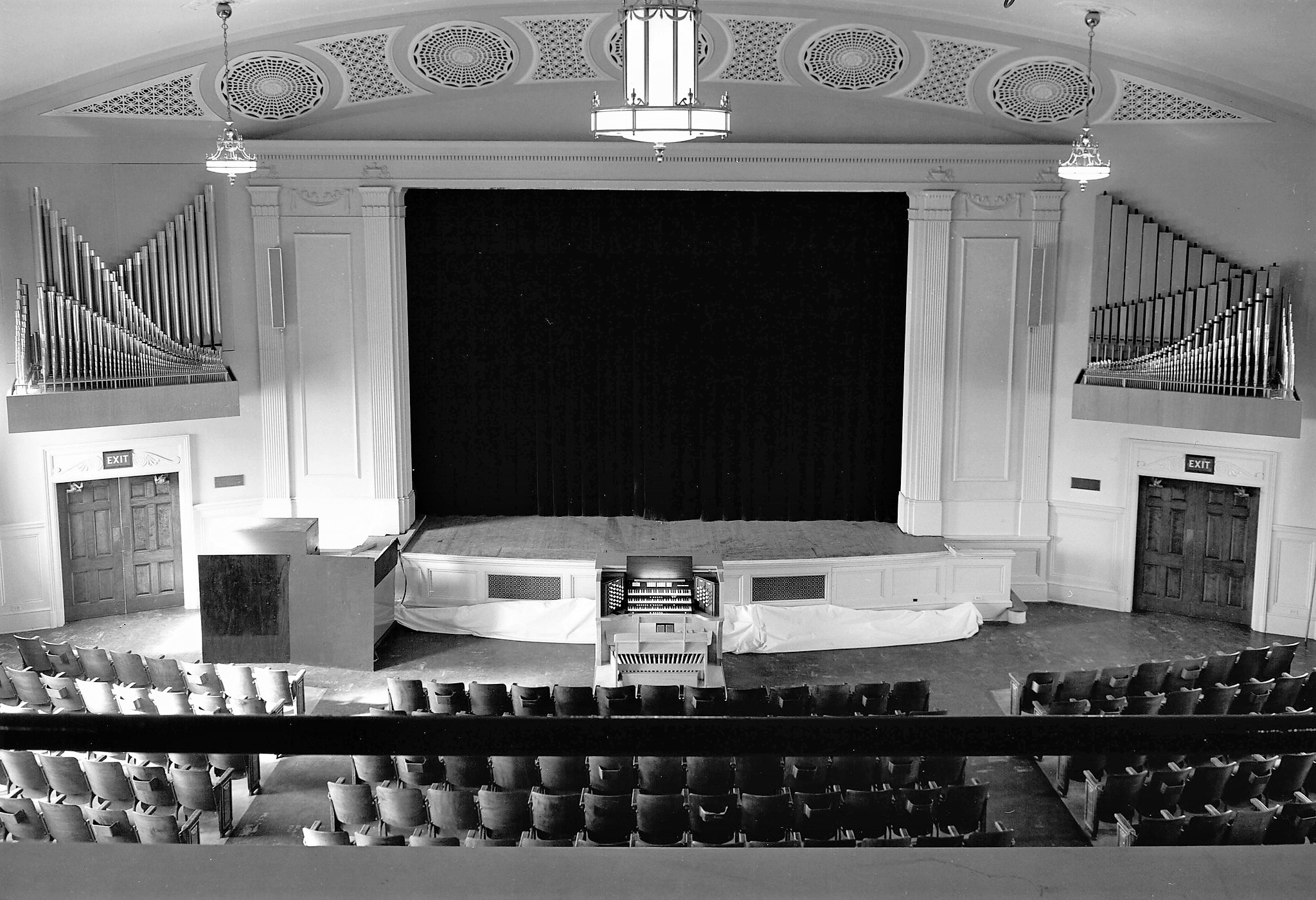

1963 - Auditorium interior, console and exposed pipes (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
37 stops
25 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has tutti thumb pistons

Notes

2008-12-22 - Identified through on-line information from Don Daley. -Database Manager

2011-05-22 - Updated through on-line information from Jeff Scofield. -Database Manager

2023-06-13 - The auditorium seats 515 people. -Jeff Scofield

Stoplist

Stoplist courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

    Hiram, Ohio
    Hiram College, Bates Hall, Hayden Auditorium

    Schantz   Op. 690   1964   3/31
    ________________________________________________

    GREAT                       POSITIV
 8' Principal      61        8' Quintaton         61
 8' Rohrflöte      61        4' Spitzflöte        61
 4' Octave         61    2 2/3' Nasat             61
 2' Waldflöte      61        2' Prinzipal         61
IV  Mixture       244    1 3/5' Terz              61
    Sub                  1 1/3' Quinte            61
    Unison Off               1' Octav             61
    Super                       Tremulant

    SWELL                       PEDAL
16' Bourdon        12       16' Subbass           32
 8' Bourdon        61       16' Violone           12 SW
 8' Viole          61       16' Bourdon           SW
 8' Viole Celeste  49        8' Principal         32
 4' Principal      61        8' Viole             SW
 4' Flute Ouverte  61        8' Bourdon           SW
 2' Flute          12    5 1/3' Quinte            32
IV  Mixture       244        4' Choralbass        32
16' Contra Fagotto 61    2 2/3' Quinte            12
 8' Trompette      61        2' Octavin           12
 8' Fagotto        12       16' Contre Trompette  12 SW
 4' Clairon        12       16' Contra Fagotto    SW
    Tremulant                8' Trompette         SW
    Sub
    Unison Off
    Super

   [Received online from Jeff Scofield  May 21, 2011]
