Better Pipe Organ Database

M. P. Möller Opus 9614 (ca. 1962)

St. Patrick's Roman Catholic Church: Sanctuary; rear gallery
724 Camp Street
New Orleans, LA

OHS convention: 1989

Note: Not extant. Not playable. (in this location)

Images

2008-05-27 - Gallery and retained 1847 Henry Erben Case (Photograph by John G. DeMajo/Database Manager)

2008-05-27 - Church Interior and Altar (Photograph by John G. DeMajo/Database Manager)

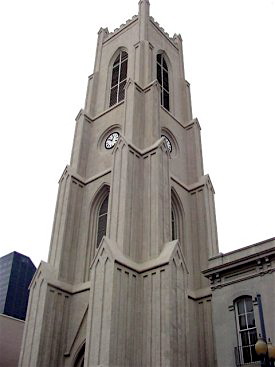

2008-05-27 - Tower Exterior (Photograph by John G. DeMajo/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
32 stops
23 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-05-11 - Updated through online information from Jeff Scofield. -- To be replaced by Patrick J. Murphy instrument in 2009, still retaining the 1847 Erben case. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

New Orleans, Louisiana
St. Patrick's R. C. Church

Möller   Op. 9614   1962   3/28

     GREAT                    CHOIR
  8' Diapason 61           8' Gedeckt 61
  8' Bourdon 61            8' Erzähler 61
  8' Gemshorn 61           8' Erzähler Celeste 49
  4' Octave 61             4' Koppelflöte 61
  2' Waldflöte 61      2 2/3' Nazard 61
 IV  Fourniture 244        2' Blockflöte 61
     Sub               1 3/5' Tierce 61
     Unison Off            8' Clarinet 61
     Super                    Tremulant
                              Sub
     SWELL                    Unison Off
 16' Rohrgedeckt 61           Super
  8' Rohrflöte 12
  8' Viole de Gambe 61        PEDAL
  8' Viole eleste 49      16' Principal 32
  4' Principal 61         16' Bourdon 32 (1-20 Wood)
  4' Nachthorn 61         16' Rohrgedeckt SW
III  Plein Jeu 183         8' Principal 12
  8' Trompette 61          8' Bourdon 12
     Tremulant             8' Rohrflöte SW
     Sub                   4' Octave 12
     Unison Off            4' Bourdon 12
     Super                 2' Octavin 12
                          16' Contre Trompette 12 SW
                           8' Trompette SW

 [Received on line from Jeff Scofield May 11, 2009.]
