Better Pipe Organ Database

M. P. Möller Opus 9692 (1963)

South Jacksonville Presbyterian Church: Sanctuary
2137 Hendricks Avenue
Jacksonville, FL

Images

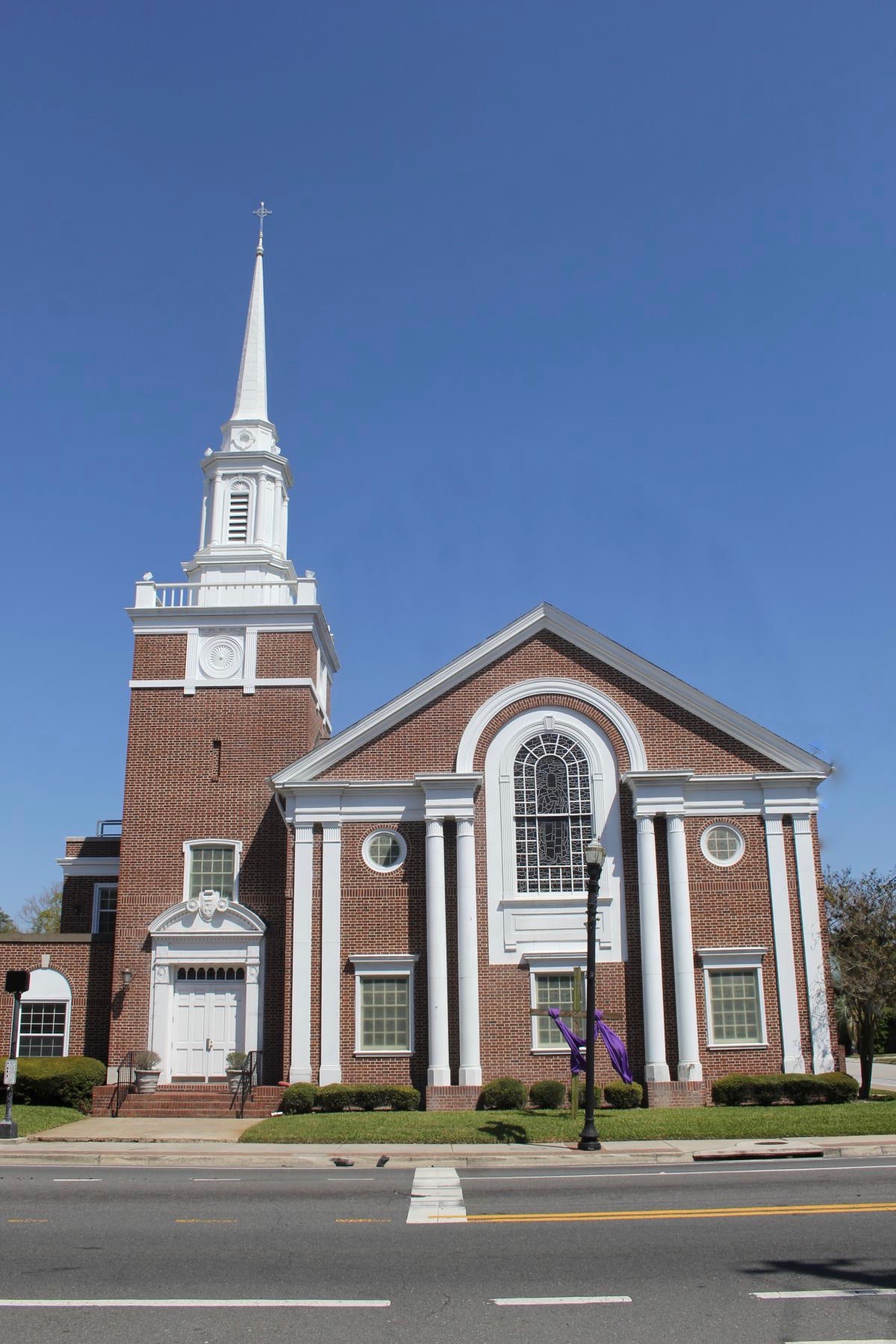

2017-03-18 - Church Exterior (Photograph by Taylor Phillips/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
3 manuals
23 stops
38 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-01-02 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-05-13 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Jacksonville, Florida
South Jacksonville Presbyterian Church

Möller   Op. 9692   1963   3/28

    GREAT (encl w/CH)                CHOIR
 8' Diapason 61                  16' Contre Erzähler 61
 8' Bourdon 61                    8' Nasonflöte 61
 4' Principal 61                  8' Erzähler 12
II  Grave Mixture 122             8' Erzähler Celeste 49
IV  Fourniture 244                4' Koppelflöte 61
    Sub                          II  Sesquialtera 122
    Unison Off                    8' Krummhorn 61
    Super                            Tremulant
                                     Sub
    SWELL                            Unison Off
16' Contre Gambe 61                  Super
 8' Gedackt 61                       Chimes 21 (Deagan D)
 8' Viole de Gambe 12
 8' Viole Celeste 61                 PEDAL
 4' Spitzprinzipal 61            16' Soubasse 32
 4' Flauto Traverso 61           16' Contre Gambe SW
 2' Waldflöte 61                 16' Contre Erzähler CH
16' Bassoon 61 (1-30 L/2)         8' Violone 32
 8' Trompette 61                  8' Gambe SW
 8' Schalmei (pf)                 8' Gedackt SW
 4' Holzregal 61              5 1/3' Quint 32
    Tremulant                     4' Violone 12
    Sub                           4' Gambe SW
    Unison off                    4' Gedackt SW
    Super                         2' Violone 12
                                 16' Bassoon SW
                                  8' Bassoon SW
                                  4' Bassoon SW
                                     Chimes (CH)

 [Received on line from Jeff Scofield May 13, 2009.]
