M. P. Möller Opus 9728 (1963)

Emanuel Evangelical Lutheran Church: Sanctuary
501 East Danaher Boulevard
Ludington, MI

Images

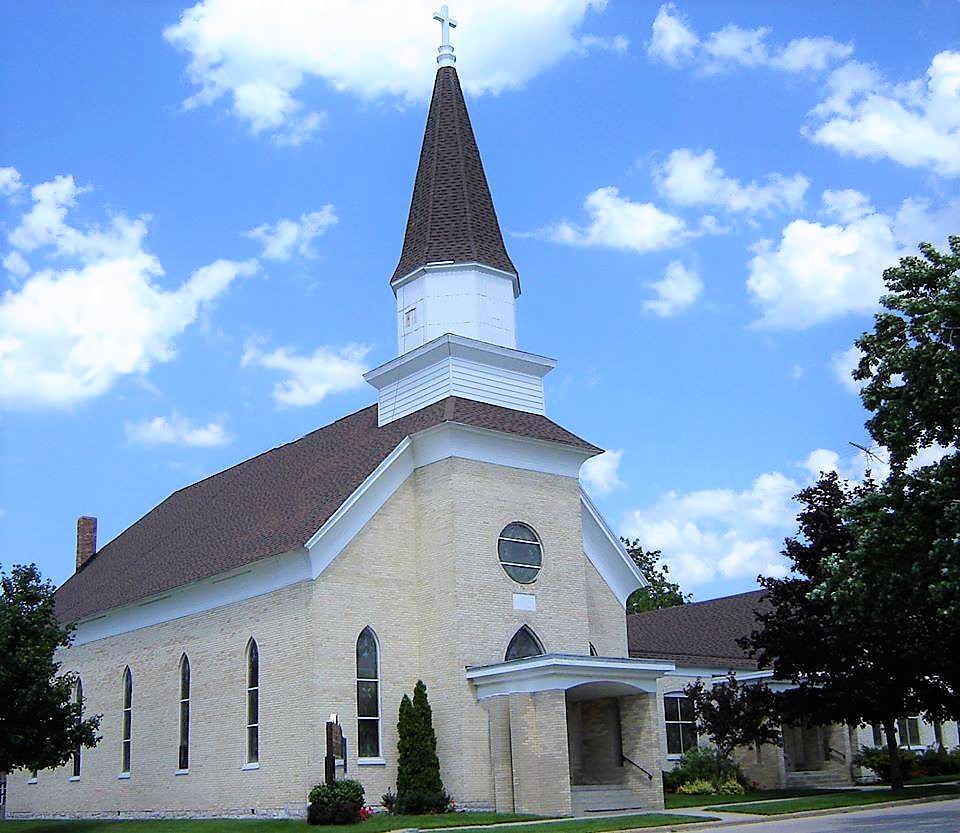

2018-08-28 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

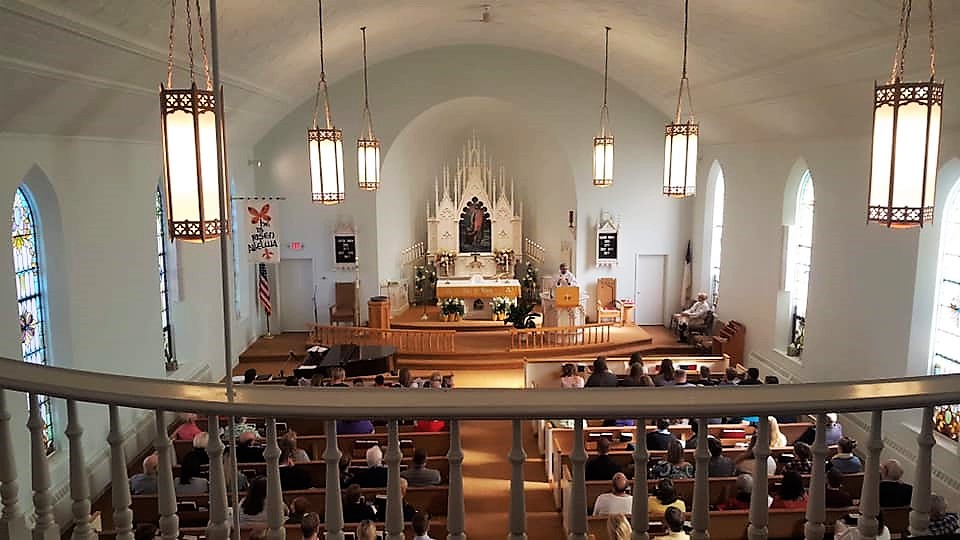

2019-04-21 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

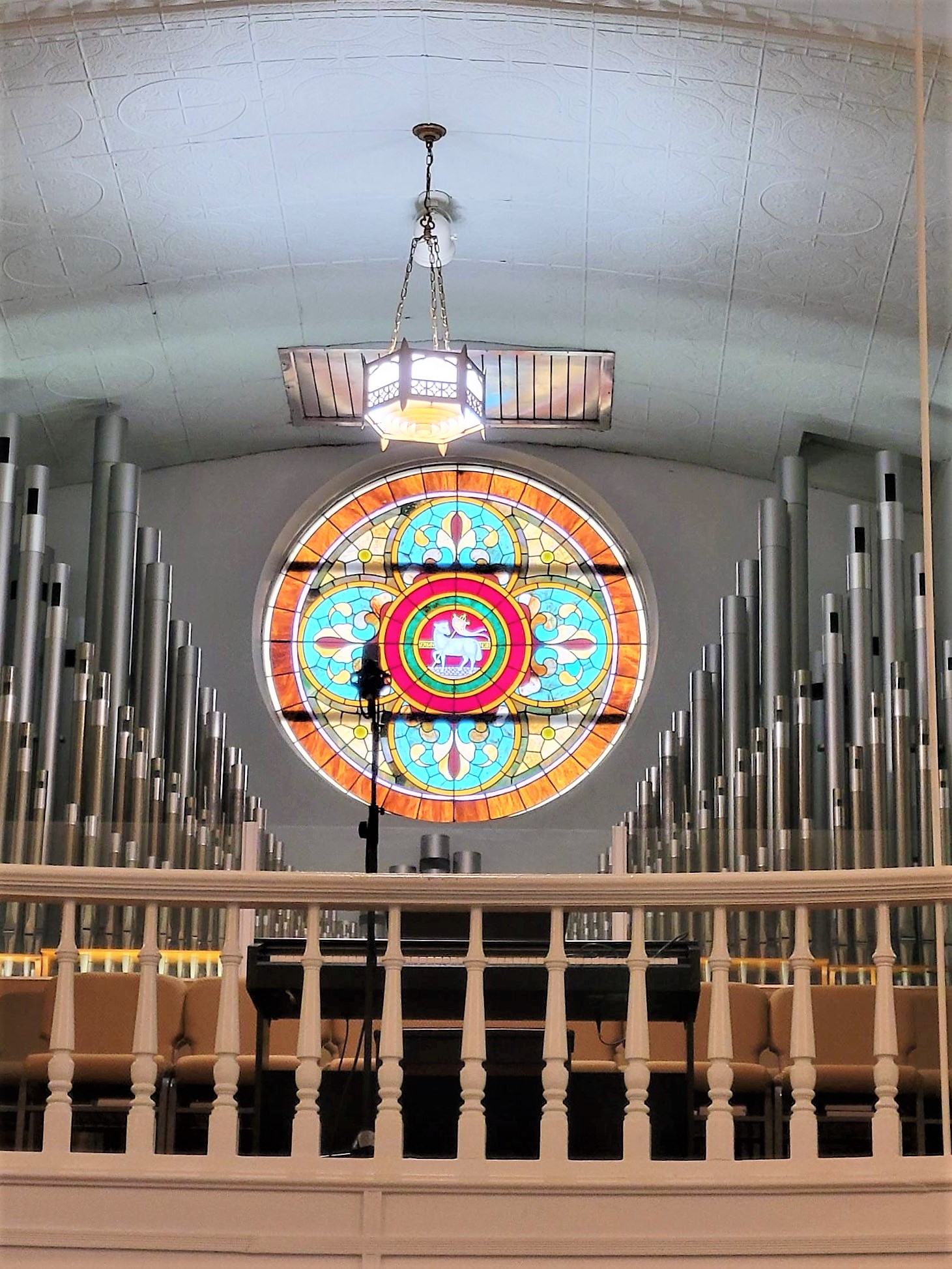

2023-03-28 - Exposed Great and Pedal pipework (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

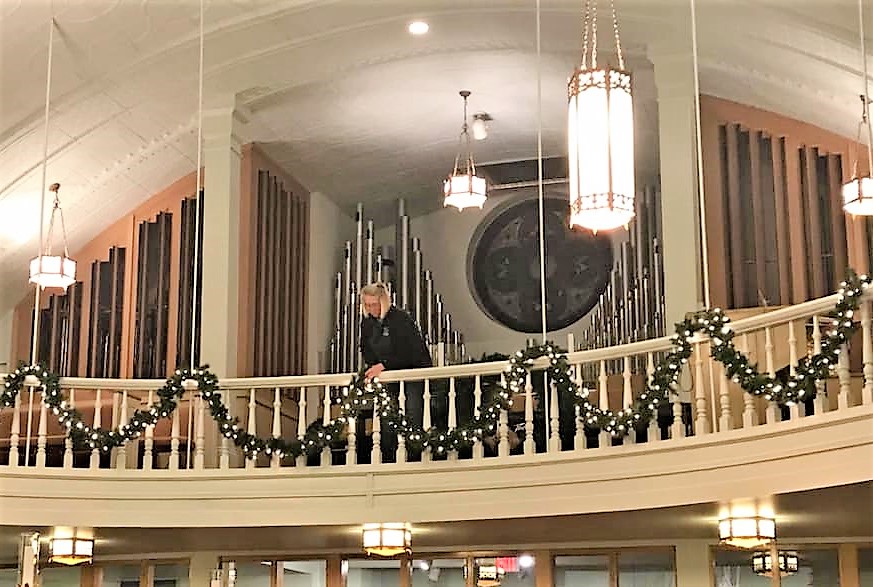

2019-12-03 - Organ and exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

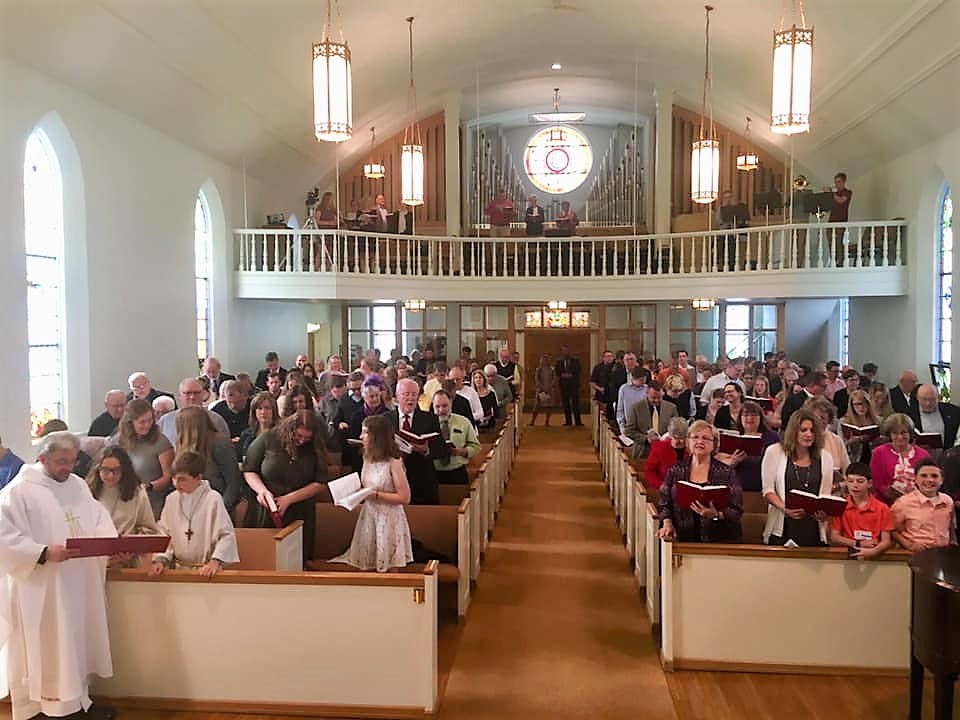

2019-04-21 - Church interior to rear and organ (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
13 stops
17 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons

Notes

2009-01-03 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-05-17 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Ludington, Michigan
Emanuel Evangelical Lutheran CHurch

Möller   Op. 9728   1963   2/15

3" wind used throughout; the Choir normally plays on the Great manual;
present organ shall be removed by and become salvage of M. P. Möller.

    GREAT                   SWELL                  PEDAL
 8' Rohrflöte 61         8' Gedeckt 61         16' Bourdon 12 GT **
 4' Principal 61         4' Spitzprincipal 61  16' Gedeckt 12 SW
 2' Octavin 61          II  Plein Jeu 122       8' Geigen Principal 32
II  Mixture 122          8' Trompette 61        8' Gedeckt SW
    Tremolo                 Tremolo             4' Geigen Octave 12
    Unison Off              Sub
                            Unison Off
    CHOIR                   Super               ** 1-12 wood
 8' Gemshorn 61
 8' Gemshorn Celeste 49
 4' Koppelflöte 61
 2' Doublette 61
    Tremolo
    Sub
    Unison Off
    Super

 [Received on line from Jeff Scofield May 17, 2009.]

Documents

(1962-08-29) Factory specifications, collection of Jeff Scofield Stoplist and accessories -Jeff Scofield
