Better Pipe Organ Database

M. P. Möller Opus 9733 (1962ca.)

St. Andrew's Catholic Church
3500 School Lane
Drexel Hill, PA

Note: Not extant. Not playable. (in this location)

Images

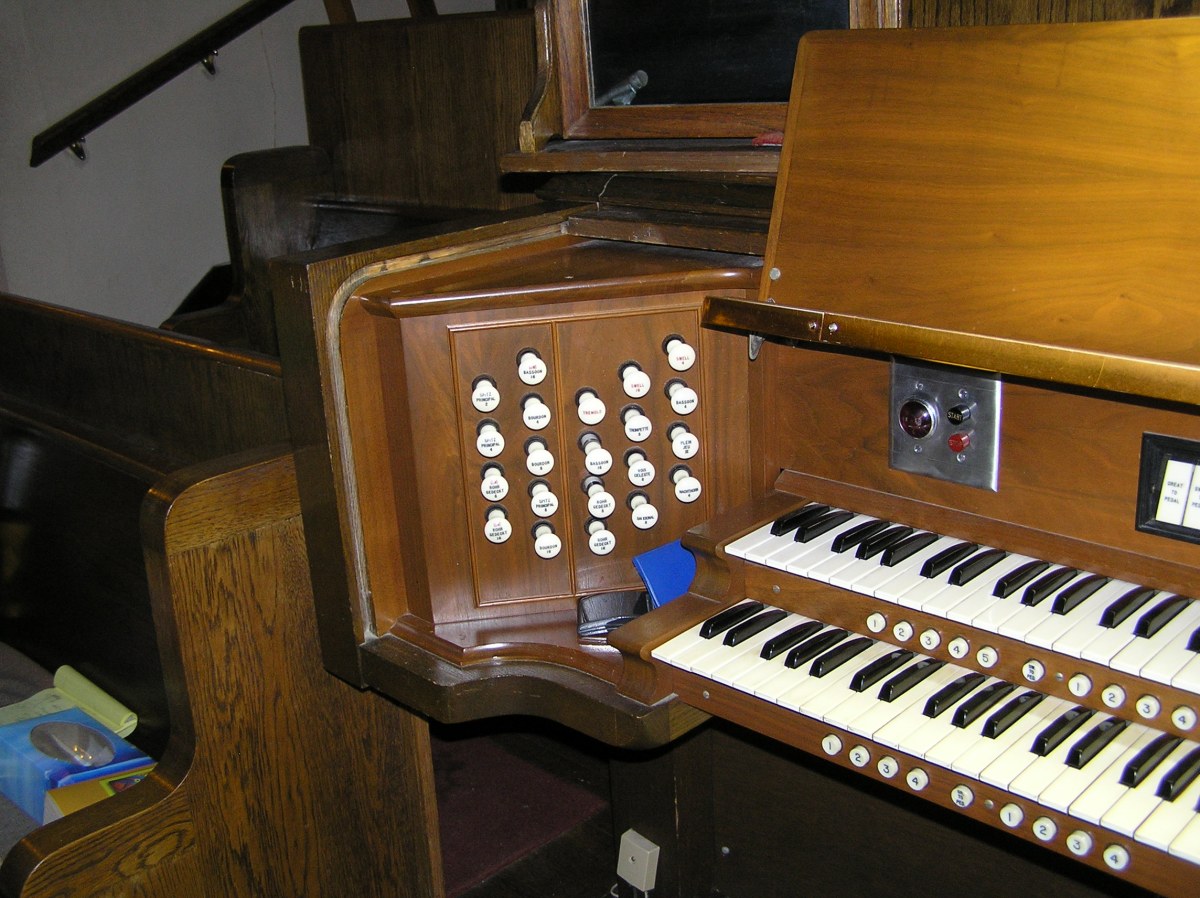

2011-08-18 - Console Detail - Left Jamb (Photograph by Steve Beddia courtesy of Eugene Walter/Database Manager)

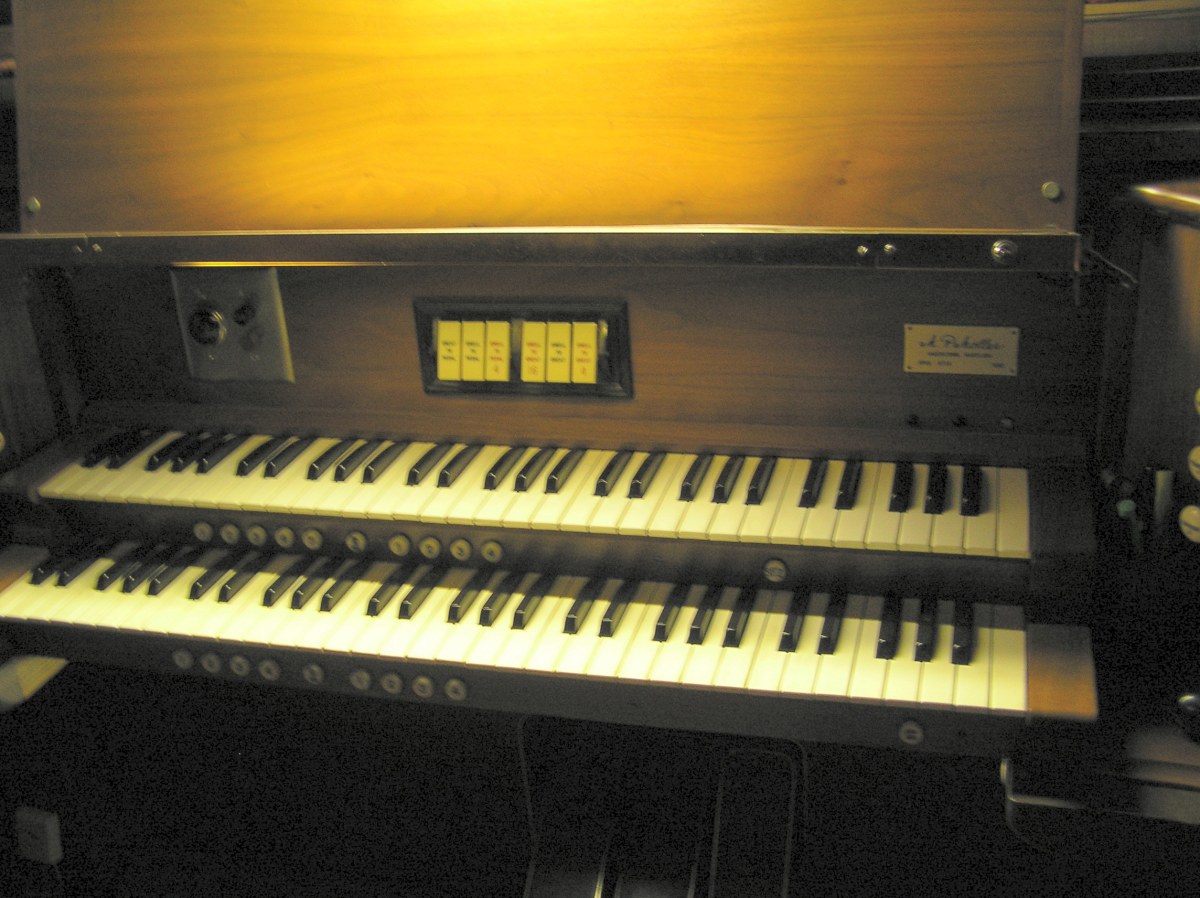

2011-08-18 - Console Detail - (Photograph by Steve Beddia courtesy of Eugene Walter/Database Manager)

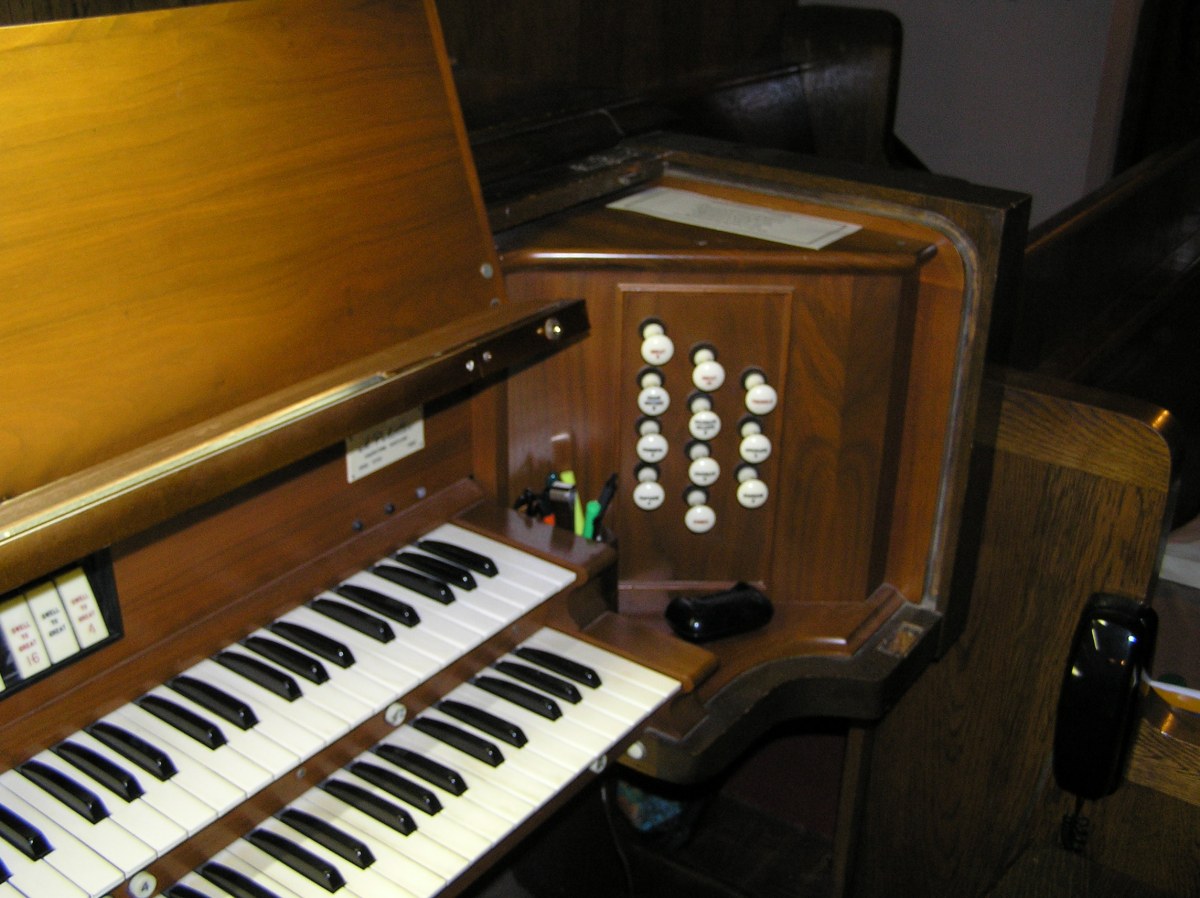

2011-08-18 - Console Detail - Right Jamb (Photograph by Steve Beddia courtesy of Eugene Walter/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
26 stops
38 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-01-03 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2012-06-19 - Updated through online information from Eugene Walter. -- I recently purchased the console from Atlantic City Pipe Organ Company. The organ has been broken up and the parts dispersed. -Database Manager

Stoplist

Stoplist taken from Console June 2012 Source: Source not recorded Date not recorded

Drexel Hill, Pennsylvania
St. Andrew's R. C. Church

M. P. MOLLER, Opus 9733, ca. 1962

formerly in St. Andrew's Catholic Church

GREAT
8'   Diapason
8'   Bourdon
8'   Erzahler
8'   Erzahler Celeste (tc)
4'   Octave
4'   Spitz Flute
II   Grave Mixture
     Chimes
     Tremulant
16'  Great to Great
4'   Great to Great
16'  Swell to Great
8'   Swell to Great
4'   Swell to Great

SWELL
16'  Rohr Gedeckt
8'   Rohr Gedeckt (ext)
8'   Salicional
8'   Voix Celeste (tc)
4'   Nachthorn
III  Plein Jeu
16'  Bassoon
8'   Trompette
4'   Bassoon (ext)
     Tremulant
16'  Swell to Swell
4'   Swell to Swell

PEDAL
16'  Bourdon
16'  Rohr Gedeckt (Sw)
8'   Spitz Principal
8'   Bourdon (ext)
8'   Rohr Gedeckt (Sw)
4'   Spitz Principal
4'   Bourdon (ext)
2'   Spitz Principal (ext)
16'  Bassoon (Sw)
8'   Great to Pedal
8'   Swell to Pedal
4'   Swell to Pedal

Expression Pedal for Great
Expression Pedal for Swell
Expression Pedal for Crescendo

Combination Action on Thumb Pistons only (no toe pistons for combination action):
  General 1-2-3-4-5
  Great 1-2-3-4
  Swell 1-2-3-4
  Pedal 1-2-3-4
  General Cancel
Reversibles (on Thumb and Toe Pistons):
  Great to Pedal 8'
  Swell to Pedal 8'
  Sforzando


 [Received from Eugene Walter 2012-06-18.]
