Trinity Episcopal Church
815 N. Grant Street
Bay City, MI
Images

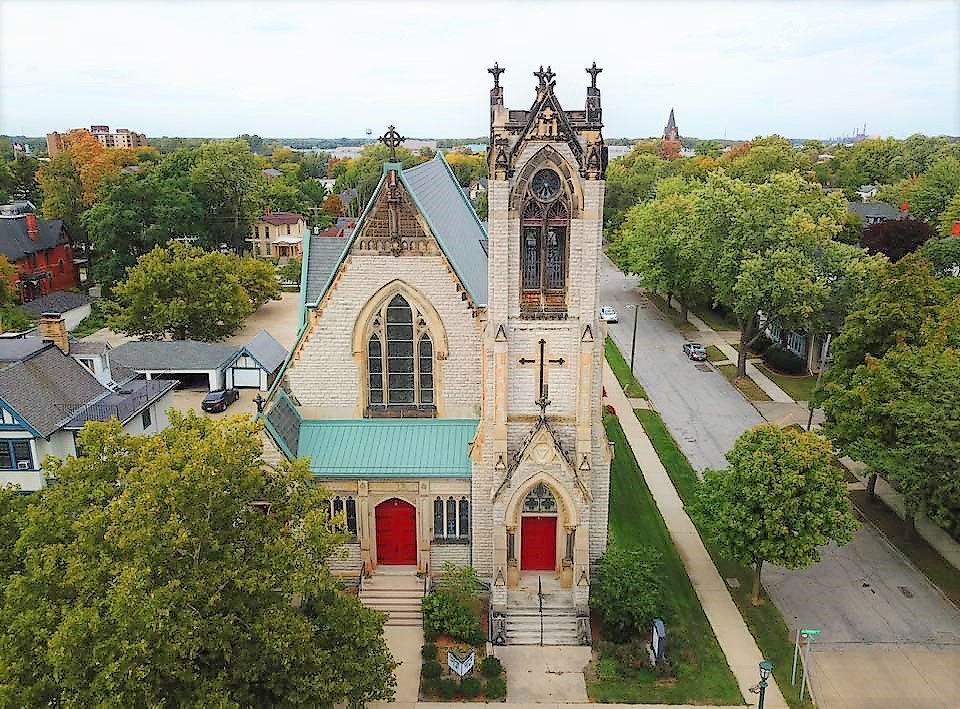

2021-08-15 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

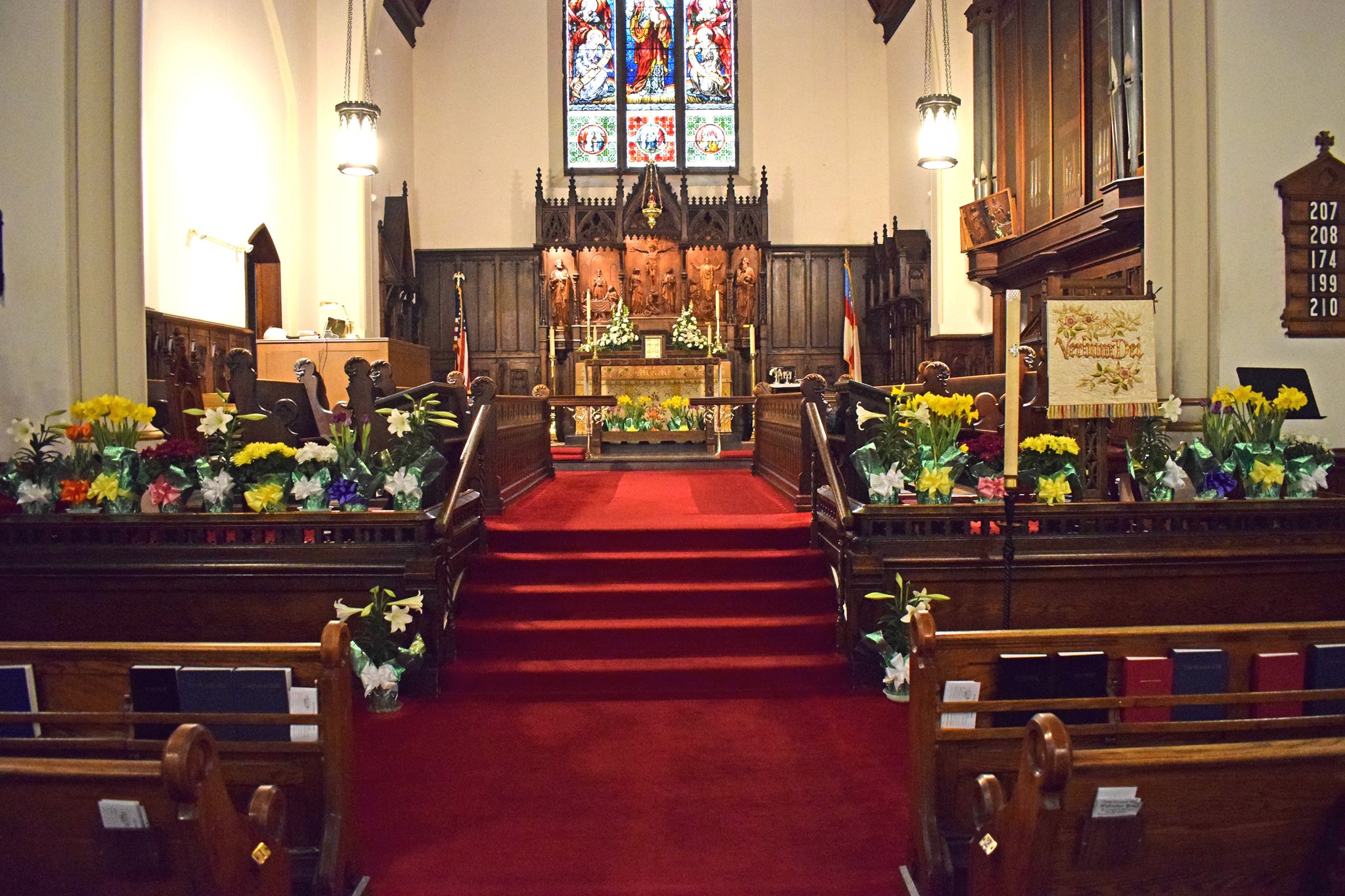

2019-04-21 - Chancel and organ chamber (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

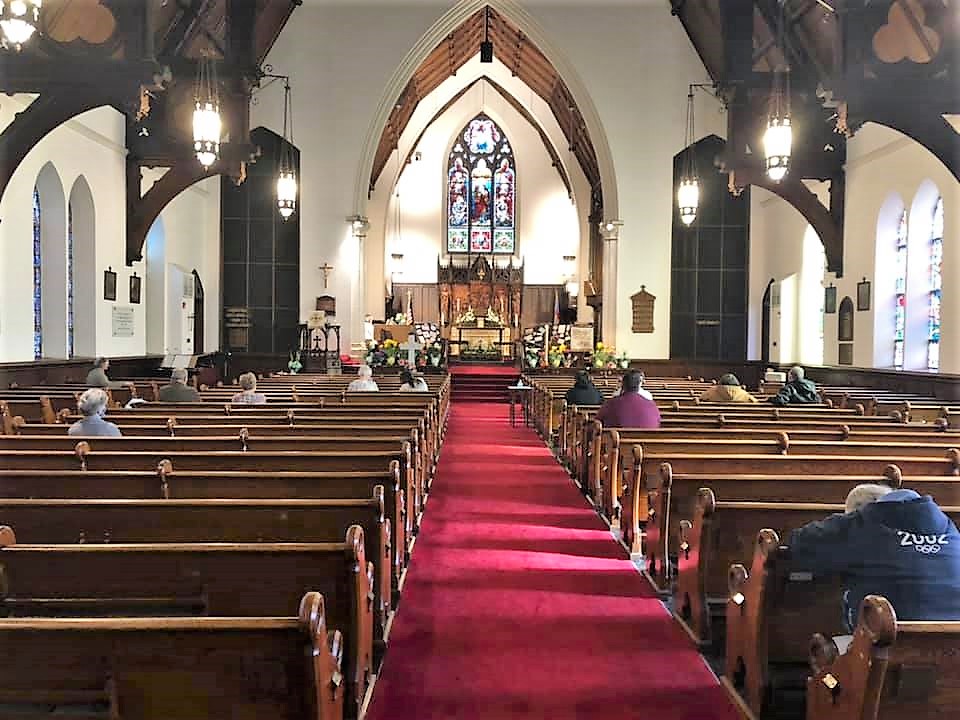

2021-04-04 - Church interior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

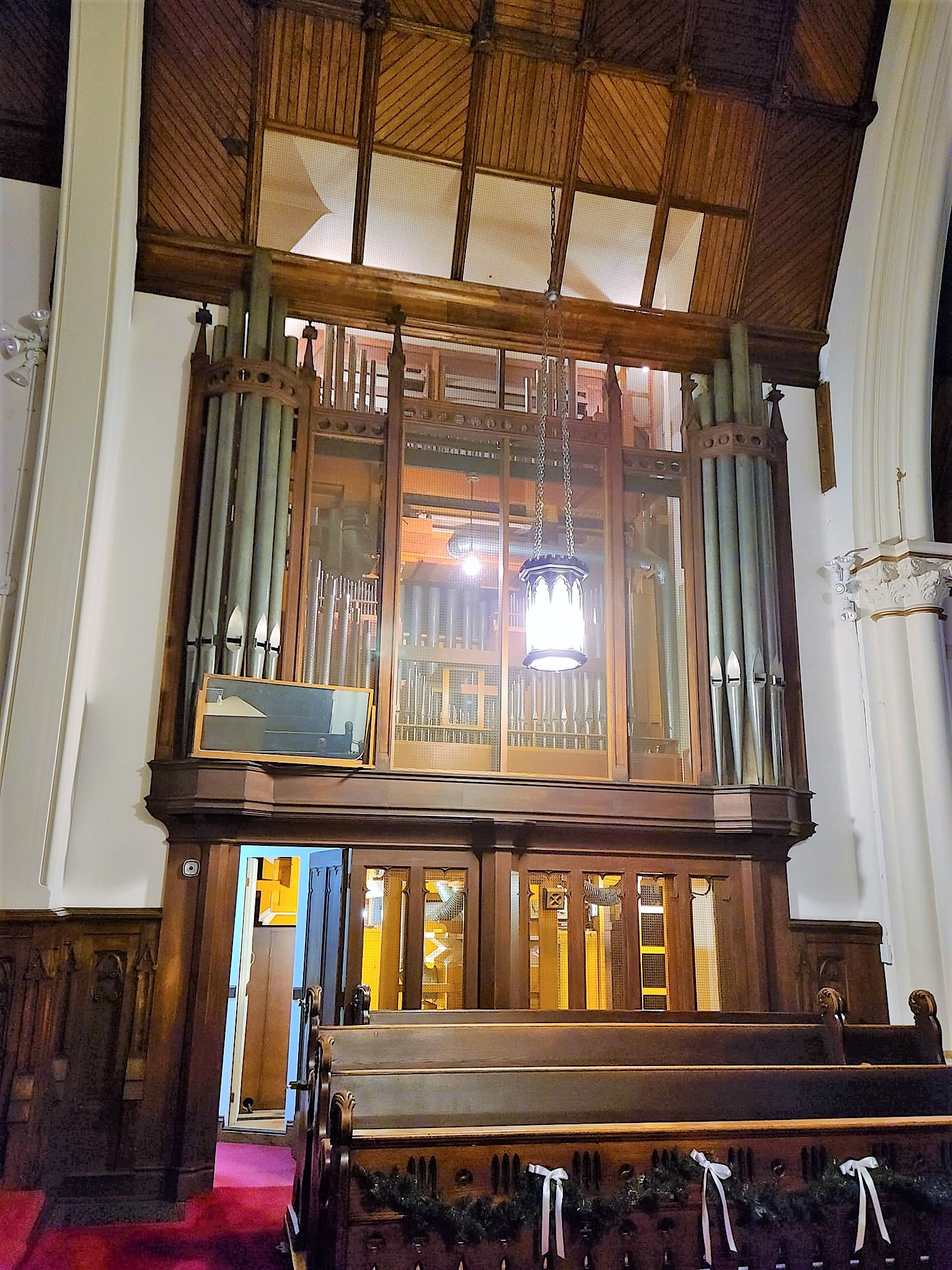

2022-12-12 - Chamber and pipework (Photograph by J Granger & Associates, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

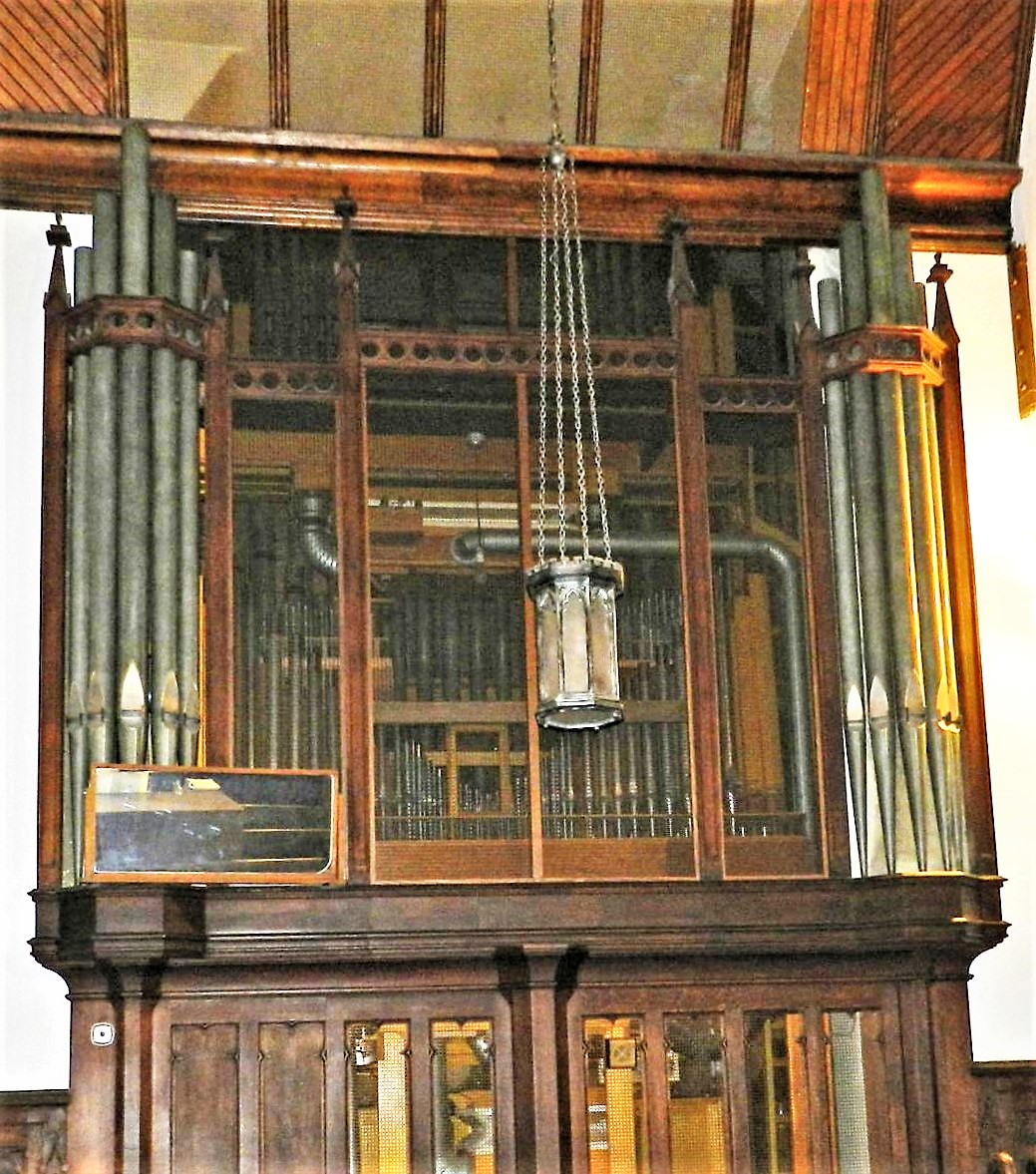

2015-04-15 - Organ Case / Pipework (Photograph by Mary K. Freel/Database Manager)

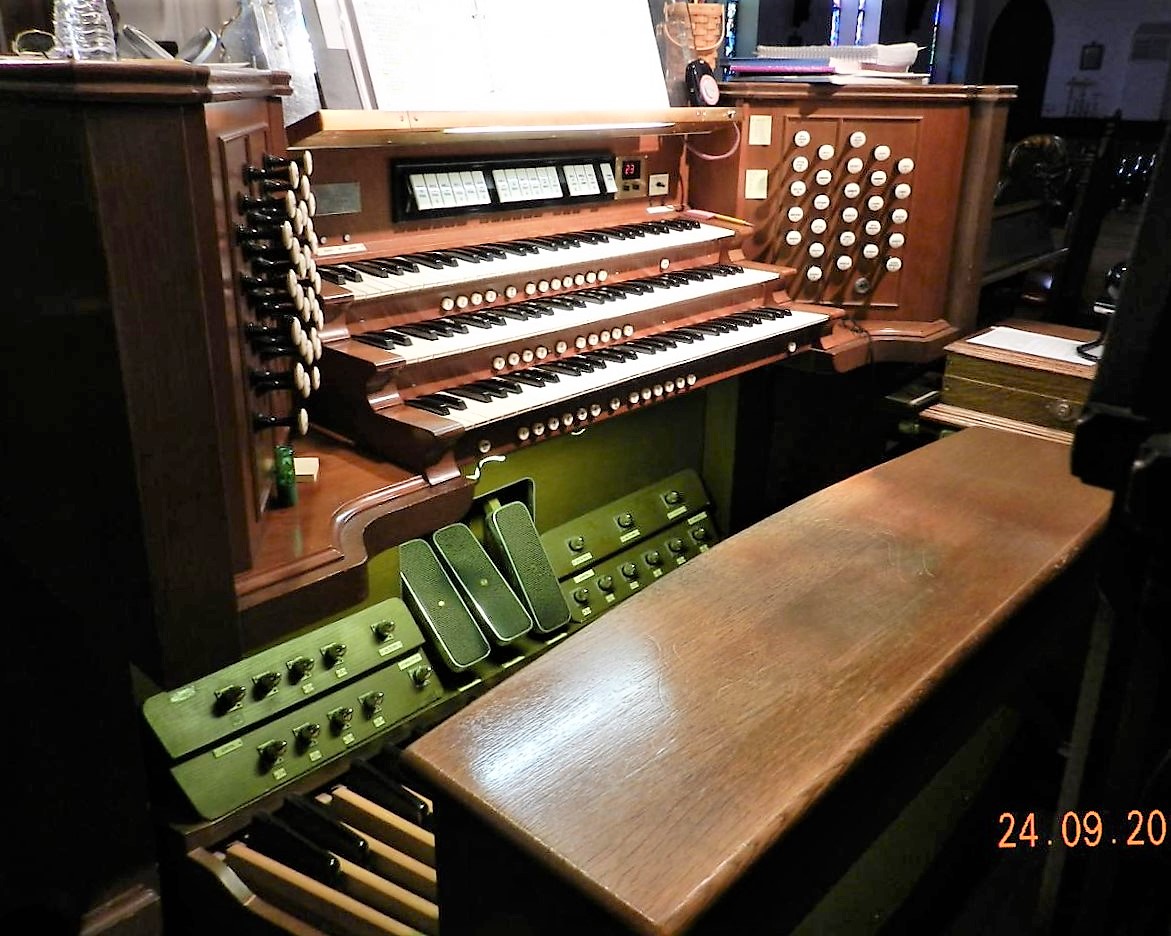

2015-04-15 - Console (Photograph by Mary K. Freel/Database Manager)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Console in Fixed Position, Left
- 3 manuals
- 28 stops
- 46 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Remote Pneumatic/Mechanical Capture
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2009-01-03 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager
2009-05-17 - Updated through online information from Jeff Scofield. -Database Manager
2016-11-16 - Updated through online information from Mary K Freel. -Database Manager
2023-08-13 - Facebook photos would indicate that the console was removed for renovation in 2021. -Jeff Scofield
Stoplist
Stoplist copied from the factory specifications Source: Factory Specifications 1963
Bay City, Michigan
Trinity Episcopal Church
Möller Op. 9764 1963 3/35
4" wind used throughout, except for the Choir Bombarde on 5".
For the Choir, it is intended that, except for the Erzählers,
the stops of this division are to have a strong and sturdy
tone, considerably bigger in size than is usually contemplated
for a Choir Organ. This applies most particularly to the
Bombarde from Great and Pedal, to be enclosed in the Choir.
GREAT CHOIR
16' Gedeckt 61 16' Erzähler 12
8' Principal 61 8' Nason Flute 61
8' Bourdon 61 8' Erzähler 61
4' Octave 61 8' Erzähler Celeste 49
4' Nachthorn 61 4' Spitzprinzipal 61
2' Fifteenth 61 2 2/3' Nazard 61
III Mixture 183 2' Blockflöte 61
8' Bombarde CH 1 3/5' Tierce 61
Tremulant II Zimbel 122
Unison Off 8' Krummhorn 61
Super Tremulant
8' Bombarde 61
SWELL Sub
8' Viole de Gambe 61 Unison Off
8' Voix Celeste 49 Super
8' Rohrflöte 61
4' Principal 61 PEDAL
4' Harmonic Flute 61 32' Resultant --
2' Doublette 61 16' Principal 32
1 1/3' Larigot 61 16' Sous Basse 32
IV Scharf 244 16' Erzähler CH
16' Fagot 61 (1-30 L/2) 8' Principal 12
8' Trompette 61 8' Bourdon 12
4' Hautbois 24 8' Erzähler CH
Tremulant 4' Choral Bass 12
Sub 4' Bourdon 12
Unison Off 4' Erzähler CH
Super 2' Octave 12
II Mixture 64
16' Bombarde 12 CH
8' Bombarde CH
4' Bombarde CH
[Received on line from Jeff Scofield May 17, 2009.]
The original Great mixture was replaced with a 4 rank Casavant mixture on a seperate chest and was replaced with a TC put-together "septieme cornet" in the 1970's
The Swell mixture was replaced with a Casavant IV 2/3' Zimbel in the 1970's
An 8' Geigen Principal was added to the Choir in the 1990's
