Better Pipe Organ Database

M. P. Möller Opus 9794 (1963)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Right
• 3 manuals
• 20 stops
• 27 registers
• 4 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Combination action: 'Hold and Set' Pneumatic/Mechanical
• Has combination thumb pistons
• Has coupler toe pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Notes

2009-01-03 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

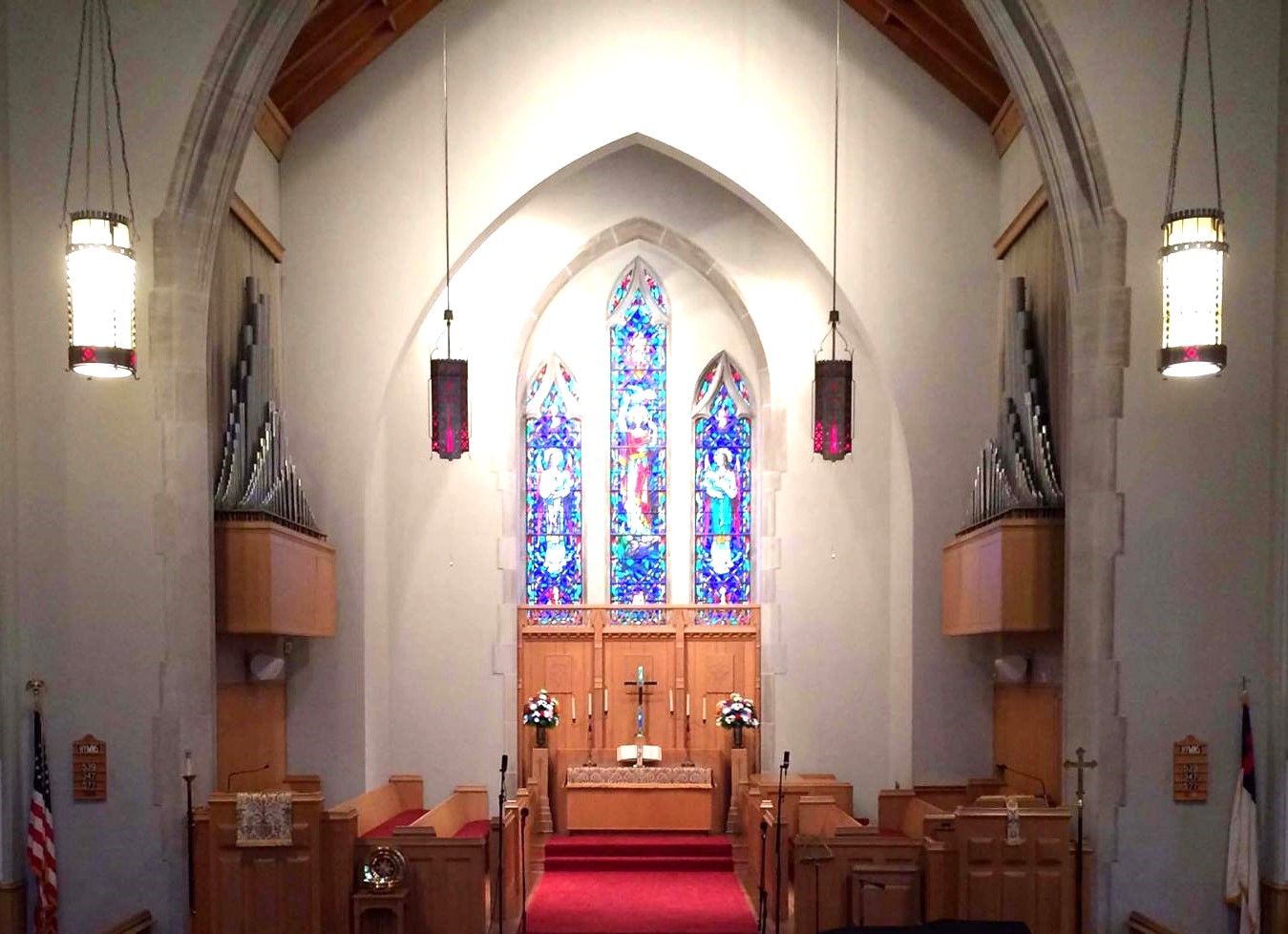

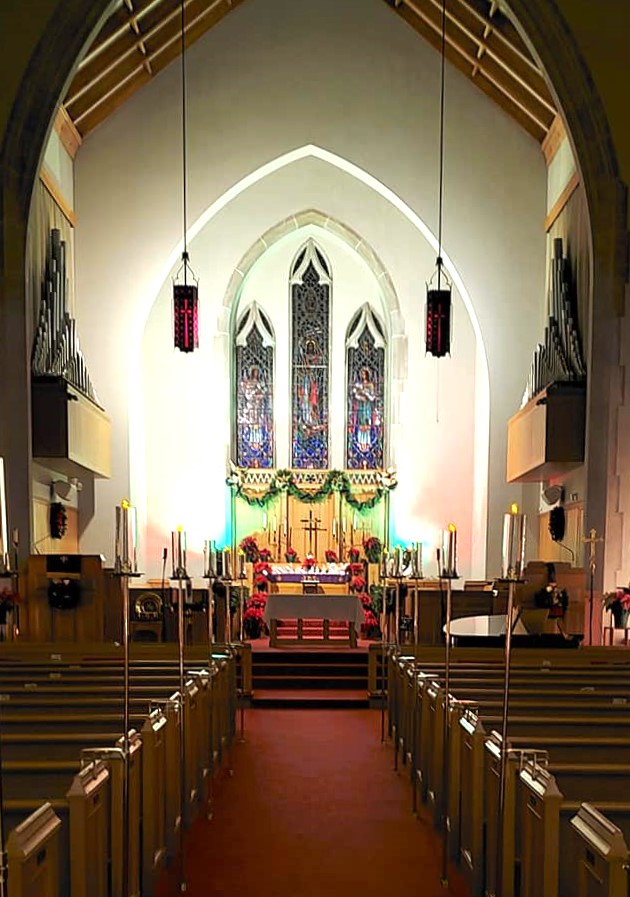

2009-05-18 - Updated through online information from Jeff Scofield. -- Swell and Choir in side chambers opening into the divided chancel, with Great and Pedal functionally exposed in front of the two chambers. -Database Manager

2011-01-26 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Cambridge, Maryland
Zion Methodist Church

Möller   Op. 9794   1963   3/22

       GREAT (3" wind)             CHOIR (4")
    8' Diapason 61              8' Nasonflöte 61
    8' Bourdon 61               8' Erzähler 61
    4' Octave 61                8' Erzähler Celeste 49
2 2/3' Twelfth 61               4' Koppelflöte 61
    2' Fifteenth 61             2' Blockflöte 61
       Carillonic Bells     1 1/3' Larigot 61
       Unison Off               8' Clarinet 61
                                   Tremulant
       SWELL (4" wind)             Sub
   16' Rohrgedeckt 61              Unison Off
    8' Rohrflöte 12                Super
    8' Viole de Gambe 68           Harp
    8' Viole Celeste 54            Celesta
    4' Geigen Principal 68
    4' Rohrflöte 12                PEDAL (4")
    2' Piccolo 12              16' Bourdon 32
  III  Plein Jeu 183           16' Rohrgedeckt SW
    8' Trompette 68             8' Principal 32 (3")
       Tremulant                8' Bourdon 12
       Sub                      8' Rohrflöte SW
       Unison Off               4' Octave 12
       Super                   16' Contre Trompette 12 SW
                                8' Trompette SW

 [Received on line from Jeff Scofield May 18, 2009.]
