M. P. Möller Opus 9891 (1964)

St. Helen Roman Catholic Church
2315 West Augusta Boulevard
Chicago, IL

Images

2013-11-18 - Great Pipework (Photograph by Alex Fries/Database Manager)

2013-11-18 - Choir Pipework (Photograph by Alex Fries/Database Manager)

2013-11-18 - Swell Pipework (Photograph by Alex Fries/Database Manager)

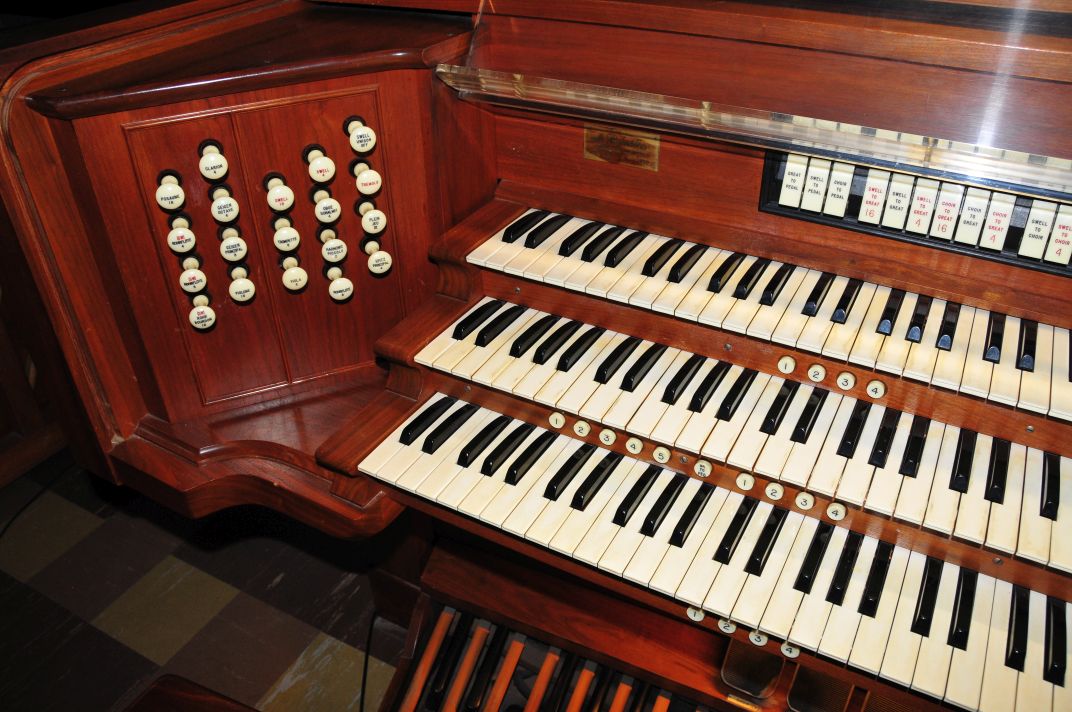

2013-11-18 - Console (Photograph by Alex Fries/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
19 stops
26 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2009-01-05 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-07-14 - Updated through online information from Jeff Scofield. -Database Manager

2014-02-07 - Updated through online information from Alex Fries. -- The Tremolo on the GREAT was removed and replaced with a 2 octave Deagan Chime at an unknown time. However the stop tab on the console is still labeled "tremolo." A project is currently underway to repair as many of the issues as allowed by the church budget. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

     Chicago, Illinois
     St. Helen R. C. Church

     Möller   Op. 9891   1964   3/25

     GREAT (3½" wind)           CHOIR (4")
  8' Principal 61            8' Cor de Nuit 61
  8' Bourdon 61              8' Gemshorn 61
  4' Octave 61               8' Gemshorn Celeste 49 tc
 IV  Fourniture 244          4' Koppelflöte 61
     Tremolo (in SW box)     2' Doublette 61
     Super                  II  Sesquialtera 98 tc
                                Tremolo
     SWELL (4")                 Sub
  8' Rohrflöte 61               Super
  8' Viola 61
  4' Spitzprinzipal 61          PEDAL (4")
  2' Harmonic Piccolo 61    16' Violone 32
III  Plein Jeu 183          16' Rohrbourdon 12 SW
  8' Trompette 61            8' Geigen Prinzipal 12
  4' Oboe Schalmei 61*       8' Rohrflöte SW
     (*Trichterregal)        4' Geigen Octave 12
     Tremolo                 4' Rohrflöte SW
     Sub                    16' Posaune 32  L/2
     Unison Off              4' Clarion 24
     Super

[Received on line from Jeff Scofield July 14, 2009.]
