M. P. Möller Opus 10012 (1965)

St. Elisabeth Episcopal Church
556 Vernon Avenue
Glencoe, IL

Images

2022-11-12 - Organ chamber screen (Derek Nickels /Derek Nickels)

2022-11-12 - Antiphonal (Derek Nickels /Derek Nickels)

2022-11-12 - Nave (Derek Nickels /Derek Nickels)

2022-11-12 - Church exterior (Derek Nickels /Derek Nickels)

2025-01-25 - Church interior to rear and Antiphonal (Church Facebook via Jeff Scofield/Jeff Scofield)

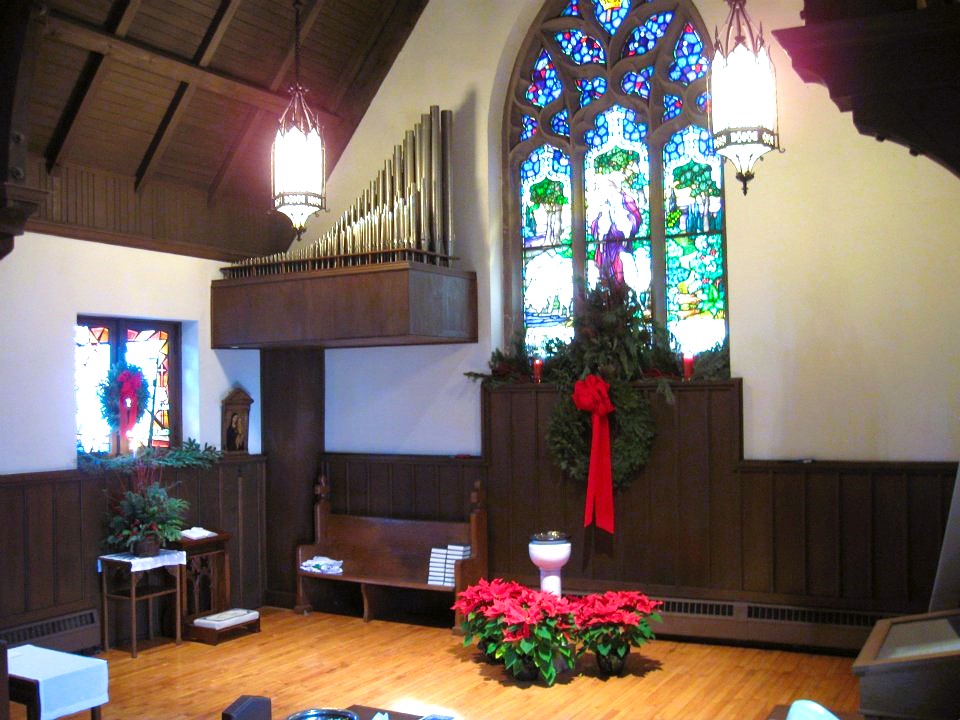

2012-01-09 - Antiphonal (Church Facebook via Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
3 manuals
21 stops
33 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-01-12 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-08-02 - Updated through online information from Jeff Scofield. -- The Antiphonal is functionally displayed on the left rear wall of the nave; there is no balcony -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

     Glencoe, IL
     St. Elisabeth Episcopal Church

     Möller   Op. 10012   1965   3/27

     GREAT (II)                    SWELL (III)
  8' Principal 61              16' Quintade 61
  8' Holzgedeckt 61             8' Rohrflöte 12
  4' Octave 61                  8' Gemshorn 73
  4' Spitzflöte 61              8' Gemshorn Celeste 68 FF
  2' Doublette 61               4' Weitprinzipal 61
III  Fourniture 183             4' Chimney Flute 12
     Tremolo                    2' Harmonic Piccolo 61
     Super                  1 1/3' Larigot 61
                              III  Plein Jeu 183
     PEDAL                      8' Trompette 61
 16' Bourdon 12 GT              4' Trichterregal 61
 16' Quintade SW                   Tremolo
  8' Geigen Prinzipal 32           Sub
  8' Rohrflöte SW                  Unison Off
  4' Geigen Octave 12              Super
  4' Rohrflöte SW
 II  Rauschpfeife 64               ANTIPHONAL (I)
 16' Double Trumpet 12 SW       8' Bordun 61
  8' Trompette SW               8' Gemshorn SW
  4' Clarion SW                 8' Gemshorn Celeste SW
                                4' Prinzipal 61
                                2' Blockflöte 61
                               II  Mixture 122
                                   Super (cancelled by II Mixture)

[Received on line from Jeff Scofield August 02, 2009.]

Documents

(1965-01-29) Factory specifications via Jeff Scofield -Jeff Scofield
