Better Pipe Organ Database

M. P. Möller Opus 10076 (1966)

First Presbyterian Church: Sanctuary
510 W. Ottawa St.
Lansing, MI

Images

2010-04-20 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

2010-04-20 - Console (Photograph by Chad Boorsma/Database Manager)

2010-04-20 - Nave and Gallery Organ (Photograph by Chad Boorsma/Database Manager)

2010-04-20 - Gallery Pipe Display and Chamber (Photograph by Chad Boorsma/Database Manager)

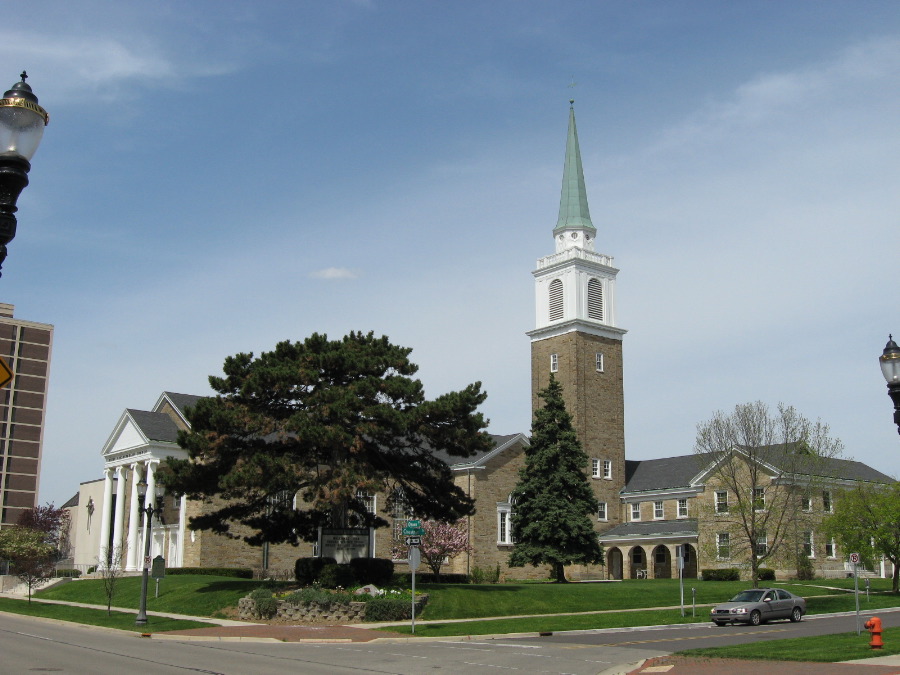

2010-04-20 - Church Building (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
4 manuals
32 stops
51 registers
6 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-01-12 - Identified from factory documents and publications courtesy of Stephen Schnurr. -Database Manager

2009-08-08 - Updated through online information from Jeff Scofield. -- Three balcony divisions and four chancel divisions, counting the enclosed Great stops as a separate division. -Database Manager

2010-04-20 - Updated through online information from Jeff Scofield. -Database Manager

2010-04-21 - Updated through online information from Chad Boorsma. -- The Chancel divisions are enclosed behind curtains at the front of the room. The Balcony Swell division is under expression on the right side of the balcony with the Grand and Pedal Balcony divisions exposed on both sides of the balcony. There was some revoicing work done in 1985 by Fowler Organ Company. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

     Lansing, Michigan
     First Presbyterian Church

     Möller   Op. 10076   1966   4/40

     BALCONY DIVISIONS                CHANCEL DIVISIONS

     GRAND (exposed)                  GREAT
 16' Quintaton 61                  8' Principal 61
  8' Principal 61                  8' Flauto Dolce 61 (enclosed)
  8' Gemshorn 61                   4' Octave 61
  8' Chimney Flute 61              4' Waldflöte 61 (enclosed)
  4' Octave 61                 II-IV  Mixture 208
  2' Blockflöte 61                 8' Krummhorn 61 (enclosed)
 IV  Mixture 244                      Tremolo
     Sub                              Sub
     Unison Off                       Unison Off
     Super                            Super

     SWELL                            CHOIR
  8' Holzgedeckt 61               16' Rohrflöte 61
  8' Viola da Gamba 61             8' Rohrflöte 12
  8' Viola Celeste 54 GG           8' Salicional 61
  4' Spitz Principal 61            8' Voix Celeste 49 tc
  4' Koppelflöte 61                4' Spitzflöte 61
  2' Kleinoktav 61                 2' Gemshorn 61
 II  Sesquialtera 98 tc        1 1/3' Larigot 61
  8' Trompette 61                 16' Fagotto 61
     Tremolo                       8' Fagotto 12
     Sub                           4' Fagotto
     Unison Off                       Tremolo
     Super                            Sub
     Chimes 20 (Deagan M)             Unison Off
                                      Super
     PEDAL
*16' Violone 32                       PEDAL
*16' Quintaton GT                 16' Bourdon 32
 16' Gedeckt 12 SW                16' Rohrflöte CH
* 8' Violone 12                    8' Principal 32
  8' Gedeckt SW                    8' Rohrflöte SW
* 4' Violone 12                    4' Principal 12
*II  Mixture 64                    4' Rohrflöte SW
 32' Bombarde 12 (L/2)             2' Principal 12
 16' Contre Trompette 12 SW       16' Contra Fagotto CH
  4' Trompette SW                  8' Fagotto CH
                                   4' Clarion CH
  *  Exposed

[Received on line from Jeff Scofield August 08, 2009.]

Documents

(1965-06-15) Factory specifications Stoplist and accessories -Jeff Scofield
